260HP 4X4 Hybrid Wheel Tractor Intelligent Farm Agricultural Machinery
| MOQ | 1 Piece |
| Category | Machinery |
More from this Supplier
Product Description
Product Description

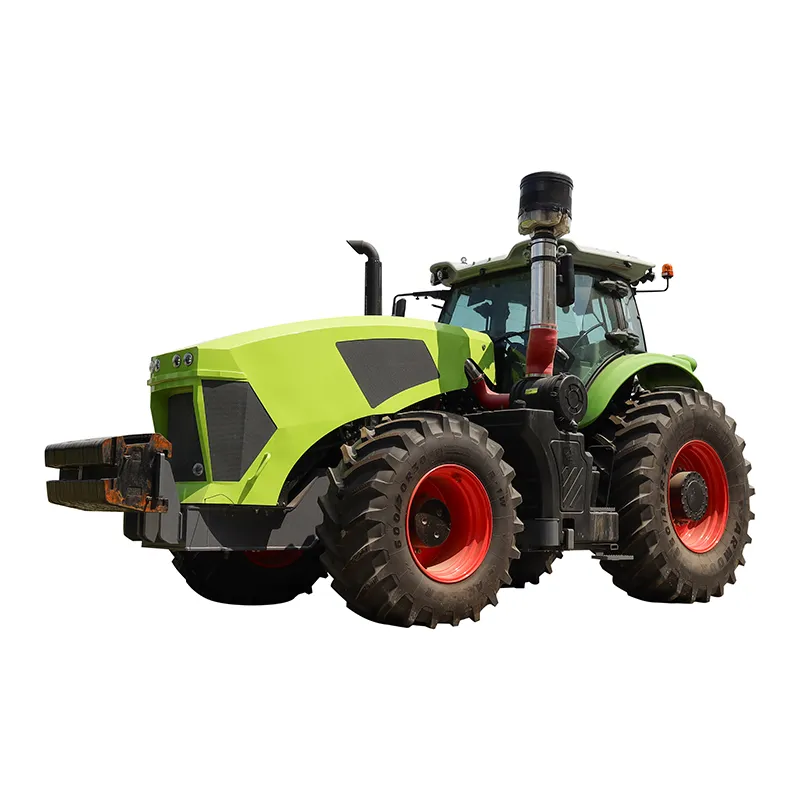

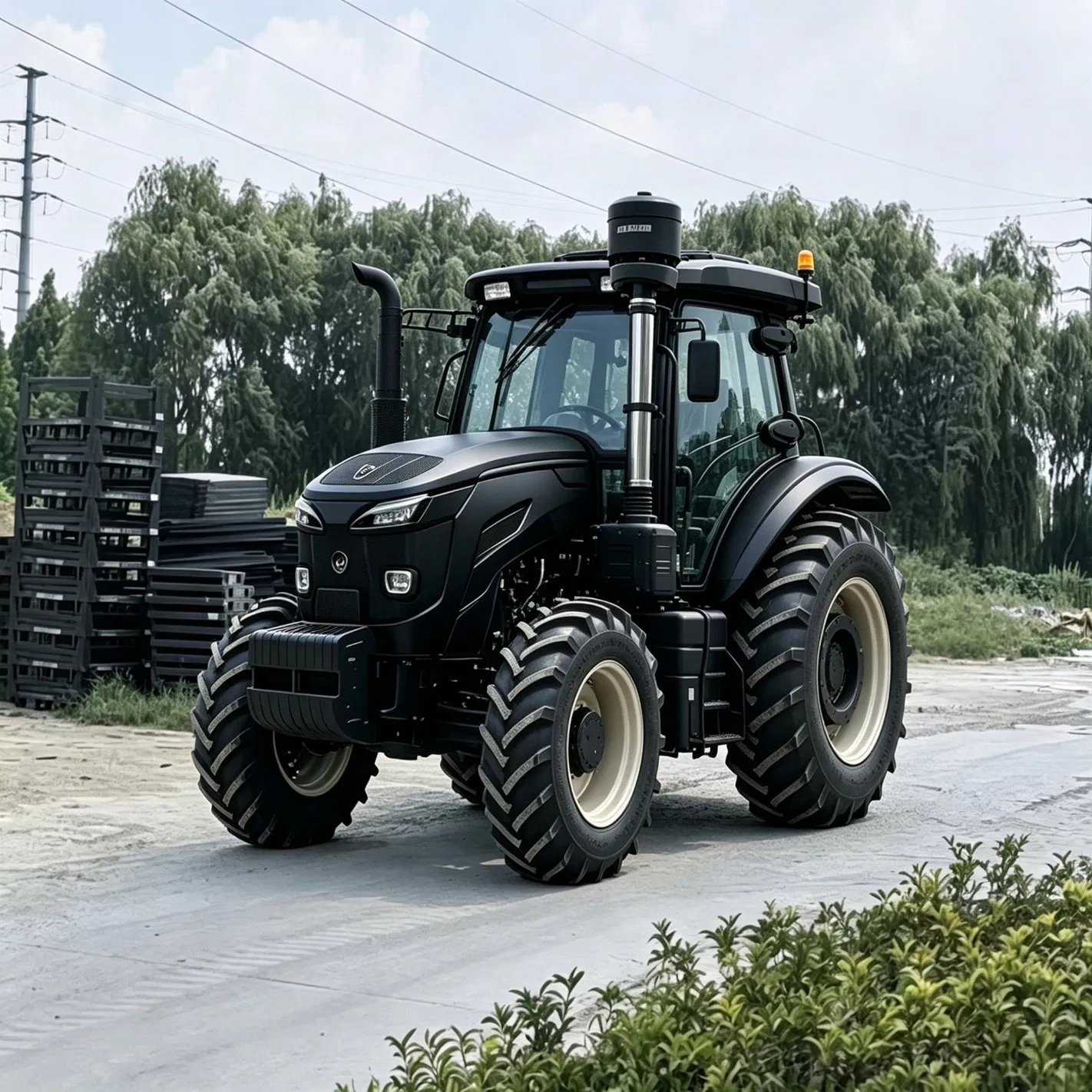

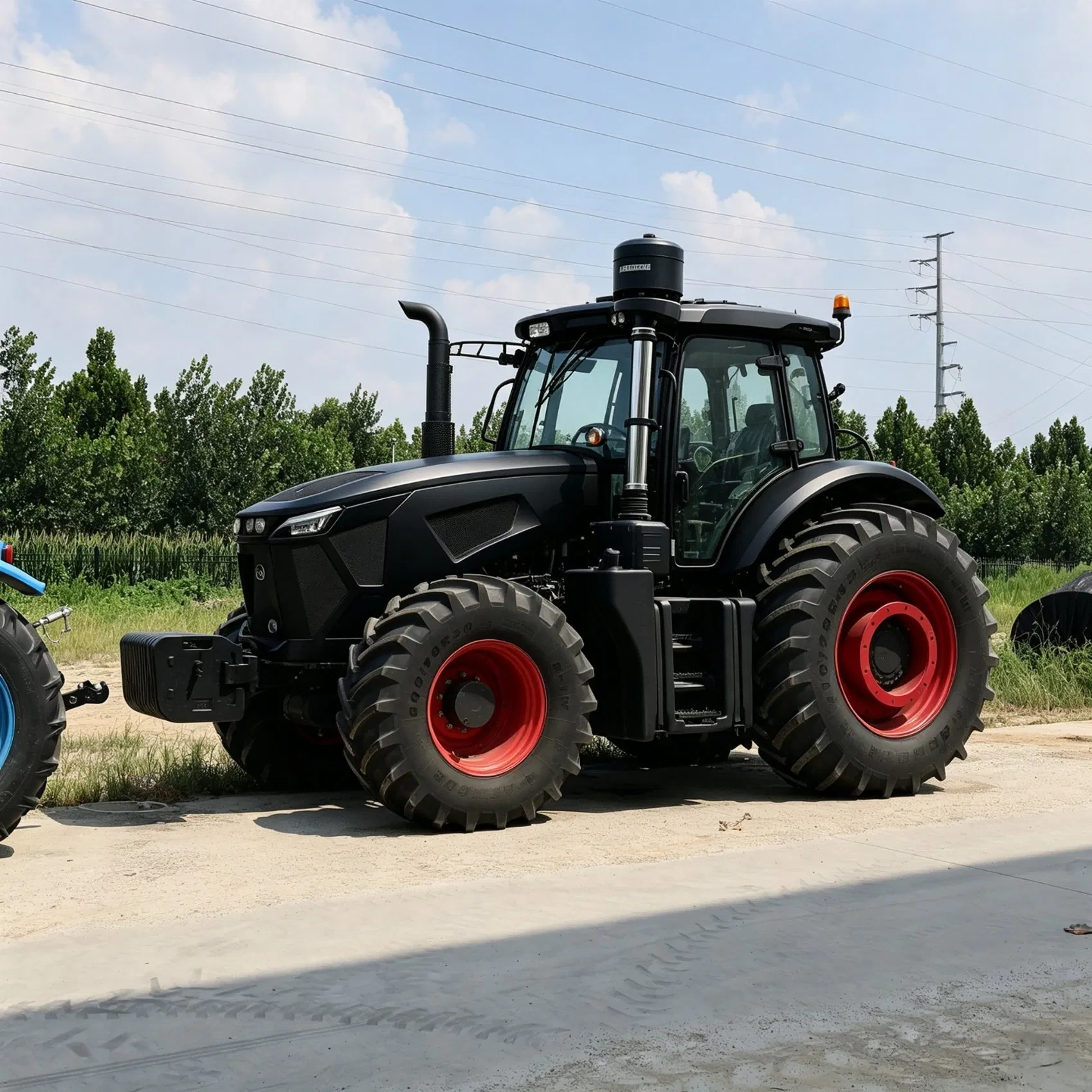

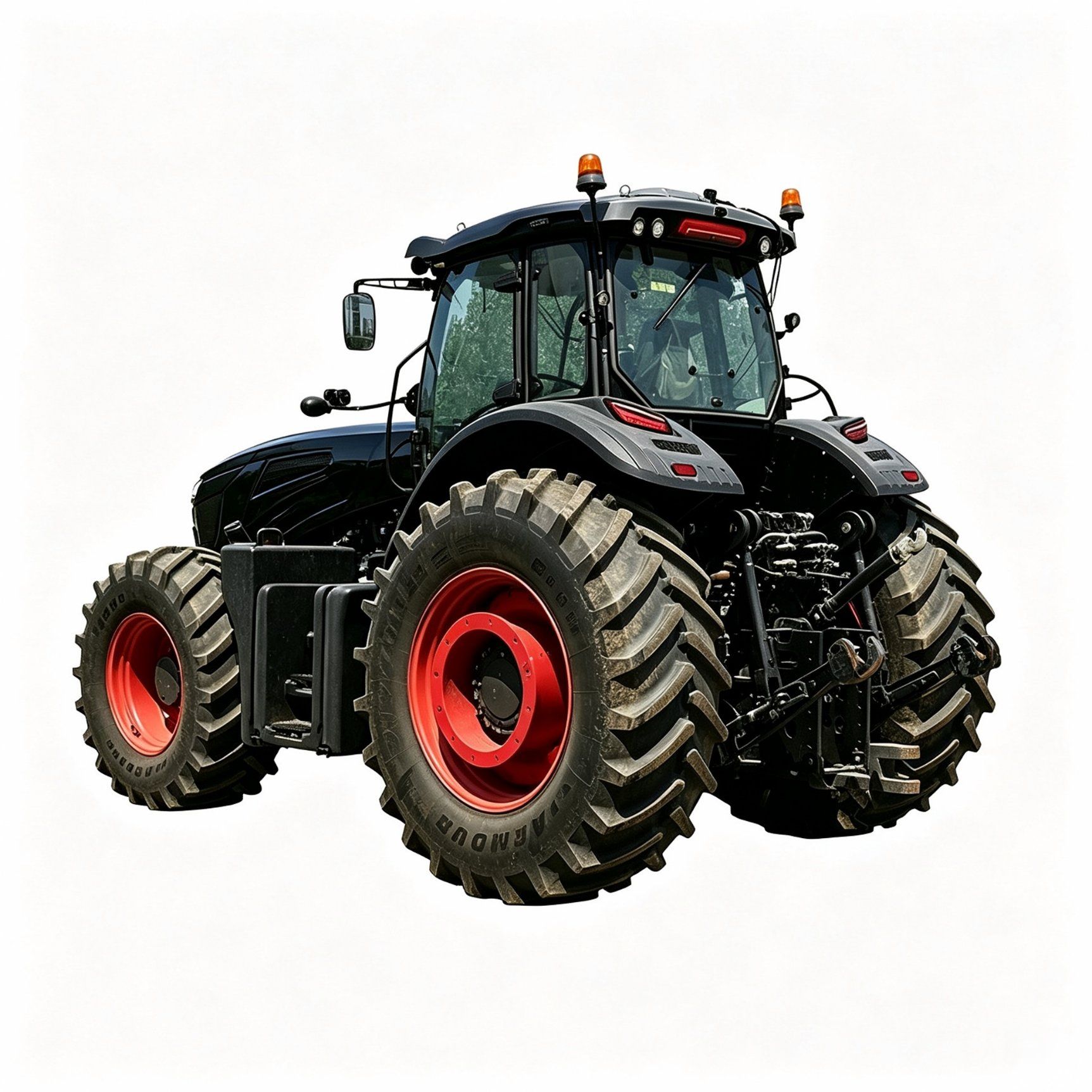

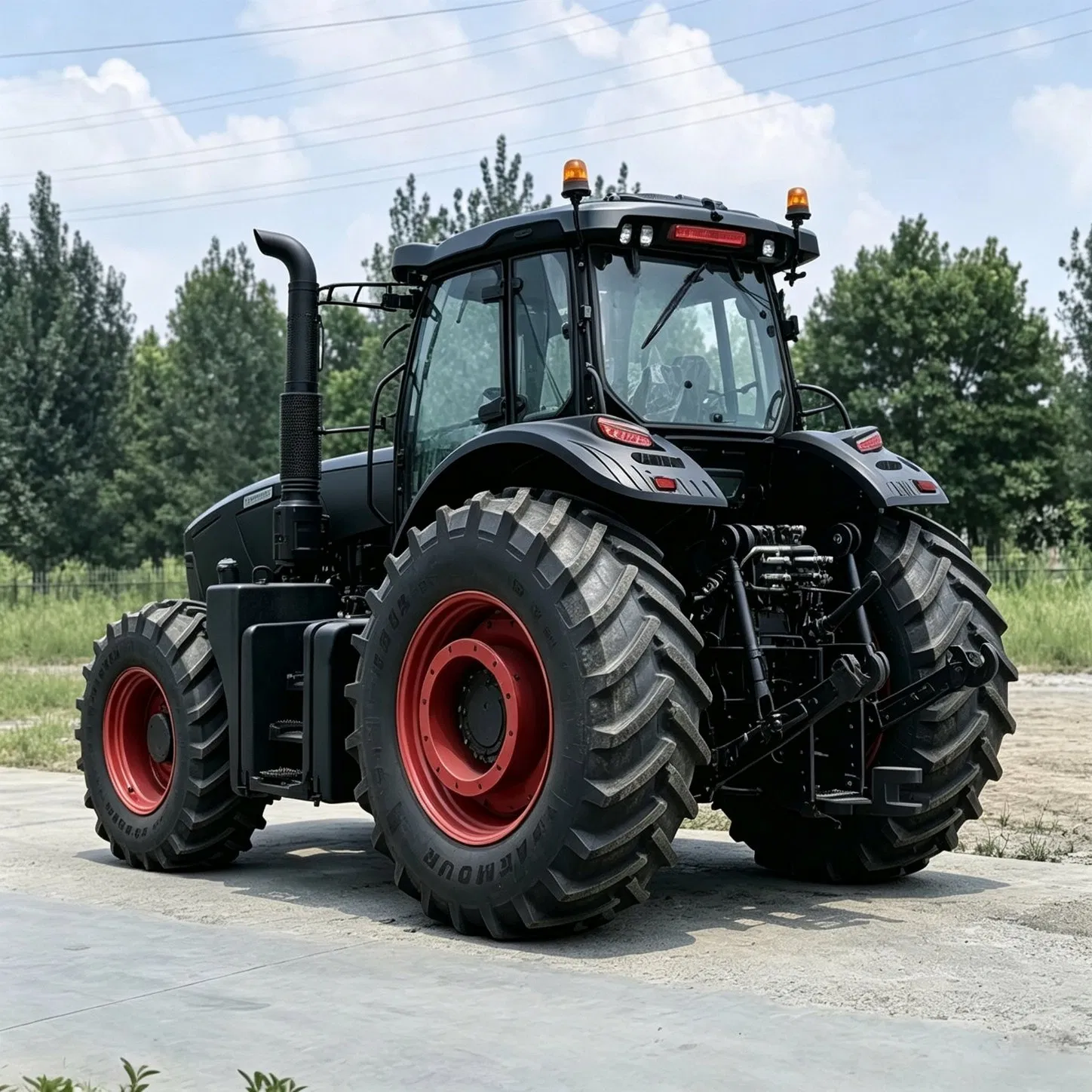

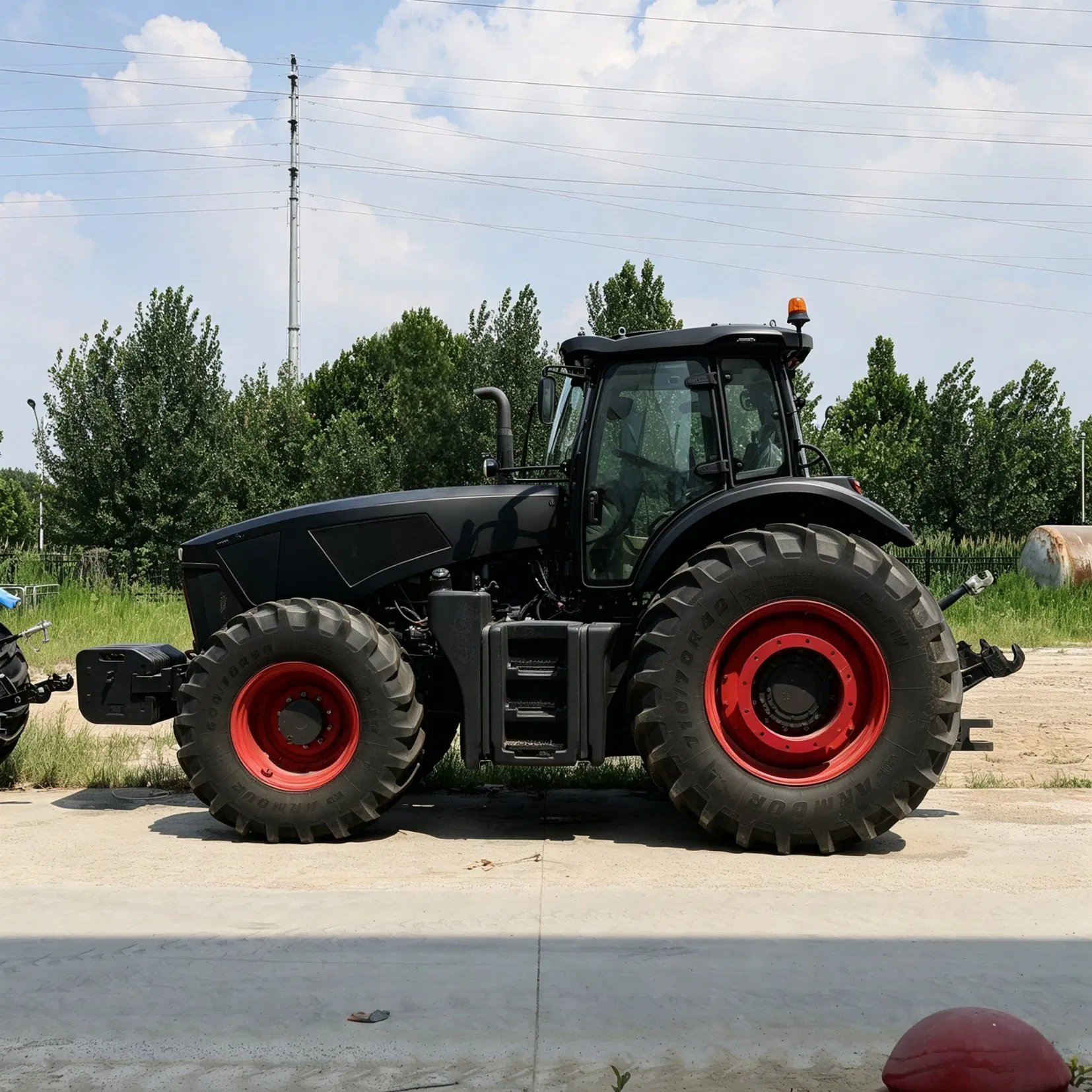

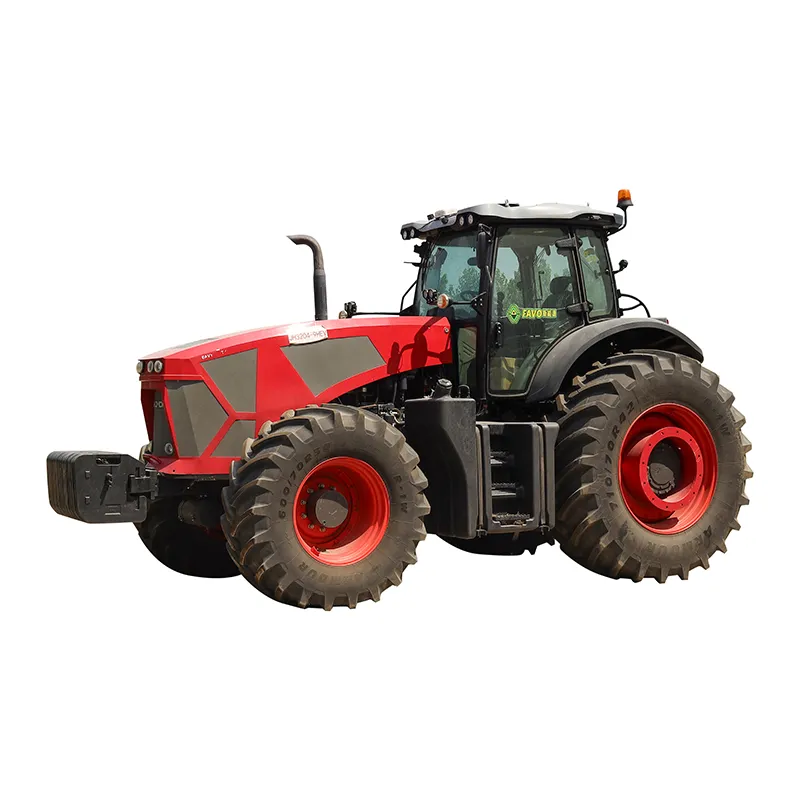

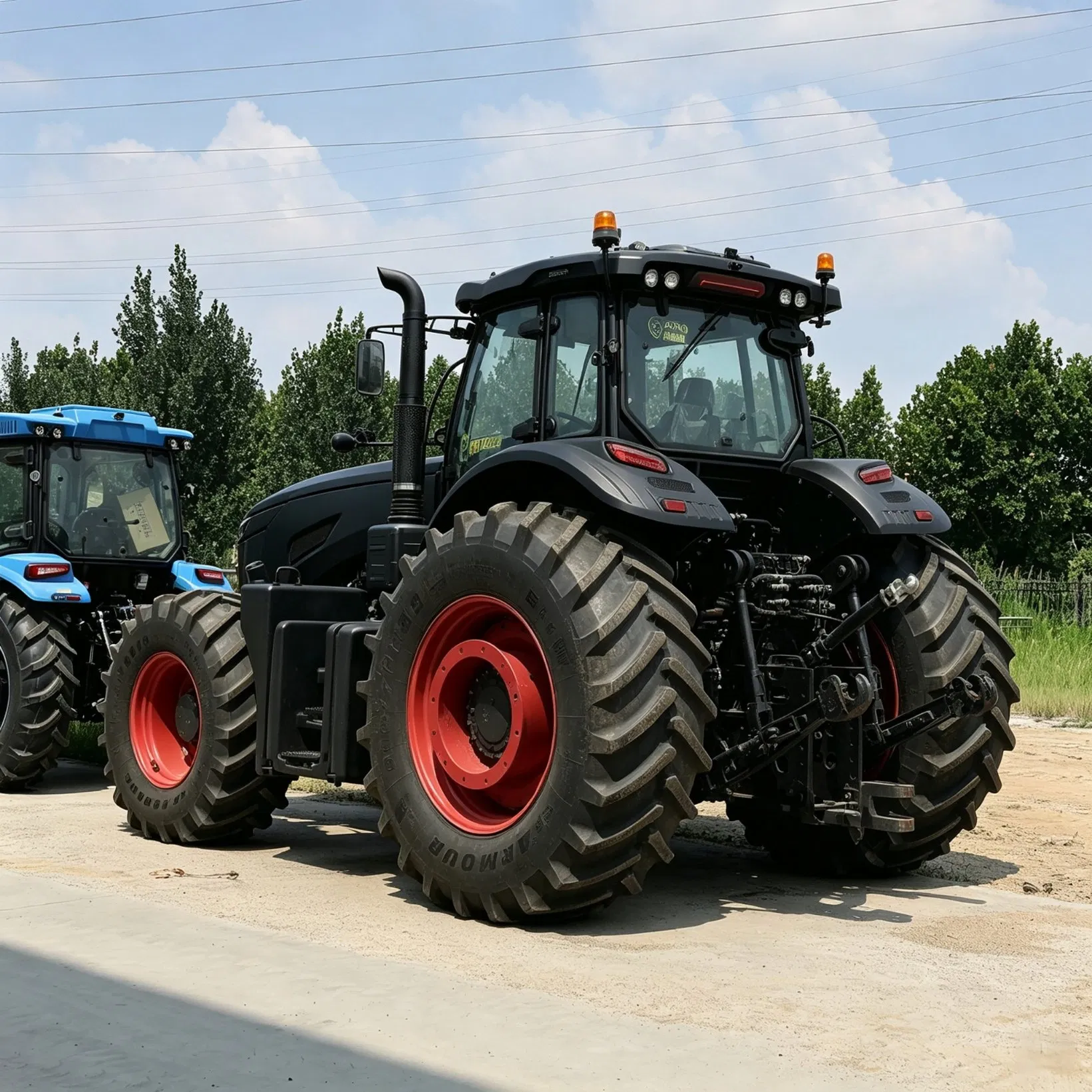

Psenda S2604 Wheel Tractor
(Intelligent 4WD 260HP Agricultural Machinery Farm Wheel Tractor)
Highlights
Power:
The world's first power-split ECVT technology achieves transmission efficiency exceeding 95%, representing a 10%-15% improvement over conventional technologies. This significantly reduces energy consumption and operational costs.
Chassis:
Features an integrated ladder frame and utilizes a high-reliability construction machinery rear axle. This design enhances load-bearing capacity, improves assembly convenience, reduces engine vibration transmission, and enhances the driver's operating environment.
Cab:
All controls in the cab are electronically operated to improve driver convenience.
Intelligent:
Motor-driven, fine control, support for expanding auto-cruise and driverless.
Specification
| Platform | F-Platform | K-Platform | E-Platform (Technology reserves, currently undeveloped) |
| Premiere model | FVM3004-HEV | FVH5004-HEV | FVE754-BEV |
| Matching power | 260-450 | ≥550 | 70-140 |
| Engine Model | SHANGCHAI/9DF/7H+ YUCHAI/K09/K11 | YUCHAI/YCK13580-T400 | / |
| Engine type | Electronically Controlled High-Pressure Common Rail, Turbocharged with Intercooler Electronic Control High-Pressure Common Rail, Turbocharged with Intercooler | Electronically Controlled High-Pressure Common Rail, Turbocharged with Intercooler Electronic Control High-Pressure Common Rail, Turbocharged with Intercooler | / |
Rated engine power/speed kW/(r/min) | 220/2200 | 426/1900 | / |
| Fuel tank capacity (L) | 700 | 1500 | / |
Motor rated power/torque(kW/N.m) | 100/350 | In the process of selecting model | 100/1700 |
| Transmission Model | E-CVT-Ⅰ In-house developed power splitting E-CVT-Ⅰ | E-CVT-Ⅱ In-house developed power splitting E-CVT-Ⅱ | Single-stage reducer |
| Driving form | 4×4 | 4×4 (Articulated) | 4×4 (Articulated) |
| Power battery charge level(kwh) | 6 | 20 | 200 |
| Overall dimensions(mm) | 6120×2890×3380 | 7950×3010×3740 single tire 7950×3350×3740 double tire | 4830×2050×3020 |
| Wheelbase ( mm) | 3050 | 3910 | 2600 |
| Front wheelbase (mm) | 1904-2288 | 1740-2036 | 1710 |
| Rear wheelbase (mm) | 2036-2312 | 1710-2020 | 1620 |
| Minimum turning radius(m) | less than 7 | less than 6.1 | less than 4.0 |
| Minimum ground clearance (mm) | ≥520 | ≥420 | ≥410 |
| Minimum usable mass (kg) | ≤10950 | ≤20000 | ≤5300 |
| Rated Towing Capacity (kN) | 58 | 100 | 27 |
| Maximum Traction (kN) | 87 | 160 | 37 |
| Forward gear speed (km/h) | 0-40 | 2-36 | 0-38 |
| Reverse gear speed (km/h) | 0-25 | 2-23 | 0-25 |
| Tire Specifications | Front tire 600/70R30 Rear tire 650/85R38Optional 710/70R42 | Front tire 20.8-42 Rear tire 20.8-42 | Front tire 320/85R24 Rear tire 460/85R34 |
| Power Output | Rear-mounted, independent drive | Rear-mounted, independent drive | Rear-mounted, independent drive |
| Rated Output Speed (r/min ) | 540/1000 | 1000 | 540/1000 |
| Maximum Lifting Capacity (kN) | 74 | 89 | 26 |
| Hydraulic system | Rear-mounted Class III/IV three-point suspension, Jiangsu Hengli/Rexroth | Rear-mounted Class III/IV three-point suspension, Jiangsu Hengli/Rexroth | Rear-mounted Class III/IV three-point suspension, Jiangsu Hengli/Rexroth |
| Number of hydraulic output group | 5 sets | 6 sets | 3 sets |
Company Profile
Company Introduction
Qingdao Psenda Co., Ltd. is a professional manufacturer and exporter with multiple production bases. Our products are exported to more than 50 countries and regions, covering the European Union, North America, the Gulf Countries and beyond. We specialize in designing and producing machinery and attachments for the construction, mining, agricultural and forestry sectors.
We use globally renowned branded components such as CARRARO axles & transmissions, HUSCO valves, Danfoss steering units and priority valves, plus Rexroth and Hengli hydraulic systems. Coupled with advanced manufacturing facilities, outstanding design and assembly capabilities, premium raw materials, strict testing and careful production management, our equipment features low downtime and high performance, built on reliable quality you can count on.

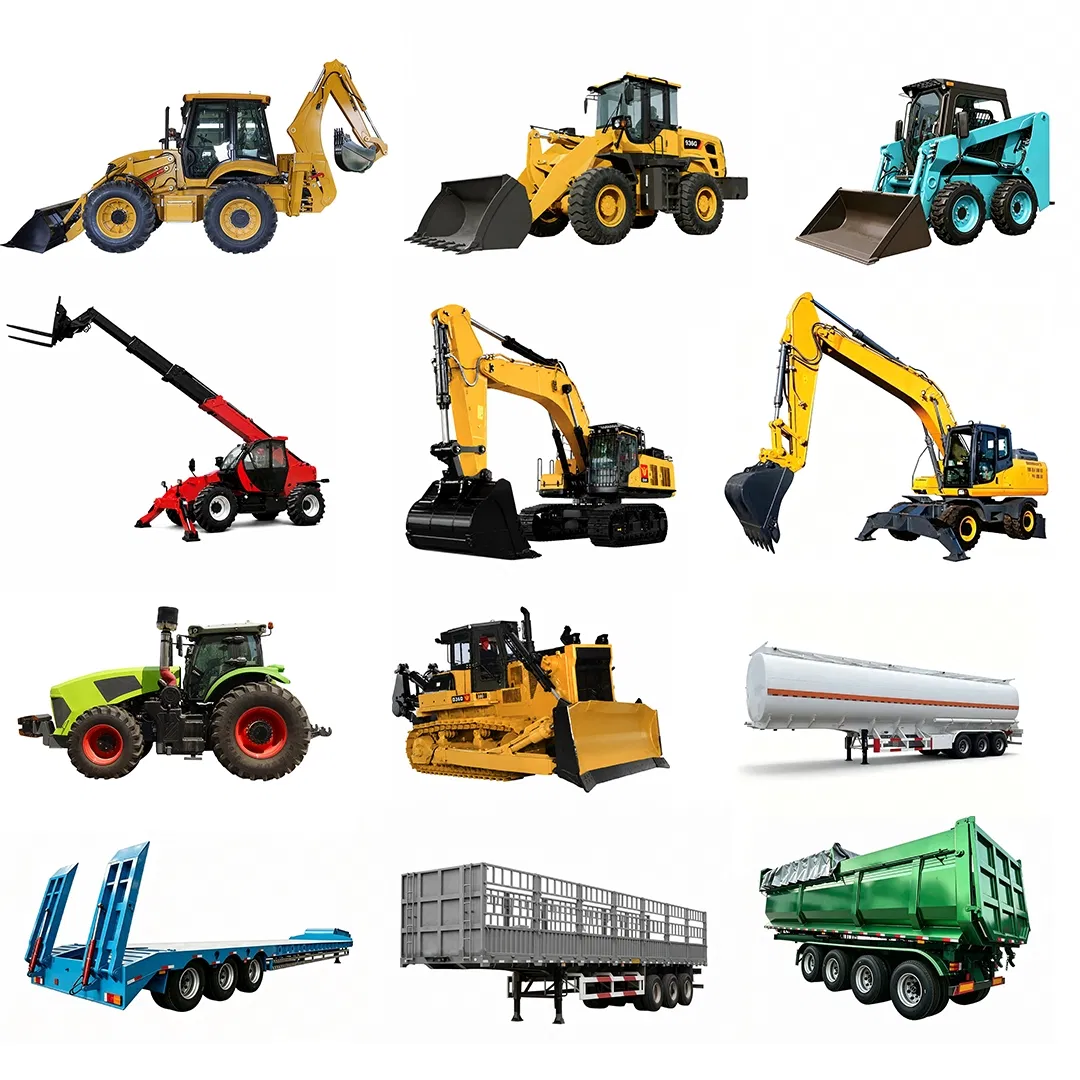

Main Products
Our comprehensive product portfolio includes crawler excavators, wheel excavators, wheel loaders, backhoe loaders, skid steer loaders, forklifts, tractors, bulldozers, telescopic handlers, special purpose vehicles, trailers and trucks, as well as new energy equipment, and attachments. Furthermore, we offer customized design and manufacturing tailored to clients' specific requirements.

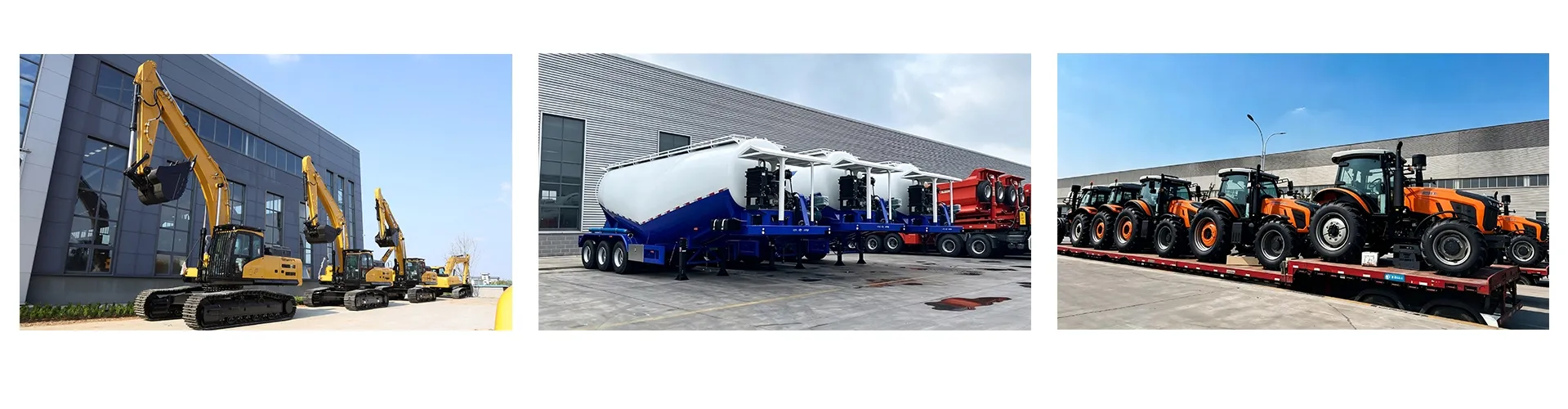

Packaging & Shipping
Efficient&Safe Transportation
We offer multiple shipping options: container, bulkship, Ro-Ro and rail transport. Safety and efficiency are our top priorities, with customers at the heart of everything we do.
Certifications
Attachments
More options and attachments are available on request.
Broad selection of optional attachments for municipal, construction, agricultural, forestry, water-conservancy & other industry application.

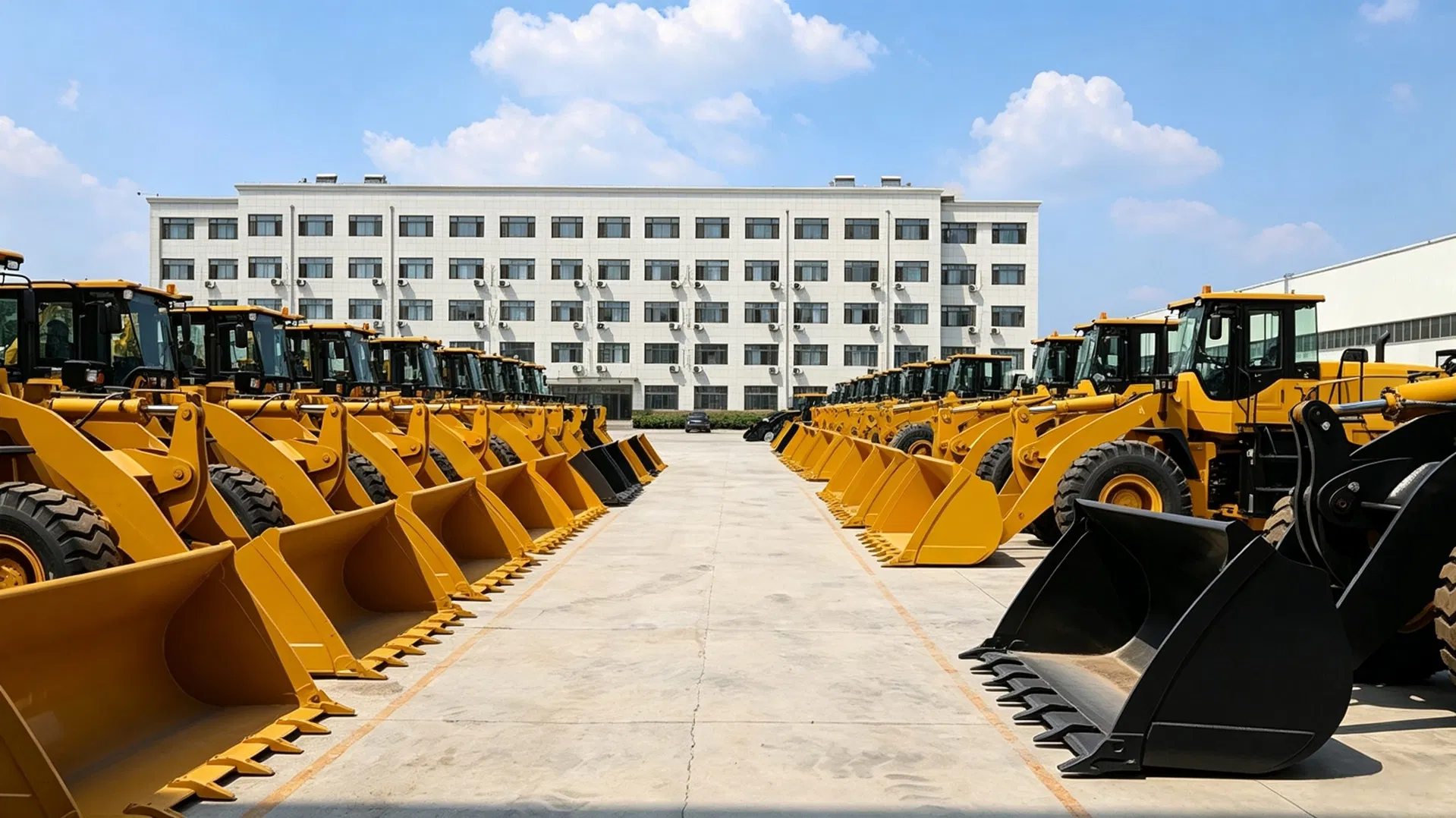

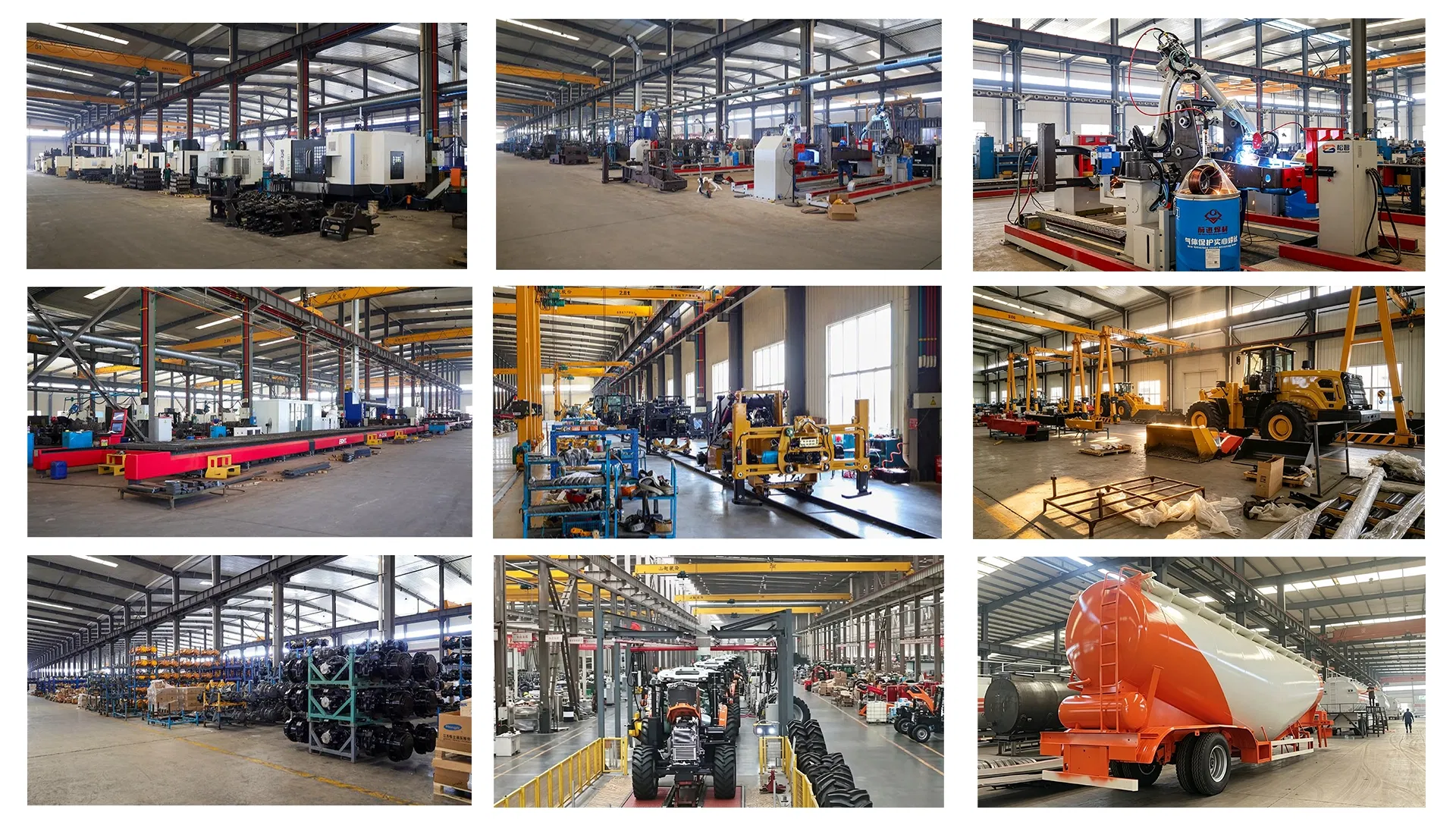

Flexible, efficient and high-performance production lines
Equipped with advanced facilities, skilled engineers and workers, and refined management systems, we are capable of not only mass-producing high-quality products, but also delivering customized design and manufacturing to meet client-specific requirements.
Technical Specifications
| After-sales Service | 7*24hour Online Service |
| Warranty | 1 Year |
| Type | Wheel Tractor |
| Usage | Farm Tractor, Garden Tractor, Lawn Tractor |
| Certification | ISO, CE, EPA, CCC, ISO/TS16949, EEC, XQC |
| Drive Wheel | 4WD |
| Emission Standard | Euro IV |
| Fuel | Hybrid |
| Service Life | 15years |
| Size | Medium |
| Condition | New |
| Fuel Tank Capacity | 700/1500 L |
| Rated Engine Power/Speed | 220/2200, 426/1900 Kw/(R/Min) |
| Power Battery Charge Level | 6/20/200 Kwh |
| Maximum Lifting Capacity | 74/89/26 kN |
| Transport Package | Containor, Bulk Ship, RO-RO |
| Overall Dimensions | 5840*2635*3200mm |
| Trademark | Psenda/OEM |
| Origin | China |
| Model NO. | S2604 |
| Customization | Available |
