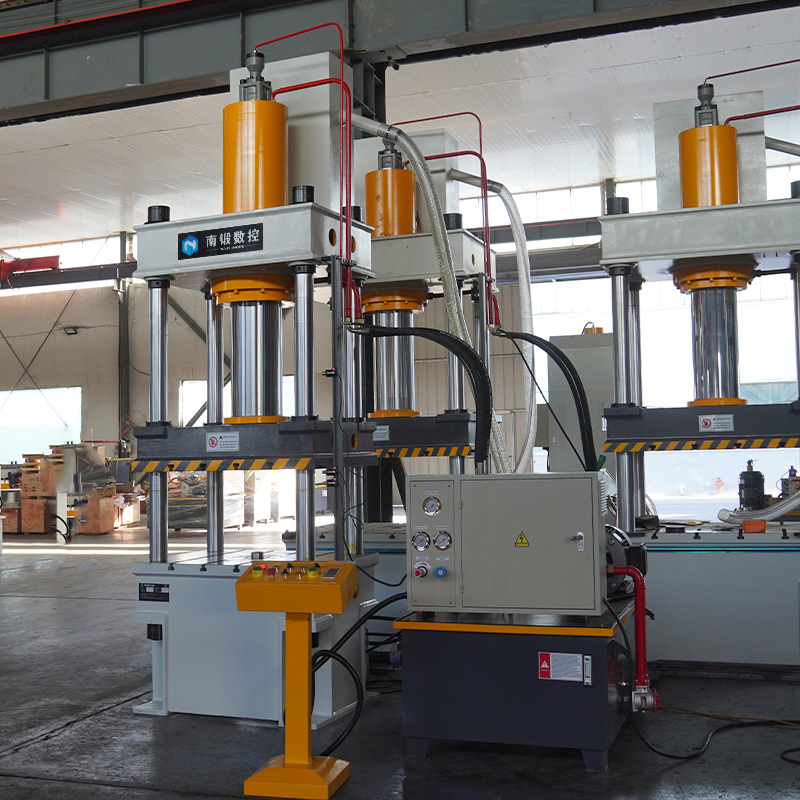

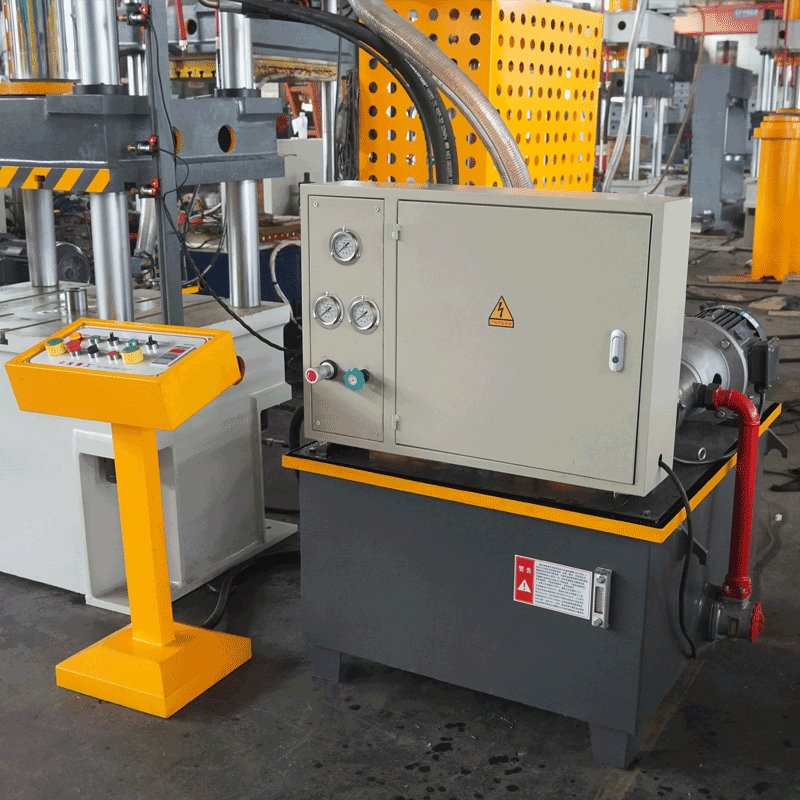

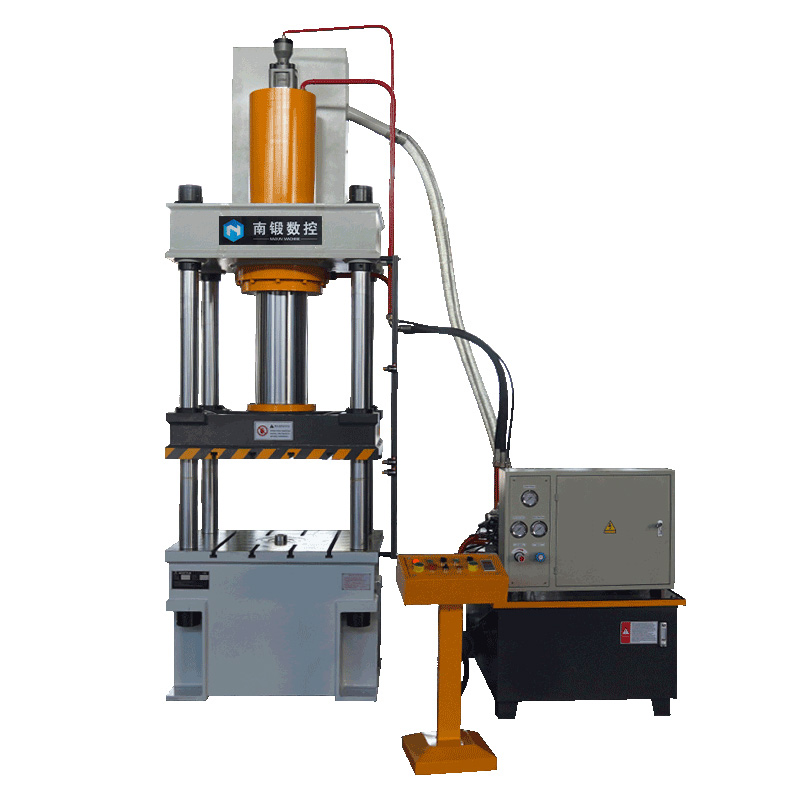

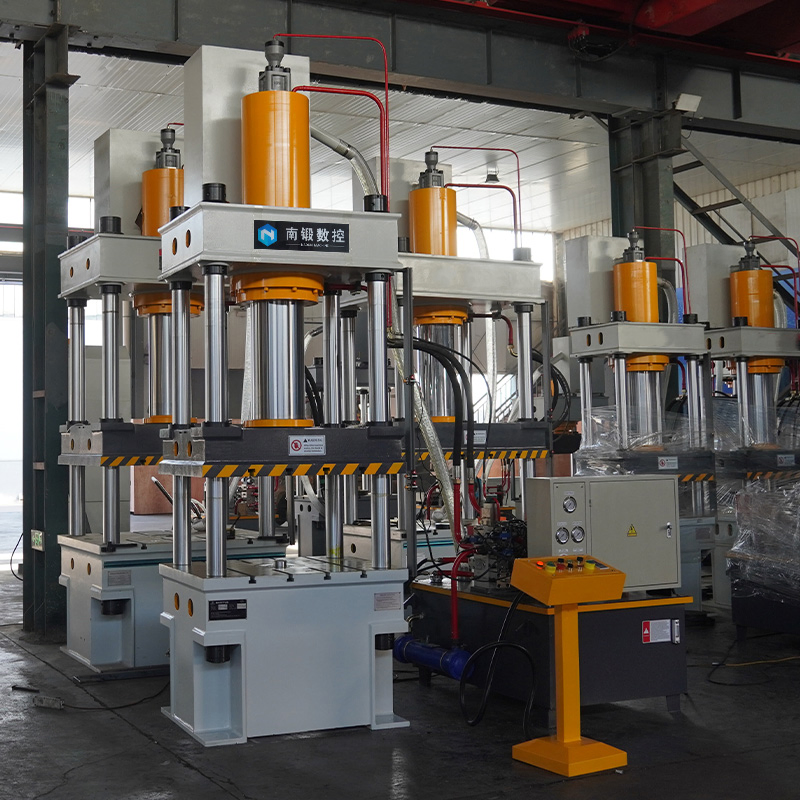

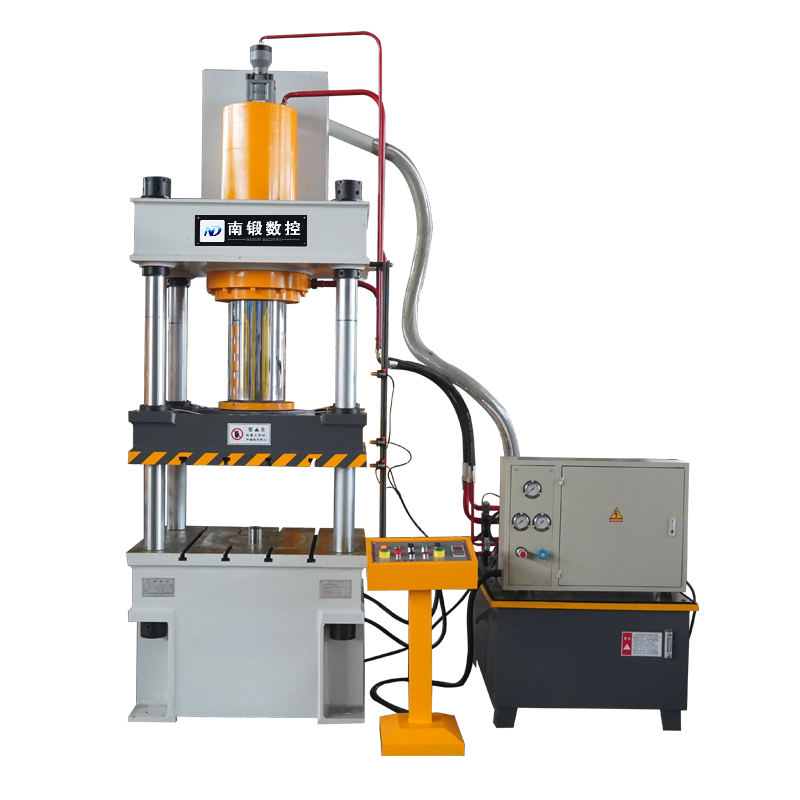

200 Ton Four Column Hydraulic Press Machine
USD 9000.00 – 10000.00
/ piece
Price varies by quantity and specifications
| MOQ | 1 piece |
| Category | Machinery |
9
Years
98%
Response
24h
Reply
More from this Supplier
Product Description
No detailed description available. Please send an inquiry for more information.
Technical Specifications
| Model NO. | YQ32-200T |
| Warranty | 12 Months |
| Feature | Automation, Precision, High Efficiency, Competitive Price |
| Customized | Customized |
| Condition | New |
| After-sales Service | Engineers Available to Service Machinery Overseas |
| Weight (T) | 5.4 T |
| Motor Power (Kw) | 7.5 Kw |
| Slide Stroke (mm) | 700mm |
| Ejector Force (kN) | 400kN |
| Return Force (kN) | 60 kN |
| Year | 2024 |
| Voltage | 380V/Optional |
| Nominal Force | 2000kN |
| Maximun System Pressure | 25MPa |
| Max.Open Height | 1100mm |
| Effective Table Size | 1000*1000mm |
| Down Speed | 100mm/S |
| Pressing Speed | 7~18mm/S |
| Return Speed | 90mm/S |
| Stroke of Ejection Cylinder | 200mm |
| Transport Package | Plastic Film or Wooden. Container Transportation. |
| Specification | 1350*1040*3200mm |
| Trademark | Nadun |
| Origin | China |
| HS Code | 8467999000 |
