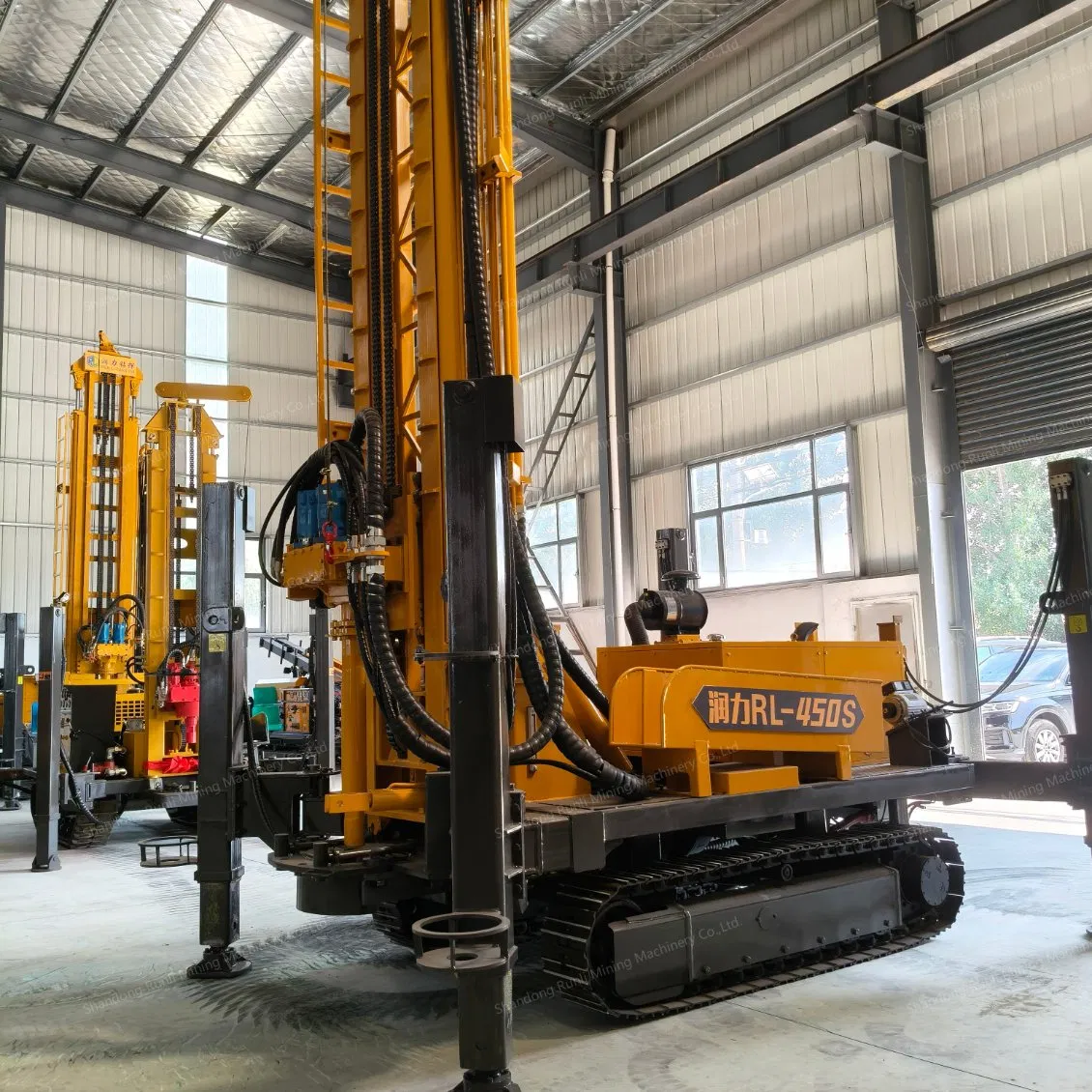

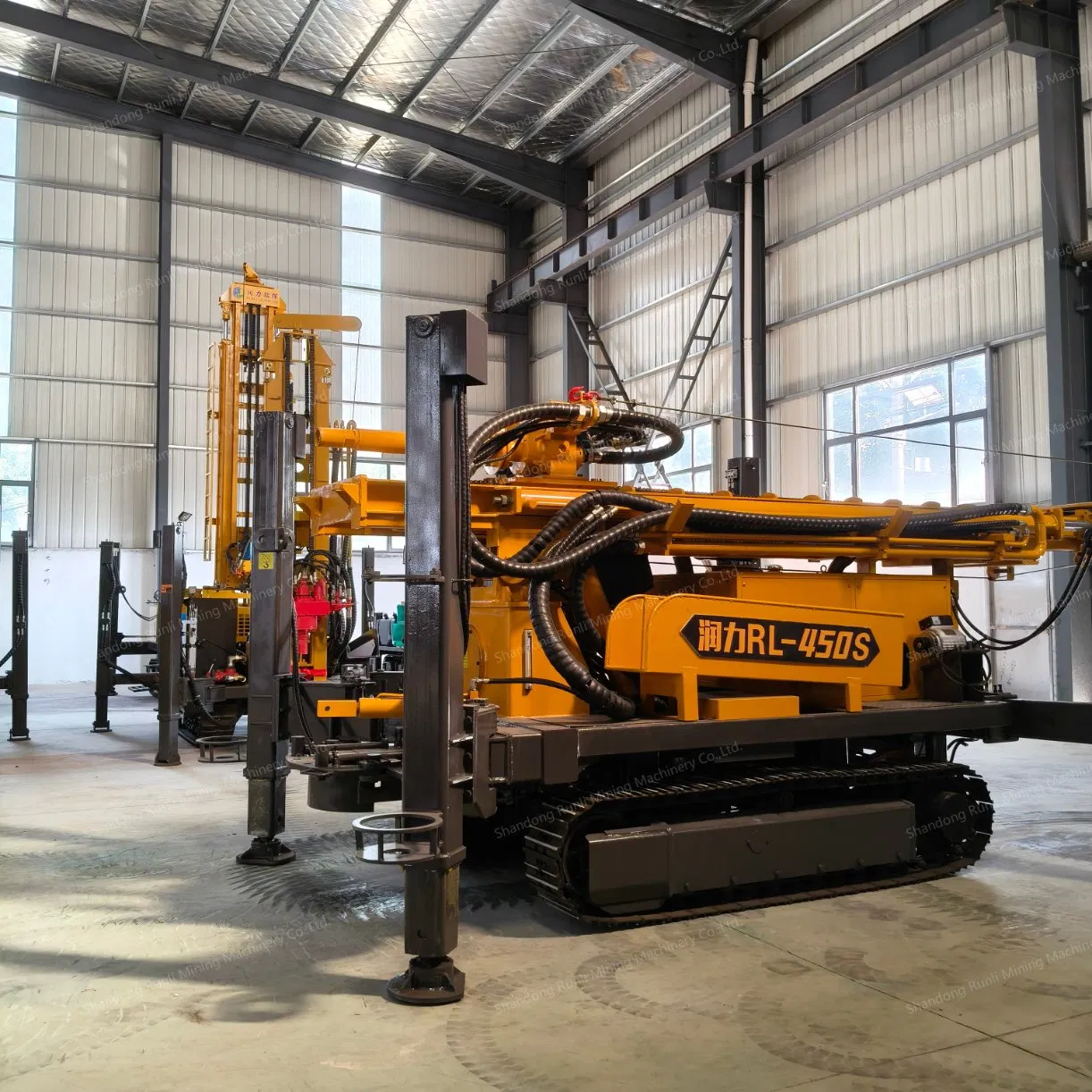

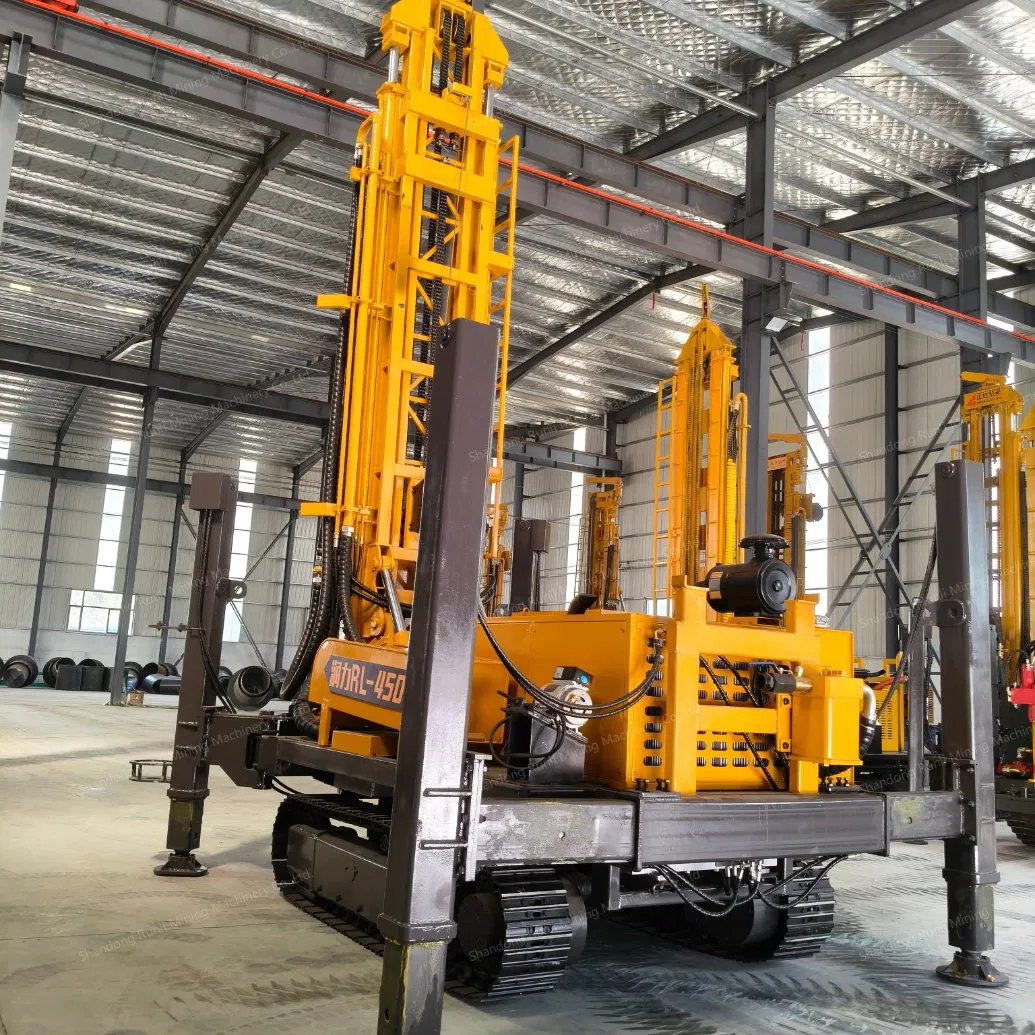

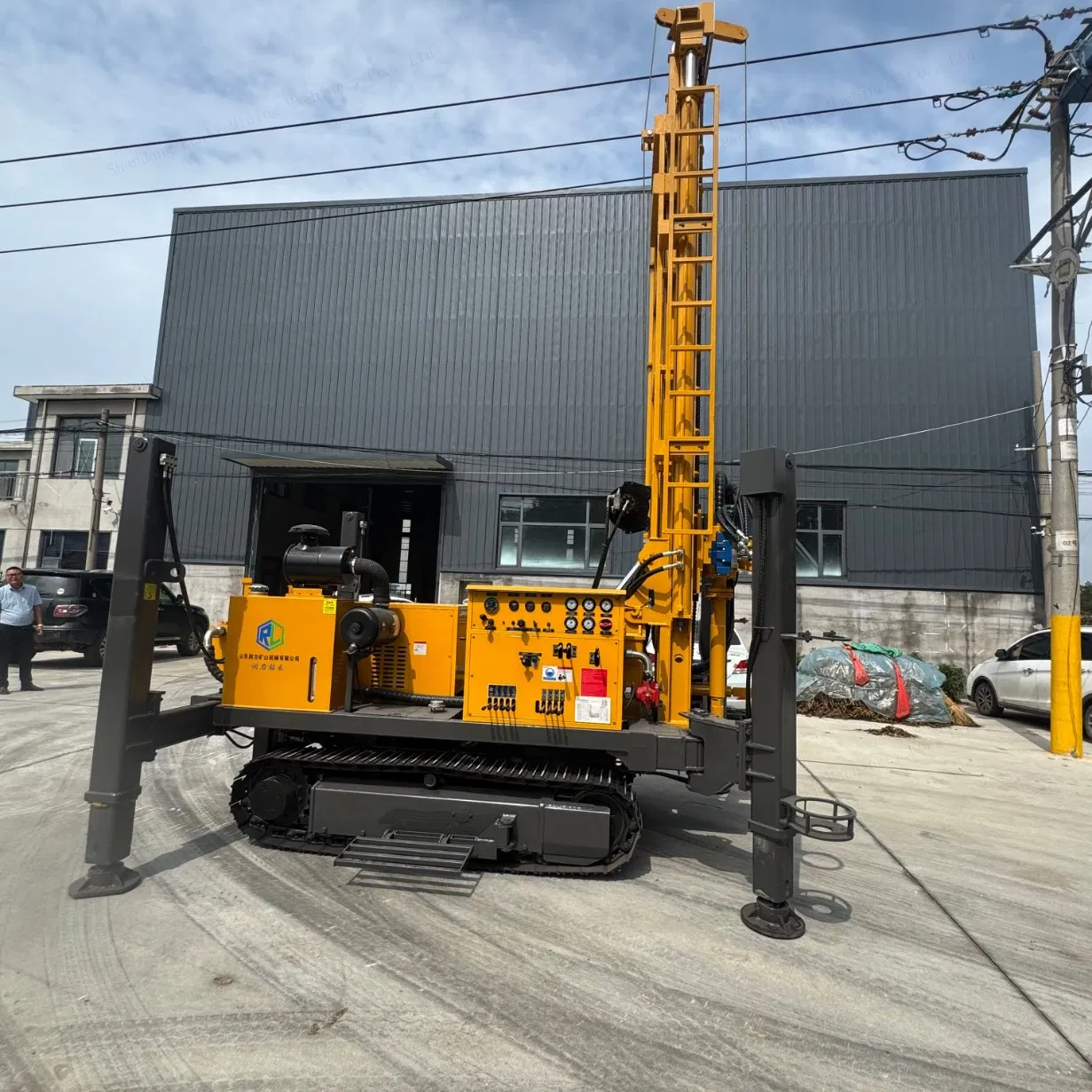

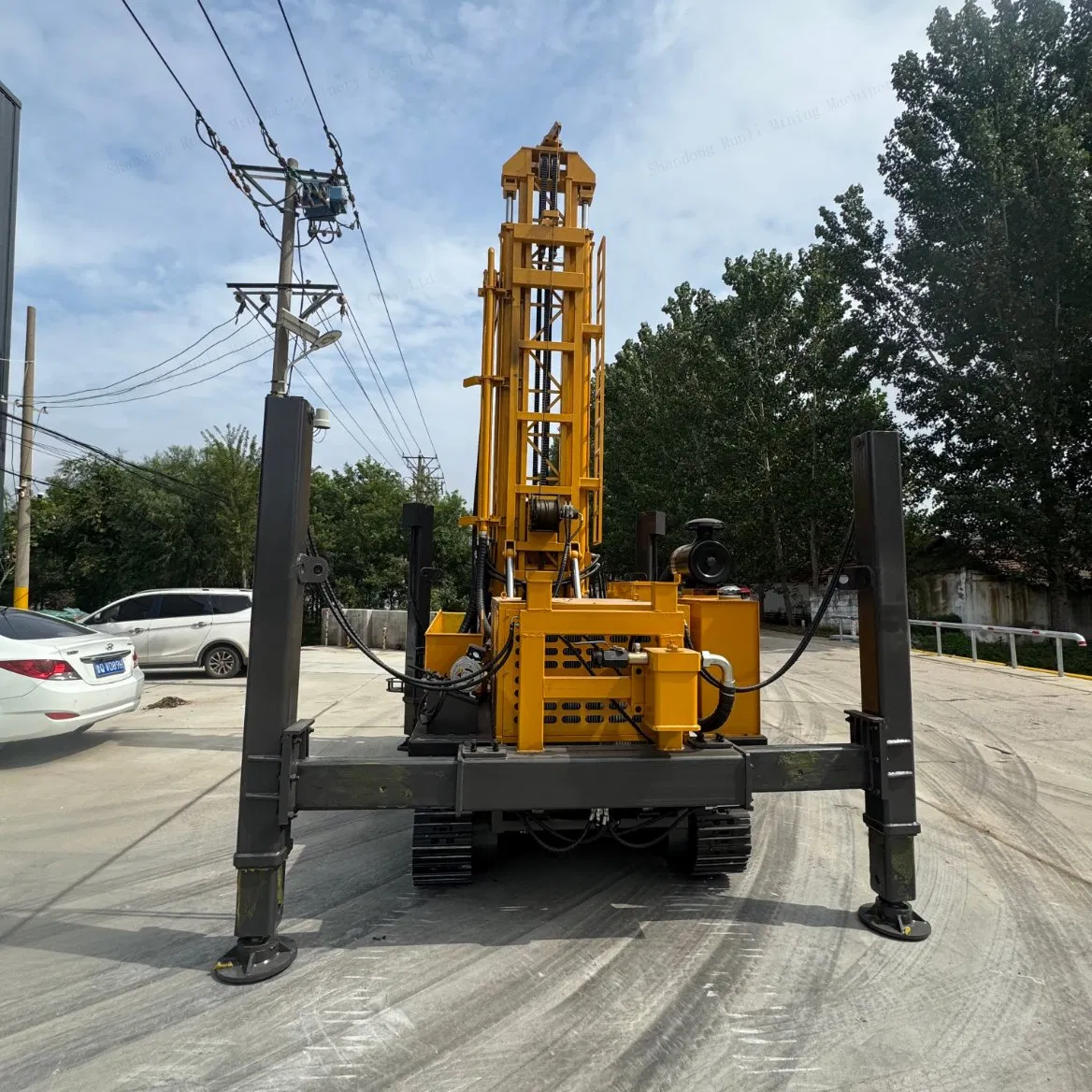

350m/400m/450m/500m Tracked Hydraulic and Pneumatic Drilling Rig, Mud Pump Drilling Rig, Top Drive Rotary Drilling Rig, Borehole Water Well Drilling Machine
USD 18000.00 – 29999.00
/ piece
Price varies by quantity and specifications
| MOQ | 1 piece |
| Category | Machinery |
26
Years
98%
Response
24h
Reply
More from this Supplier
Product Description
No detailed description available. Please send an inquiry for more information.
Technical Specifications
| Model NO. | RL450S |
| After-sales Service | Online Technique Support |
| Warranty | 1 Year |
| Certification | CE, RoHS, ISO 9001:2000 |
| Condition | New |
| Motor | Diesel Engine |
| Drill Hole Diameter | 105-400mm |
| Drill Hole Depth | 450m |
| Bit Type | Tricone Bit, DTH Hammer |
| Drilling Way | Rotary |
| Type | Crawler |
| Product Name | Crawler Mounted Water Well Drilling Rig |
| Air Pressure | 1.2-3.5MPa |
| Air Consumption | 16-55m³/Min |
| Drill Pipe Length | 1.5/3/6m |
| Drill Pipe Diameter | 89/102mm |
| Fast Lifting Speed | 30m/Min |
| Max Rotary Torque | 9000/4500nm |
| Lifting Force | 24t |
| Fast Feeding Speed | 55m/Min |
| Max Rotary Speed | 90/180r/Min |
| Dirlling Efficiency | 10-35m/H |
| Dimension | 5.85*1.8*2.4m |
| Engine Power | 110kw |
| Drill Diameter | 105-400mm |
| Drilling Depth | 450m |
| Transport Package | Standard Export Packaging |
| Specification | 5.85*1.8*2.4m |
| Trademark | Runli |
| Origin | Shandong, China |
