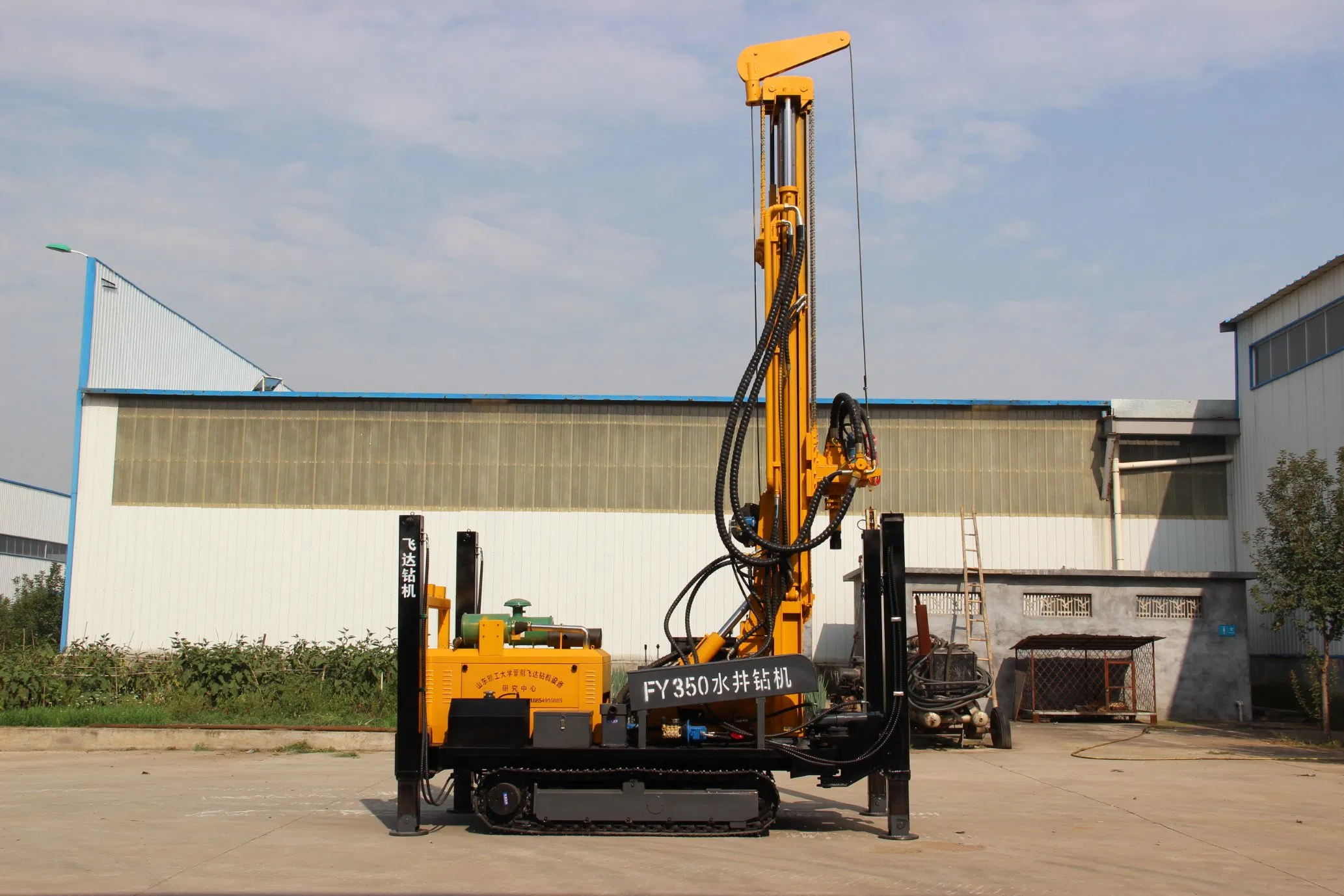

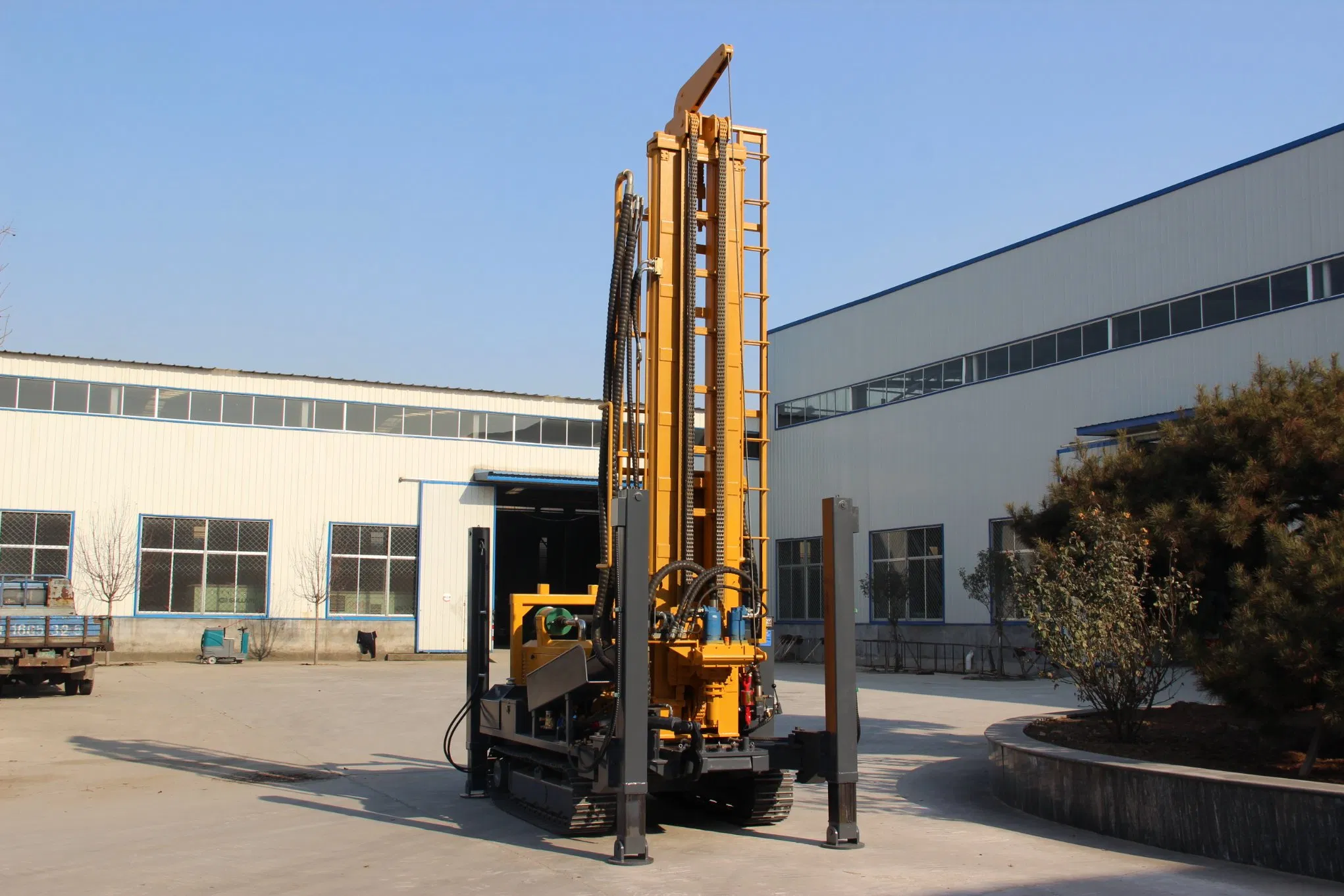

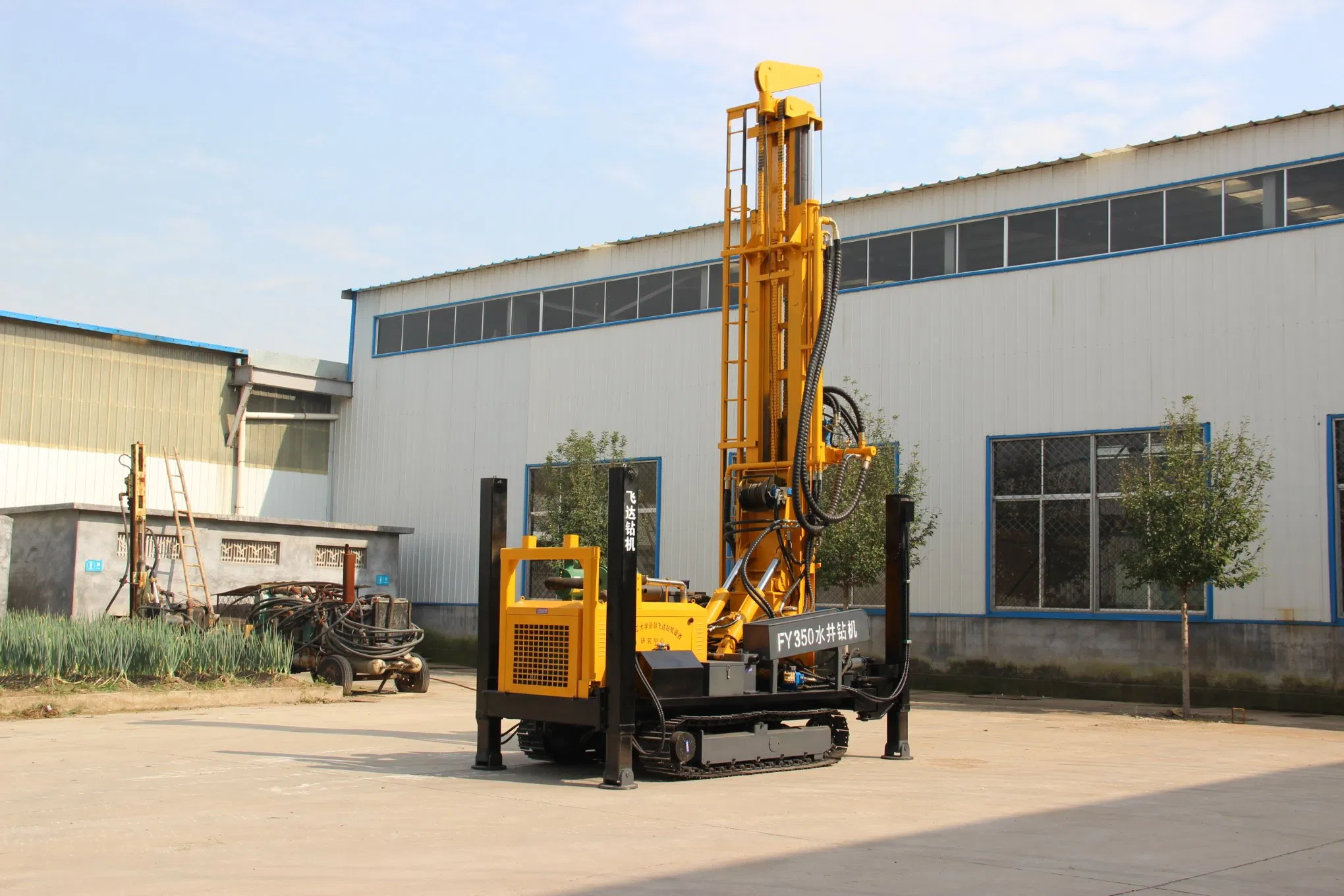

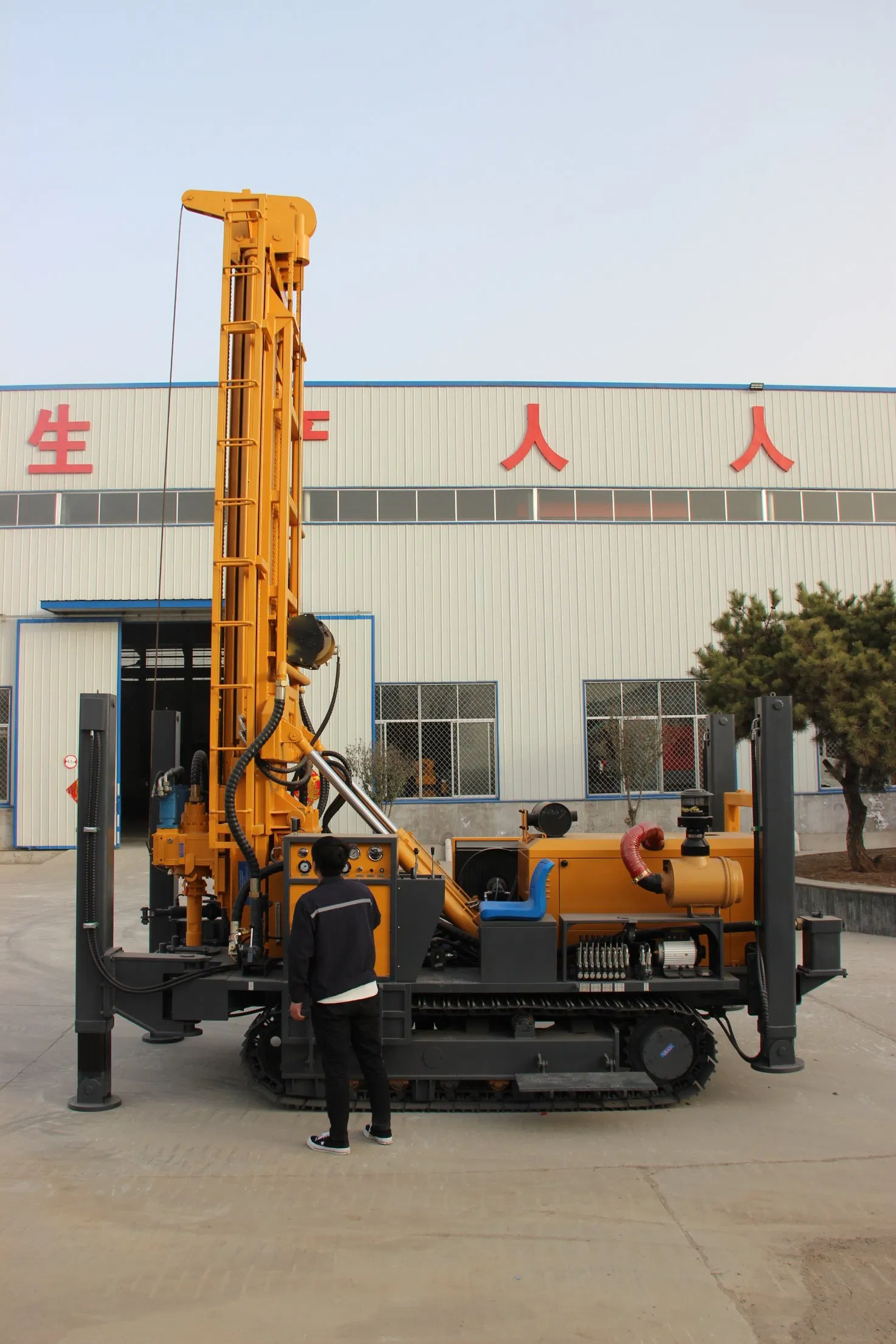

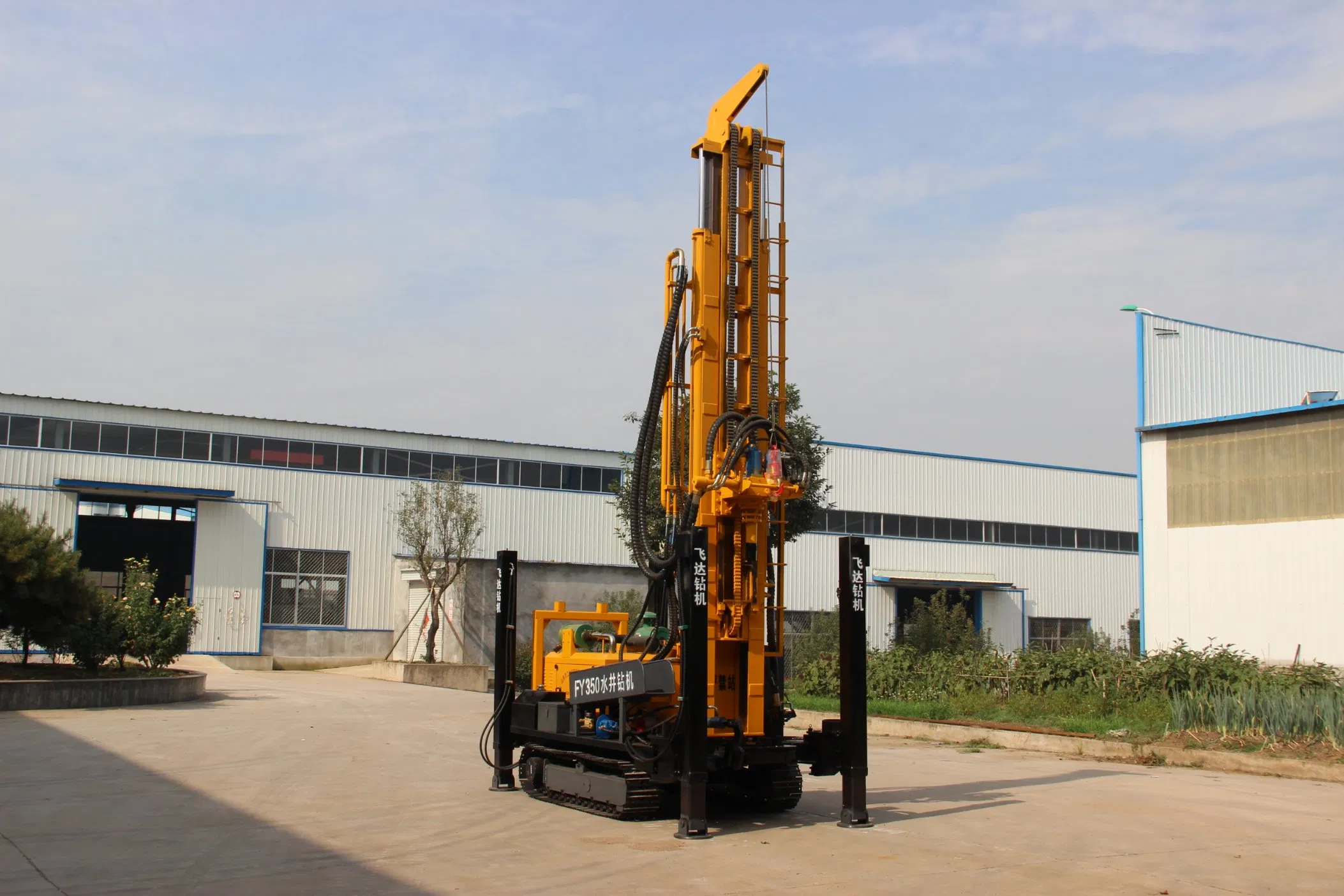

350m Hydraulic Well Drilling Machine Mounted Drilling Truck Diesel Water Well Drilling Rig for Sale
USD 26000.00 – 28000.00
/ piece
Price varies by quantity and specifications
| MOQ | 1 piece |
| Category | Machinery |
26
Years
98%
Response
24h
Reply
More from this Supplier
Product Description
No detailed description available. Please send an inquiry for more information.
Technical Specifications
| Model NO. | FY350 |
| After-sales Service | Online Technical Support |
| Warranty | 1years |
| Certification | CE, ISO 9001:2000 |
| Condition | New |
| Motor | DC Motor |
| Drill Hole Diameter | 140-325mm |
| Drill Hole Depth | 350m |
| Bit Type | Diamond Bit |
| Drilling Way | Rotary |
| Type | Crawler |
| The Weight | 8.6t |
| Drill Pipe Diameter | 89/102mm |
| Drill Pipe Length | 1.5m/2.0m/3.0m/6.0,M |
| One-Time Advancement Length | 6.6m |
| Fast Feeding Speed | 33m/Min |
| Engine Power | 91kw |
| Working Pressure | 1.7-3.4MPa |
| Swing Torque | 6200-8500n.M |
| Air Consumption | 17-36m³/Min |
| Swing Speed | 66-135rpm |
| The Penetration Effciency | 15-35m/H |
| Transport Package | Container |
| Specification | 6000*2000*2550mm |
| Trademark | FY |
| Origin | China |
| HS Code | 8430419000 |
