5 Axis CNC Self-centering Vice 3A-110185 With Quick Point System 125mm Jaw Width CNC Machining Tool Large Bench Vise Lan
USD 720.00 – 750.00
/ Piece
Price varies by quantity and specifications
| MOQ | 1 Piece |
| Category | Machinery |
Years Est.
6 Years
Employees
1-50
Product Description

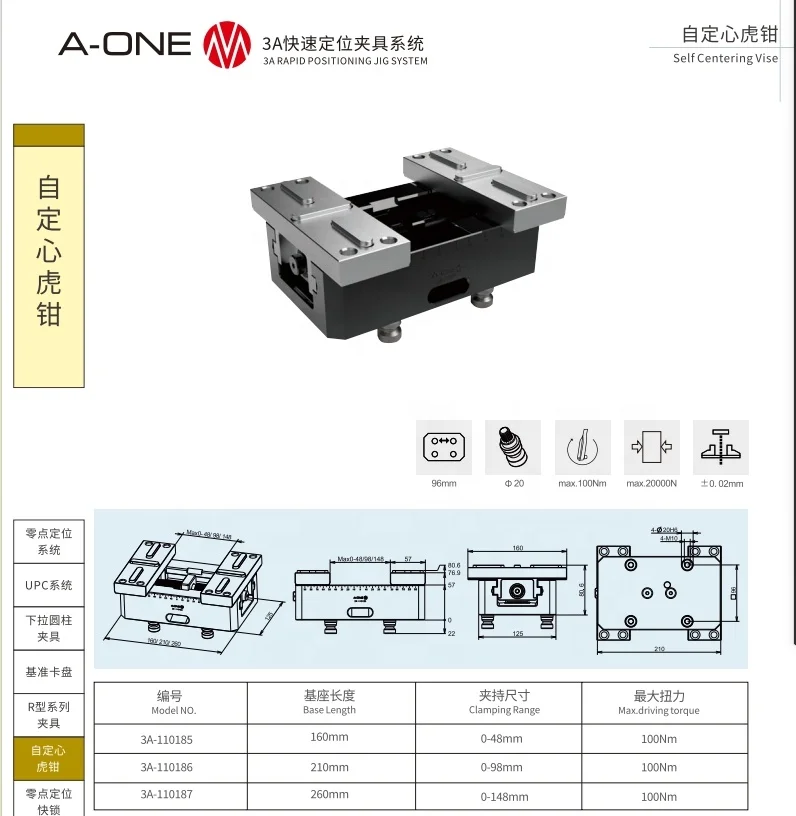

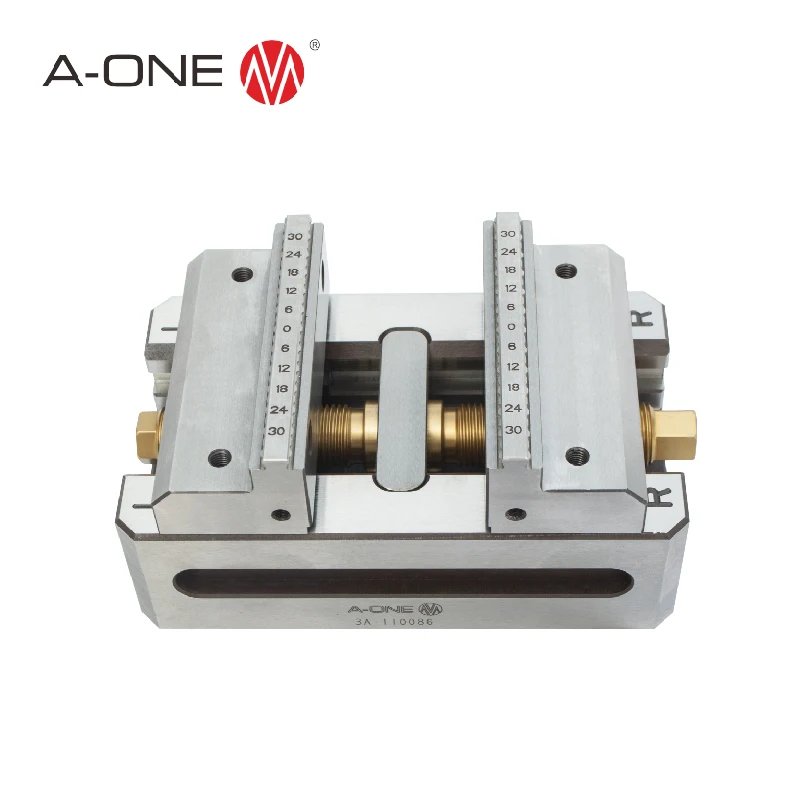

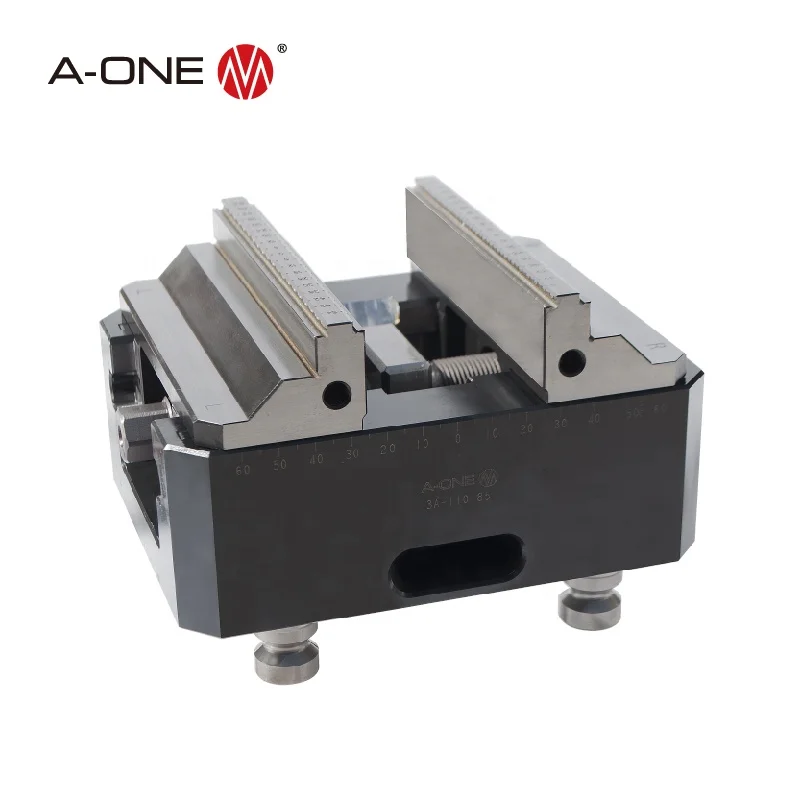

CNC Machining Tools for 5 axis CNC vice with quick point system Jaw Width 125mm Lang Big Self Centering Vise 3A-110185
Repeatability:mini 0.02mm
Detailed description:
| Version | Double action self centered,repeating accuracy less than 0.02mm,Max. clamping force20000N,fifixed center distance is 96mm,to be fifixed on the machine table or pallet with φ20 spigots, Max. driving torque is 70Nm. |

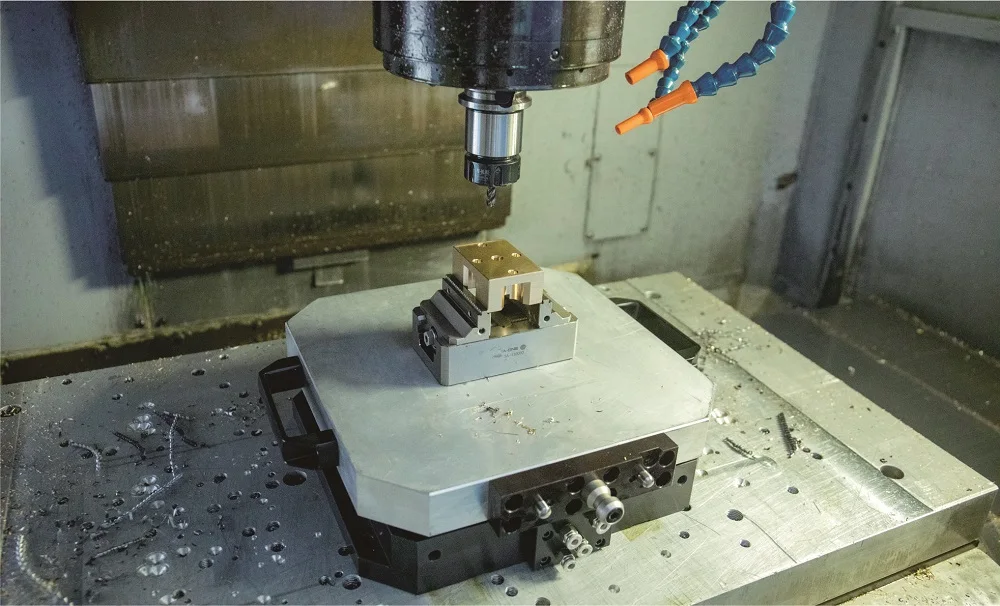

| Application | Suitable for vertical and horizontal precision processing machine, for 5-axis machining per time ,Special jaws can be customized. |

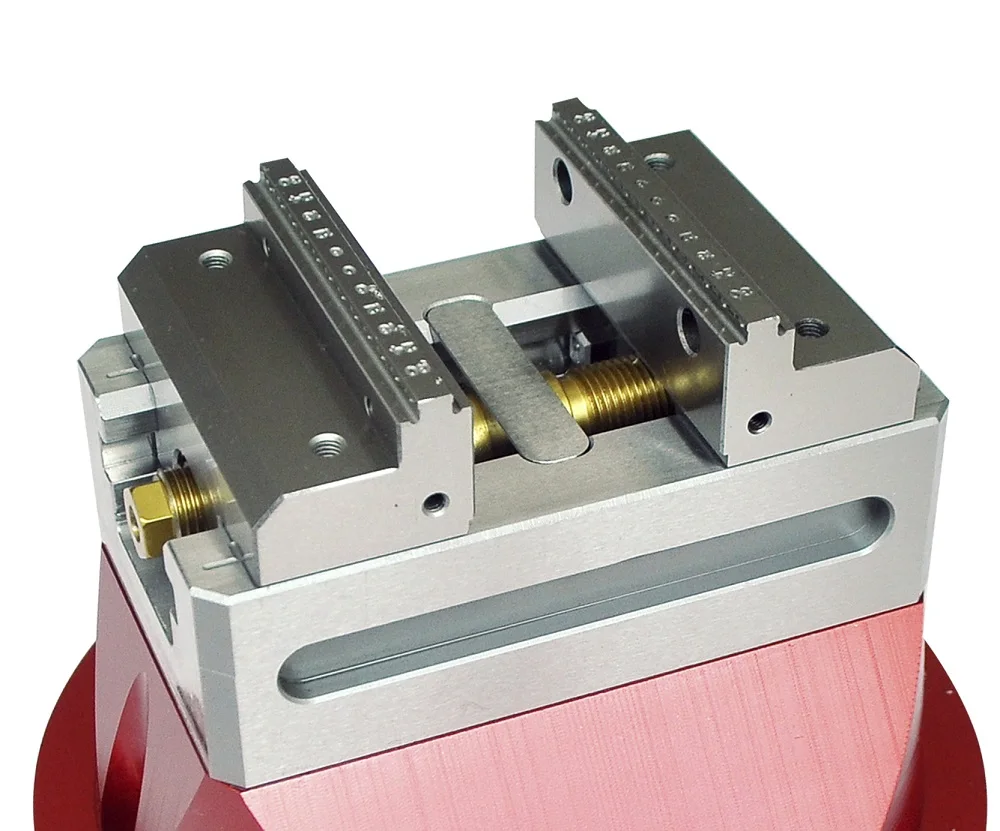

| Note | Hexagonal wrench is supplied separately Use with quick manual zero-point plate |
Technical Specifications
| Model Number | 3A-110185 |
| Type | Bench Vise |
| Drive Mode | Manual |
| Warranty | 1.5 year |
| Machinery Test Report | Provided |
| Video Outgoing-inspection | Provided |
| Core Components | CNC self centering vise |
| Material | Stainless Steel |
| Repeatability | 0.02mm |
| Max Clamping Force | 20000N |

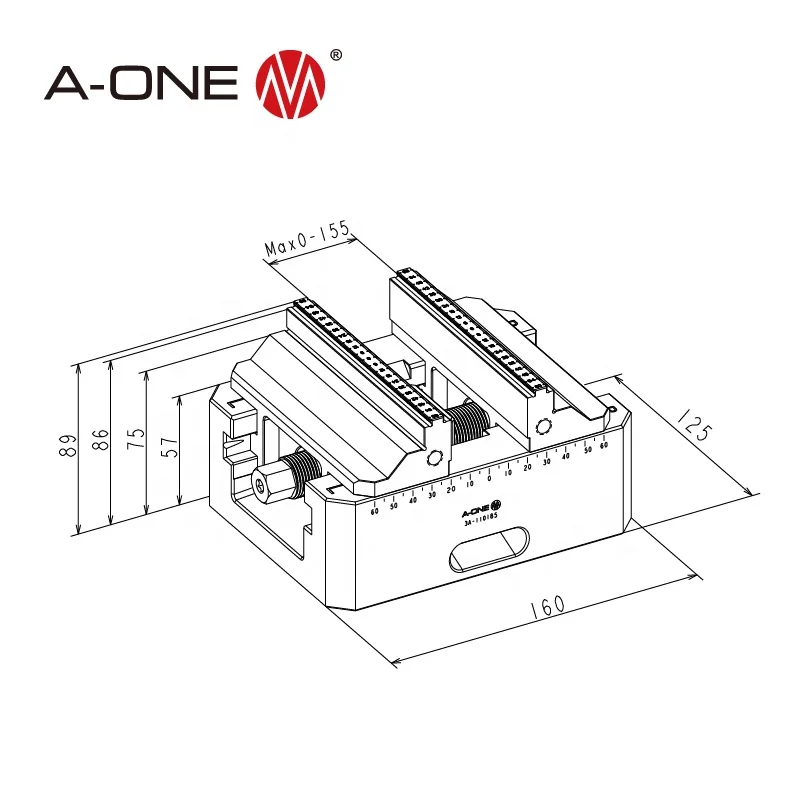

| Jaw Width | 125mm |
| Max Clamping Workpiece Size | 155mm |
| Fixed Center Distance | 96mm |
| Max Driving Torque | 70Nm |
| Application | Suitable for vertical and horizontal precision processing machine, 5-axis machining |
| Place of Origin | Guangdong, China |
| Weight | 7.5 kg |
| Brand Name | A-ONE |
