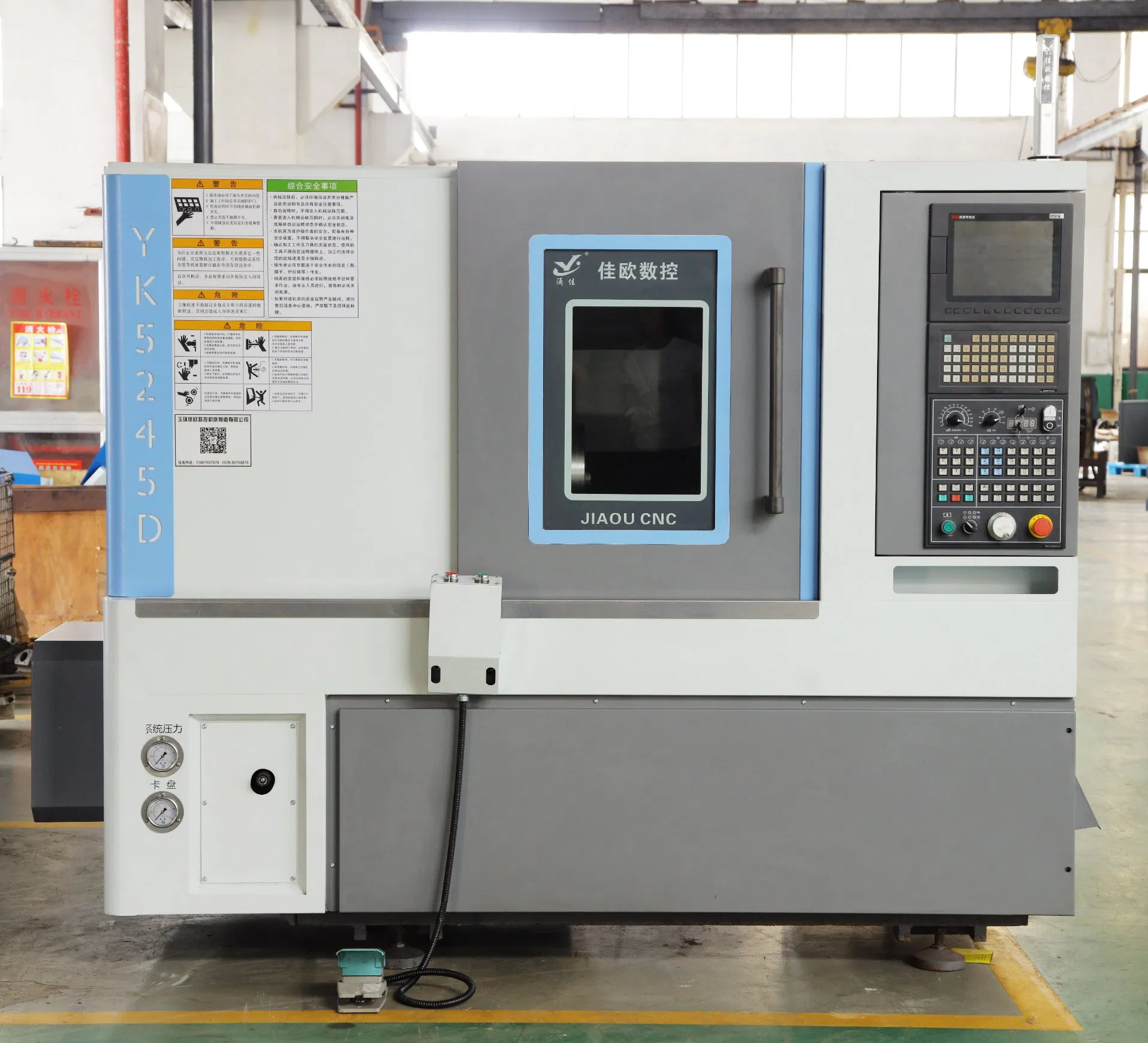

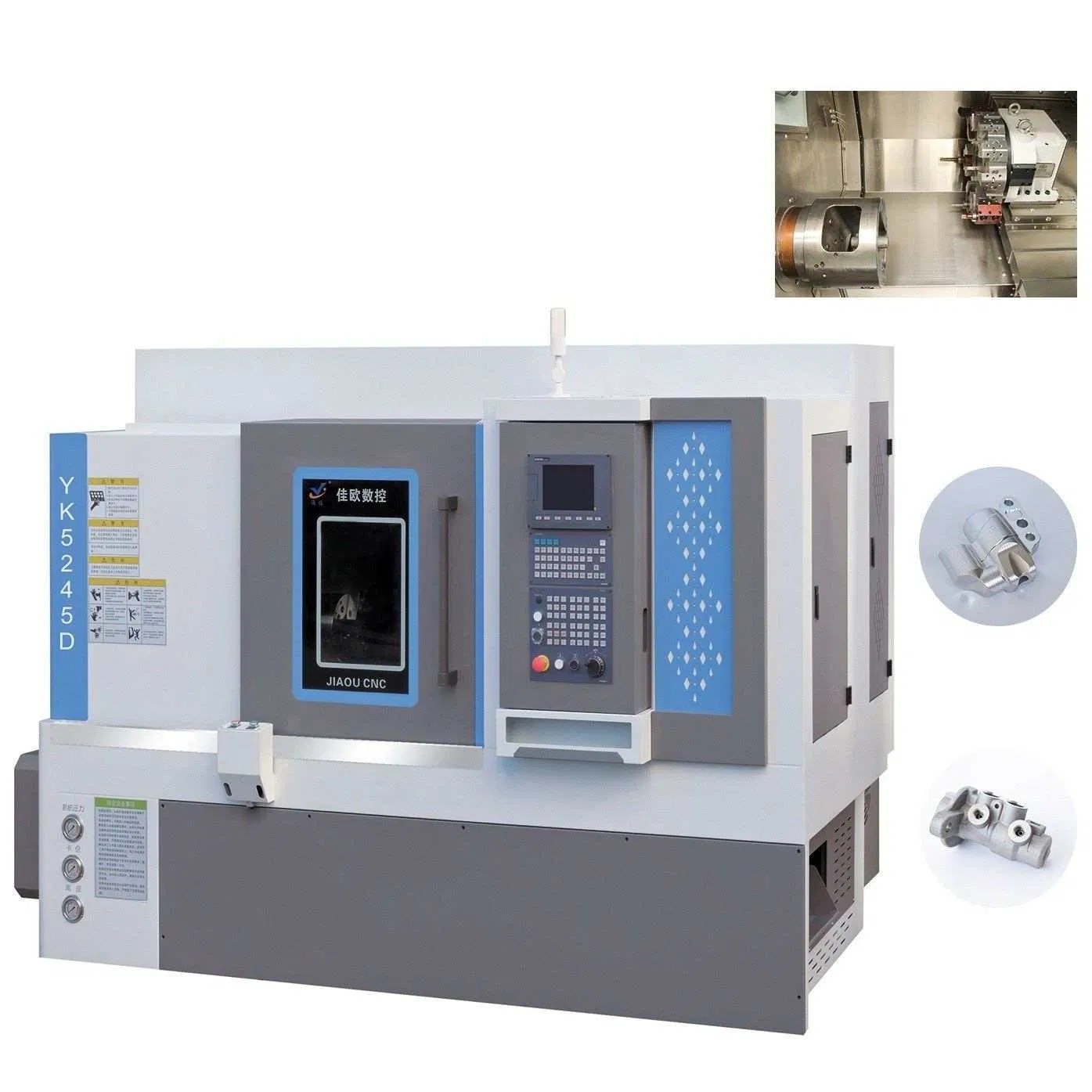

52 Bar Dia Turret Tool Lathe CNC Machine with Indexing Chuck
USD 19000.00 – 29999.00
/ set
Price varies by quantity and specifications
| MOQ | 1 set |
| Category | Machinery |
10
Years
98%
Response
24h
Reply
More from this Supplier
Product Description
No detailed description available. Please send an inquiry for more information.
Technical Specifications
| Model NO. | YK5245D |
| After-sales Service | Negotiable |
| Warranty | Negotiable |
| Application | Metal |
| Process Usage | Metal-Cutting CNC Machine Tools |
| Movement Method | Point to Point Control |
| Control Method | Closed-Loop Control |
| Numerical Control | CNC/MNC |
| Processing Precision | 0.003-0.005mm |
| Performance Classification | Mid-Range CNC Machine Tools |
| Certification | ISO 9001 |
| Condition | New |
| Max. Swing Over Bed | 500 |
| Max. Swing Over Carriage | 220 |
| Max. Machining Length | 400 |
| Max. Turning Dia | 350 |
| Max. Bar/Rod Material Size | 52 |
| Bed Degree | 30 |
| Spindle Nose | A2-6 |
| Chuck Type | Hydraulic/Power Indexing |
| Spindle Chuck Size | 6"/8"/Customized |
| Axis | 2 Axes |
| Tool Type | Static Turret |
| Tool Position | 12 Positions |
| Tool Holder Size | 25*25/32 |
| Transport Package | Wooden Case, Metal Pallet |
| Specification | Machine around 2800*1650*1800 |
| Trademark | JIAOU |
| Origin | Taizhou City, China |
| HS Code | 8458912090 |
