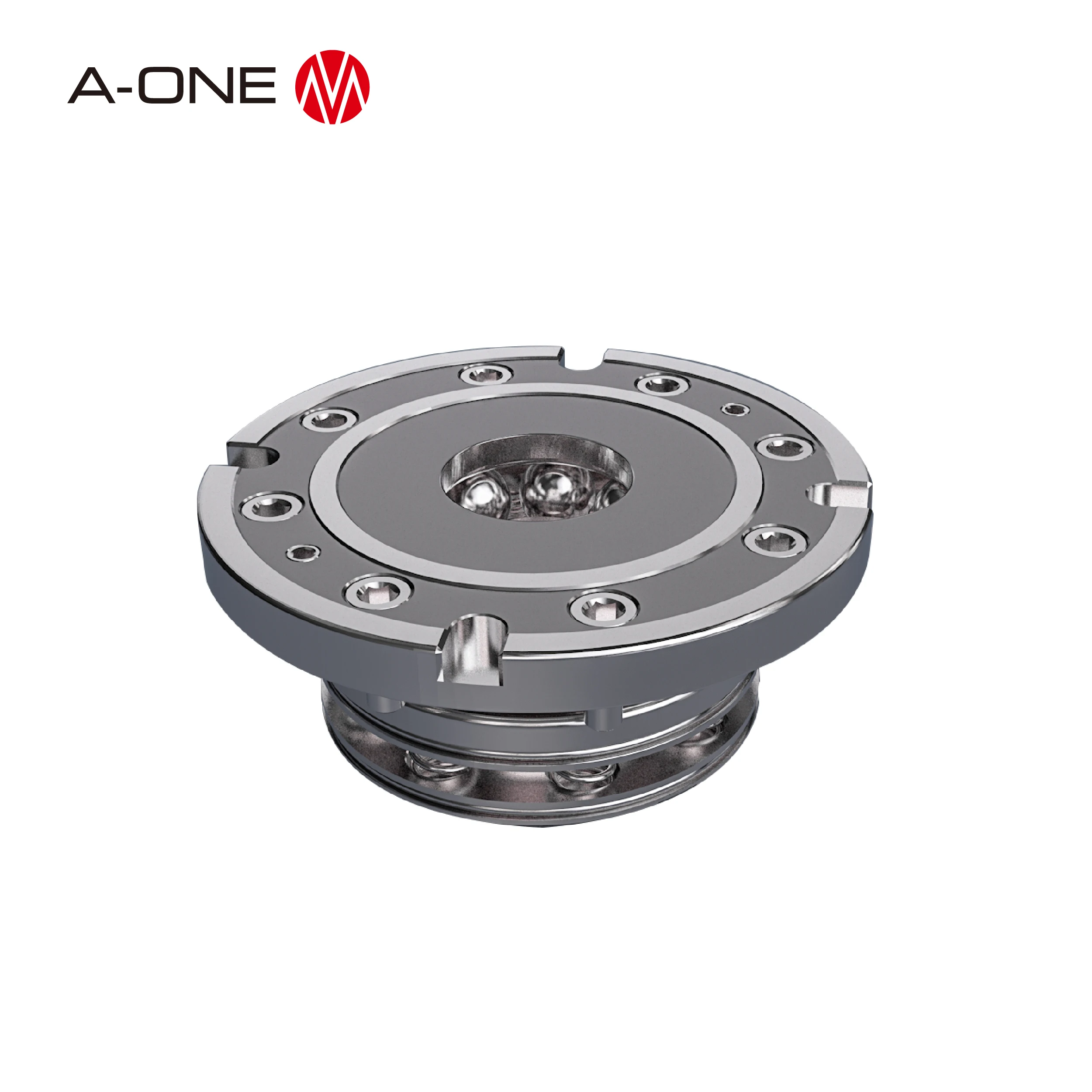

A-one Zero Point System Chuck 110019 Zero Point System Chuck 110019
USD 899.00 – 945.00
/ Piece
Price varies by quantity and specifications
| MOQ | 1 Piece |
| Category | Machinery |
Years Est.
6 Years
Employees
1-50
Product Description
Product Description

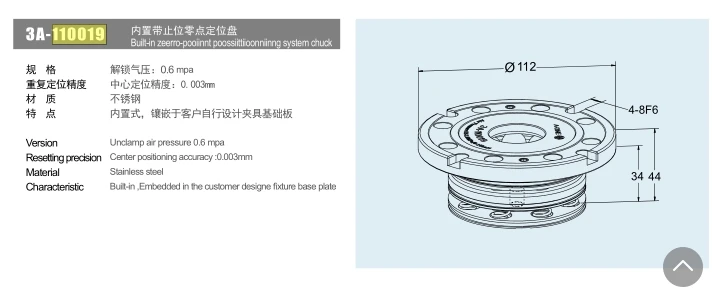

A-one built-in Jergens zero point system chuck 3A-110019
Repeatability:0.003mm
Detil description
| Unclamp | Unclamp air presure 6 MPa |
| Locking | Internal mechanical locking |
| Resetting precision | 0.003MM |
| Characterstic | Built-in , Embedded in the customer design fixture base plate |
Detailed Images
Product Application
Technical Specifications
| Warranty | 3 Years |
| Machinery test report | Provided |
| Video outgoing-inspection | Provided |
| Brand name | A-ONE |
| Place of origin | Guangdong, China |
| Weight | 2 kg |
| Type | Zero-point positioning system chuck |
| Material | Stainless Steel |

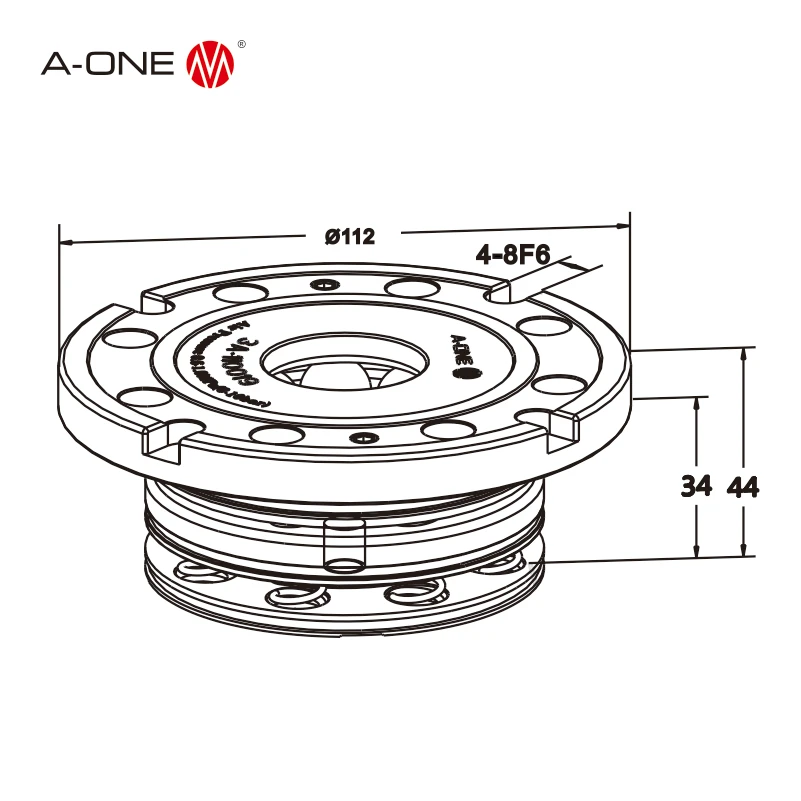

| Finished size | D112*44 mm |
| Net weight | 2.9 kg |
| Accuracy | 0.003 mm |
| Unclamp air pressure | 6 bar |
| Locking type | Internal mechanical locking |
| Clamping power | 6000N |
| Condition | New |
| Applicable Industries | CNC machine |
| Core Components | Chuck |
| Packaging | Inner packed with black EPE, then paper box, outside wooden box |
| Single package size | 39X27X19 cm |
| Single gross weight | 6.8 kg |
