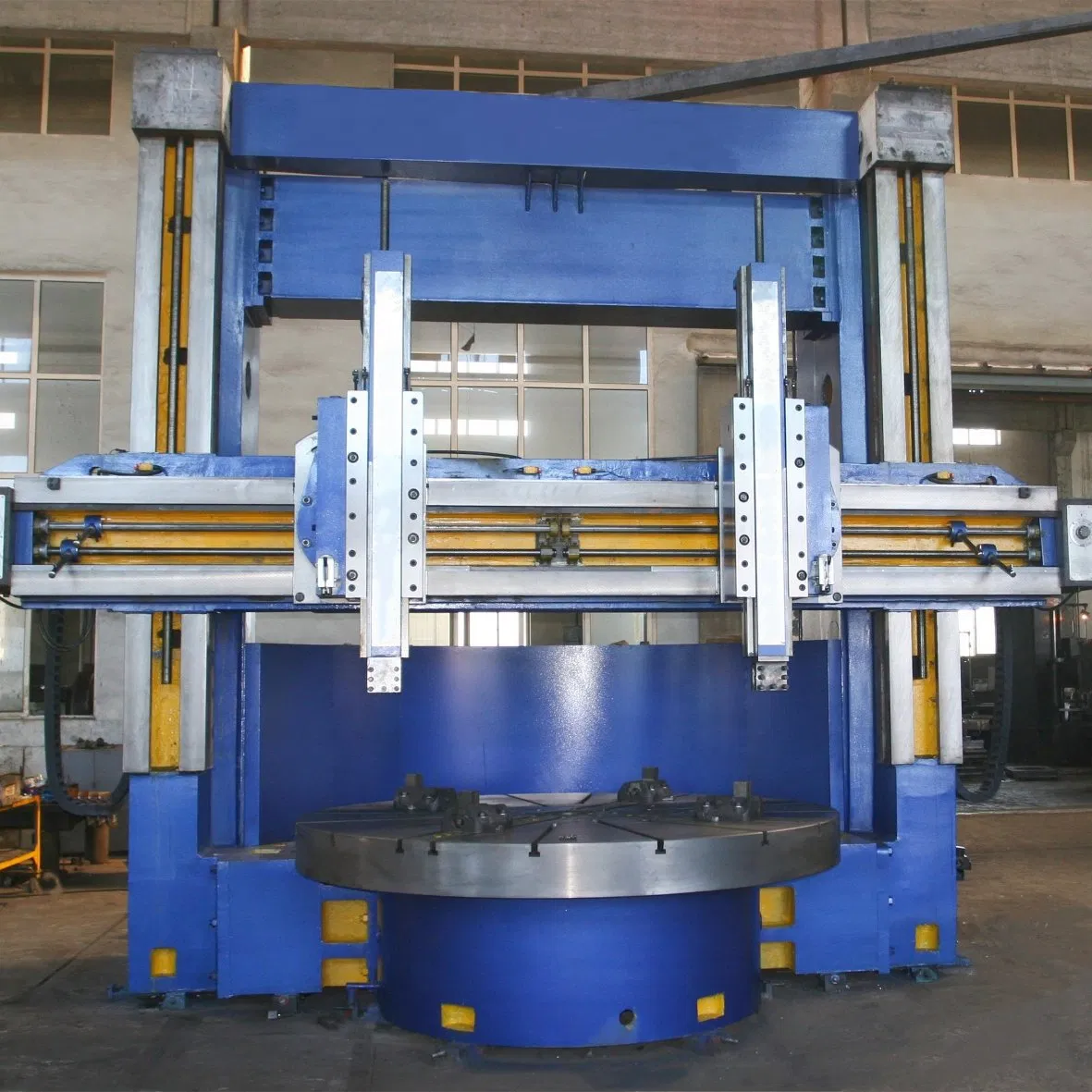

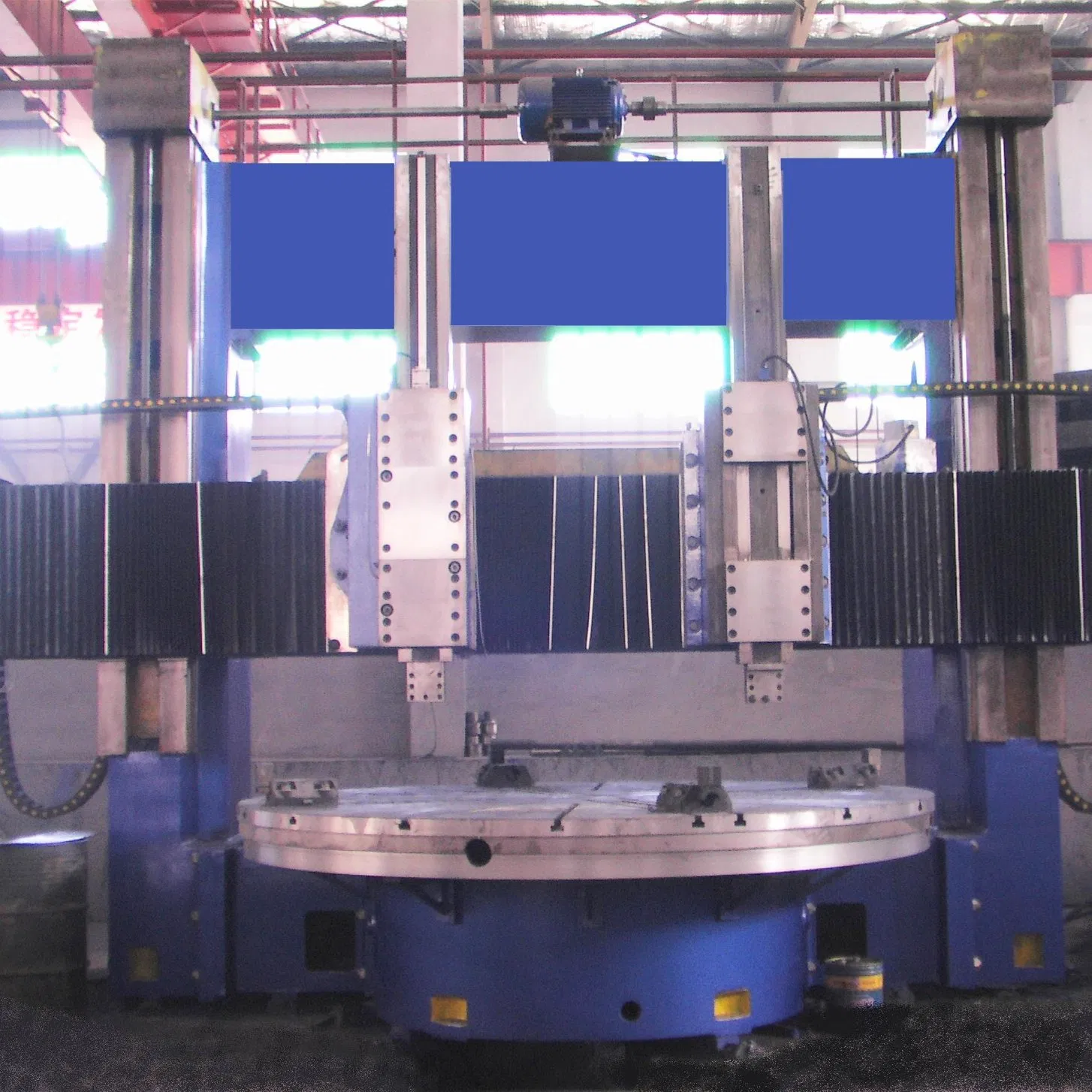

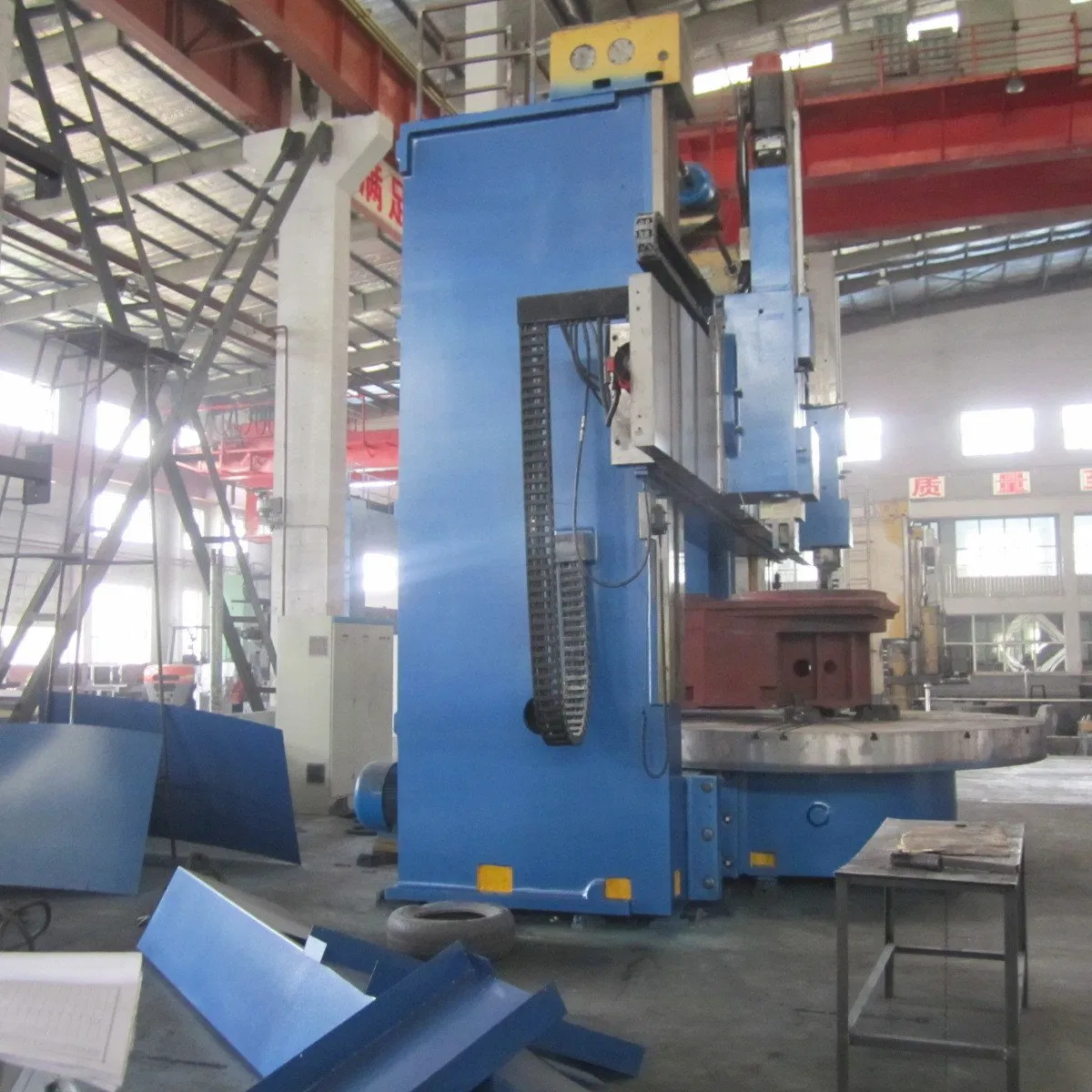

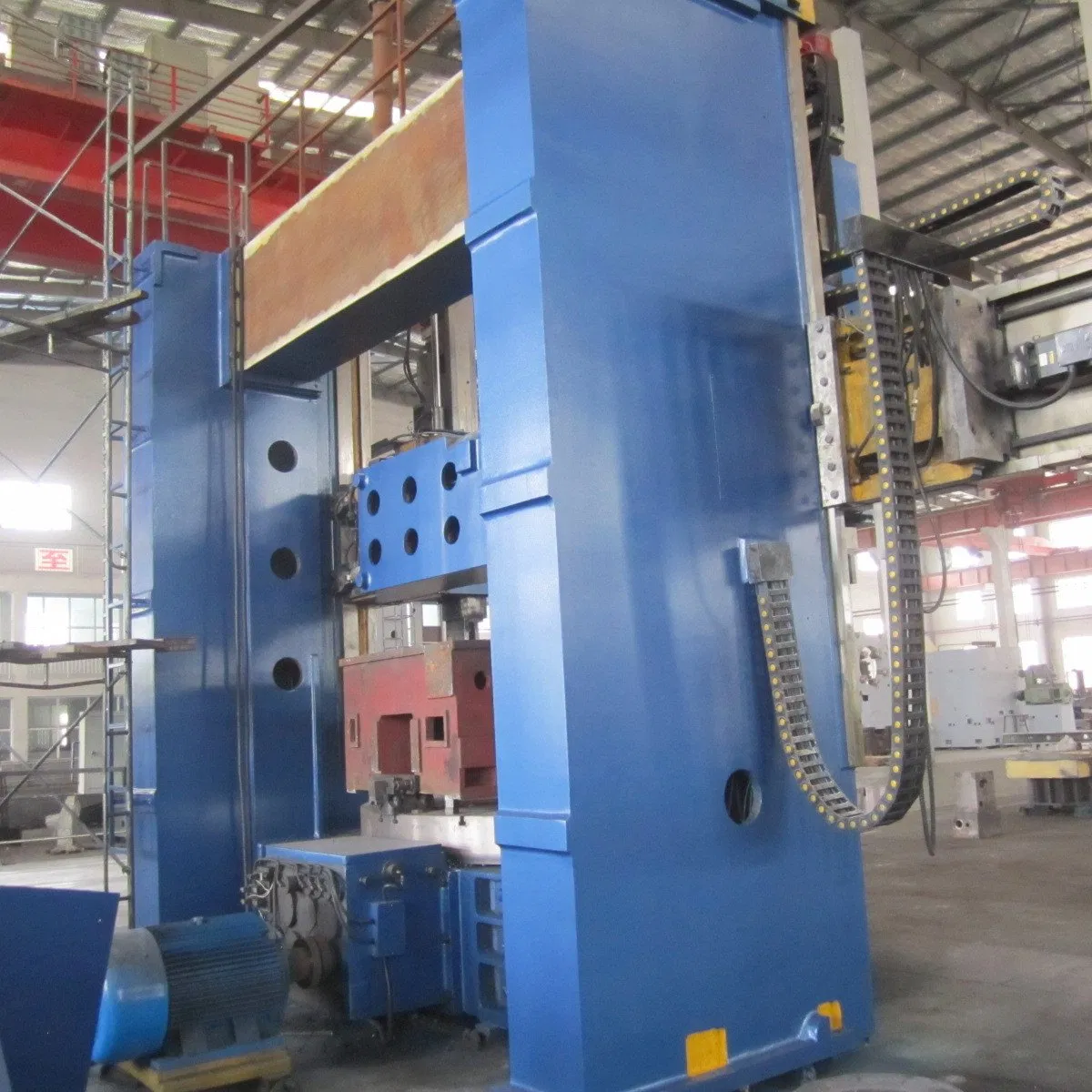

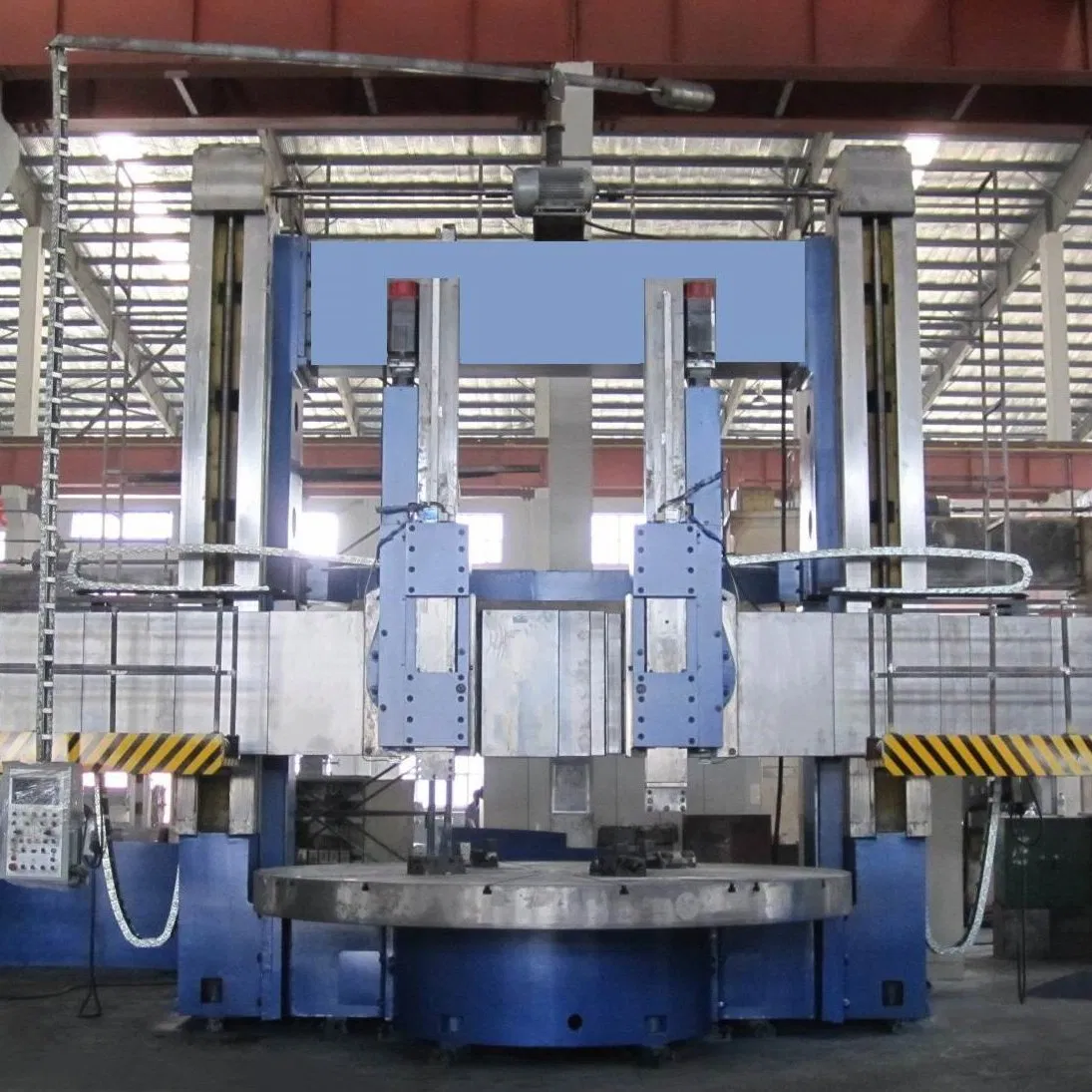

C5235 Conventional Double Column Vertical Lathe Machine Vtl
USD 40000.00 – 50000.00
/ set
Price varies by quantity and specifications
| MOQ | 1 set |
| Category | Machinery |
More from this Supplier
Product Description
No detailed description available. Please send an inquiry for more information.
Technical Specifications
| Model NO. | C5235 |
| After-sales Service | Technique Service |
| Warranty | 1 Year |
| Type | Vertical Lathe |
| Processing Accessory | Other |
| Guide Rail | Horizontal Guide Rail |
| Tool Holder | Other |
| Power Source | Manual |
| Controlling Mode | Artificial |
| Automatic Grade | Semiautomatic |
| Setting Mode | Floor-type |
| Precision | High Precision |
| Certification | CE, ISO 9001 |
| Condition | New |
| Max. Cutting Diameter | 3500mm |
| Max. Cutting Height | 1600/2000mm |
| Worktable Diameter | 2830mm |
| Max. Loading Weight | 20t |
| Worktable Max. Torque | 63kn.M |
| Worktable Speed Range | 2-63rpm |
| Worktable Step | 16 Steps |
| Right Tool Post Cutting Force | 35kn |
| Left Tool Post Cutting Force | 28kn |
| Tool Post Horizontal Travel | 1900mm |
| Tool Post Vertical Travel | 1000/1250mm |
| Crossbeam Travel | 1250/1650mm |
| Main Motor | AC55kw |
| Machine Weight | 40/43t |
| Overall Dimension | 6400*5050*5200mm |
| Transport Package | Wooden Cases |
| Specification | 6400*5050*5200mm |
| Trademark | HAIDI |
| Origin | China |
| HS Code | 8458990000 |
