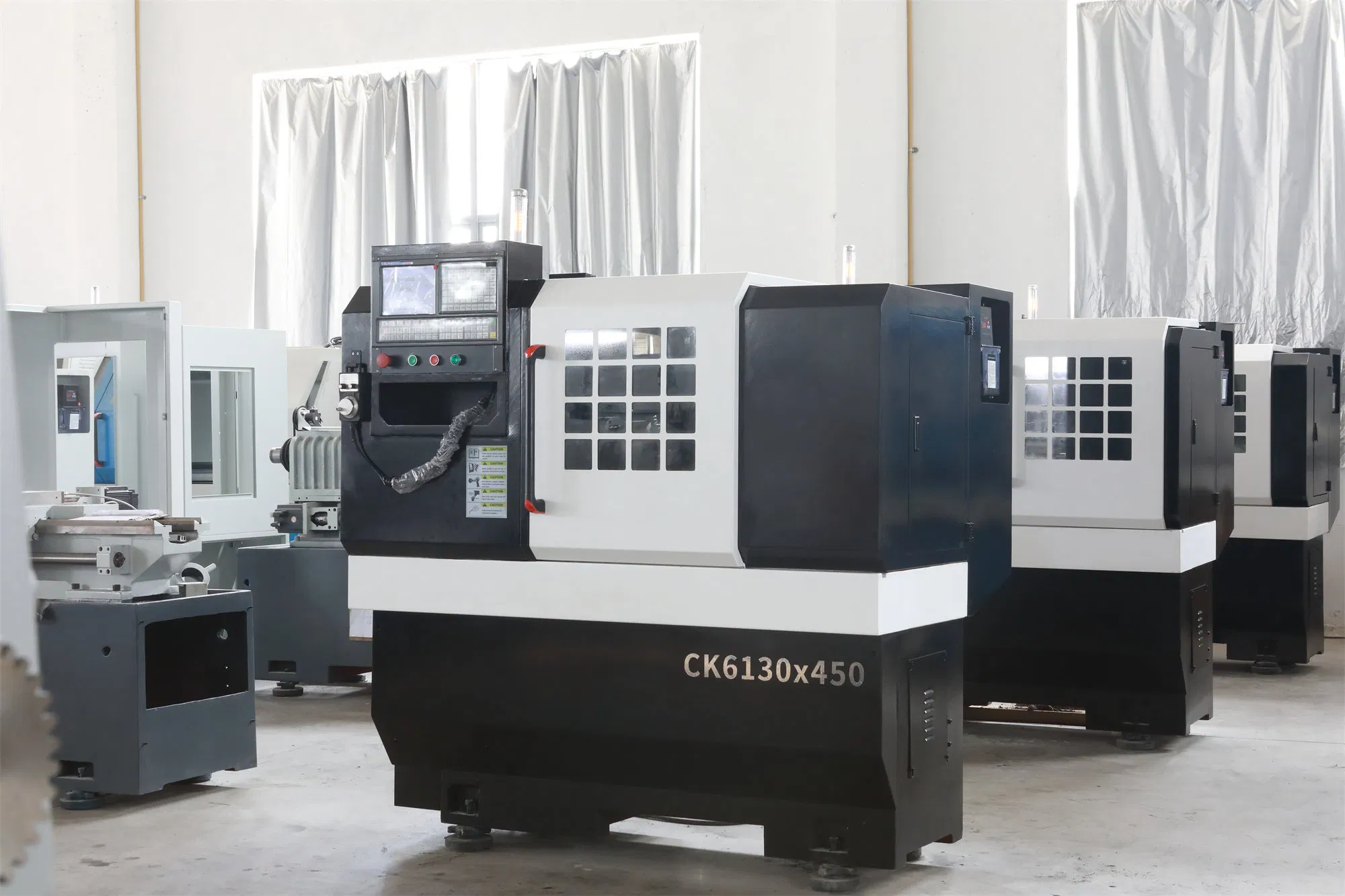

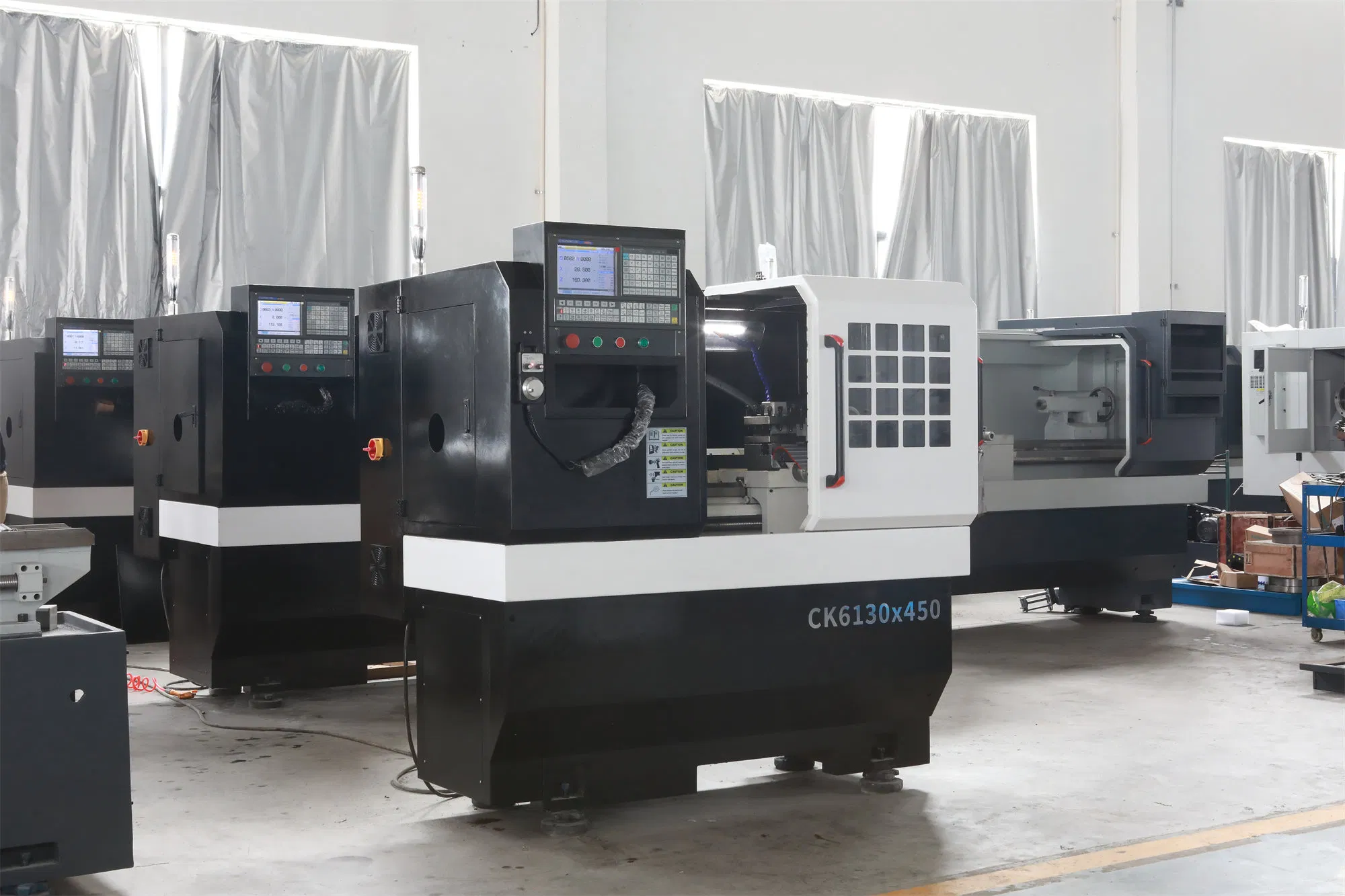

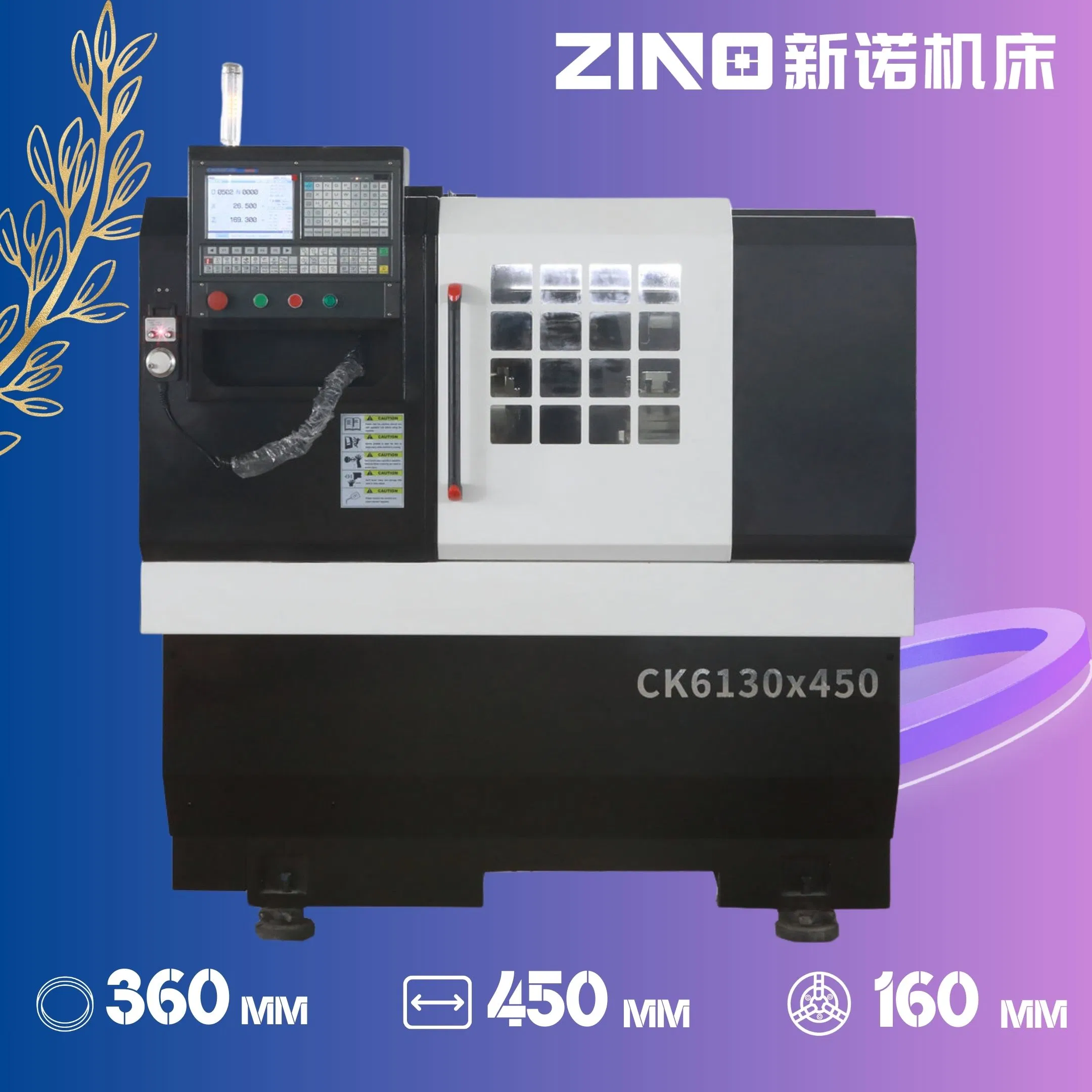

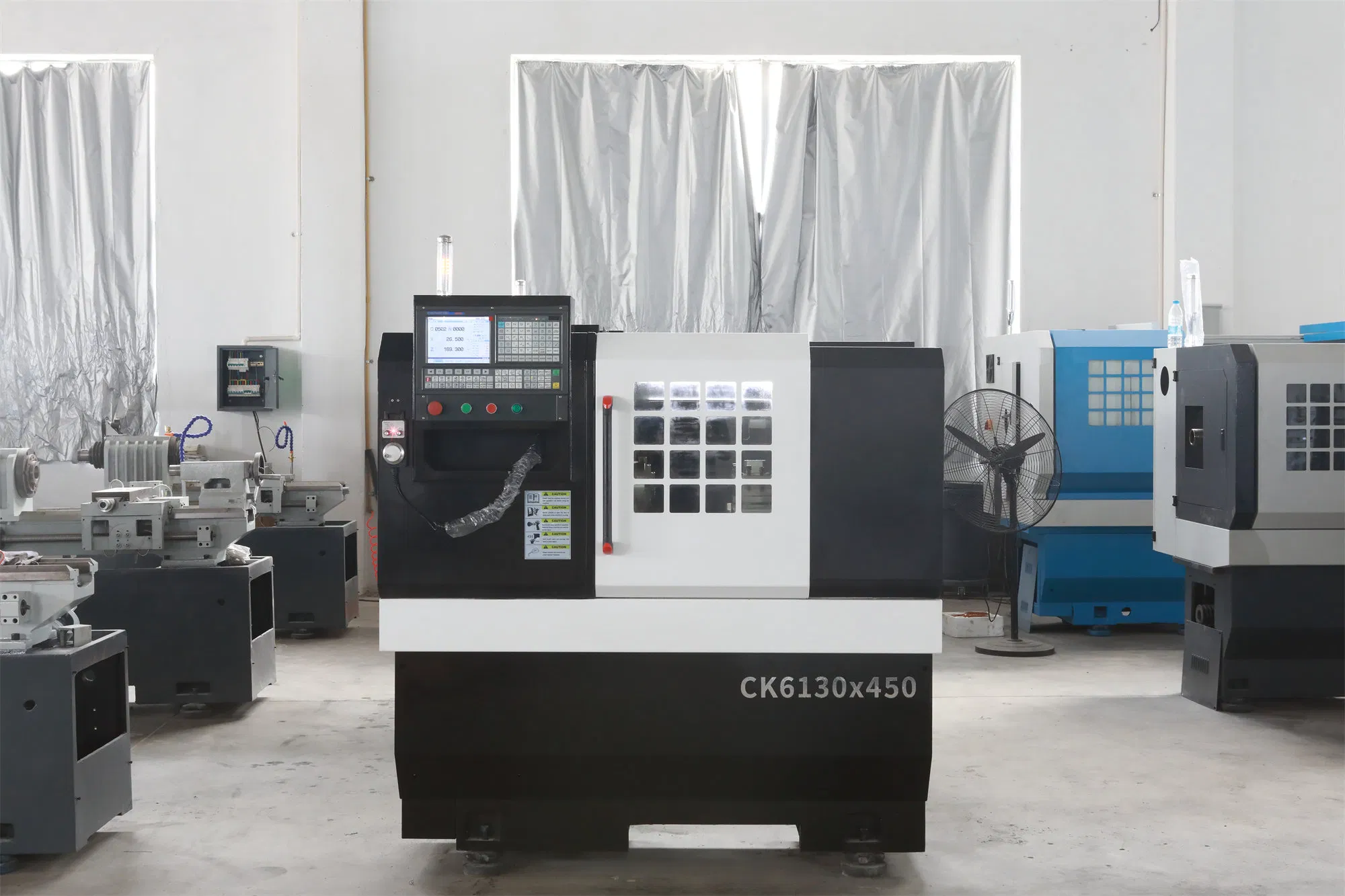

Ck6130 Flat Bed CNC Lathe
USD 5000.00 – 6000.00
/ piece
Price varies by quantity and specifications
| MOQ | 1 piece |
| Category | General |
6
Years
98%
Response
24h
Reply
More from this Supplier
Product Description
No detailed description available. Please send an inquiry for more information.
Technical Specifications
| Model NO. | CK6130 |
| After-sales Service | Yes |
| Warranty | 12 Months |
| Application | Metal |
| Process Usage | Metal-Cutting CNC Machine Tools |
| Movement Method | Point to Point Control |
| Control Method | Semi-Closed Loop Control |
| Numerical Control | NC |
| Processing Precision | 0.01~0.02(mm) |
| Performance Classification | Mid-Range CNC Machine Tools |
| Certification | CE |
| Condition | New |
| Controller | Siemens808d Ver.15 |
| Max. Swing Over Bed | φ360mm |
| Max. Process Length | 450mm |

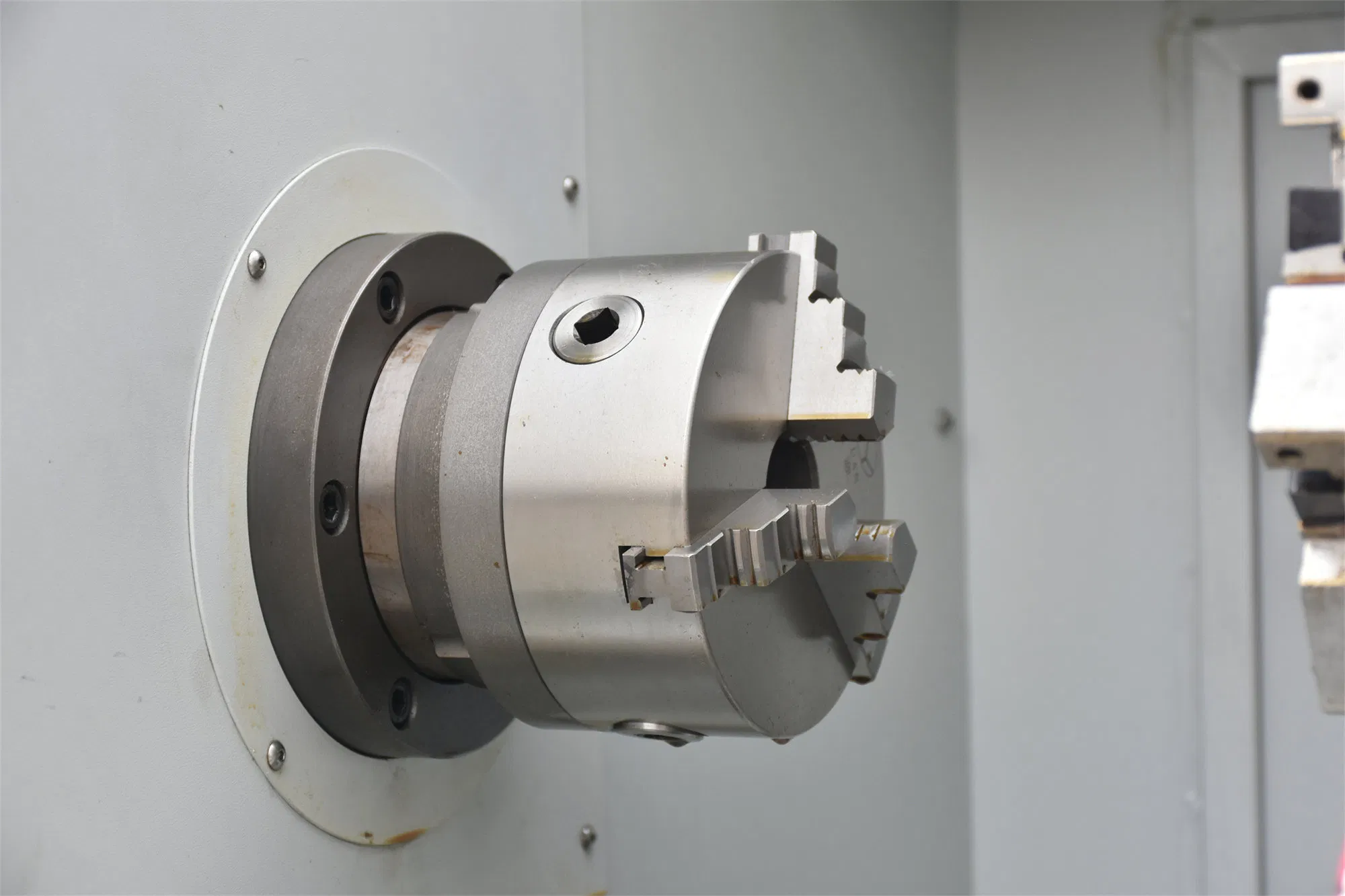

| Manual Chuck | 160mm |
| Spindle Motor | 4kw Motor |
| Spindle Bore | 40mm |
| Max.Dia. of Through-Hole | 28mm |
| Spindle Seed | 2200rpm |
| Distance Between Centers | 450mm |

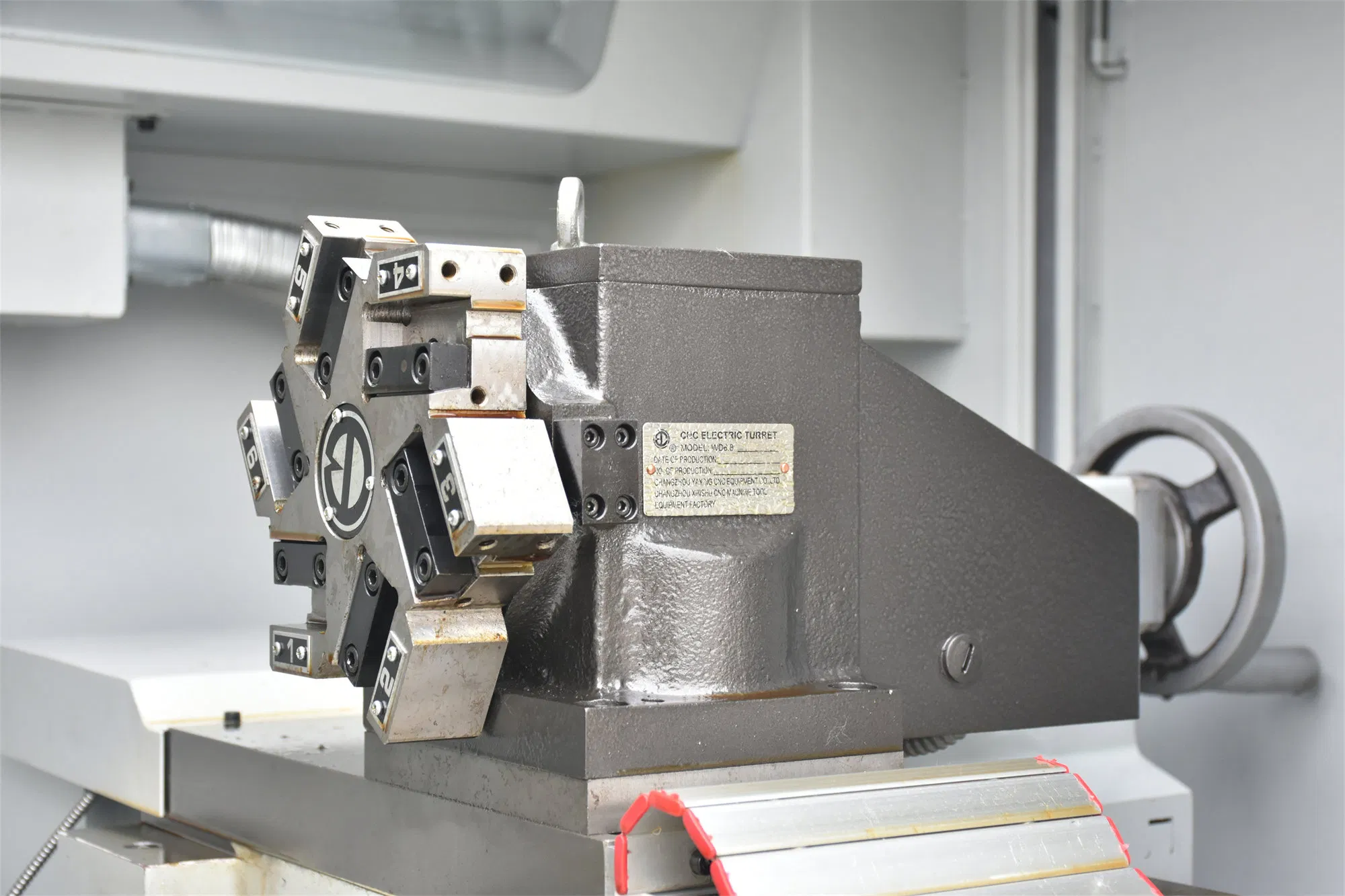

| Turret | 6 Station (16X16mm) |
| Max. Swing Over Cross Slide | φ150mm |
| Tailstock | Manual Tailstock |
| Spindle Nose | A2-5 |
| Transport Package | Fumigation Package |
| Specification | 1800x1200x1900mm |
| Trademark | ZINO |
| Origin | Jiangsu Province |
| HS Code | 8458110090 |
