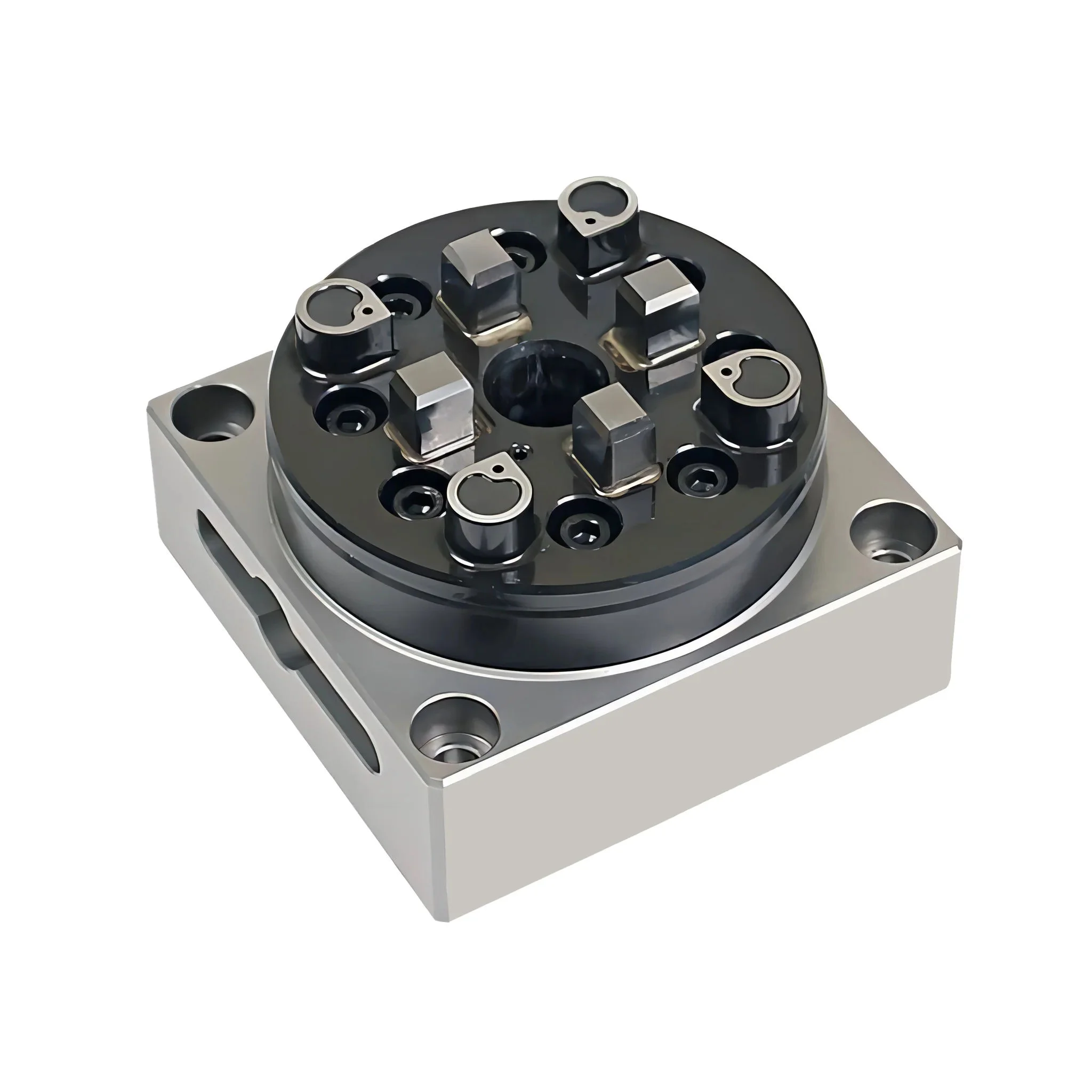

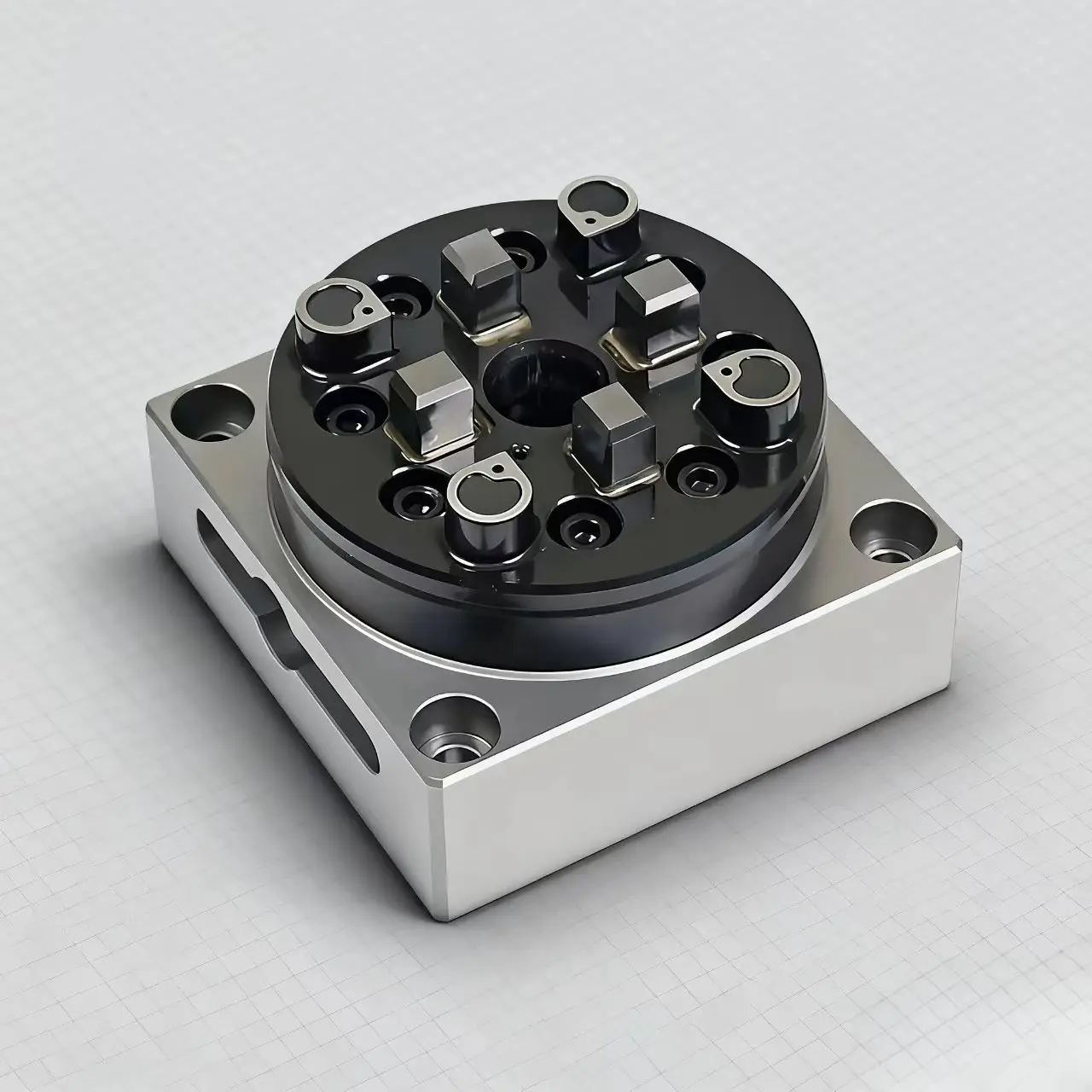

CNC XinDian Precise Pneumatic Workholding Chuck System 3R SYSTEM-A100T
USD 326.00
/ Piece
Price varies by quantity and specifications
| MOQ | 1 Piece |
| Category | Tools & Hardware |
Years Est.
6 Years
Employees
1-50
Product Description
Products Description
1.Efficiently streamline your CNC operations with the Xindian Pneumatic Workholding Chuck System 3R SYSTEM-A100T.
2.This advanced CNC workholding clamps enables rapid fixture changes without the need for disassembly or recalibration, making it ideal for EDM spark machines, machining centers, wire cutting, and more.
Features include:
* Locking Force: 15000N
* Setup Time Reduction: Up to 90% less setup time
* Increased Machine Uptime: Maximizes production efficiency
* High Repetition Accuracy: ±0.005mm
* Single-Operation Positioning and Clamping: Enhances workflow efficiency
* Compatibility: 3R SYSTEM VISE
Manufacturing Technique
Technical Specifications
| brand name | xindian |
| model number | A100T |
| number of jaws | 4 |
| chuck type | Pneumatic Chuck |
| application | Boring Machine, EDM spark machine, machining center, wire cutting |
| hardness | hrc55-60 |
| clamping method | universal clamping |
| locking force | 15000N |
| repetition accuracy | ±0.005mm |
| compatibility | 3R SYSTEM VISE |
| condition | New |
| place of origin | China |
