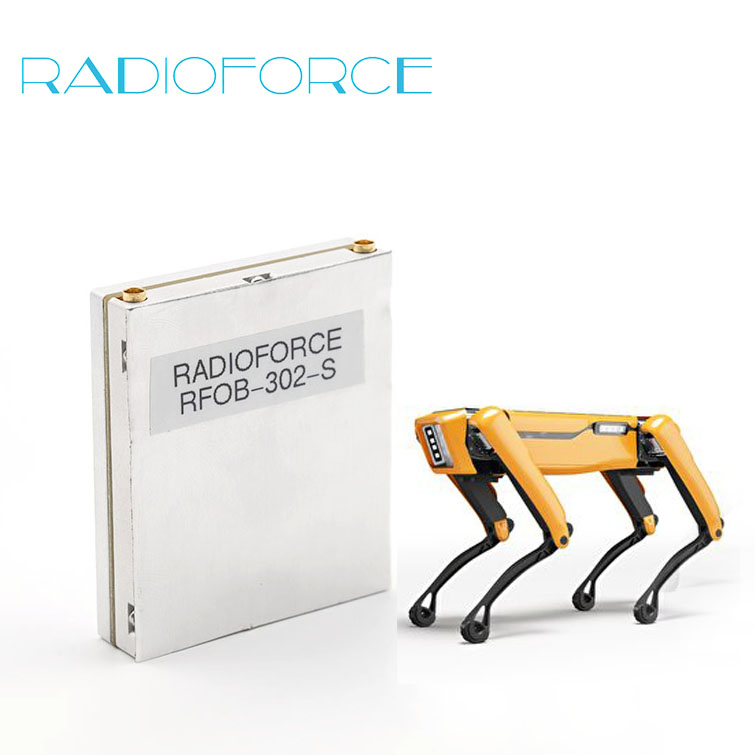

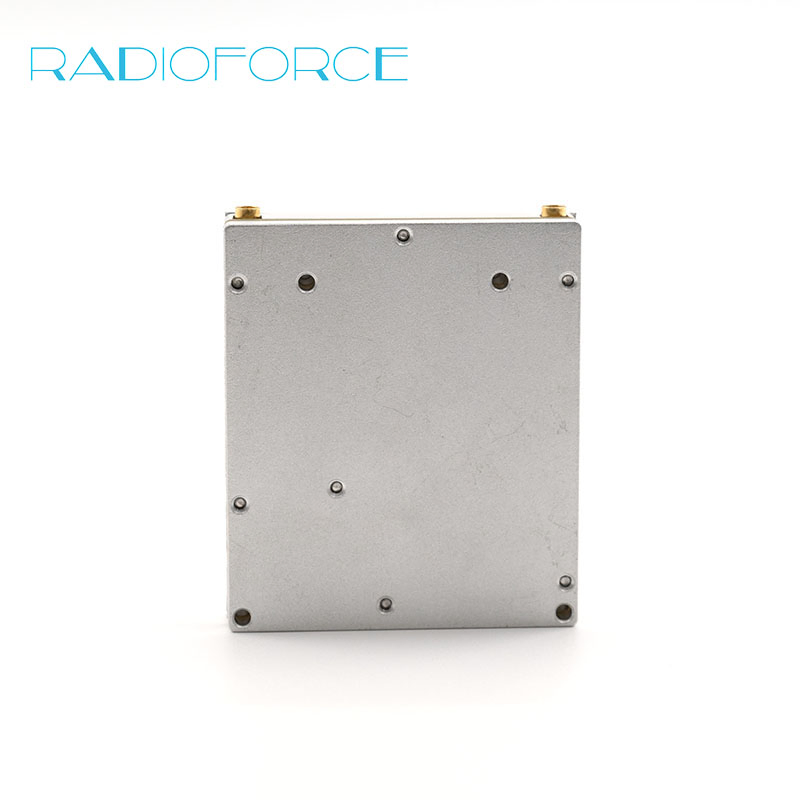

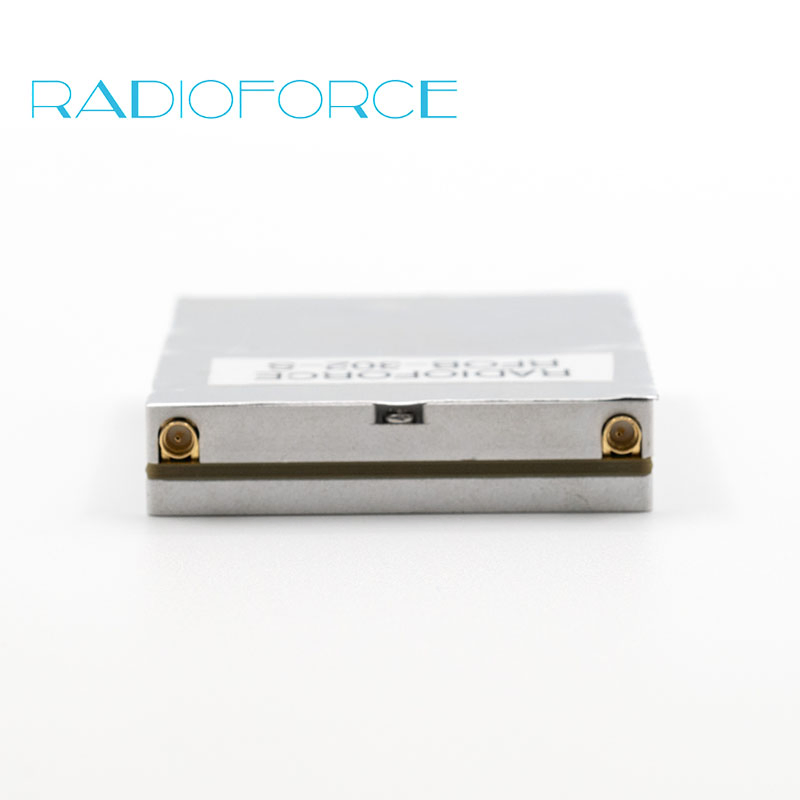

Drone Data Link Video Link Transmission Camera Wireless Mobile Radio Drone Module
USD 2500.00 – 3000.00
/ piece
Price varies by quantity and specifications
| MOQ | 2 piece |
| Category | Electronics |
More from this Supplier
Product Description
No detailed description available. Please send an inquiry for more information.
Technical Specifications
| Model NO. | RFOB-302-S |
| Usage | Telephone, Computer, Workstation, Server, Mobile phone, Laptop |
| Type | Wireless |
| Support Network | Ethernet |
| Information content | Data |
| Certification | CE, ISO, RoHS, GS |
| Condition | New |
| Waveform | COFDM |
| Working Mode | Mesh, PTP, PTMP |
| TX Power | 30dBm x 2 Channels |
| Frequency | 1230-1550MHz |
| RX Sensitivity | -106dBm@Bandwidth=1.25MHz |
| Bandwidth | 1.25/2.5/5/10MHz/20MHz |
| Data Throughput | Up to 30Mbps(Diversity), 60Mbps(MIMO), Option |
| Network Capacity | Up to 8nodes in a single network,Options:32,64,128 |
| Anti Interference | Interference Avoidance Scheme(Optioned) |
| LPD/LPI | Support Silent Mode |
| Talkback | PTT, Meeting Model, Multiple Talk Group |

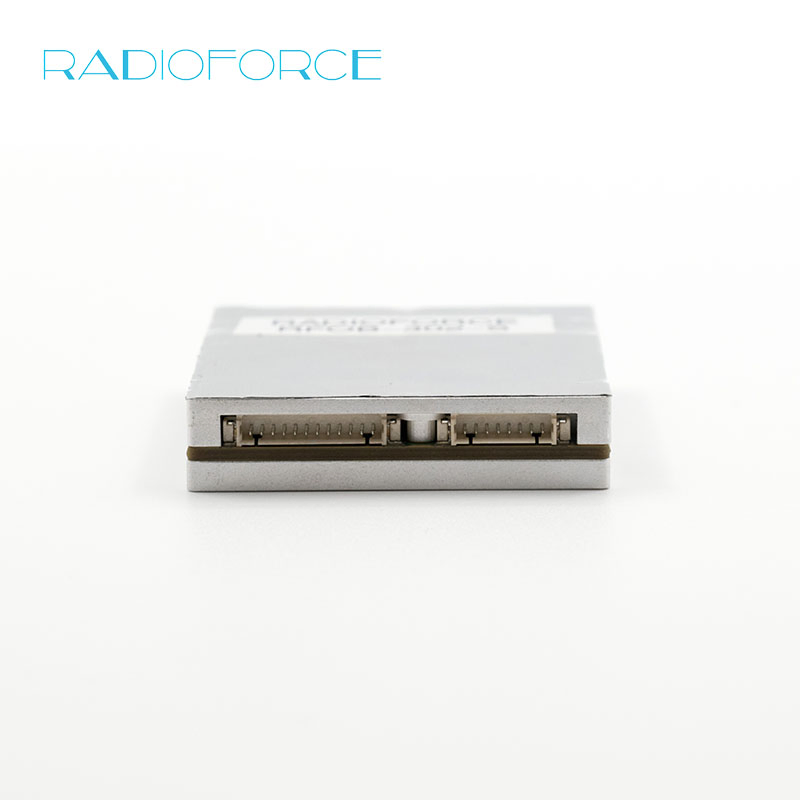

| Interface | ETHx2, RS232X2, TTLx1 |
| Distance | Typical:LOS-20km,NLOS-1km |
| Power Supply Scope | DC in 9-14V |

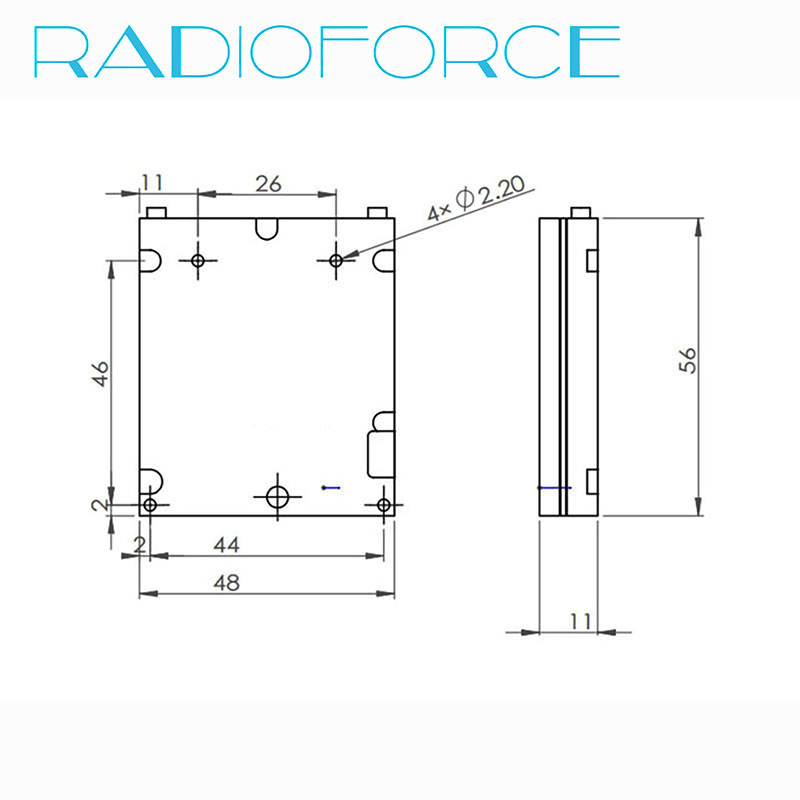

| Dimension | 56x48x11mm |
| Transport Package | Protection Case |
| Specification | 56x48x11mm |
| Trademark | RadioForce |
| Origin | China |
| HS Code | 8517799000 |
