Green Light Linear Motor Linear Scale UV Laser Cutting Machine for FPC
Thumbnail 1 Thumbnail 2 Thumbnail 3 Thumbnail 4 Thumbnail 5 Thumbnail 6
Manufacturer

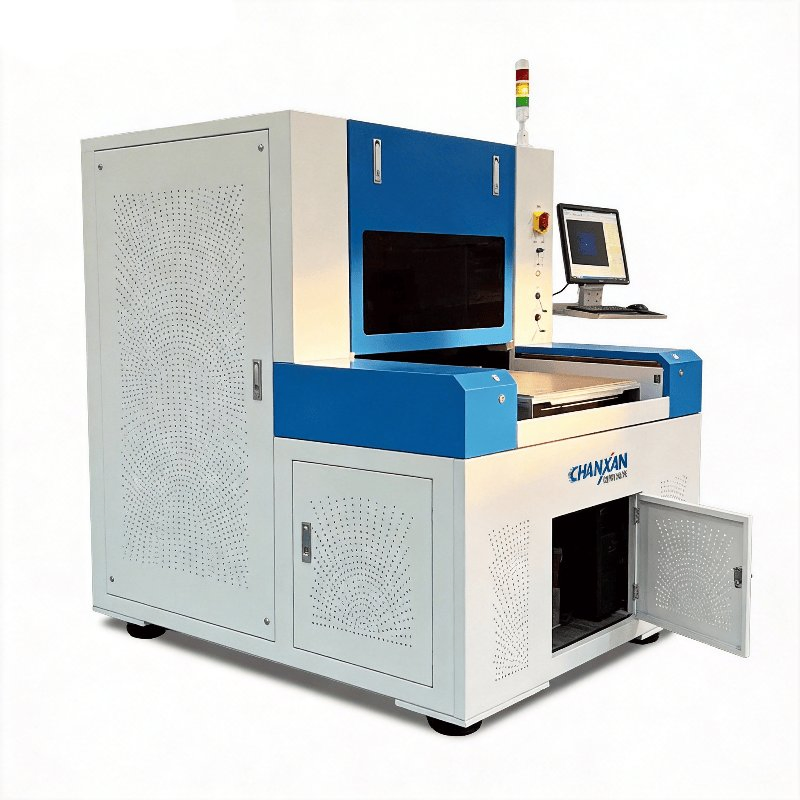

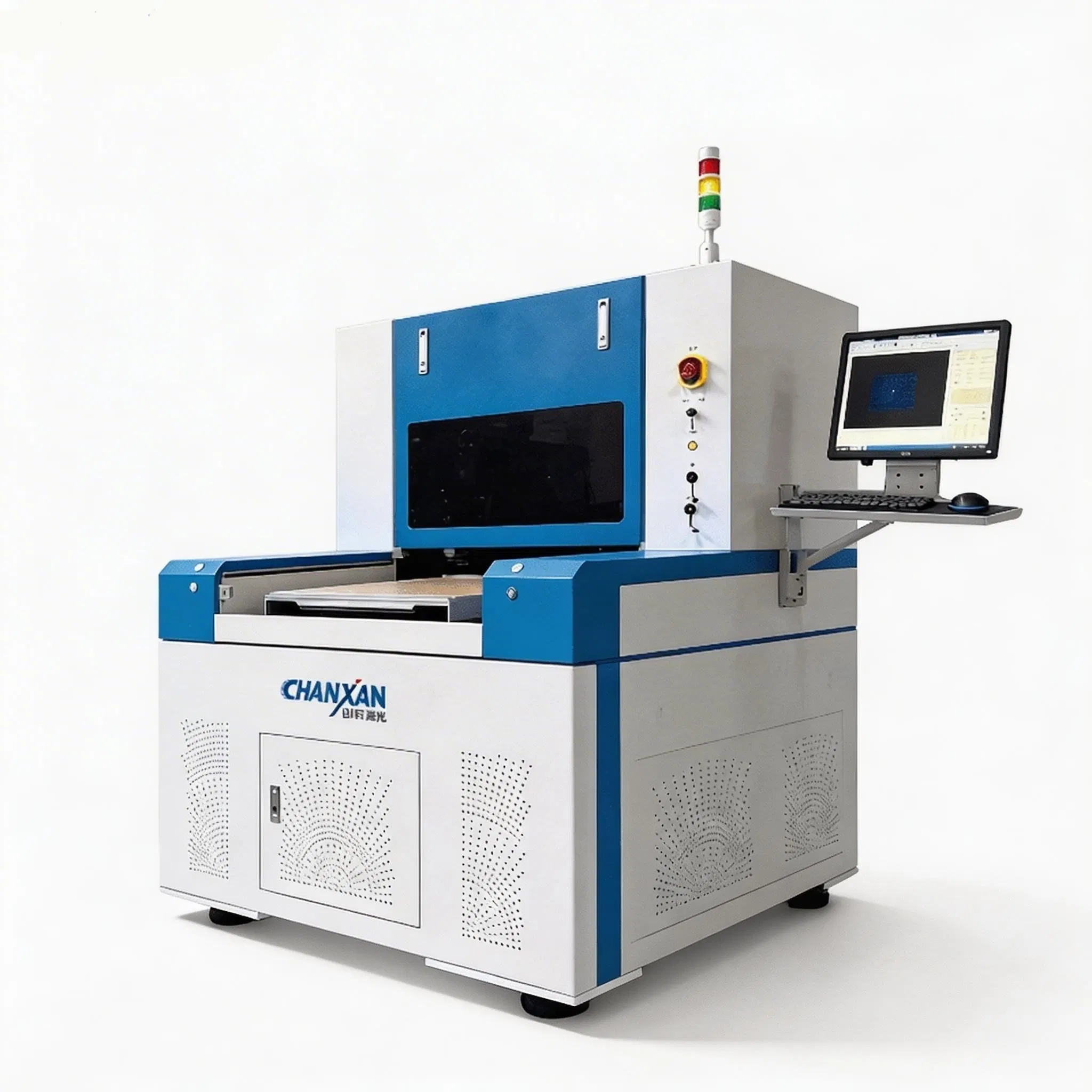

Green Light Linear Motor Linear Scale UV Laser Cutting Machine for FPC

USD 85000.00 – 89000.00 / set
Price varies by quantity and specifications
MOQ 1 set
Category Machinery
Submit Order
Chanxan (Changshu) Laser Technology Co., Ltd.

China

Manufacturer
26
Years
98%
Response
24h
Reply
Chat Now
More from this Supplier
High Accuracy UV Picosecond Laser Cutting Machine for Nonmetal Composite Materials
High Accuracy UV Picosecond Laser Cutting Machine for Nonmetal Composite Materials
USD 85000.00
Nanosecond UV Laser Cutting Machine for FPC Window
Nanosecond UV Laser Cutting Machine for FPC Window
USD 45000.00
High Precision Femtosecond Infrared Laser Ultra Thin Glass Cutting Machine
High Precision Femtosecond Infrared Laser Ultra Thin Glass Cutting Machine
USD 183000.00
Automatic Picosecond and CO2 Laser Cutting Machine for Glass Production
Automatic Picosecond and CO2 Laser Cutting Machine for Glass Production
USD 85000.00
Automatic Dual Head Roll to Sheet Laser Cutting Machine for Electronics Production
Automatic Dual Head Roll to Sheet Laser Cutting Machine for Electronics Production
USD 25000.00
Laser Fine Cutting Machine with Ball Screw Cover Layer Film for FPC/PCB
Laser Fine Cutting Machine with Ball Screw Cover Layer Film for FPC/PCB
USD 25000.00

Product Description

No detailed description available. Please send an inquiry for more information.

Green Light Linear Motor Linear Scale UV Laser Cutting Machine for FPC
Green Light Linear Motor Linear Scale UV Laser Cutting Machine for FPC

Technical Specifications

Model NO.CW-6050FZ/PZ/Z
Warranty12 Months
ApplicationAerospace Industry, Automotive Industry, Semiconductors/3c/Glass/Biomedical
Cooling SystemWater Cooling
Technical ClassPulse Laser
Applicable MaterialNonmetal
Structure TypeGantry Type
Laser ClassificationSolid Laser
Laser TechnologyLaser Flame Cutting
Laser TypeUltrafast Laser
Laser Power10W/30W/35W
Working Area500*610mm
Positioning Accuracy±1um
Processing Speed≤3000mm/S
Processing Accuracy≤30um
Focus Spot≤20um
Scan Range of Galavanometer50*50um
Machinery Test ReportProvided
Video Outgoing-InspectionProvided
CertificationCE
Processing Thickness3mm
Processing MaterialPi Film, Cover Film, FPC, PCB, etc.
Power SupplyThree-Phase 380V AC, 50Hz, 60Hz 20A
Transport PackageWooden Case
Specification2200*1500*1750mm
TrademarkCHANXAN
OriginSuzhou
