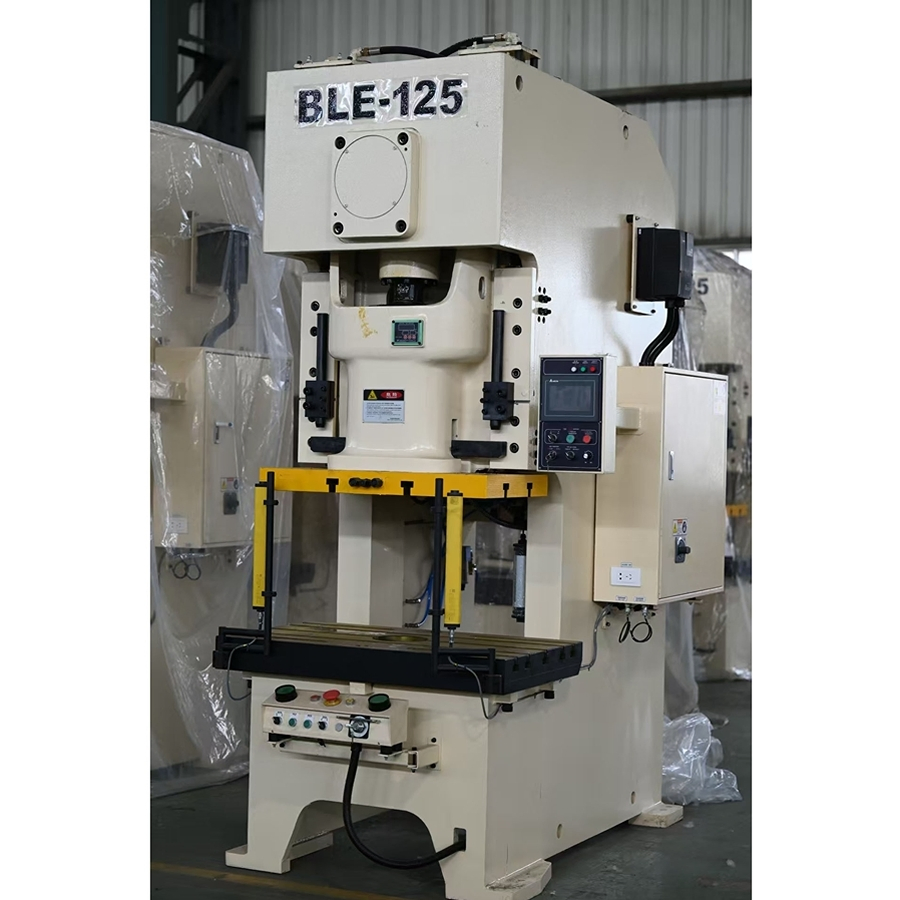

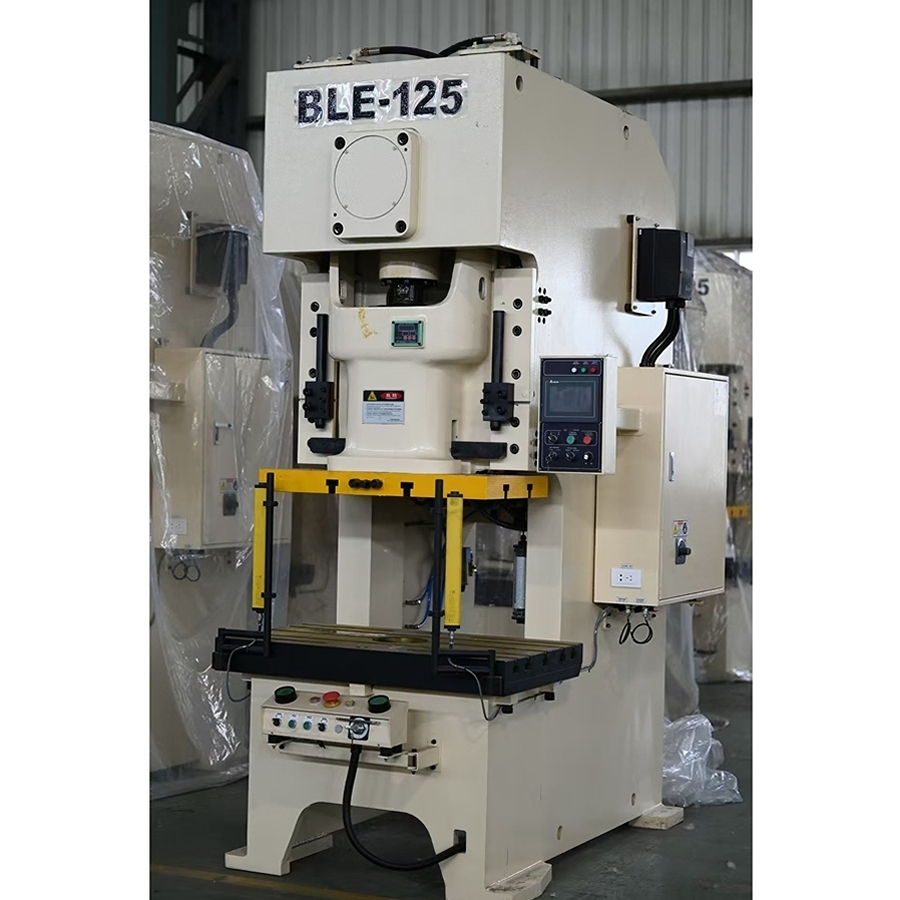

Heavy-Duty Punching Press Machine for Automotive Part Production
USD 6200.00 – 6600.00
/ piece
Price varies by quantity and specifications
| MOQ | 1 piece |
| Category | Machinery |
9
Years
98%
Response
24h
Reply
More from this Supplier
Product Description
No detailed description available. Please send an inquiry for more information.
Technical Specifications
| Model NO. | BLE Series |
| After-sales Service | Remote Guidance |
| Warranty | One-Year Warranty |
| Type | General Punching Machine |
| Punch Shape | Open Punch |
| Slider Movement | Single Action |
| Slider Drive Mechanism | Crank Press |
| Automatic Grade | Automatic |
| Power Source | Electric |
| Precision | High Precision |
| Certification | GS, CE, RoHS, ISO 9001 |
| Condition | New |
| Product Name | Precision Punch Press |
| Keywords | Punching Machine |
| Model | BLE-60/BLE-80/BLE-125/BLE-160 |
| Capacity (Ton) | 60/80/125/160 |
| Rate Tonnage Point (mm) | 4/2 4 6/3 6/3 |
| Speed Changing (S.P.M) | 40-80/80-120 40-75/80-115 30-60/60-90 20-50/40-70 |
| Stable Speed (S.P.M) | 65/50 |
| Stroke (mm) | 130/60 150/70 180/80 200/90 |
| Die Height (mm) | 310/345 330/370 350/400 400/455 |
| Slide Adjustment (mm) | 70/80 |
| Shan Hole (mm) | φ50 |
| Main Motor (Kw.P) | 5.5*4/11*4/5.5*4/11*4 |
| Air Pressure (Kg/Cm2) | 5.5 |
| Presses Weight (Ton) | 5/9.5 |
| Die Cushion Capacity (Ton) | 3.6/6 |
| Transport Package | Standard Packaging or Customized |
| Specification | Standard Specifications or Customized |
| Trademark | JBLDY |
| Origin | Shandong, China |
| HS Code | 8466940090 |
