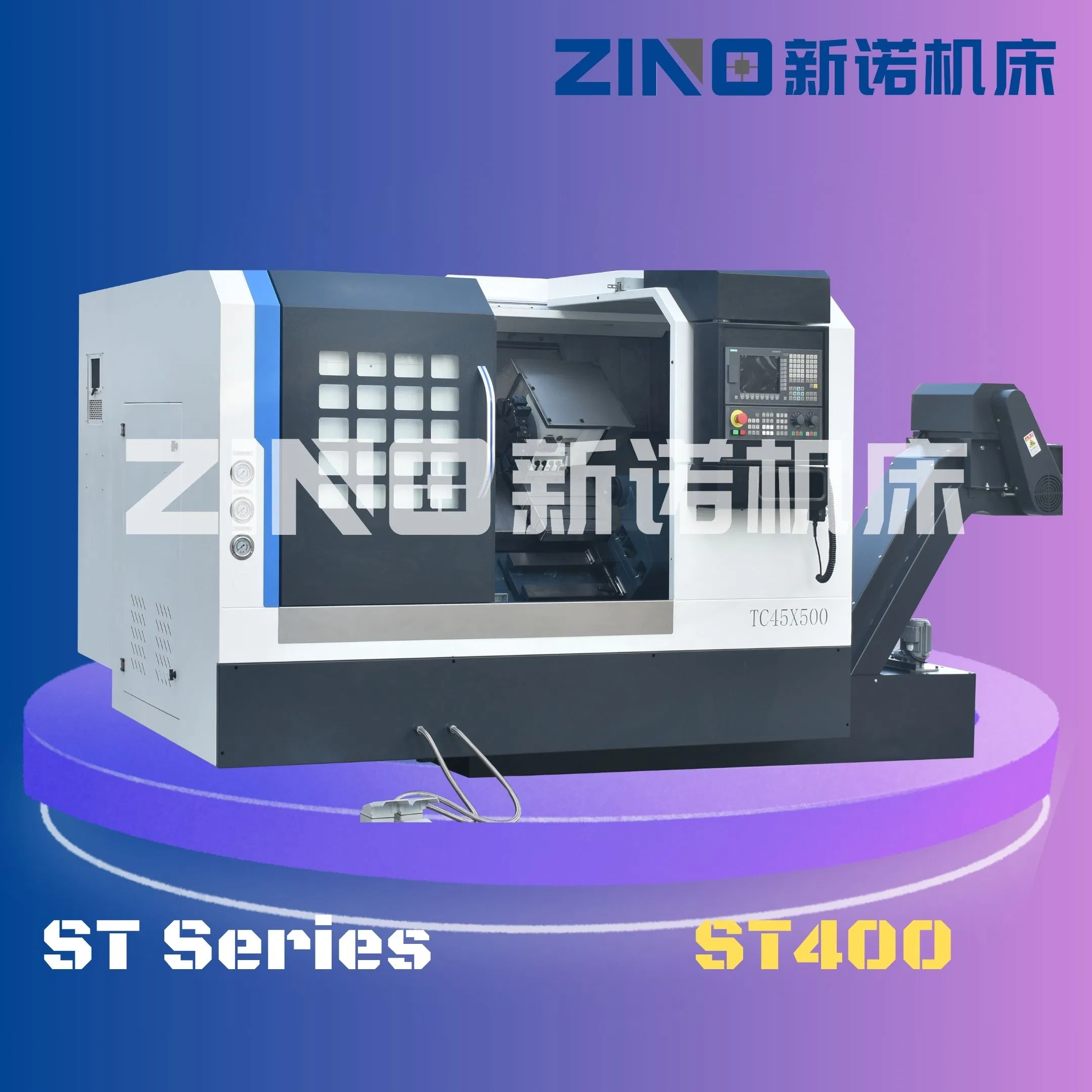

High-Precision St400X500 Slant Bed CNC Lathe for Professionals
USD 10800.00 – 22000.00
/ piece
Price varies by quantity and specifications
| MOQ | 1 piece |
| Category | General |
6
Years
98%
Response
24h
Reply
More from this Supplier
Product Description
No detailed description available. Please send an inquiry for more information.
Technical Specifications
| Model NO. | ST400 |
| After-sales Service | Yes |
| Warranty | 12 Months |
| Controller | Siemens808d Ver.15 |
| Max. Swing Over Bed | φ400mm |
| Distance Between Centers | 500mm |

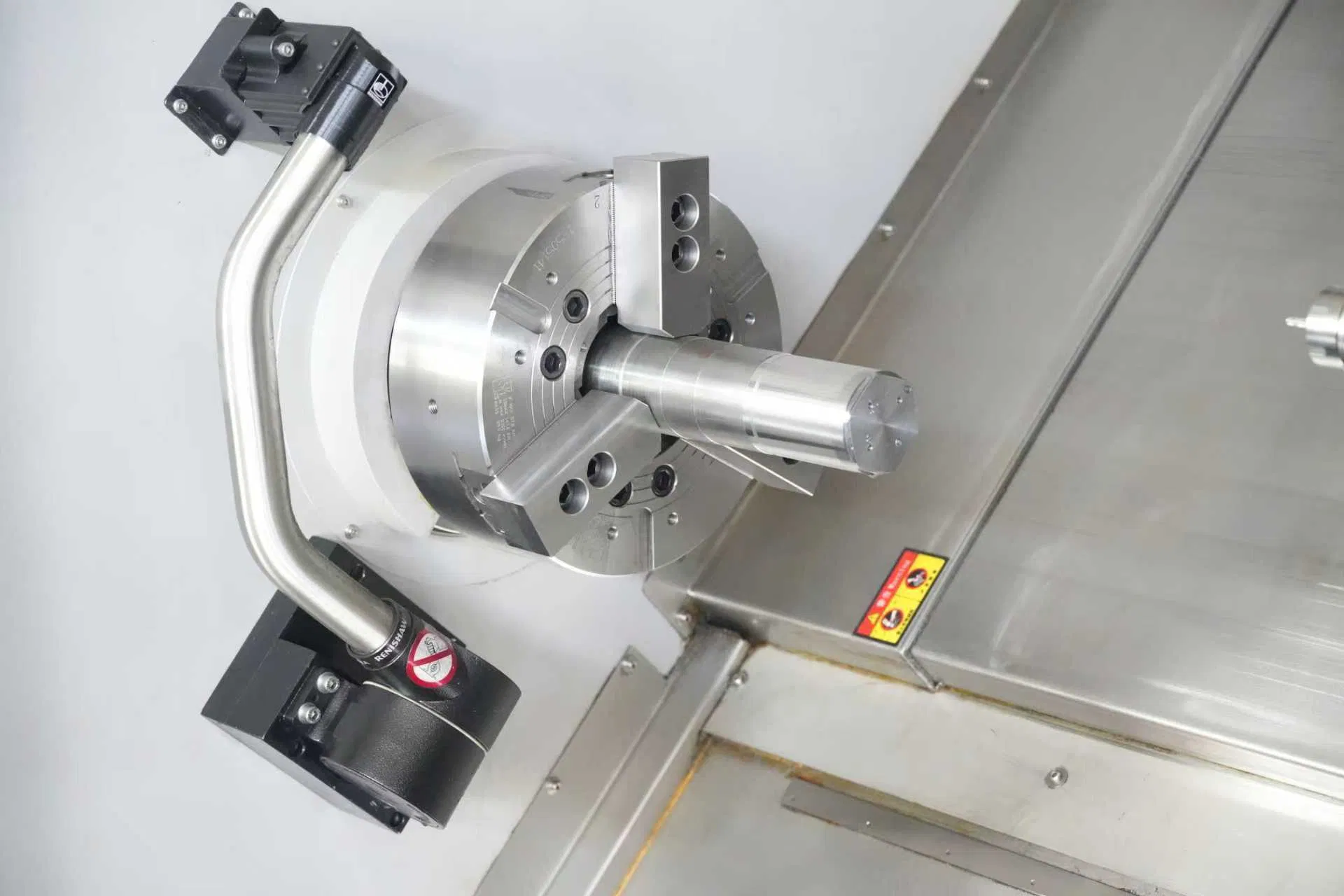

| Hydraulic Chuck | 200mm |
| Spindle Bore | 66mm ( 50mm After Hydraulic Chuck ) |
| Max. Process Length | 350mm |
| Spindle Motor | 7.5kw GSK Servo Motor |
| Spindle Seed | 4000rpm |
| Max. Swing Over Cross Slide | φ220mm |

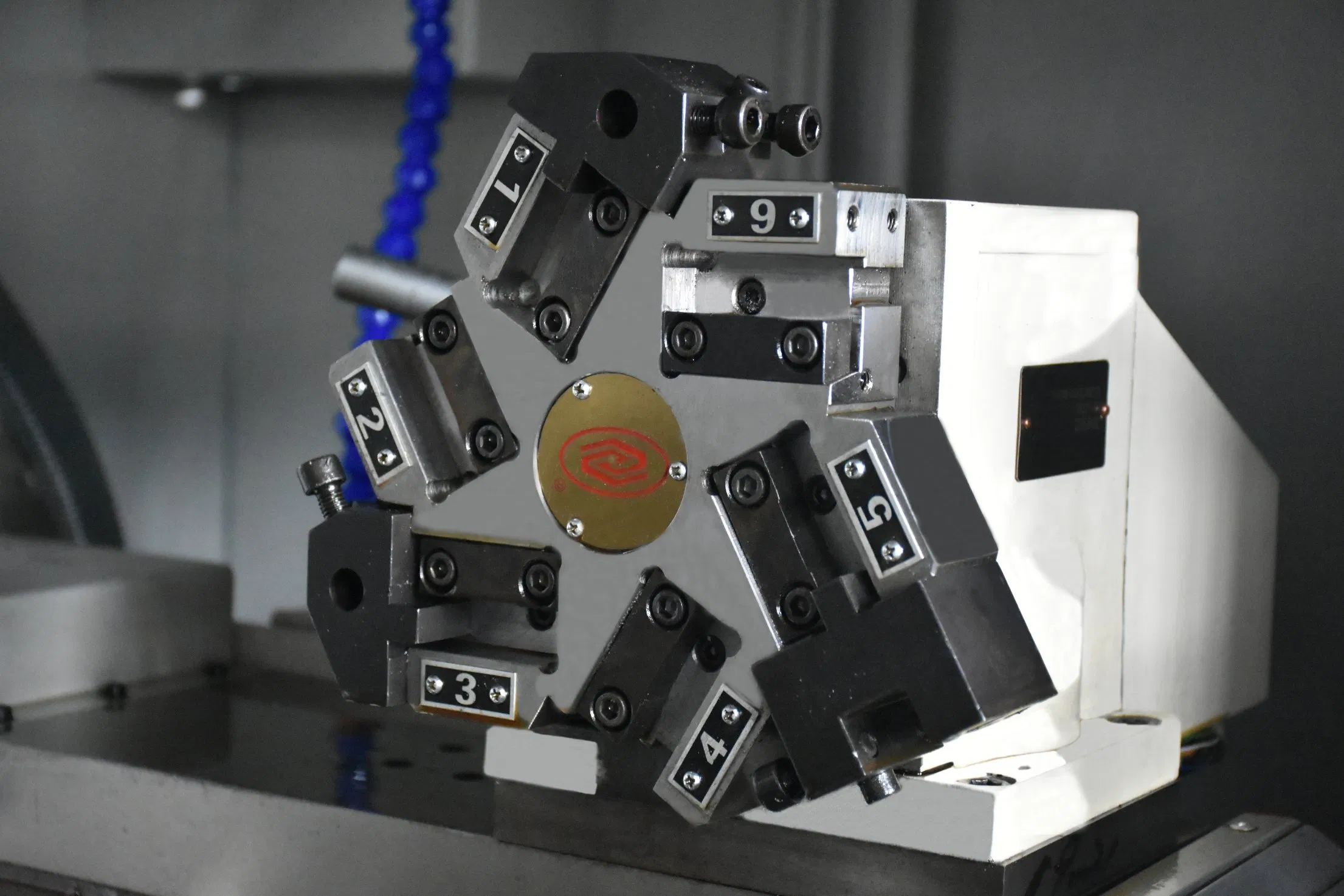

| Turret | 8 Station (20X20mm) |
| Spindle Nose | A2-6 |

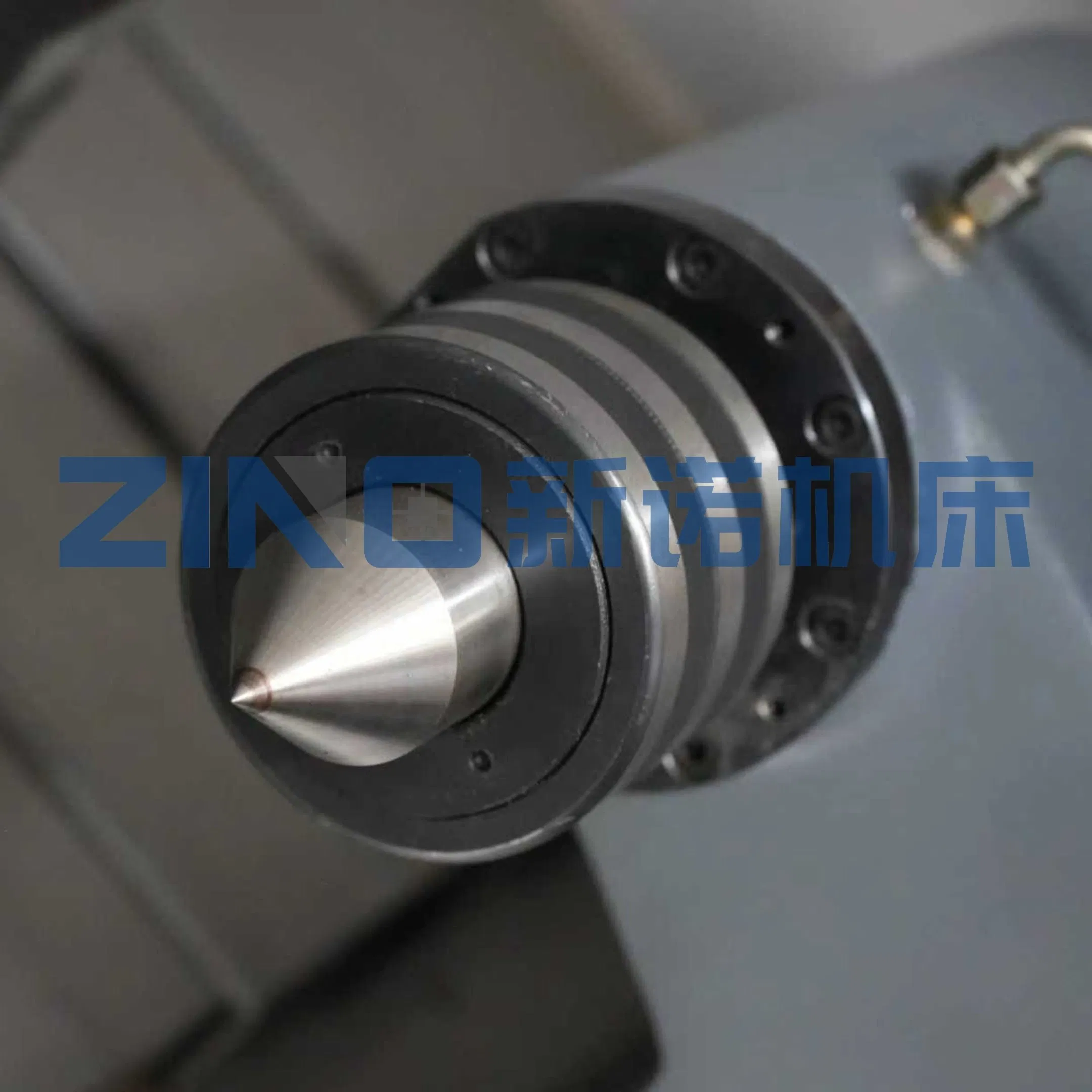

| Tailstock | Hydraulic Tailstock |
| Transport Package | Fumigation Package |
| Specification | 3.00*2.22*2.28 M |
| Trademark | ZINO |
| Origin | Jiangsu Province |
| HS Code | 8458110090 |
