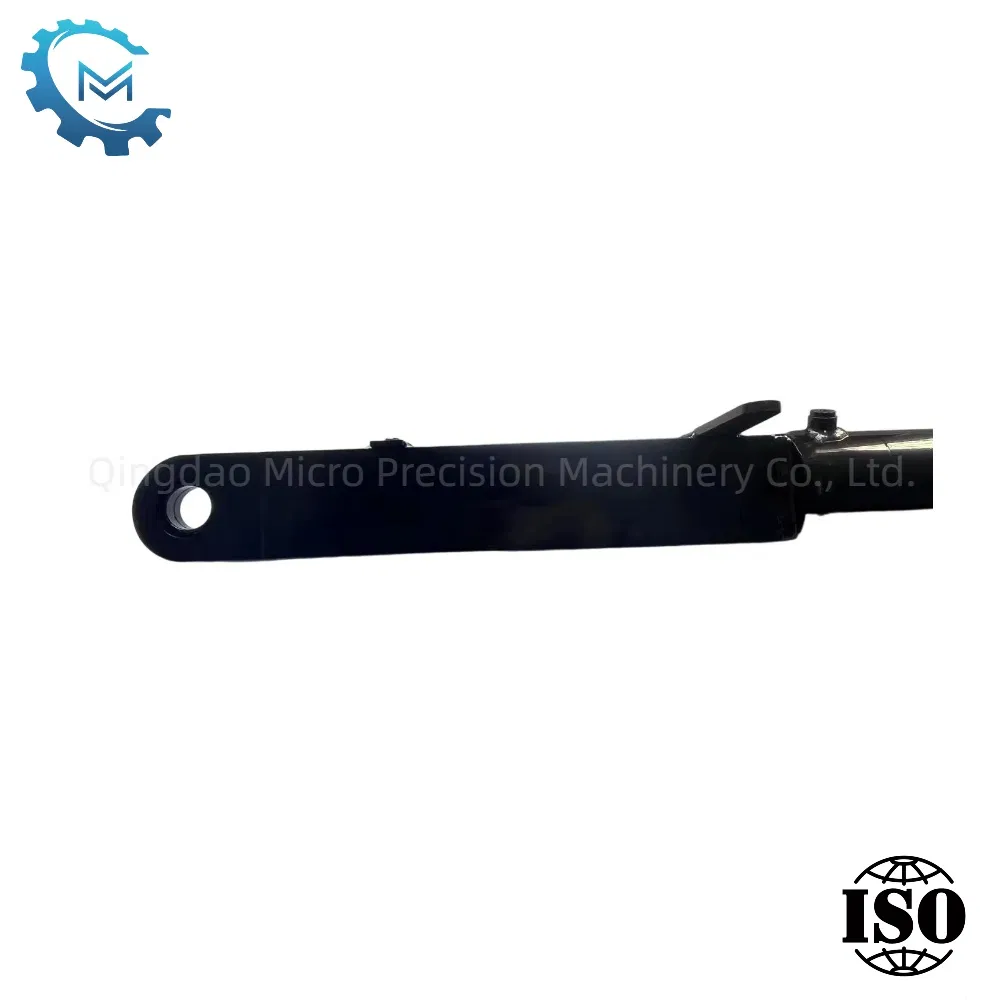

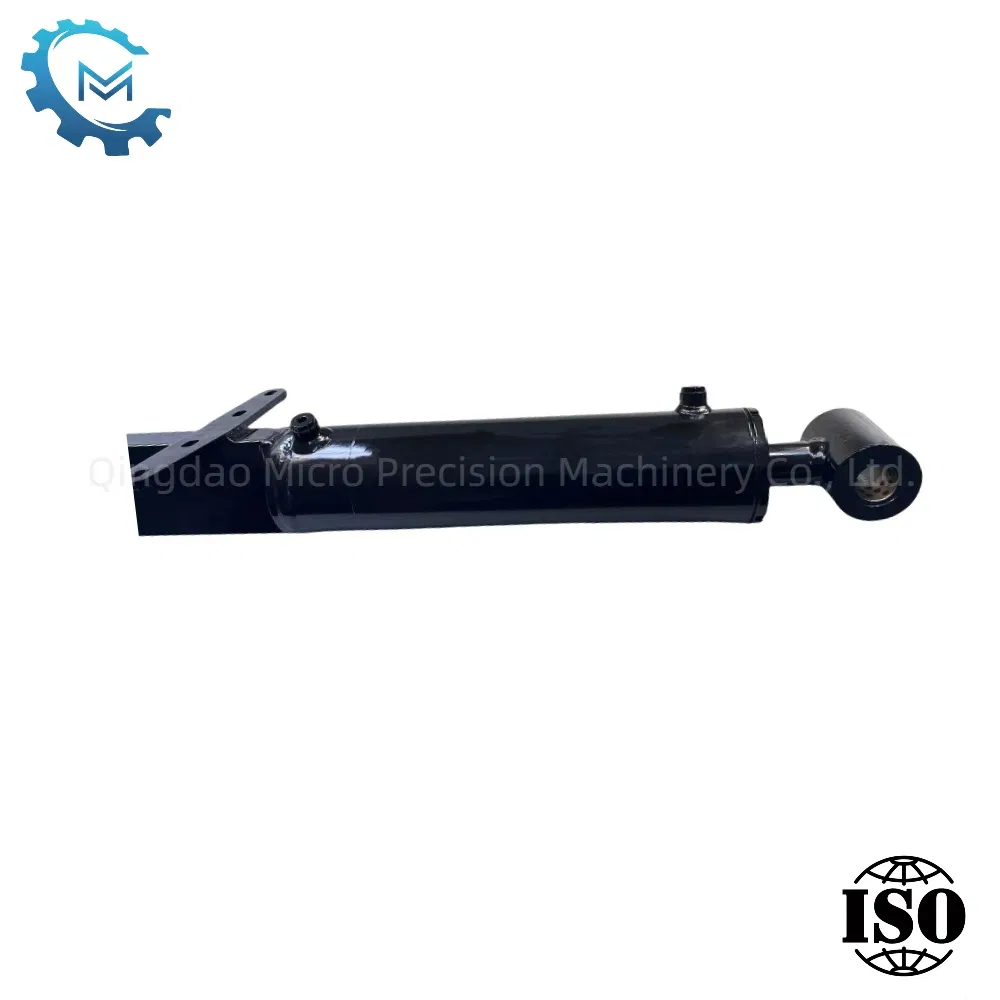

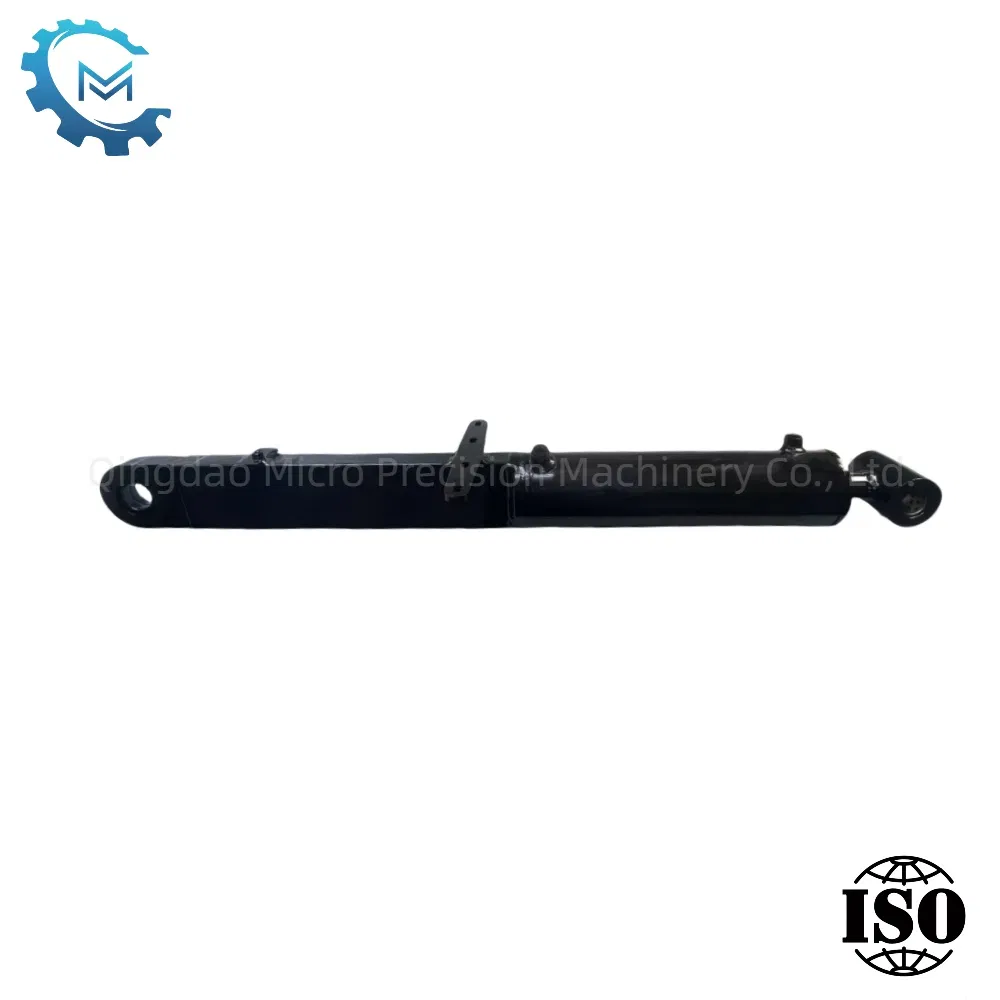

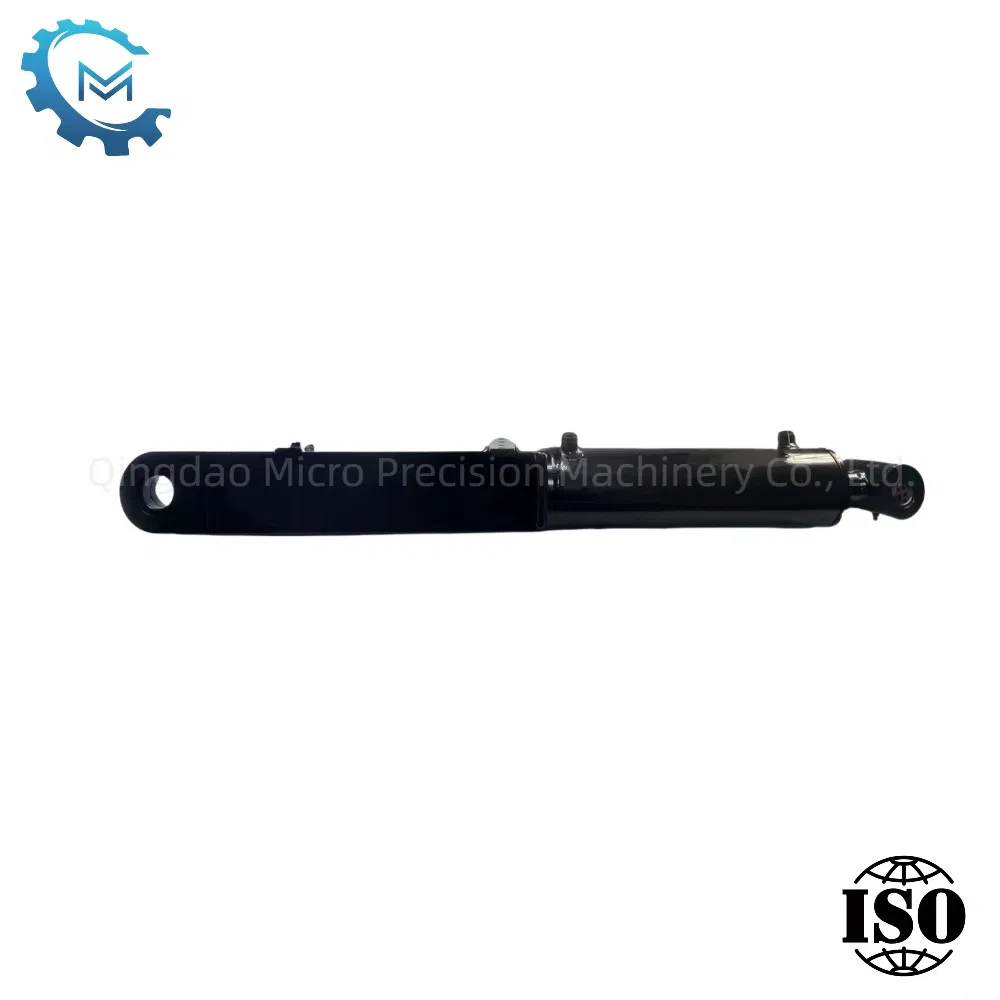

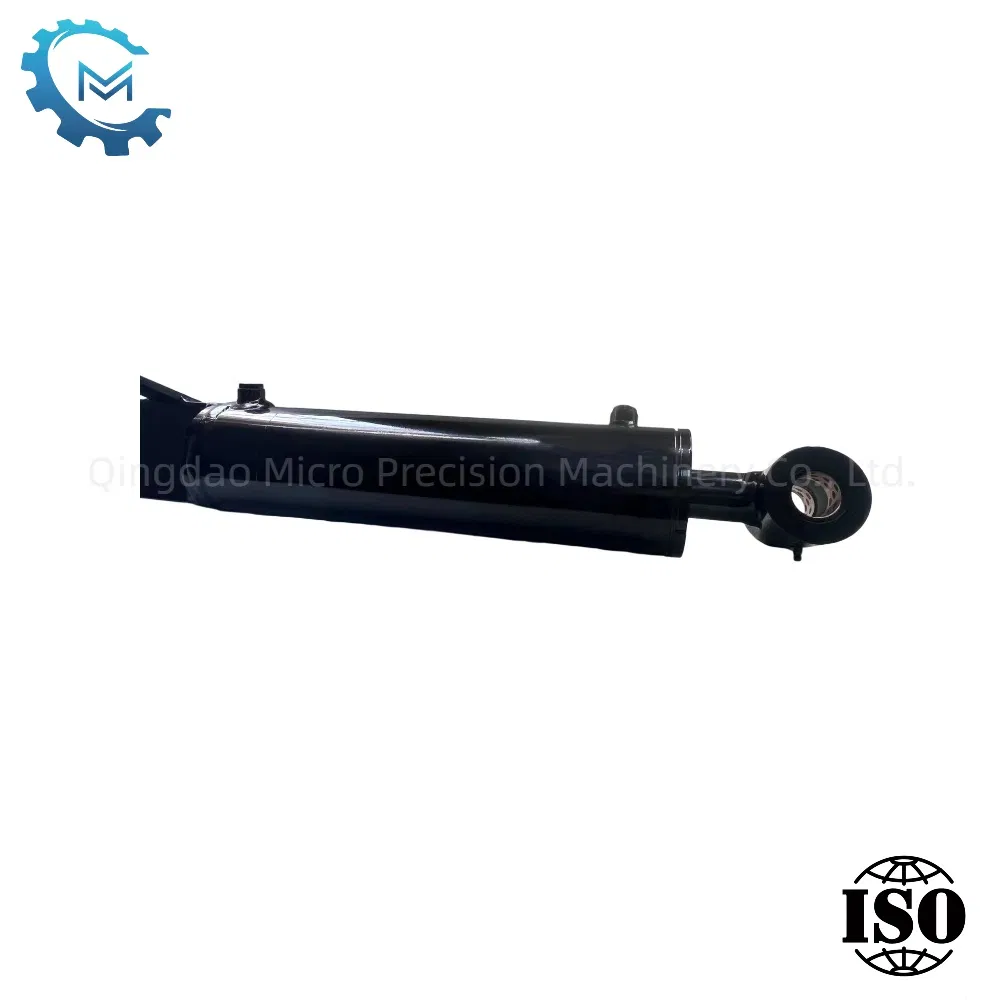

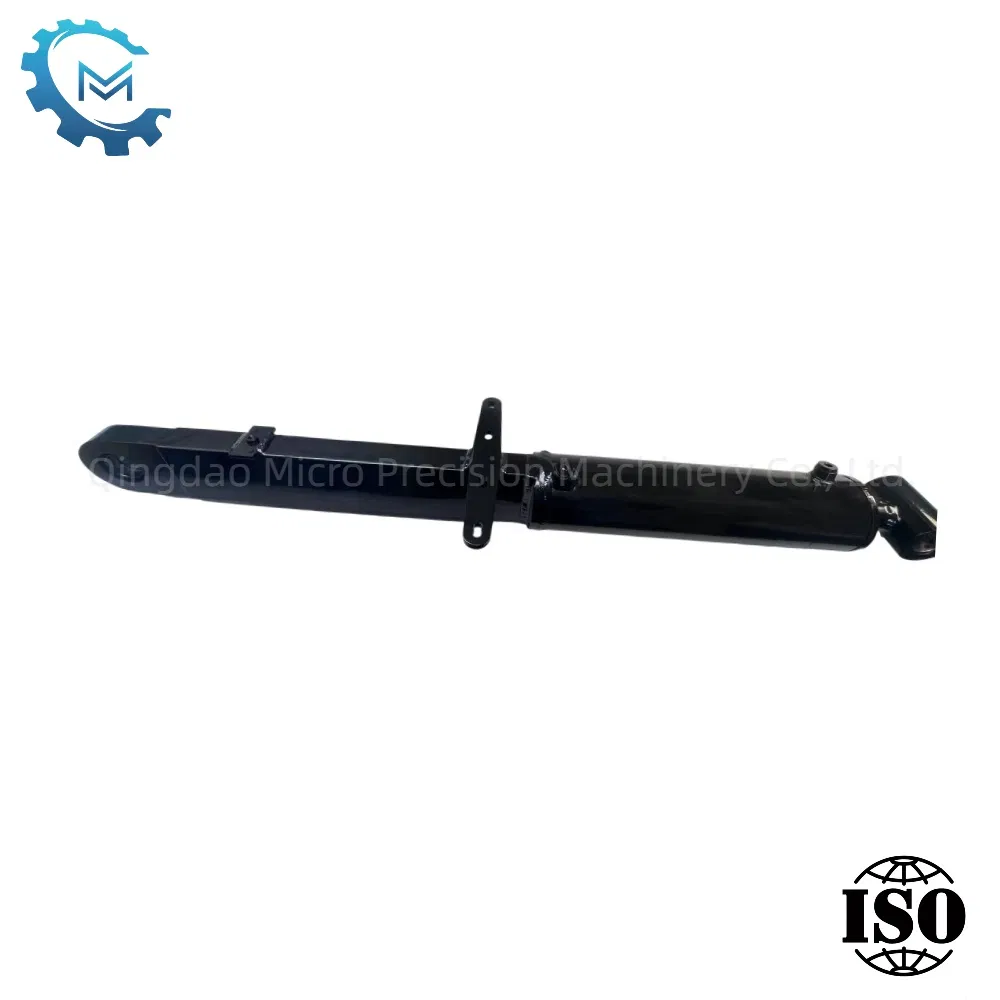

Hydraulic Cylinders for Construction and Machinery Needs
USD 235.00 – 330.00
/ piece
Price varies by quantity and specifications
| MOQ | 1 piece |
| Category | Tools & Hardware |
20
Years
98%
Response
24h
Reply
More from this Supplier
Product Description
No detailed description available. Please send an inquiry for more information.
Technical Specifications
| Model NO. | WG-P0013 |
| Certification | ISO9001 |
| Pressure | Medium Pressure |
| Work Temperature | Normal Temperature |
| Acting Way | Single Acting |
| Working Method | Straight Trip |
| Adjusted Form | Switching Type |
| Structure | Piston Type |
| Material | Carbon Steel |
| Bore Diameter | 50mm-250mm, Customized |
| Rod Diameter | 40mm-230mm, Customized |
| Stroke | 100mm-400mm,Customized |
| Working Pressure | 7-35MPa,Customized |
| Surface Treatment of Piston Rod | Hahard Chrome Plating,Electroplated Milky White CH |
| Work Pressure | Maximum 35MPa,Customizable |
| Seal Material | High Tensile Cold Drawn Tube, Precision Honed for |
| Mounting | Earring,Flange,Clevis.Foot,Trunnion,Customized |
| Seal Type | Parker,Nok, Hallite or as Customer's Requirement |
| Warrenty | 18 Months |
| MOQ | 1 PCS |
| Production Time | Based on Order Quantity. Normally 30-40 Days. |
| Color | Customized |
| Packaging | Wooden Package |
| Service | OEM & ODM |
| Transport Package | Wooden Package |
| Origin | China |
| HS Code | 8412909090 |
