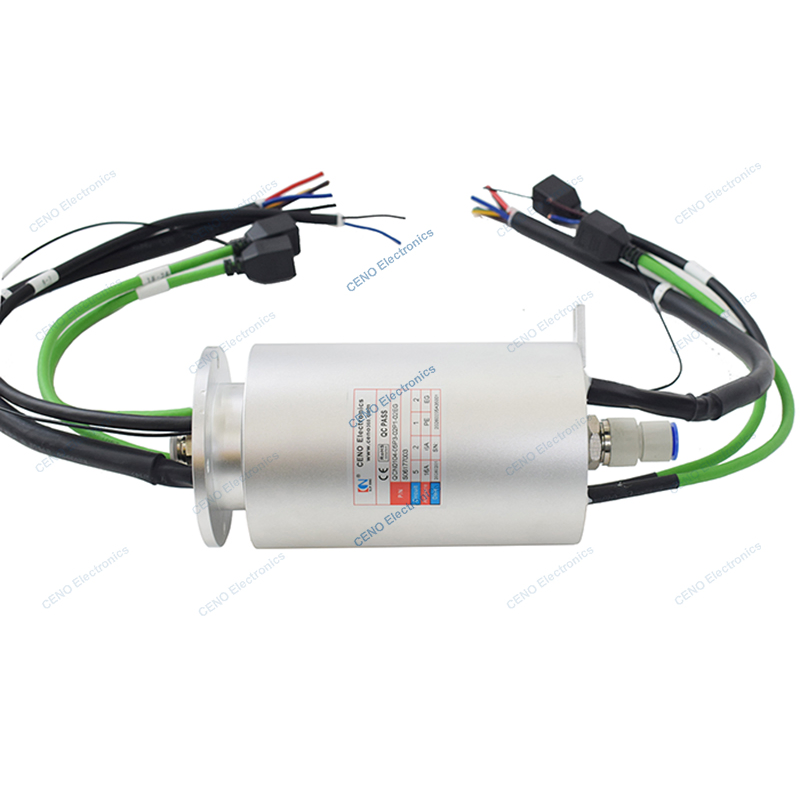

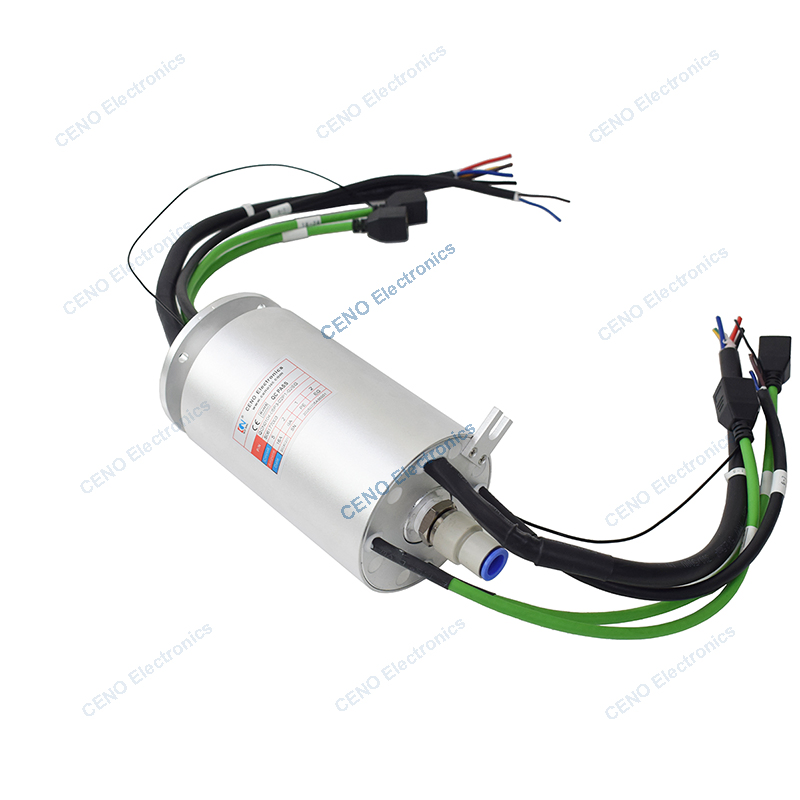

Integrate Power Ethernet Signal and Pneumatic Hydraulic Slip Ring for Industry Robotic Arm
USD 169.90 – 9999.00
/ piece
Price varies by quantity and specifications
| MOQ | 1 piece |
| Category | Electronics |
11
Years
98%
Response
24h
Reply
More from this Supplier
Product Description
No detailed description available. Please send an inquiry for more information.
Technical Specifications
| Model NO. | QCN0403-17 |
| Certification | ISO9001, RoHS, CE, UL |
| Transmission Medium | Pneumatic and Ethernet Signal |
| Channel | 1 channel air (G 1/2" & 12mm tube) |
| Pressure | 140psi |
| Circuits & Current | 5 circuits * 16A; 2 circuits * 6A; 1 circuit * PE |
| Voltage | 0~415 VAC/VDC |
| Dielectric strength | ≥1500VAC@50Hz; ≥300VAC@50Hz |
| Insulation resistance | ≥500MΩ@500VDC; 200MΩ@300VDC |
| Contact resistance fluctuation | Max 30m&Omega |
| Contact material | Precious metals / Gold to gold |
| Housing material | Aluminum alloy |
| Working speed | 0~20rpm |
| Protection | IP65 |
| Working humidity | 60% |
| Working temperature | -20℃ ~+60℃ |
| Transport Package | Carton Box |
| Specification | Precious metal / Alloy / Engineer plastic |
| Trademark | CENO |
| Origin | Shen Zhen, China |
