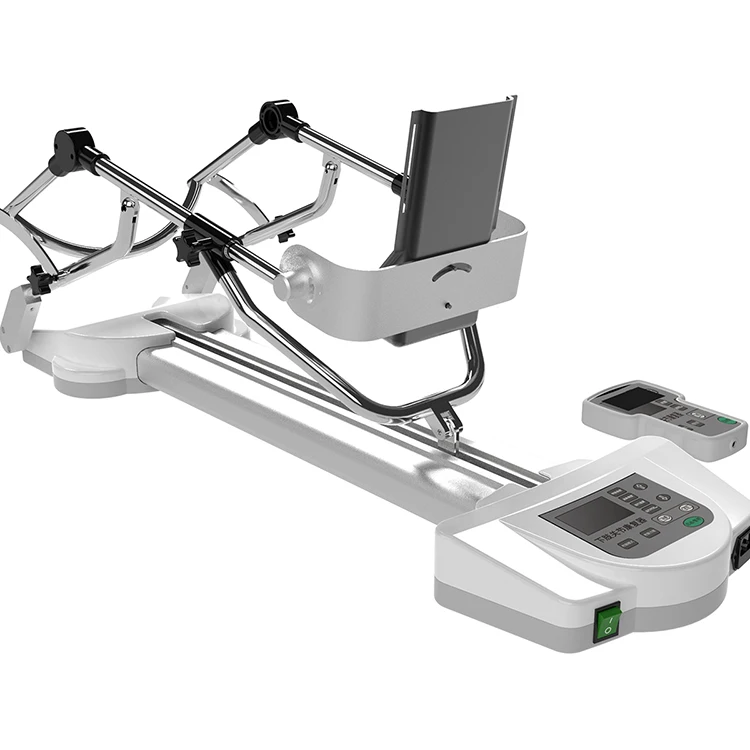

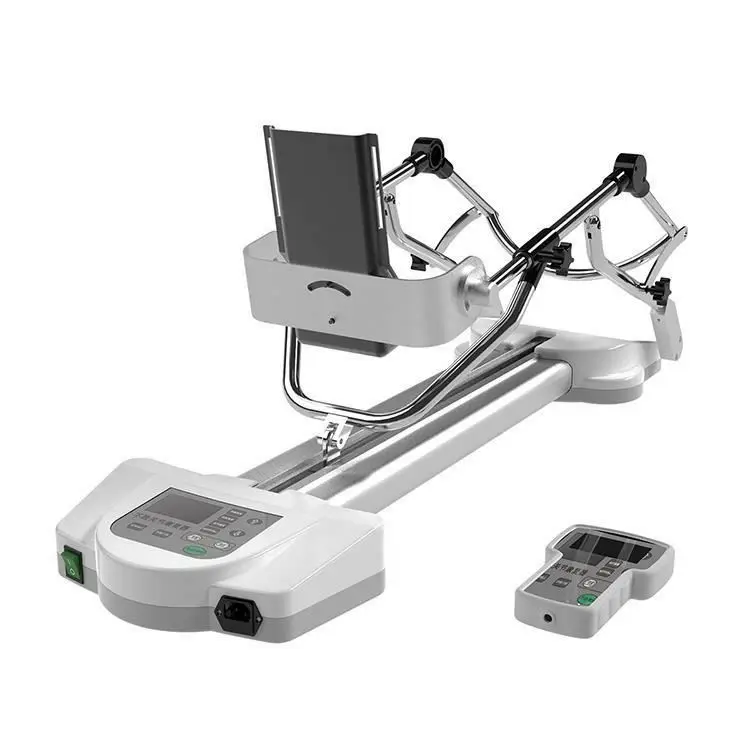

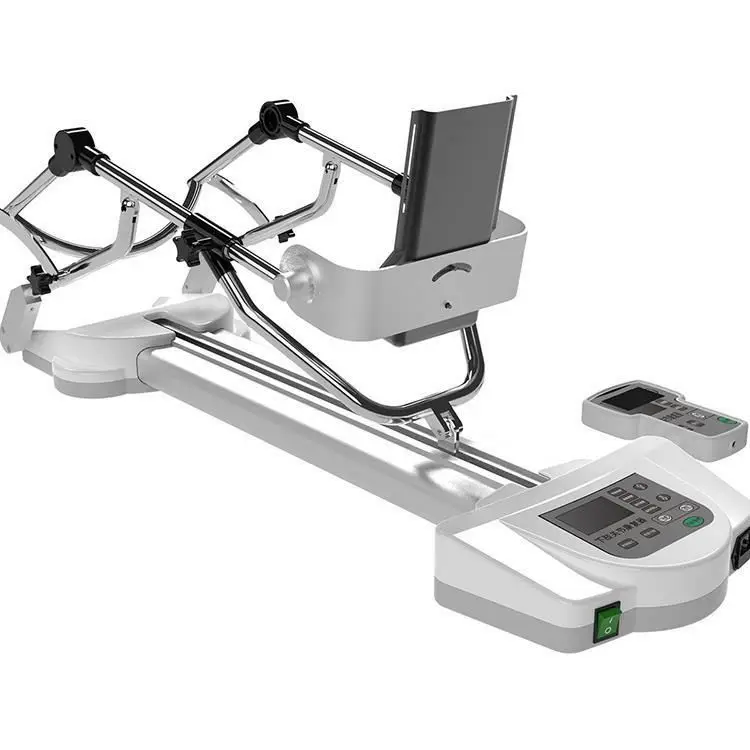

Knee CPM Machine with 3-Year Warranty and Online Technical Support for Long-Term Rehabilitation Care

Product Description

The lower limb CPM is the newly-designed medical equipment product, the main technique feature of product are as follows:

1. Microcomputer digital control designand it also adopt imported integrated parts, high volume imported CPU and intelligent program design, the machine also has the function of over-load protection.

2. Specialdesigned motor drive, run steadily, low noise, and long span life.

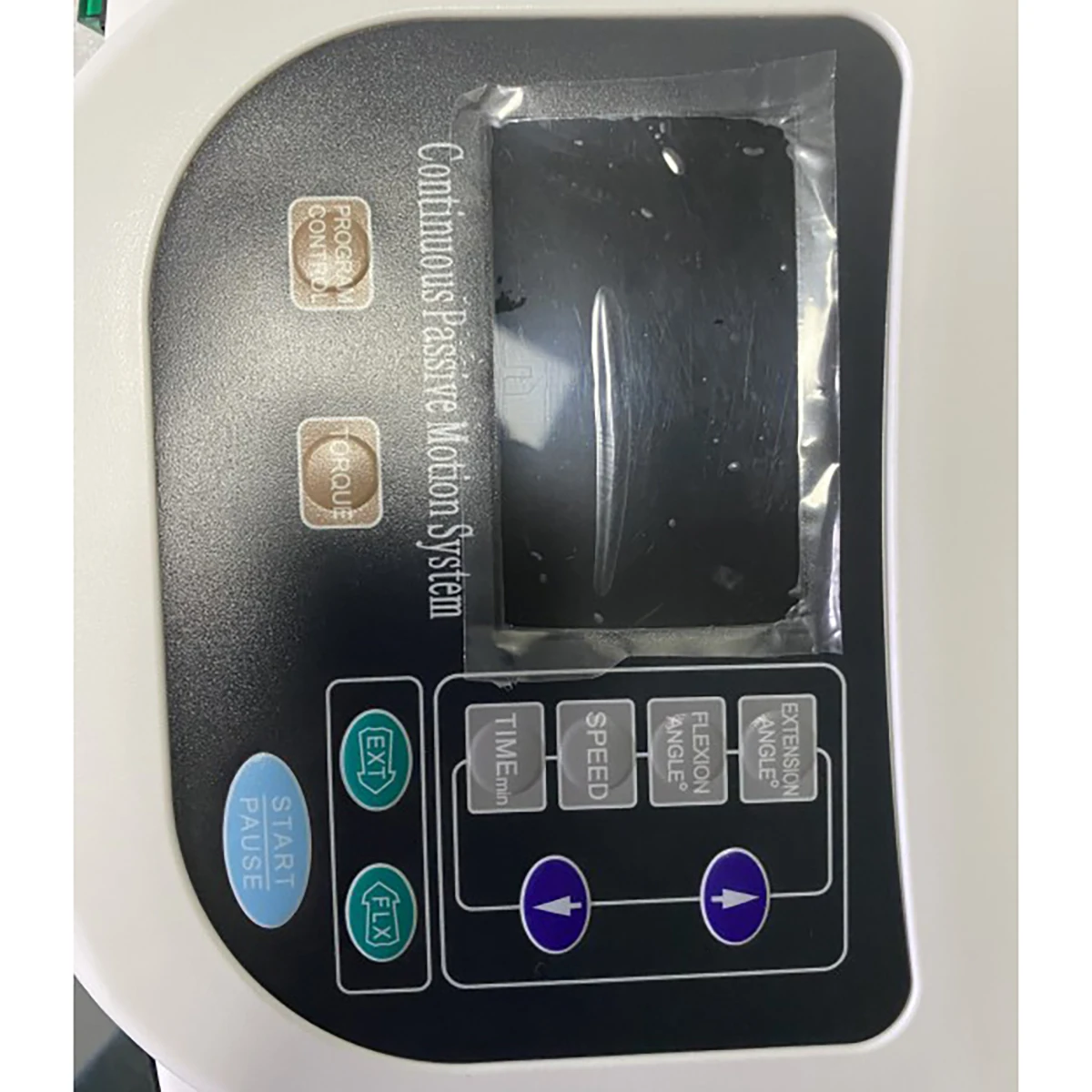

3. Big screen liquid display, all the parameters can be read clearly.

4. Consideringthe need of medical curing, the motion range is wide,the maximum run distance has reached about 600

5. Optimized structure design, reduce the unwell feeling.

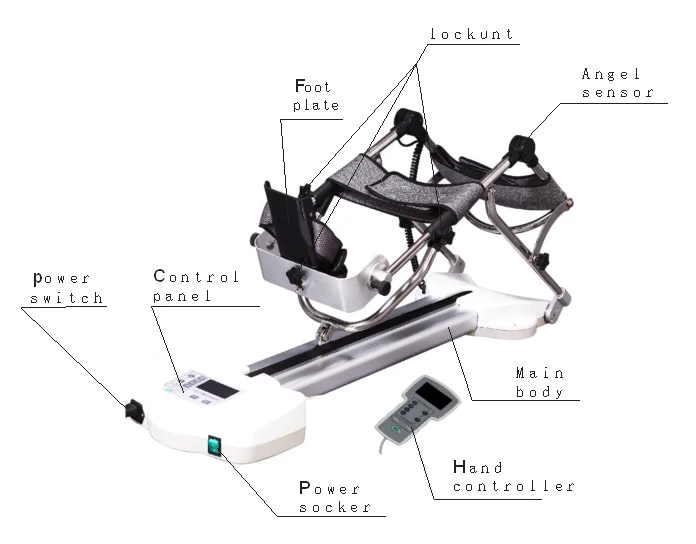

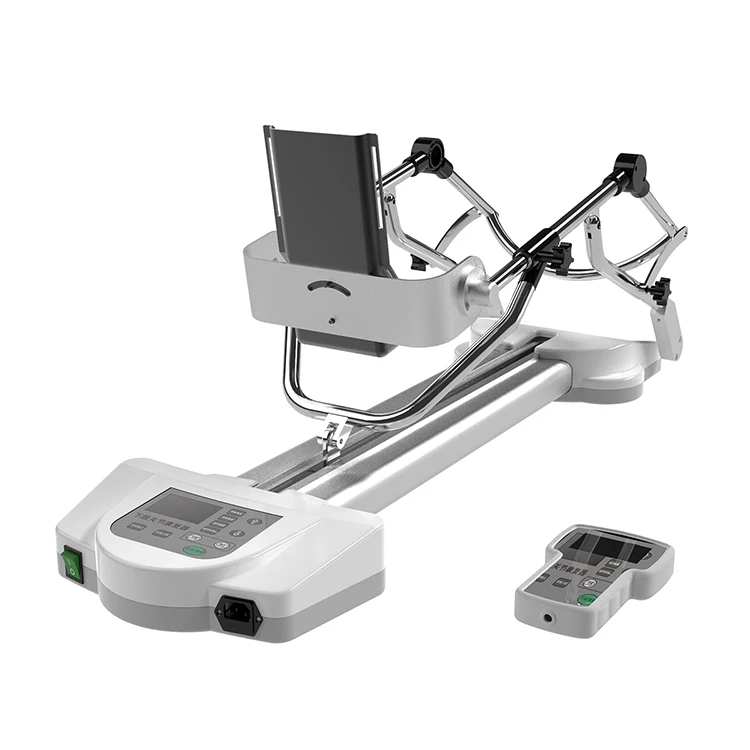

6. This machine is made up of host computer, supporting pole, bandage, hand controller, and so on.

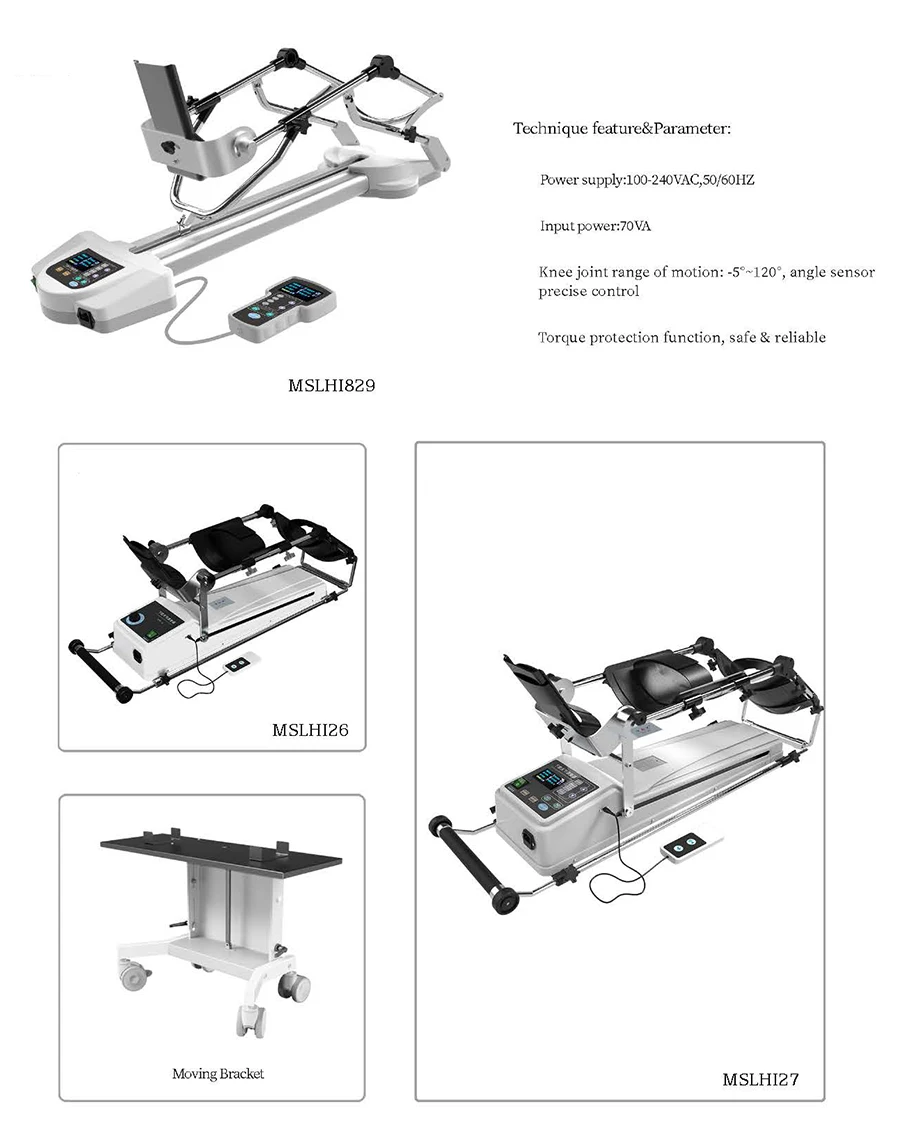

parameters:

Power supply: 110Vac-240Vac,50-60HZ

Power: ≤70VA

Angle motion range of kneel joint: -5°—120°(error ±5°)

Angle motion speed range: 1°—3.5°/s

Fuse standard: 2xT1AL 250V

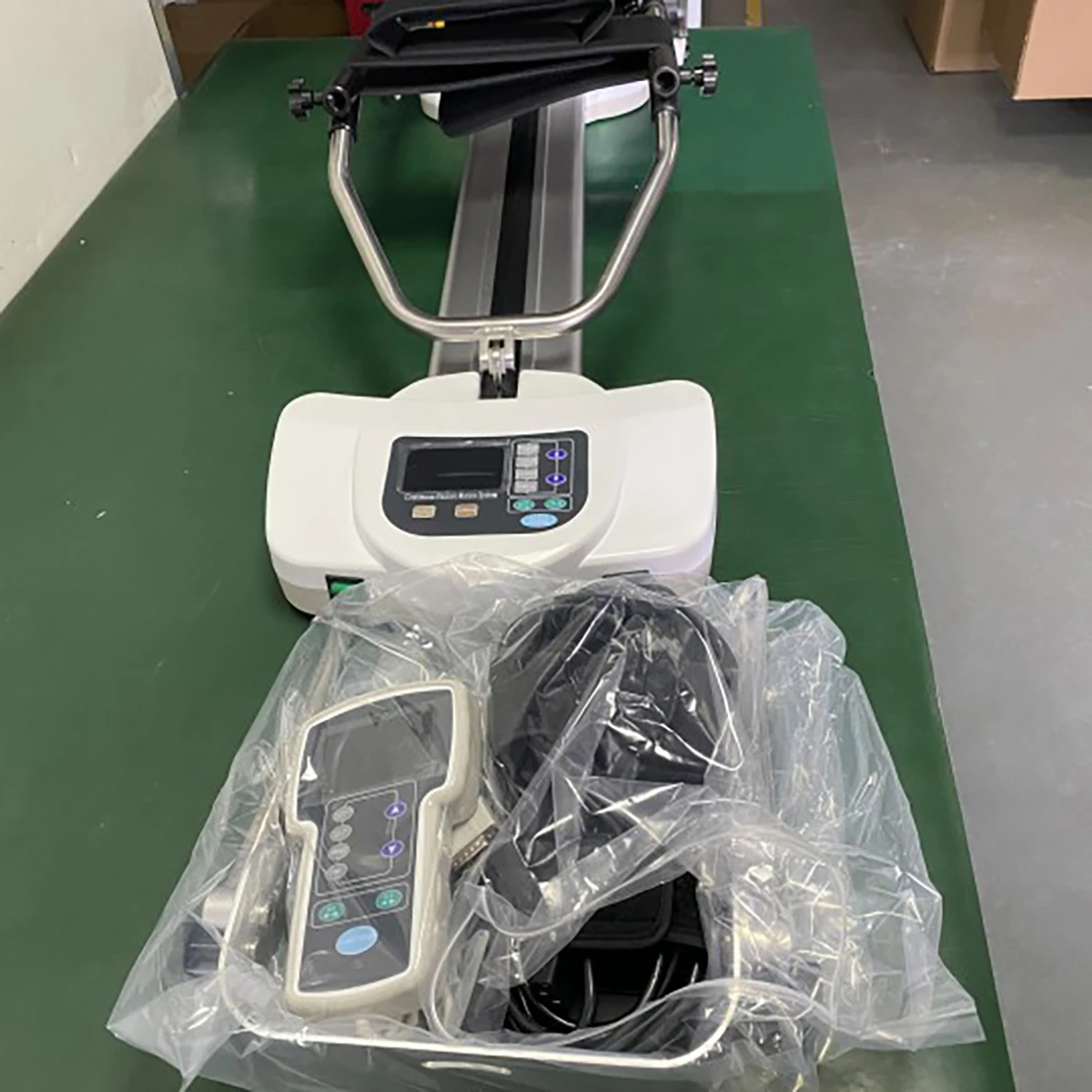

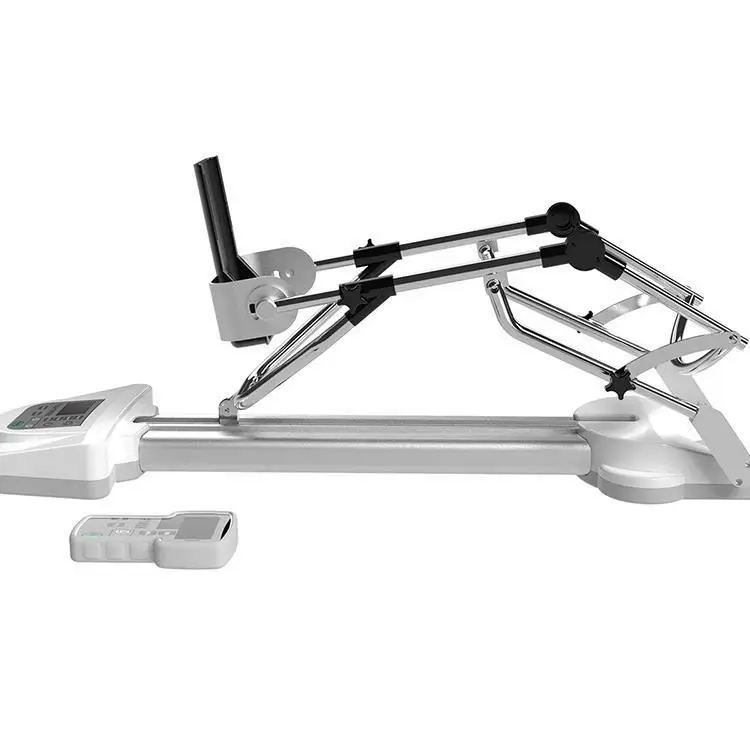

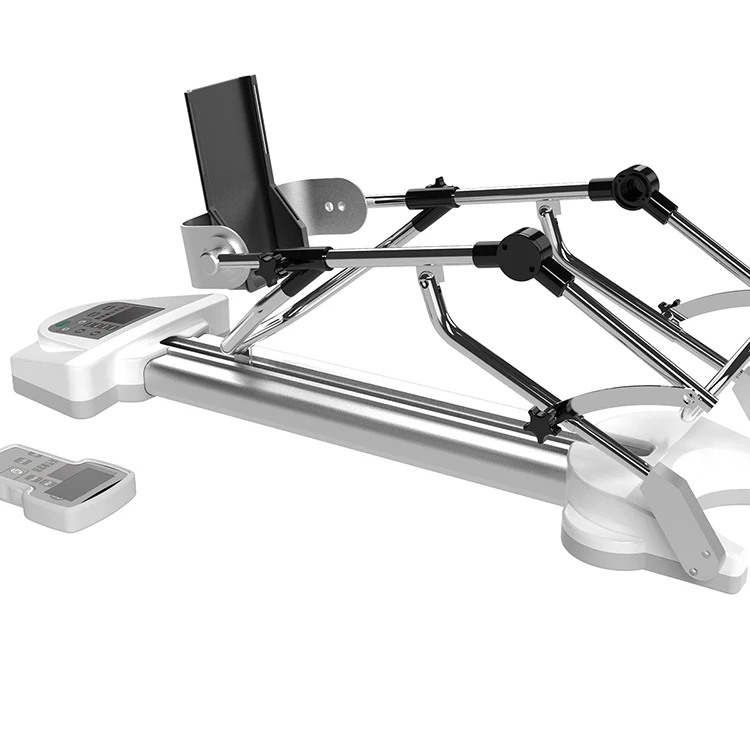

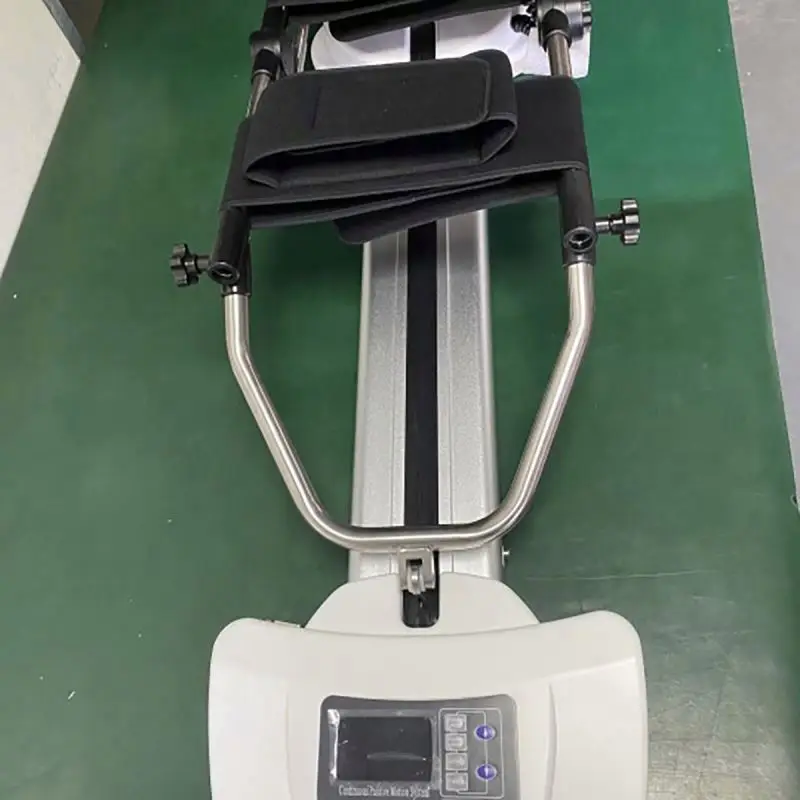

Imaging Pictures

Specification

Advantages

1.Display mode: LCD touch screen

2.Working noise of training instrument ≤60dB (A)

3.Shoulder or elbow joint movement conversion is convenient, flexible length adjustment, the product is widely used

Scope of application

It is suitable for active and passive rehabilitation training of patients' Upper limbs

Contraindications

1. Implanted cardiac pacemakers and other metal medical devices;

2. Patients with tumor and severe insufficiency of heart, liver, kidney and organs;

3. Patients with severe osteoporosis or extreme weakness;

4. Patients with untreated or treated fractures that require braking or lower limb trauma, bleeding and skin diseases;

5. Patients with serious primary diseases, such as cardiovascular, cerebrovascular, liver, kidney, and hematopoietic system,

or mental illness;

6. Patients with malignant tumors;

7, abnormal mental consciousness can not cooperate with and can not accept the experimenter;

8. Pregnancy, lactation and pregnant women;

9. Patients who cannot stand with weight bearing.
