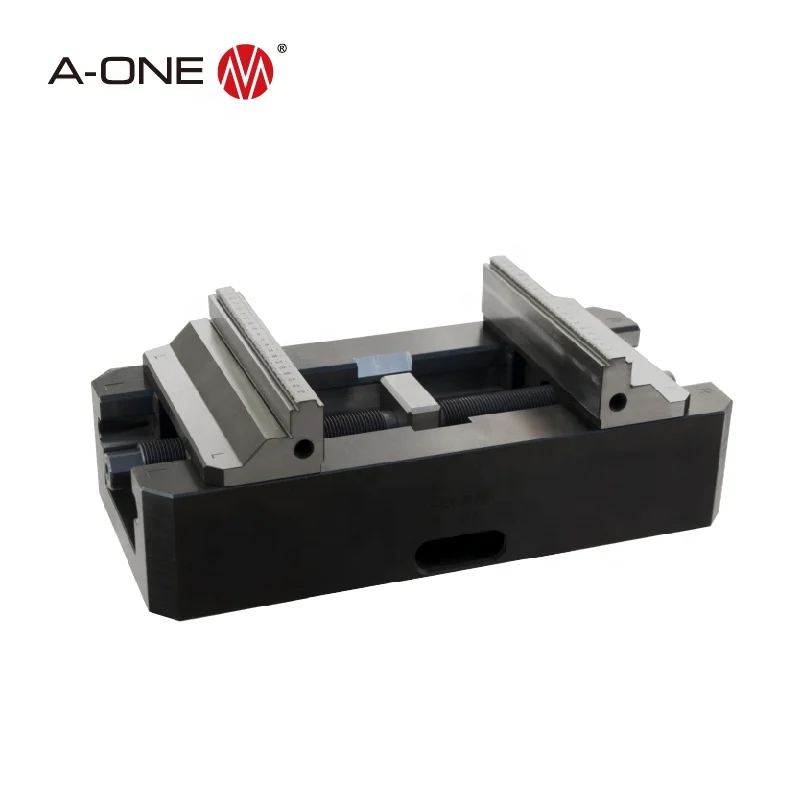

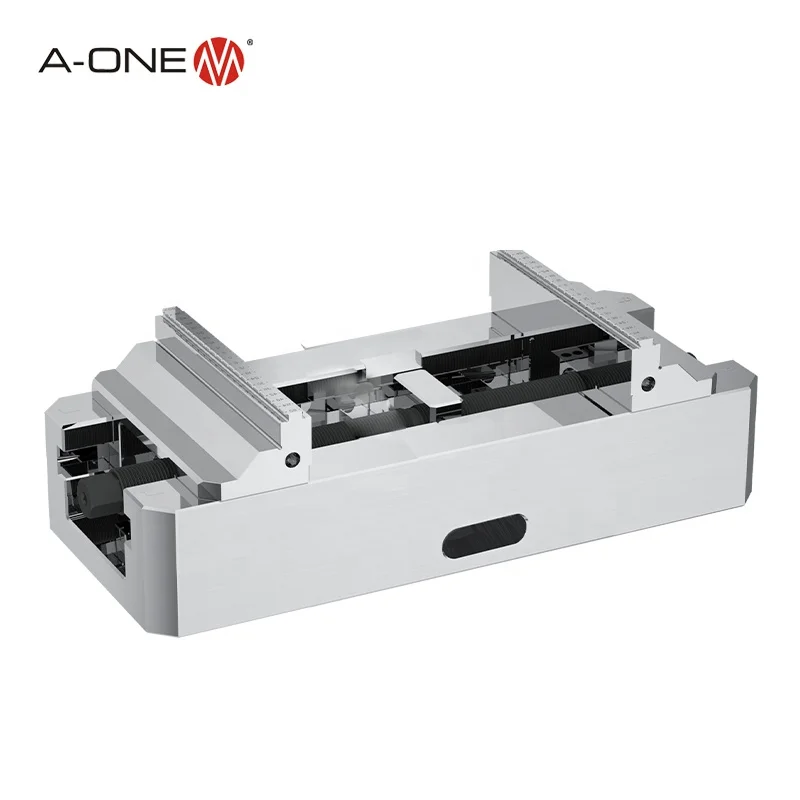

Manual Double Action Clamp Range 305 Or 355mm 5 Axis Self Centering Lang Vise
USD 1269.00 – 1456.00
/ Piece
Price varies by quantity and specifications
| MOQ | 1 Piece |
| Category | Tools & Hardware |
Years Est.
6 Years
Employees
1-50
Product Description
Clamping range 305 mm, precision Lang self centering vise for five axis processing 3A-110188
Repeatability:mini 0.02mm
Detailed description:
| Version | Double action self centered and repeating accuracy less than 0.02mm. Maximum workpiece size 305mm. Max clamping force 20000N, Fixed center distance is 96 mm, To be fixed on the machine tabe or pallet with D20 spigot . Max driving torque is 100 Nm . |
| Application | Suitable for vertical and horizontal precision processing machine, for 5-axis machining per time, Special jaw can be customied |
Technical Specifications
| Type | Bench Vise |
| Drive Mode | Manual |
| Clamping Range | 305mm or 355mm |
| Accuracy | 0.02mm |
| Max Clamping Force | 20000N |
| Material | Stainless Steel |
| Max Driving Torque | 100 Nm |
| Fixed Center Distance | 96 mm |
| Net Weight | 18kg |
| Gross Weight | 20.0 kg |
| Single Package Size | 42X30X20 cm |
| Warranty | 1 year |
| Place of Origin | Guangdong, China |
| Brand Name | A-ONE |
