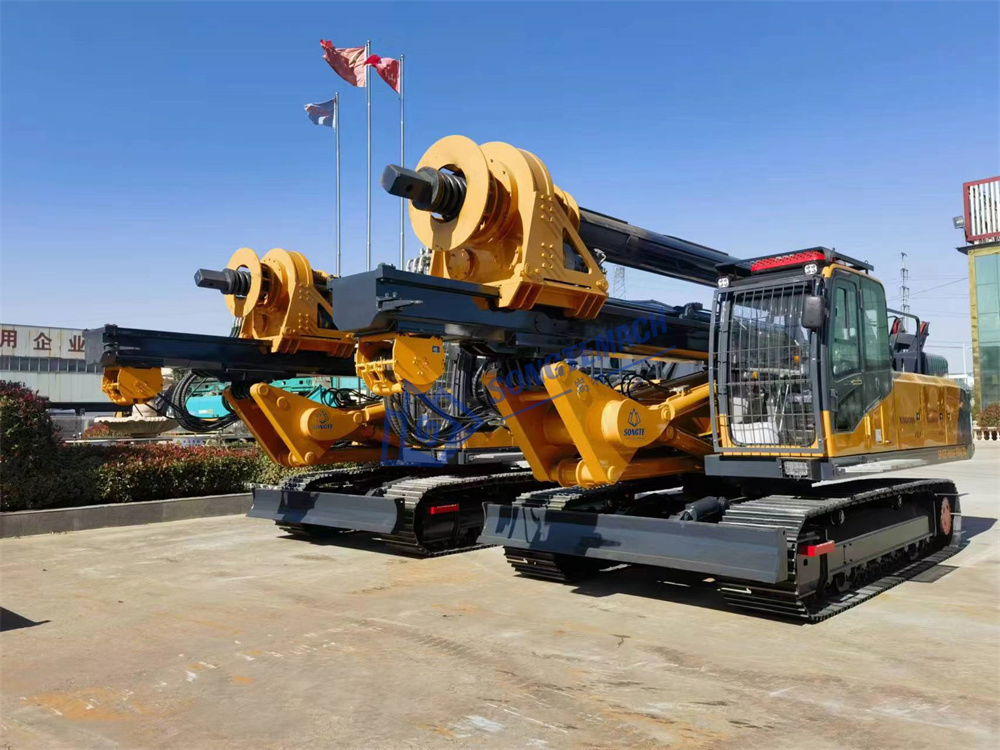

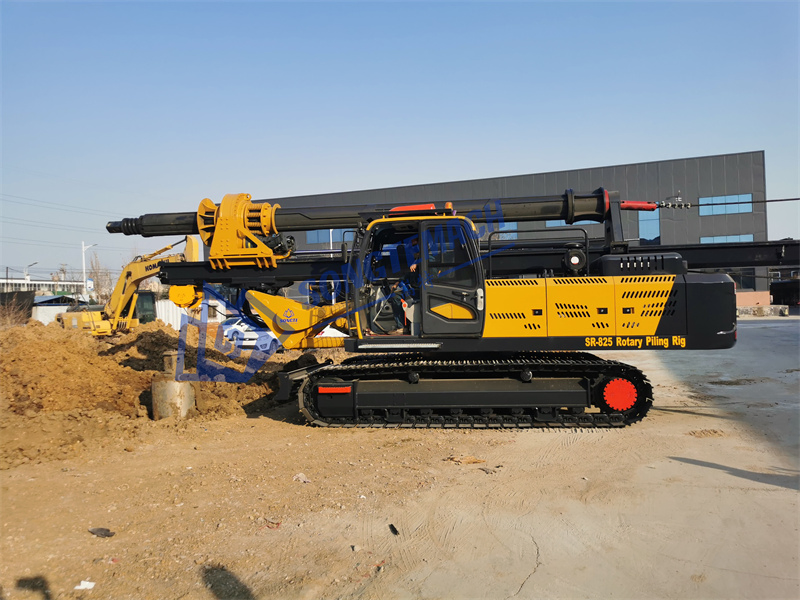

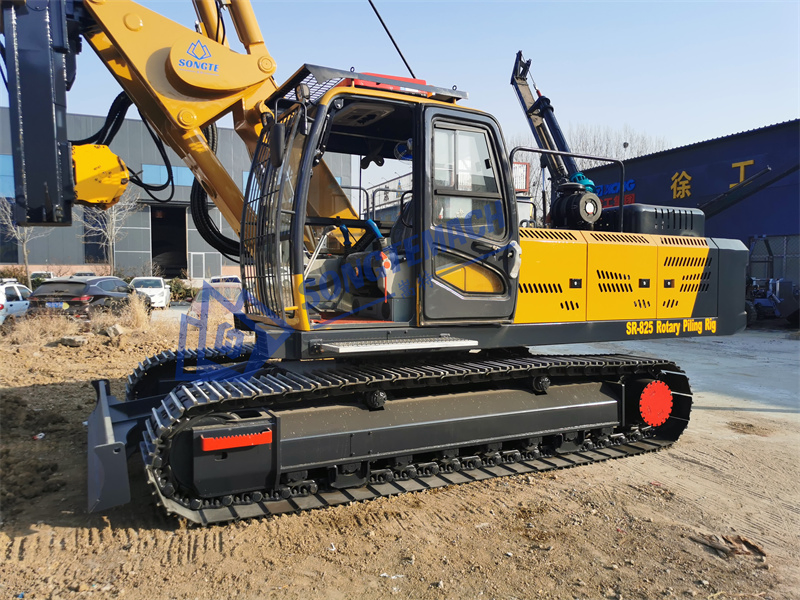

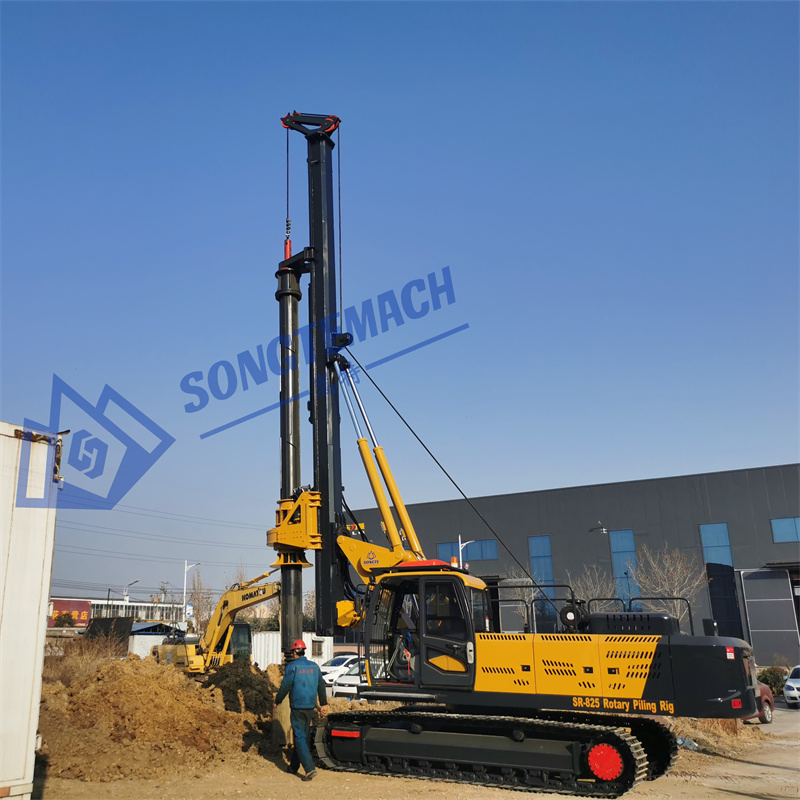

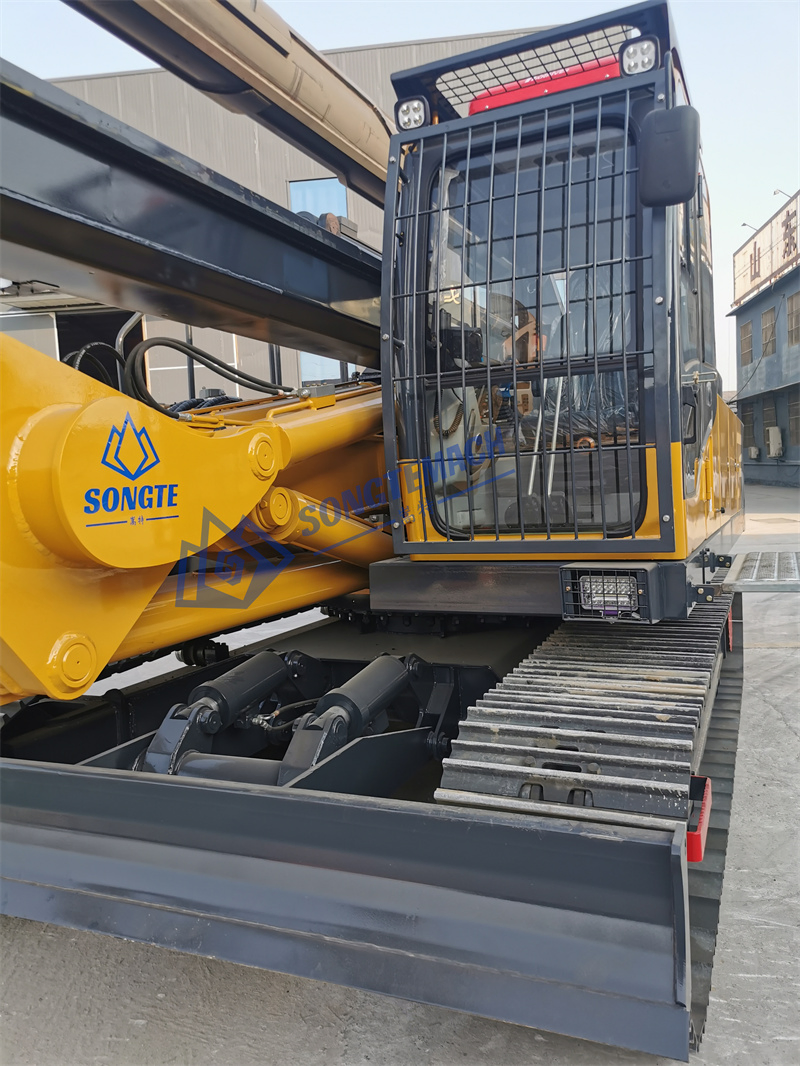

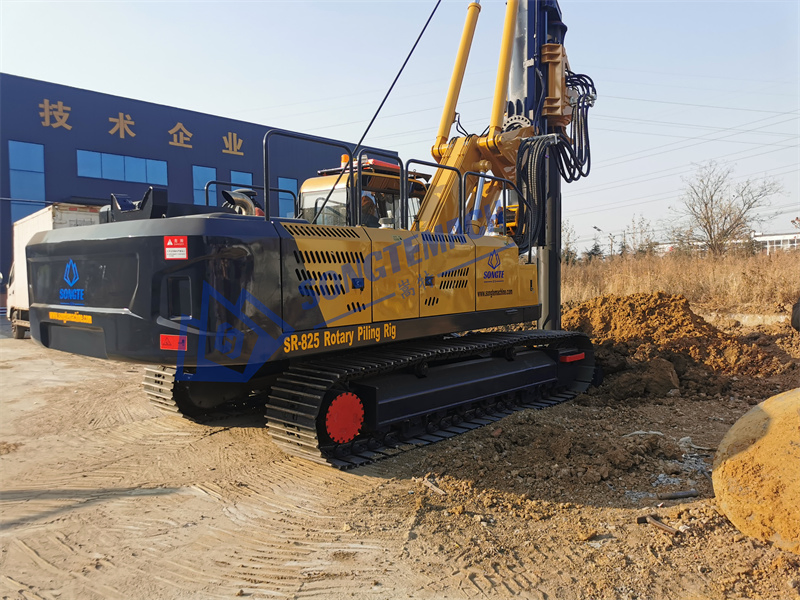

Middle Size Rotary Pile Drilling Machine for 20m Depth Pile Holes
Thumbnail 1 Thumbnail 2 Thumbnail 3 Thumbnail 4 Thumbnail 5 Thumbnail 6
Manufacturer & Trading Company

Middle Size Rotary Pile Drilling Machine for 20m Depth Pile Holes

USD 60000.00 – 80000.00 / set
Price varies by quantity and specifications
MOQ 1 set
Category Machinery
Submit Order
Henan Songte Machinery Co., Ltd.

China

Manufacturer & Trading Company
26
Years
98%
Response
24h
Reply
Chat Now
More from this Supplier
Solar Energy Photovoltaic Vibratory Pile Driver Hydraulic Solar Post Driving Ramming Machine Piling Machine for Solar Farms Plants
Solar Energy Photovoltaic Vibratory Pile Driver Hydraulic Solar Post Driving Ramming Machine Piling Machine for Solar Farms Plants
USD 32000.00
Small Medium Size Hydraulic Rotary Piling Rig Machine Pile Drilling Rig for Cast-in-Place Piles 25meter with CE
Small Medium Size Hydraulic Rotary Piling Rig Machine Pile Drilling Rig for Cast-in-Place Piles 25meter with CE
USD 65000.00
15m Small and Medium-Sized Rotary Drilling Rig for Grouting Piles
15m Small and Medium-Sized Rotary Drilling Rig for Grouting Piles
USD 60000.00
SR-830 30m Depth Grouting Cast-in-Place Pile Holes Drilling Rotary Piling Rig Machine
SR-830 30m Depth Grouting Cast-in-Place Pile Holes Drilling Rotary Piling Rig Machine
USD 60000.00
SR-815 15m Depth 500-1500mm Hole Diameter Small Rotary Drilling Rig
SR-815 15m Depth 500-1500mm Hole Diameter Small Rotary Drilling Rig
USD 60000.00
Solar Pile Ground Earthing Rod Screwing Drilling Rig for Installing PV Piles
Solar Pile Ground Earthing Rod Screwing Drilling Rig for Installing PV Piles
USD 21000.00

Product Description

No detailed description available. Please send an inquiry for more information.

Middle Size Rotary Pile Drilling Machine for 20m Depth Pile Holes
Middle Size Rotary Pile Drilling Machine for 20m Depth Pile Holes

Technical Specifications

Model NO.SR-820
After-sales ServiceOnline Technical Service, Field Training Service
Warranty1 Year
TypeDrill
Pressure Pile Driver TypeRotary Pile Drilling Rig
Pile Hammer TypeHydraulic Cylinder Pressurized
Power SourceDiesel
Motor Power154kw, Cummins Engine
NoiseWith Noise
CertificationEPA, CS, CE, RoHS, ISO 9001:2000, ISO 9001:2008, SGS
ConditionNew
Drilling Depth20m
Drilling Diameter500~1200mm
Power Head Max. Output Torque80kn.M
Pressurized Oil Cylinder Max Press Capac120kn
Overall Size11000X2650X3350mm
Main ApplicationPile Foundation Works
Piling Rig TypeSmall & Middle Size Rotary Drilling Rig
Transport PackageNude, by Flat Rack Container
Specification23500kgs
TrademarkSONGTE
OriginChina
HS Code843041
