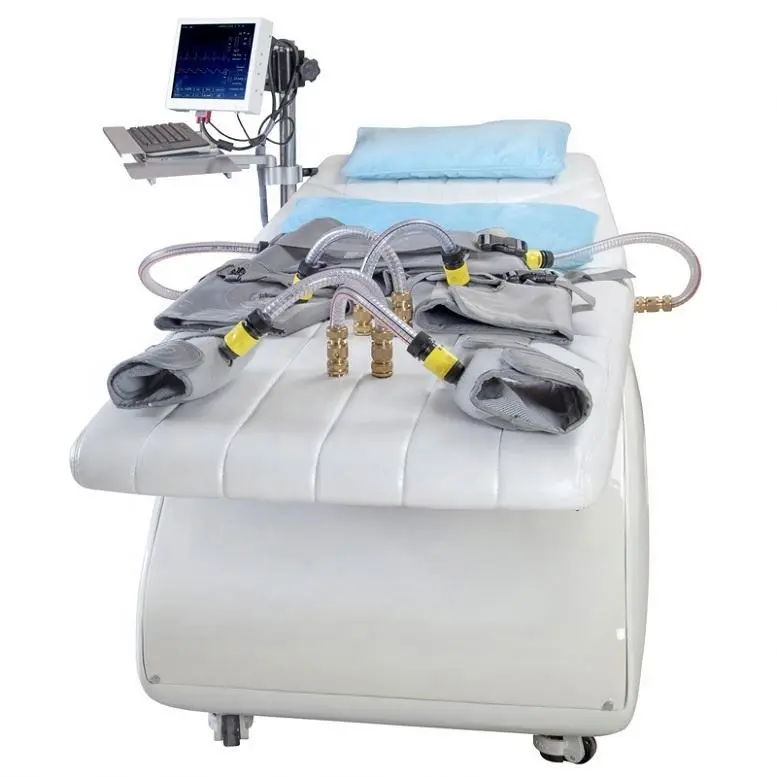

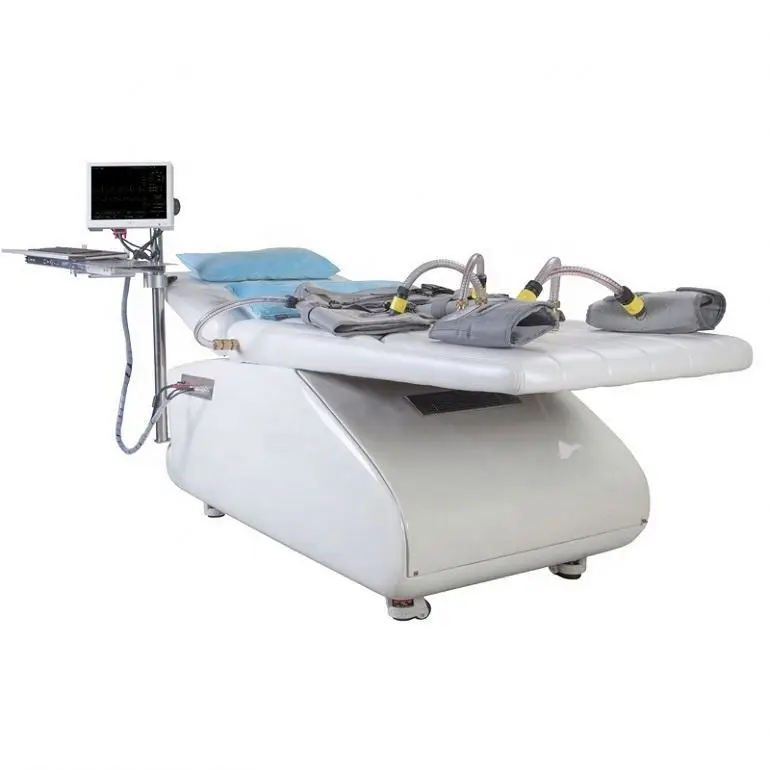

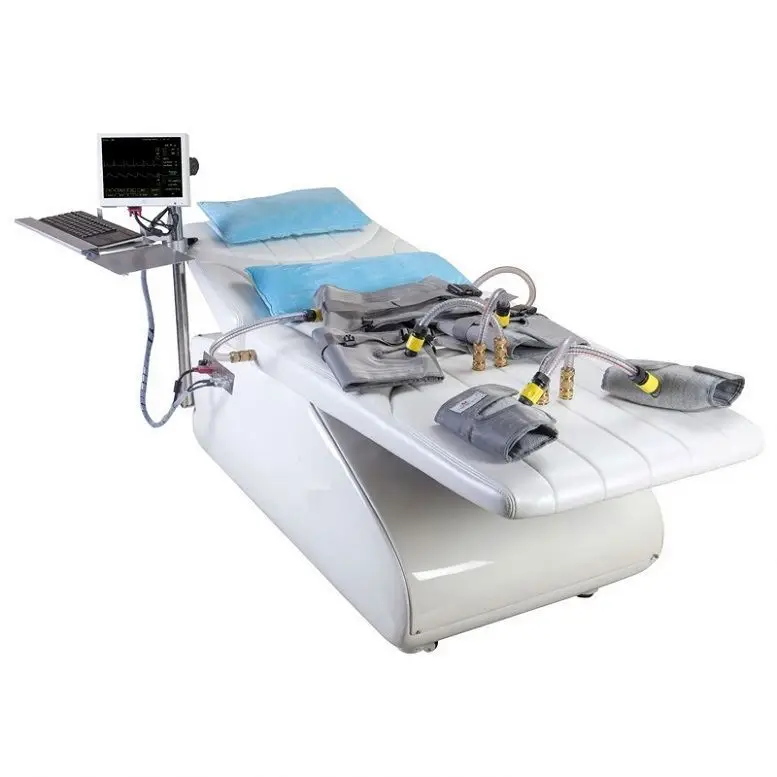

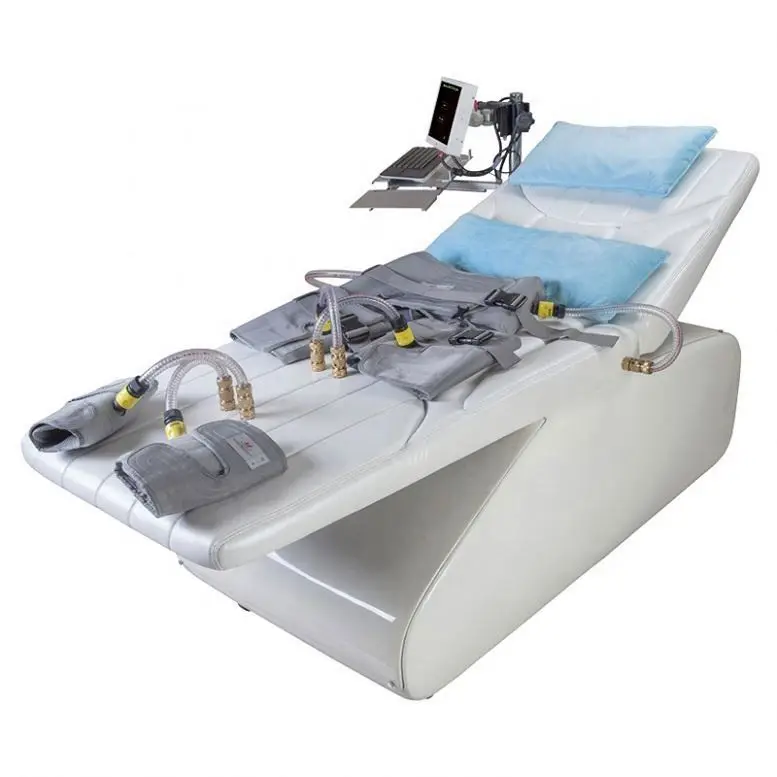

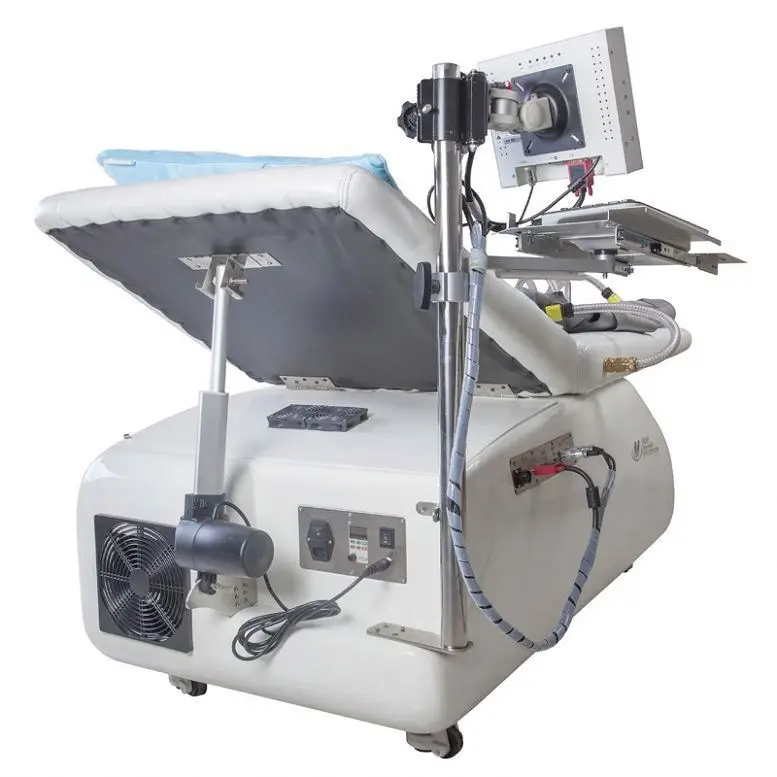

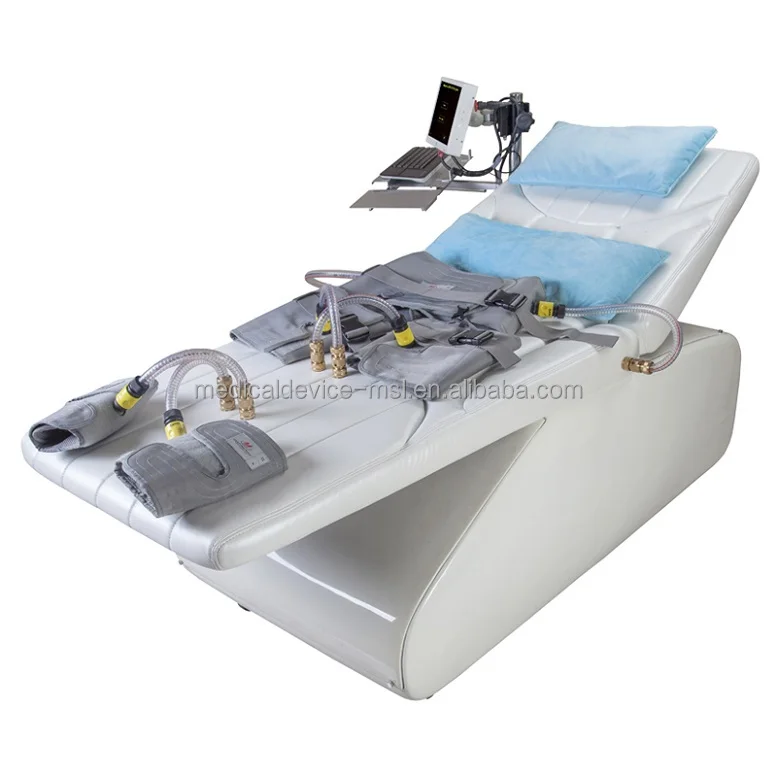

MSL Integrated ECP Machine for Cardiac Physical Therapy with Rotatable Touch-Screen Monitor

Advantage

Advatange of No side effect heart treatment EECP/ECP machine for Cadiac diseases treatment

EECP machine

Enhanced external counter pulsation device

No Pain,No side effect,Non-invasive treatment for cardiovascular diseases and other ischemic diseases.

AUsed in the whole process of diseases-prevention,treatment and rehabilitation.

Feature

Feature of No side effect heart treatment EECP/ECP machine for Cadiac diseases treatment

ECP Advantages:

1. Independent copyright software,Any software problem can be solved at customer's side with a USB flash drive we sent together with machine.

2. Customized software:can display your logo or center name to the welcome page of the monitor,Each time when start the treatment will show your Logo.

3.Low noise design,won't affect neighbors or other patients while using at home or centre.

4. valves special for EECP machine,quick reponse,low temperature and low working noise.

ECP feactures:

1. EECP passed CE,ISO13485, USF-D-A and Free sales certificates.

2. Compressor adopted is Gardner Denver imported from Germany,stable and durable.

3. All the control in the therapeutic process is executed by the computer(automatic therapeutic machine), which simplify the operating process.

4. The patients’ ECG and paulse signal are processed by special module,with excellent circuit performance, high stability, strong capability of anti-interference.

5. Monitor display area can not only show patient’s name but also real-time show ECG waveform, pulse,blood oxygen saturation,treatment pressure,and can freeze down and save the whole screen for observation without affecting the treatment process.

6. While doing EECP treatment,Omay EECP machine can automatically measure and calculate peak ratio of diastole and systole  wave as well as area ratio of diastole and systole wave, and can real-time display to help evaluate, analyze and summary the effect of the treatment.

7. It has a variety of auto-safety protection. When the heart rate of patients grow too fast or slow, the pulsation is too early, or the exhaust is too late due to the inappropriate regulation, it can adopt protective measure to prevent the patients from being hurt.

8. The connection of cuffs and bed relies on the poison-free, wear-resistance tube and non-toxic non-metallic joints. It is simple and

fast to install and uninstall the tube and cuff, which is convenient for the operator installation and maintance.

Specification

Specification of No side effect heart treatment EECP/ECP machine for Cadiac diseases treatment

Machine type Intergrated ECP Machine

Bed size and weight 190cm(L)x76cm(W)x65cm(H),230KG

Operating system Customized system similar to Windows Compressor Gardner Denver

Valves Customized Low Noise Valves special for EECP

Monitor type Touch-screen monitor,Rotatable

Cuffs TWO Size Cuffs(S,L) for Calves,lower thighs,upper thigh, upper limb cuffs for option Treatment Timer Set treatment time and system automatically stops when set time expired Triggering Method R-wave

ECG Trigger range 40~125bmp

Trigger ratio 1:1 or 1:2

Pressure range 5~350mmHG

Port 2pc USB Port

Power requirement 220V±22V AC, 50/60Hz, 1200W

Temperature(10 °C to 40°C) Relative Humidity <80%

Operating Environment

Atmospheric Pressure 700 to 1060 hPa Atmospheric Free of corrosives gas

Main pictures

U disk for operation

and installation video 1

Bed sheet 2

safety fuse(for spare use) 4

Electrodes 1
