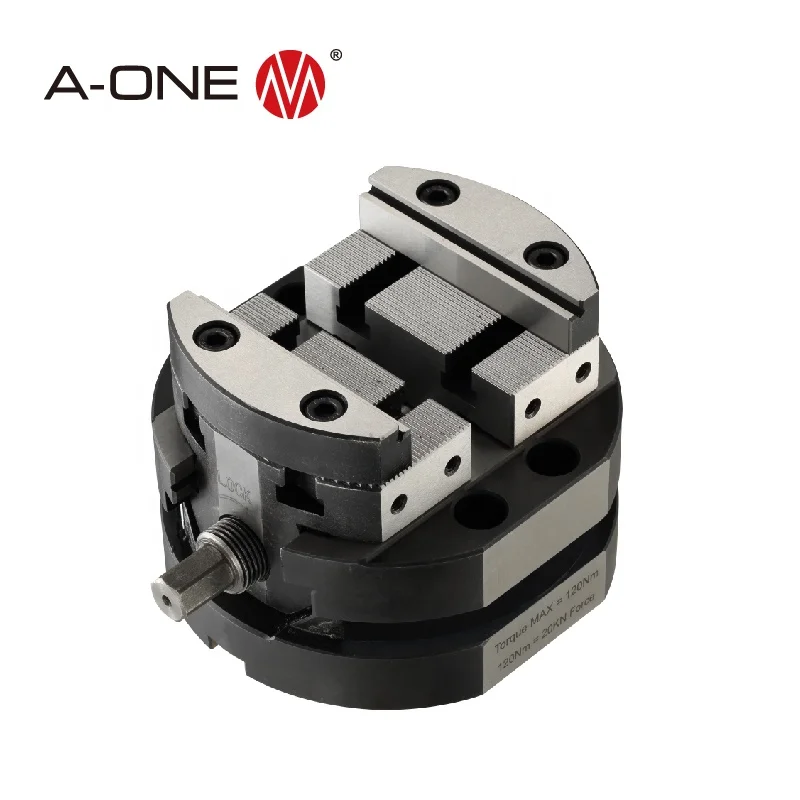

New A-one Steel Square Clamp Rotary Table 5 Axis CNC Machine Self Centering Vise Gripping Accuracy 0.015mm Machine Tool
| MOQ | 1 Piece |
| Category | Machinery |
Product Description
Product Overview

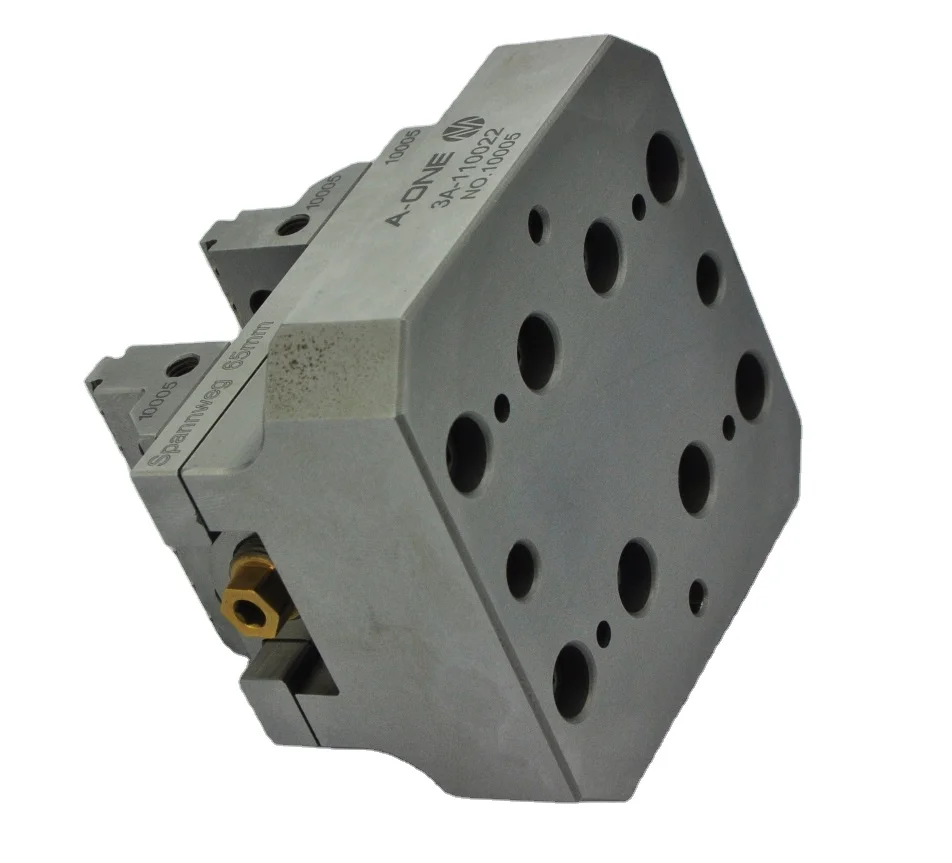

A-ONE Steel Square Clamp Rotary Table 5 Axis CNC Machine Self Centering Vise 3A-110511
| Version | Jaw adjustment in steps of 2 mm (Multiaxis self-centering) High quality alloy steel construction. Gripping accuracy within 0.015 mm Solid, rigid construction for minimum deflection. Series of interchangeables jaws available | ||||||
| Application | These self-centering vises are to be used on 5 axis machines in order to be able to machine 5 workpieces sides or even on lathes for prismatic workpieces or finally on rotary tables. Geometrical accuracy with tollerances within 0.04 mm. | ||||||

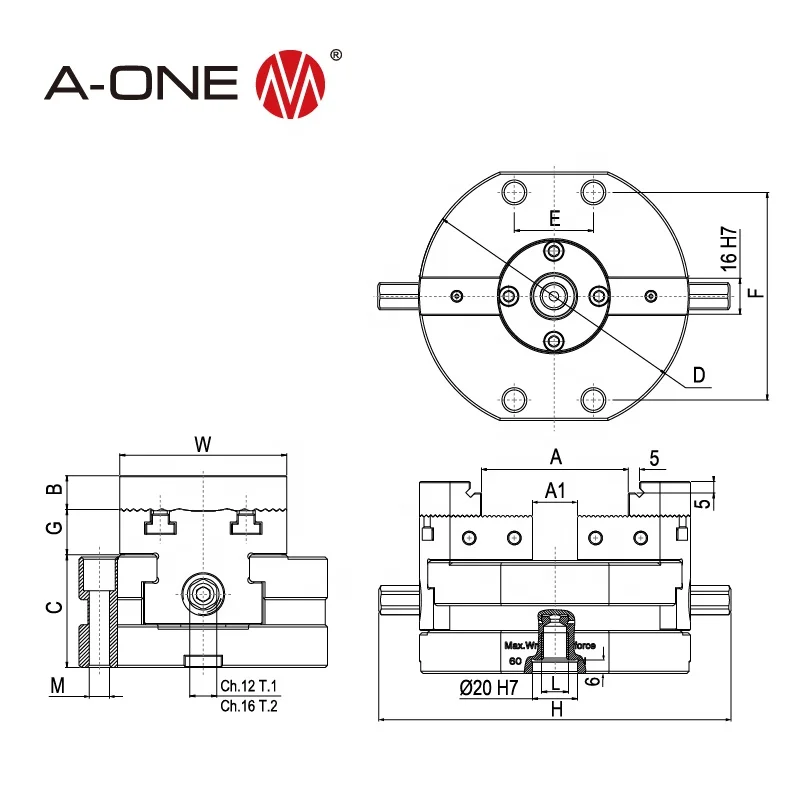

| Specification and model | A | A1 | W | B | C | D |
| 3A-110511 | 65 | 20 | 74 | 15 | 50 | 120(diameter) |
| 3A-110512 | 95 | 40 | 99 | 20 | 70 | 160(diameter) |
| Specification and model | E | F | G | H | L | M | KG | KN |
| 3A-110511 | 35 | 92 | 20 | 156 | M12 | 9(diameter) | 4.9 | 16 |
| 3A-110512 | 35 | 100 | 25 | 208 | M16 | 11(diameter) | 11 | 20 |
FAQ
Q: Are you trading company or manufacturer ? A: We are a professional jig & fixture system manufacturer and have almost 20 years experience in this field. Q:Can you produce customize/un-standard products? A: Yes, we can. Special tools according to your PDF/3D drawings or model sample. Q: How to order? A: Step 1: please tell us what model and the quantity you purchasing; Step 2 : then we will make a PI for you to confirm the order details; Step 3 : when we confirmed everything, then arrange the payment; Step 4: finally we deliver the goods within the stipulated time. Q: How about the accuracy? A: Our products its repeatability can keep 0.002mm. Q: How long is your delivery time? A: Small Order: in stock normally, deliver goods once payment received Large Order: 5-7 days OEM Order: 7-15days Q: How long about the warranty? A: Normally, our products warranty is 1 year. Q: What is your terms of payment ? A: Our terms of payment is T/T 100% in advance. Or you can order directly on Alibaba. Q:Can you send products to our forwarder in China? A:Yes, if you have forwarder in China, we will be glad to send the products to him/her
Technical Specifications
| brand name | A-ONE |
| place of origin | Guangdong, China |
| warranty | 1 Year |
| machine type | lathe machine, turning machine, CNC |
| machinery test report | Provided |
| video outgoing-inspection | Provided |
| gripping accuracy | 0.015mm |
| geometrical accuracy | within 0.04mm |
| model 3A-110511 weight | 4.9kg |
| model 3A-110511 clamping force | 16KN |
| model 3A-110512 weight | 11kg |
| model 3A-110512 clamping force | 20KN |
| jaw adjustment step | 2mm |
| construction material | alloy steel |
| condition | New |
| applicable industries | Machine tool |
