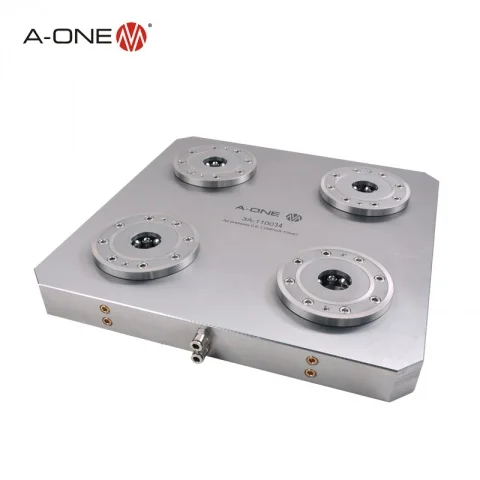

Precise Zero Point Fixture System Chuck 3a-110034 For Cnc Workbench Machine Tools Accessories
USD 3258.00 – 3456.00
/ Piece
Price varies by quantity and specifications
| MOQ | 1 Piece |
| Category | Machinery |
Years Est.
6 Years
Employees
1-50
Product Description
mounting on the CNC workbench precise zero point fixture system chuck 3A-110034
(Repeatability:0.005mm )
Detailed description:
| version | Steel,hardened. |
| Clamping power | 15000N |
| Connections | ITS standard interface on side.air gun operation or trachea |
| Operation | switch locates outside |
| Application | EDM sinking machine,cnc machining table or other machine |
Technical Specifications
| Model Number | 3A-110034 |
| Brand | A-ONE |
| Place of Origin | Guangdong, China |
| Machine Type | CNC machining |
| Warranty | 5 year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Material | Hardened steel |
| Clamping Power | 15000N |
| Repeatability | 0.005mm |

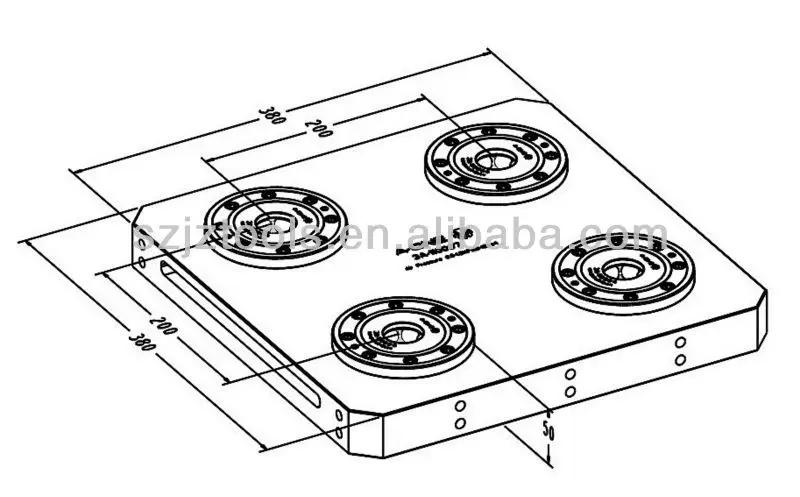

| Set-up Distance | 250 mm |
| Finished Size | 380L*200W*50Hmm |
| Weight | 43.4 kg |
| Power Type | Pneumatic |
| Application | CNC machining center, EDM sinking machine, machine tool spindle working |
| Interface | ITS standard interface on side, air gun or trachea operation |
| Customized Logo MOQ | 10 pieces |
| Single Package Size | 39X27X17 cm |
| Single Gross Weight | 45.0 kg |
