Manufacturer & Trading Company

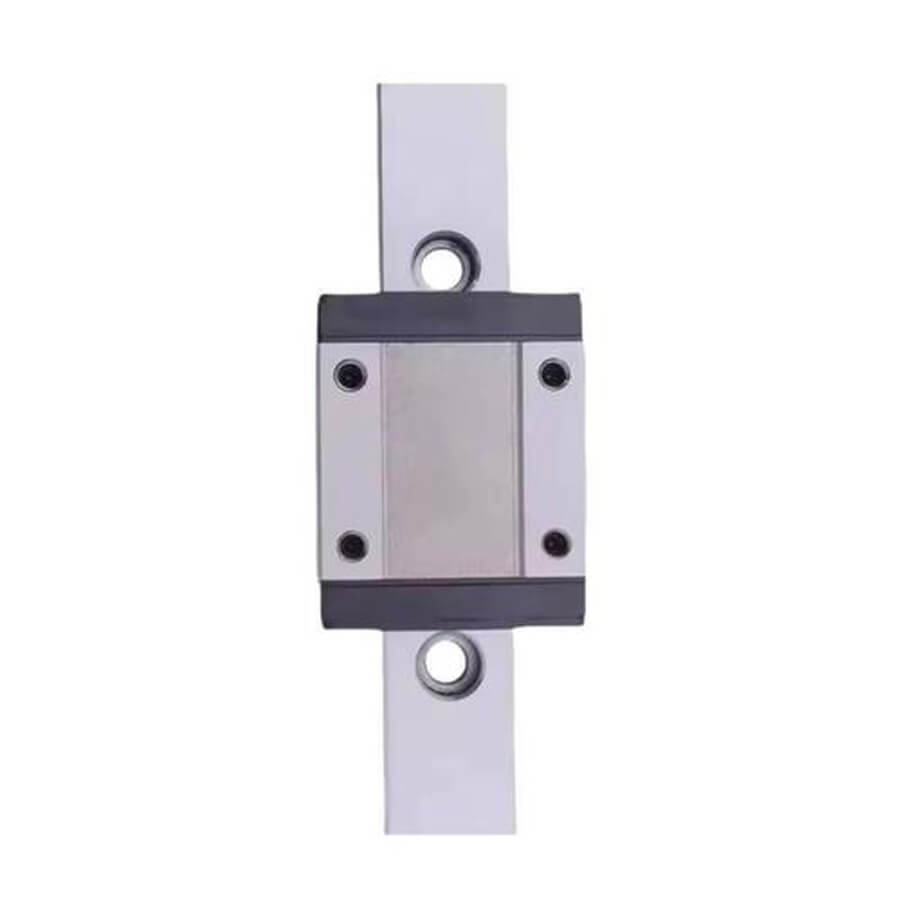

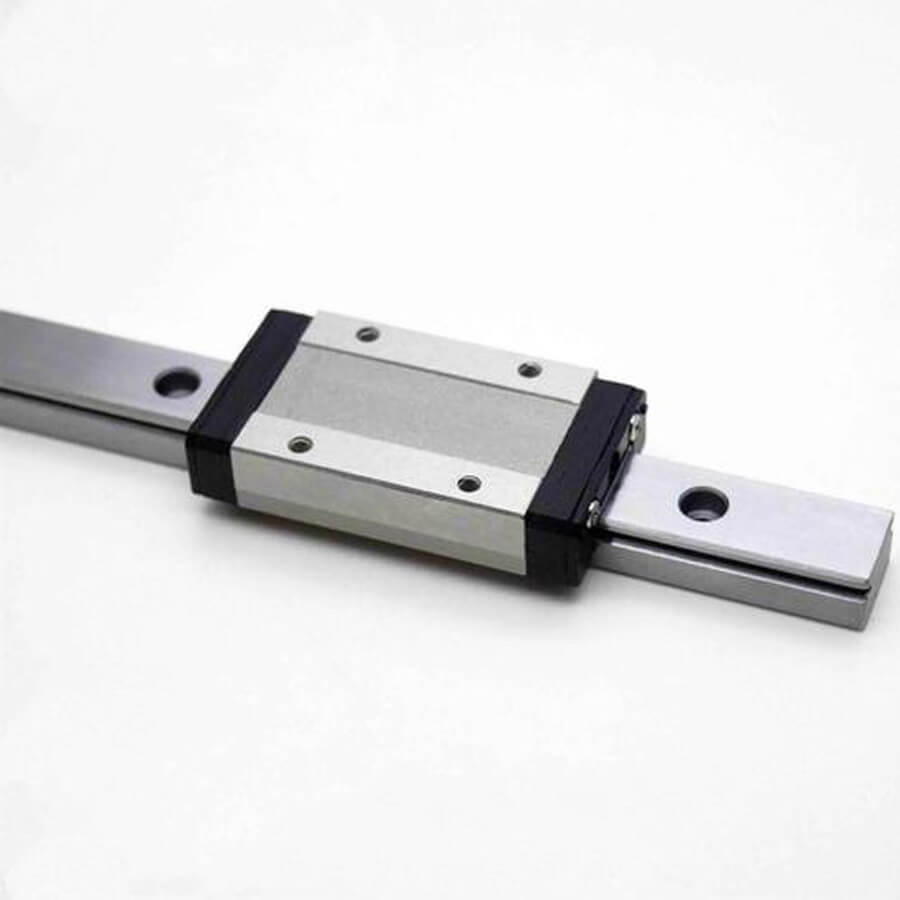

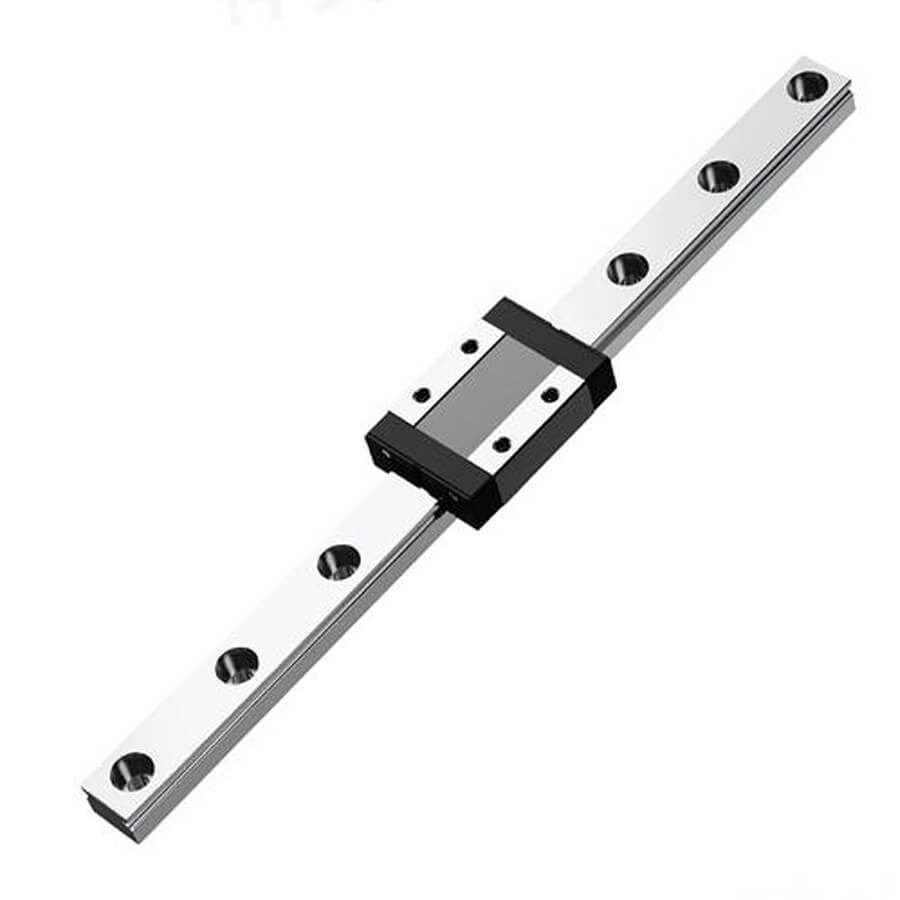

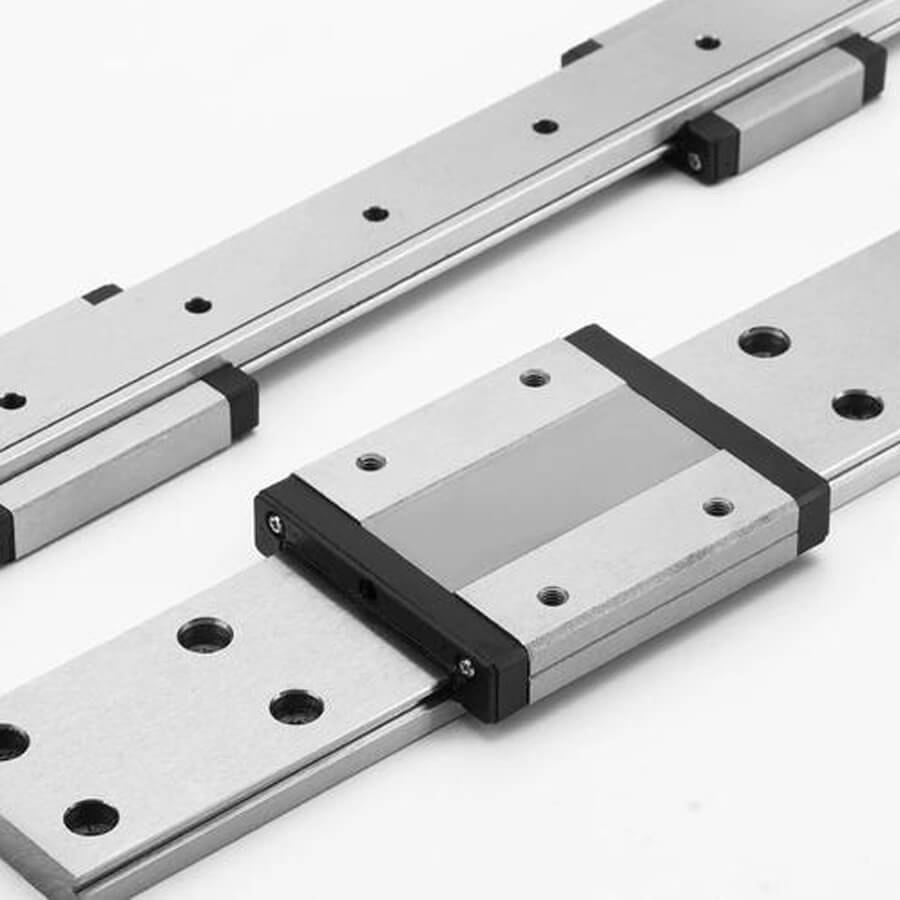

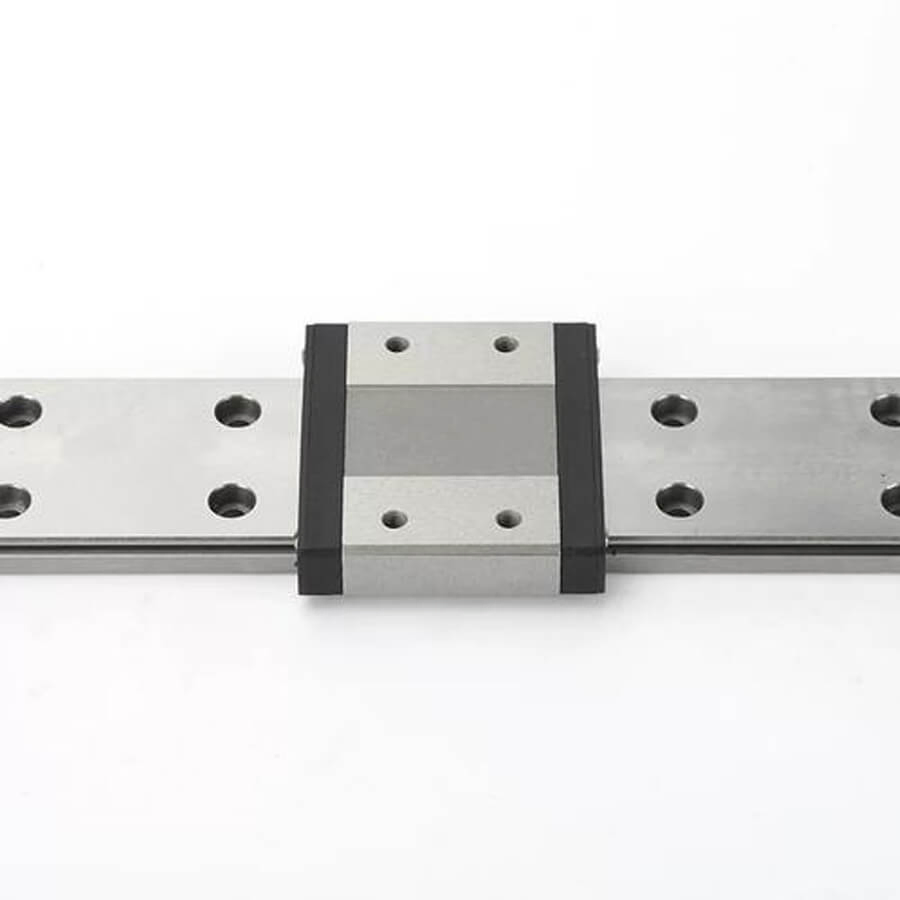

Precision MGN Miniature Linear Guide Rail 100-300mm
USD 8.00
/ set
Price varies by quantity and specifications
| MOQ | 500 set |
| Category | Tools & Hardware |
7
Years
98%
Response
24h
Reply
Product Description
No detailed description available. Please send an inquiry for more information.
Technical Specifications
| Model NO. | MGN12 |
| Application | Industrial Automation Equipment, Automation Equipment |
| Carrying Capacity | Special Weight Level |
| Certification | CE, CS |
| Corrosion Resistance | High Corrosion Resistance |
| Length | Custom Length |
| Material | Carbon Steel |
| Profile Type | Solid Profile |
| Surface Treatment | Polished |
| Net Weight | 0.05-0.9 Kg |
| Static Load Rating | 1.26-8.50 kN |
| Dynamic Load (C) | 0.98-5.56 kN |
| Material Option | Alloy Bearing Steel (Gcr20) |
| Hardness | Around 64HRC |
| Max. Operating Speed | up to 3 M/S (Standard) / 5 M/S |
| Dust Protection | Standard End Seals + Optional Bottom Seal & Metal |
| Transport Package | Polyvinyl Chloride Bags, Cardboard Boxes |
| Specification | Standard Specifications or Customized |
| Trademark | YYU |
| Origin | Hebei, China |
