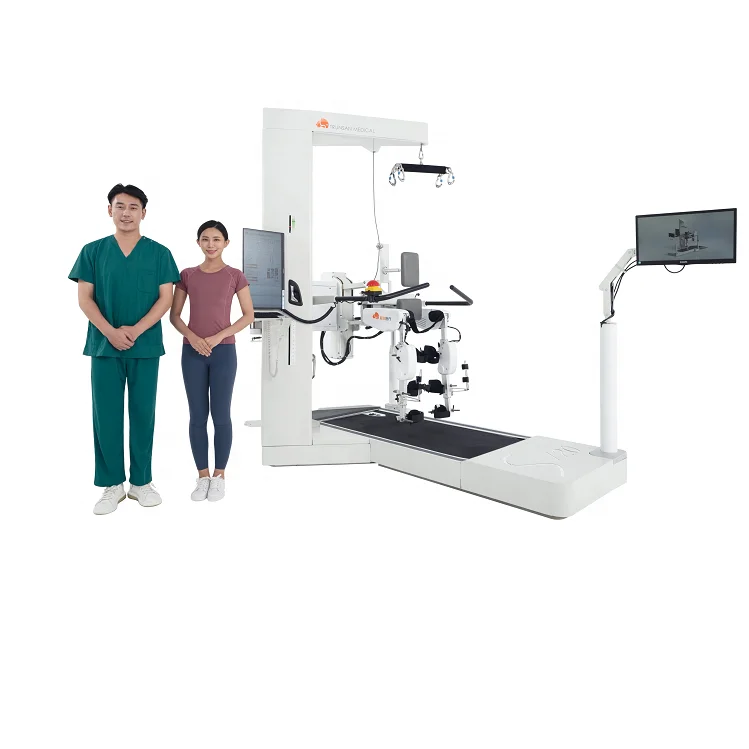

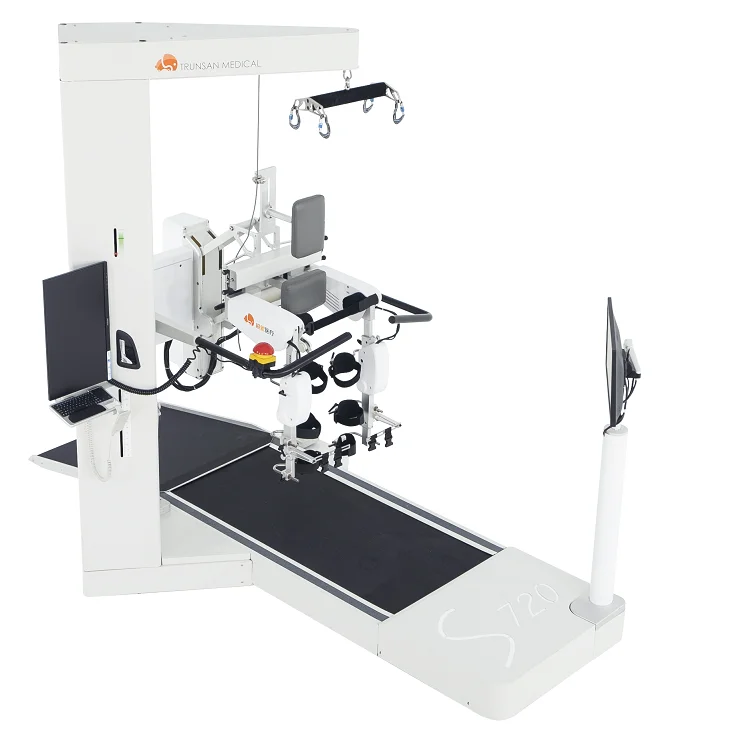

Robot-Assisted Gait Training Rehabilitation System with 23-Inch Dual-Screen Win10 Platform
| MOQ | 1 Set |
| Category | Medical |
More from this Supplier
Product Description
Product Description

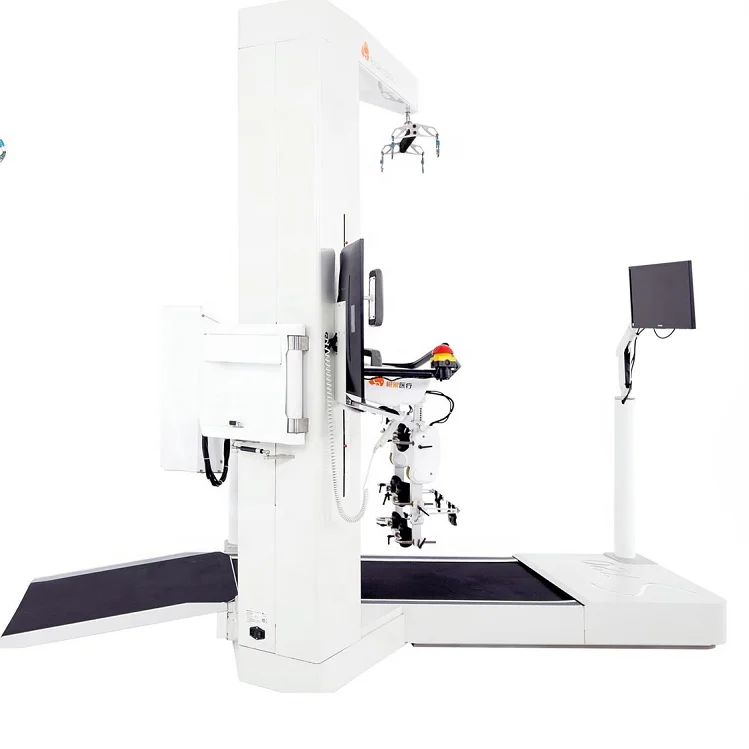

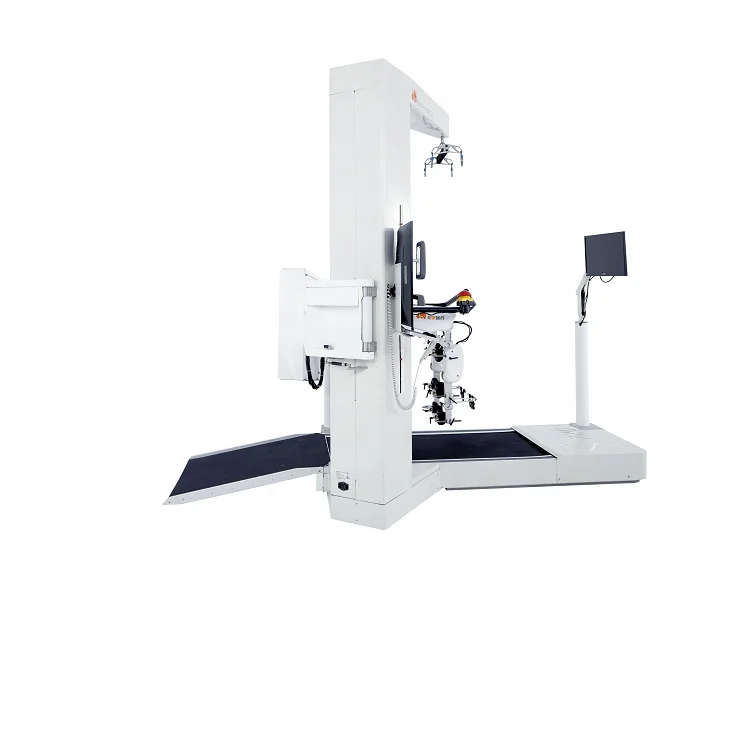

Robot-assisted gait training exercise rehabilitation system
Contact Cynthia for more details.
MOQ: 1 Unit
Packing: standard export packing
Gross weigh: 1091kgs
Packing size: 1100*750*1700mm
2400*1030*650mm
2400*500*700mm
2000*900*655mm
1. Operatingplatform: a 23-inch host computer equipped with Win10 system, equipped with dual display screen (portrait + landscape screen)；
2. Human-machineinterface: dual-screen display interface, vertical screen display interface with wireless button and mouse for therapists to operate, horizontal screen display in front for patients for situational interactive training;
3. Virtualscene training: virtual walking training scene, available for immersive training; increase the treatment fun;
* Walking training method: simulate human walking gait, real walking curve, and displayreal-time gait curve;
5. Trainingdriver: 4 Panasonic servo motors control the left and right legs, hip and knee movements respectively, and accurately control the training speed and joint movement Angle;
Training speed range: 0.1km/h-3.5km/h movement speed, the minimum starting speed is 0.1 km/h; Hip angle range: 30-50° Knee joint angle range: 50-80°
| Product Type: | Robot-assisted gait training system |
| Material: | ABS |
| Probe | One 1MHz mobile |
| Number of channels | Single |
| Function | For adjuvant therapy for pain caused by chronic soft tissue injury |
| Carton size （CM） | 51.5*44.5*30.5 |
| Gross weight（KG） | 15kg |
| Qualification | ISO |

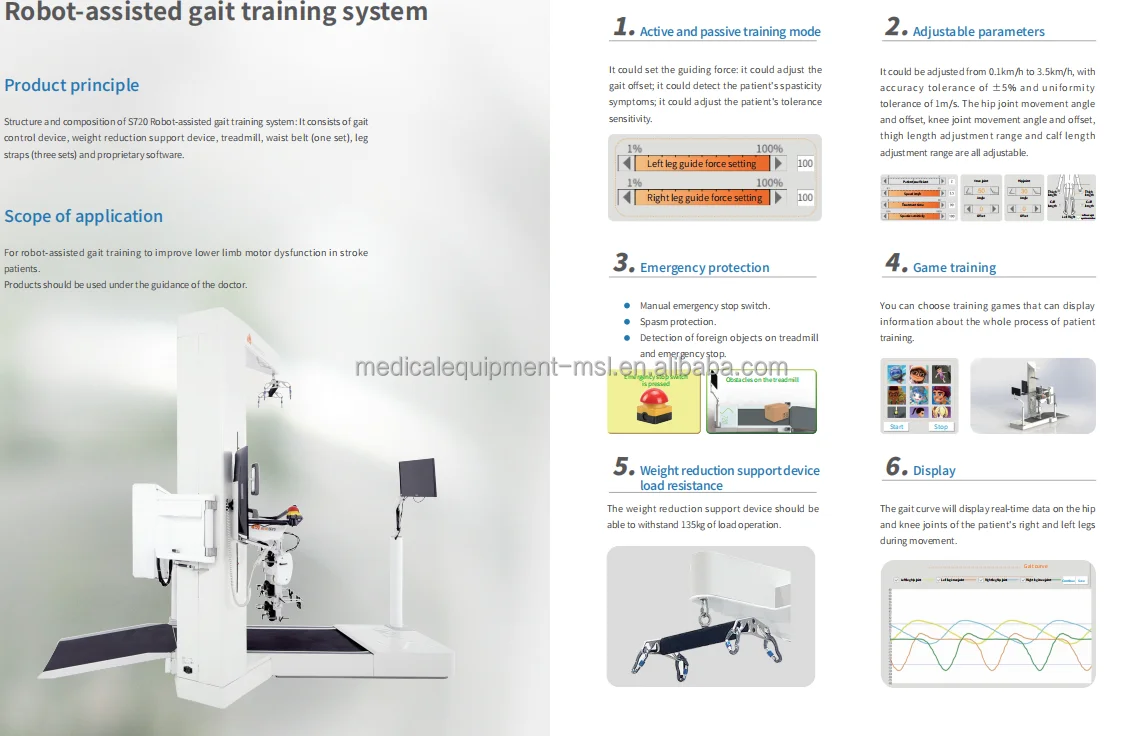

Detailed Images
Patient Height: ≤200cm Patient body weight: ≤135Kg
Leg length adjustment range: thigh bone rotor to knee joint 34-47cm
Knee to ankle joint 28-36cm Joint range of motion: hip joint 30-50°
Knee joint is 50-80° Guide force setting: 1% -100%
Training speed: 0.1-3.5KM/h Time of treatment: 1-99 minutes
Spasticity sensitivity: 10% -100% Gait offset: 20 gear adjustable
Weight support work itinerary of 0cm-38cm
The back cushion depth adjustment range is 0cm-10cm Hip soft cushion depth adjustment range is 0cm-11cm
The width adjustment range of the hip cushion is 0cm-22cm
Parameter
Clinical treatment mechanism:Magnetic field:
magnetic field can change the size and direction of human biological current, and produce weak induction vortex current, thus affect the direction of electronic movement, ion distribution, concentration and movement speed; change membrane potential, affect nerve excitability and cell membrane permeability, material exchange and biochemical process inside and outside cells, conducive to the functional recovery of muscle tissue;
Vibration: the unique vibration function plays the role of local slight massage, which can relieve the fatigue and muscle pain caused by work tension or improper body length;
Warm: the warm field can increase the local tissue temperature, accelerate the blood circulation, and increase the blood supply, thus improving the cellular nutritional environment and strengthening the metabolism of cells.
Packing & Delivery
Packing:
Standard export package/wooden case
Goods ready time: 3-7working days after payment
Delivery: 3-4days by DHL
Payment terms: t/t, western union, trade assurance, paypal
Technical Specifications
| Model Number | MSLOE1832 |
| Brand Name | MSL |
| Place of Origin | China |
| Warranty | 2 Years |
| After-sale Service | Online Technical Support |
| Instrument classification | Class II |
| Power supply | 220±22V 50±1Hz |
| Material | ABS |
| Gross Weight | 1091kgs |
| Packing Size | 1100*750*1700mm; 2400*1030*650mm; 2400*500*700mm; 2000*900*655mm |
| Operating Platform | 23-inch host computer with Win10 system, dual display (portrait + landscape screen) |
| Human-machine Interface | Dual-screen display, vertical screen for therapists with wireless button and mouse, horizontal screen for patients for situational interactive training |
| Virtual Scene Training | Virtual walking training scene for immersive training |
| Walking Training Method | Simulate human walking gait, real walking curve, real-time gait curve display |
| Training Driver | 4 Panasonic servo motors control left/right legs, hip/knee movements, accurately control training speed and joint angle |
| Training Speed Range | 0.1km/h-3.5km/h, minimum starting speed 0.1km/h |
| Hip Angle Range | 30-50° |
| Knee Joint Angle Range | 50-80° |
| Maximum Patient Height | ≤200cm |
| Maximum Patient Weight | ≤135Kg |
| Leg Length Adjustment Range (thigh bone rotor to knee joint) | 34-47cm |
| Leg Length Adjustment Range (knee to ankle joint) | 28-36cm |
| Guide Force Setting | 1% - 100% |
| Treatment Time | 1-99 minutes |
| Spasticity Sensitivity | 10% - 100% |
| Gait Offset Adjustment | 20 gear adjustable |
| Weight Support Work Itinerary | 0cm-38cm |
| Back Cushion Depth Adjustment Range | 0cm-10cm |
| Hip Soft Cushion Depth Adjustment Range | 0cm-11cm |
| Hip Cushion Width Adjustment Range | 0cm-22cm |
| Qualification | ISO |
| Packaging | Standard export package/wooden case |
| Goods Ready Time | 3-7 working days after payment |
| Delivery Time | 3-4 days by DHL |
