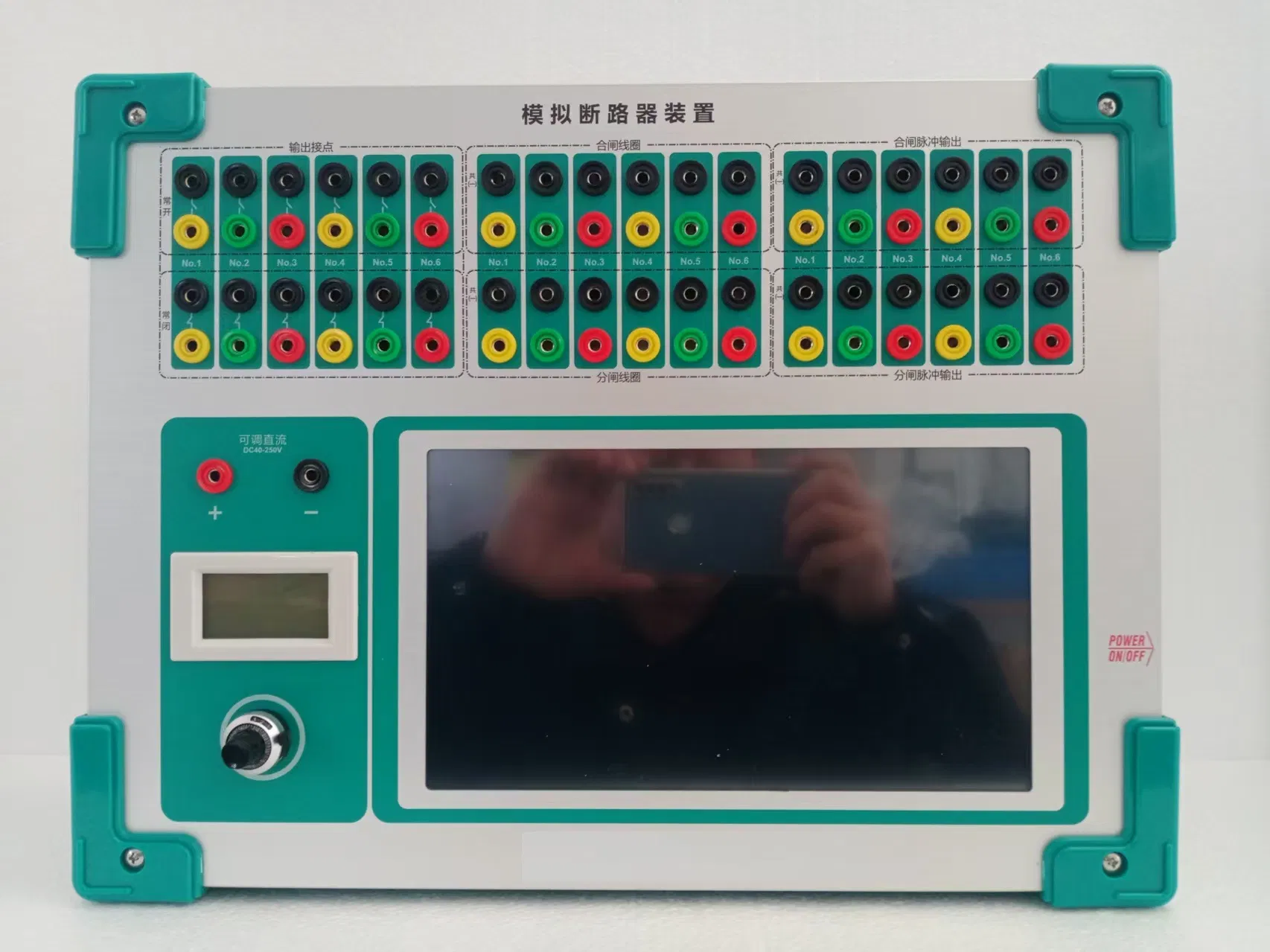

Simulated Circuit Breaker Device for Relay Protection Commissioning
USD 999.00 – 2599.00
/ set
Price varies by quantity and specifications
| MOQ | 1 set |
| Category | Instruments & Meters |
10
Years
98%
Response
24h
Reply
More from this Supplier
Product Description
No detailed description available. Please send an inquiry for more information.
Technical Specifications
| After-sales Service | Phone Communication with Video Guidance |
| Warranty | Three Years |
| Frequency Range | 50/60Hz |
| Type | Function Signal Generator |
| Display | Digital |
| Power Supply | Single-Phase AC 220V±10% or AC 380V±10% |
| Frequency | 50Hz (45~63Hz) |
| Output Capacity Node | Output Contacts: 3 Normally Open and 3 Normally Cl |
| Switching Operation Voltage | Adjustable DC 24-250V |
| Opening and Closing Time | 10 Ms to 1000 Ms, Adjustable |
| Operation Circuit | with Anti-Tripping Circuit, Closing Hold, and Trip |
| Functuion | Simulate Closing and Opening of Circuit Breaker |
| Analog Functuion | Simulated Fault Trip |
| External Morphology | Simulate The Appearance, Handle, and Indicator Lig |
| Applicable Scene | Relay Protection Commissioning, Complete Transmiss |
| Regulation | Stepless Smooth Current Regu |
| Core Features | Safety Without High Pressure |
| Cooling | Natural Air Cooling |
| Point | Compact Size with Simple Wiring |
| Transport Package | Wooden Box with Foam Inside |
| Specification | NXMK -III |
| Trademark | naxinxiangyuan |
| Origin | Shandong, China |
| HS Code | 9030390000 |
