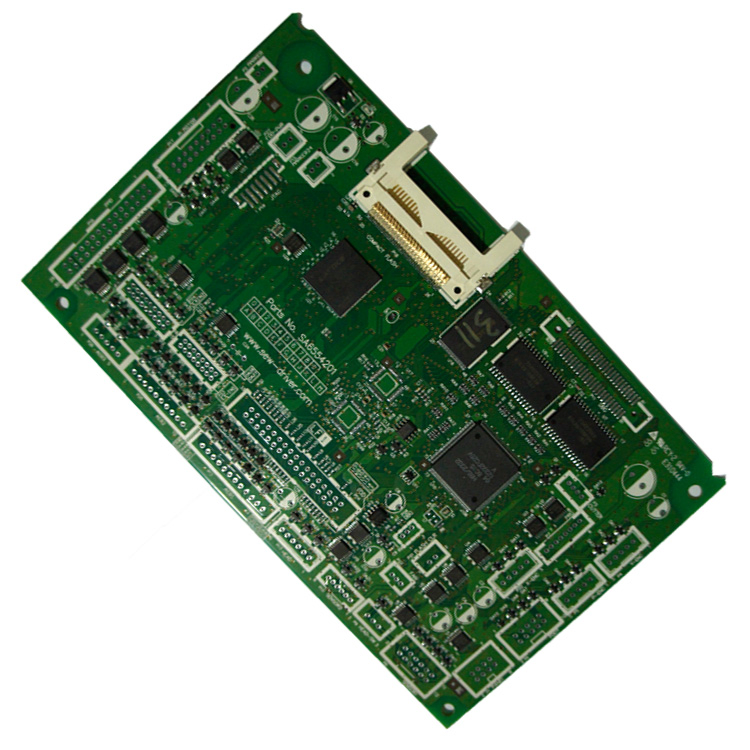

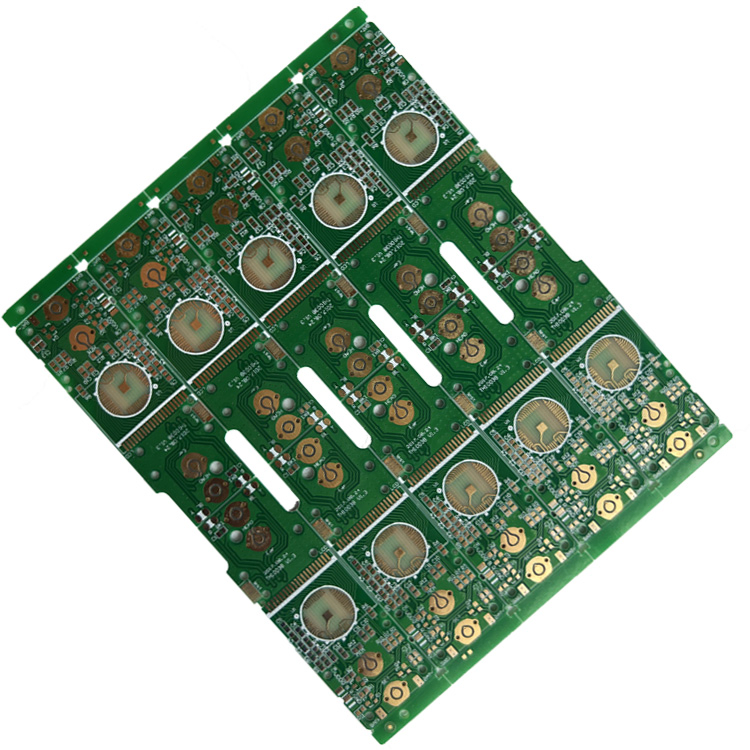

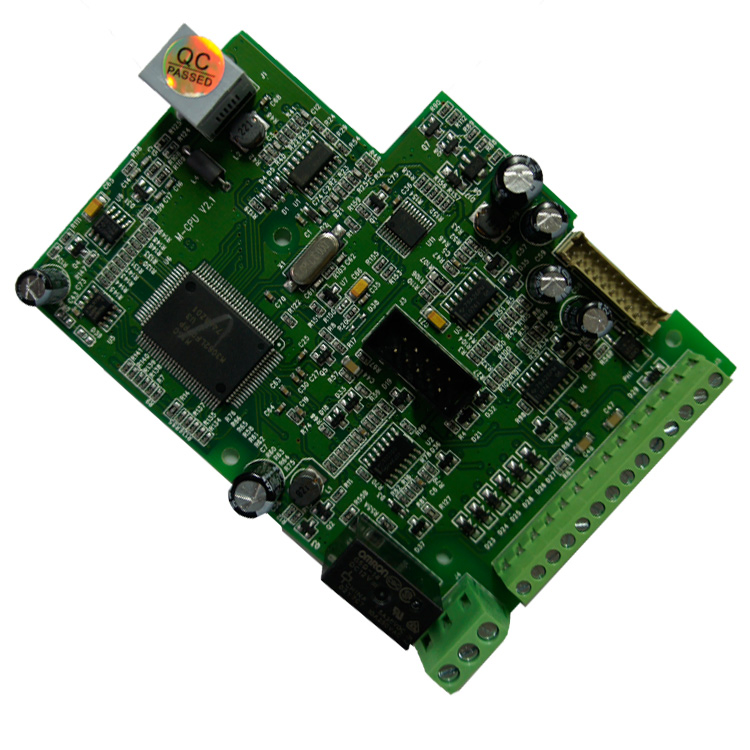

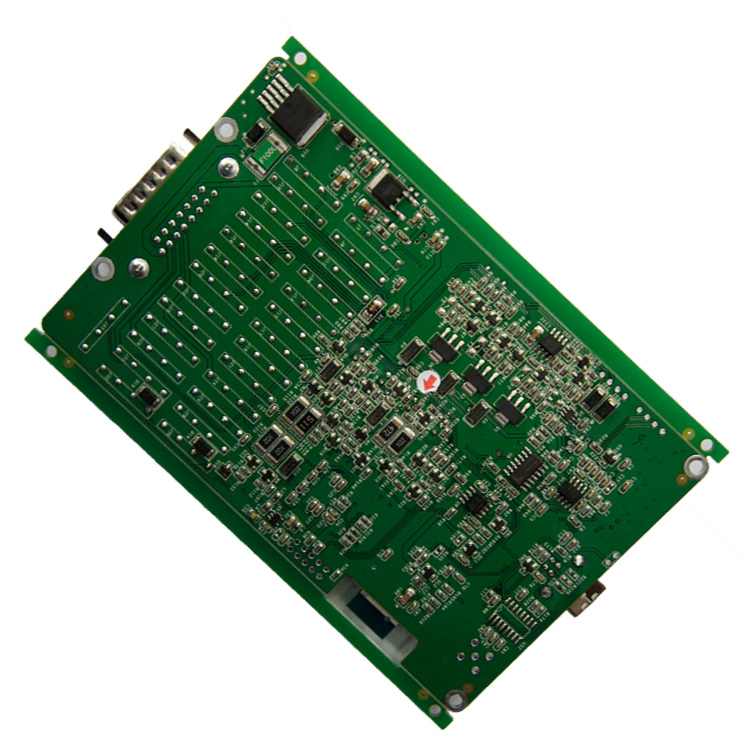

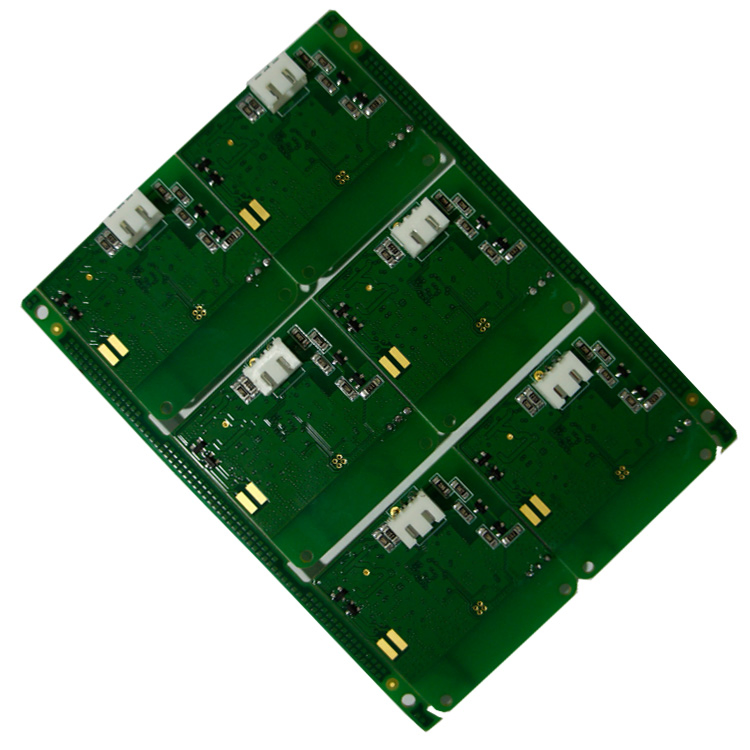

Single Side PCBA Printed Circuit Board Custom PCB Integrated Mother Control Assembling Board
USD 0.98 – 1.98
/ piece
Price varies by quantity and specifications
| MOQ | 10 piece |
| Category | Electronics |
20
Years
98%
Response
24h
Reply
Product Description
No detailed description available. Please send an inquiry for more information.
Technical Specifications
| Model NO. | JX-PCBA-04 |
| Type | Combining Rigid Circuit Board |
| Flame Retardant Properties | V2 |
| Dielectric | CEM-2 |
| Base Material | Fr-4 |
| Insulation Materials | Epoxy Resin |
| Processing Technology | Delay Pressure Foil |
| Application | Consumer Electronics |
| Mechanical Rigid | Rigid |
| Material | Copper-Based |
| Brand | Jxpcba |
| PCBA Material | FR4, High TG, Halogen-Free, High Frequency |
| Surface Treatment | HASL/Immersion Gold/Immersion Silver/Immersion Tin |
| Certificate | ISO9001/ISO14001/IATF16949 |
| PCB Solder Mask | White, Black, Yellow, Green, Red, Blue |
| Component Packing | Tary, Tube, Tape |
| Number of Layer | 1-32 |
| Minimum Line Width/Spacing | 3.0mil |
| Maximum Plate Thickness Aperture Ratio | 30:1 |
| Minimum Mechanical Drilling Aperture | 6mil |
| Board Thickness | 0.2mm~6.0mm |
| Maximum Board Size | 640mm*1100mm |
| PCBA Testing Service | Aoi, Ict, X-ray, Flying Probe Test |
| PCBA Packaging | Static Packaging, Shockproof Packaging, Anti-Drop |
| Product Application | Consumer Electronics/Home Appliances/Medical Equip |
| PCB Silkscreen Color | Black, White, Yellow |
| Transport Package | Ploybag+Carton |
| Specification | Custom |
| Trademark | JXpcba |
| Origin | China |
| HS Code | 8517799000 |
