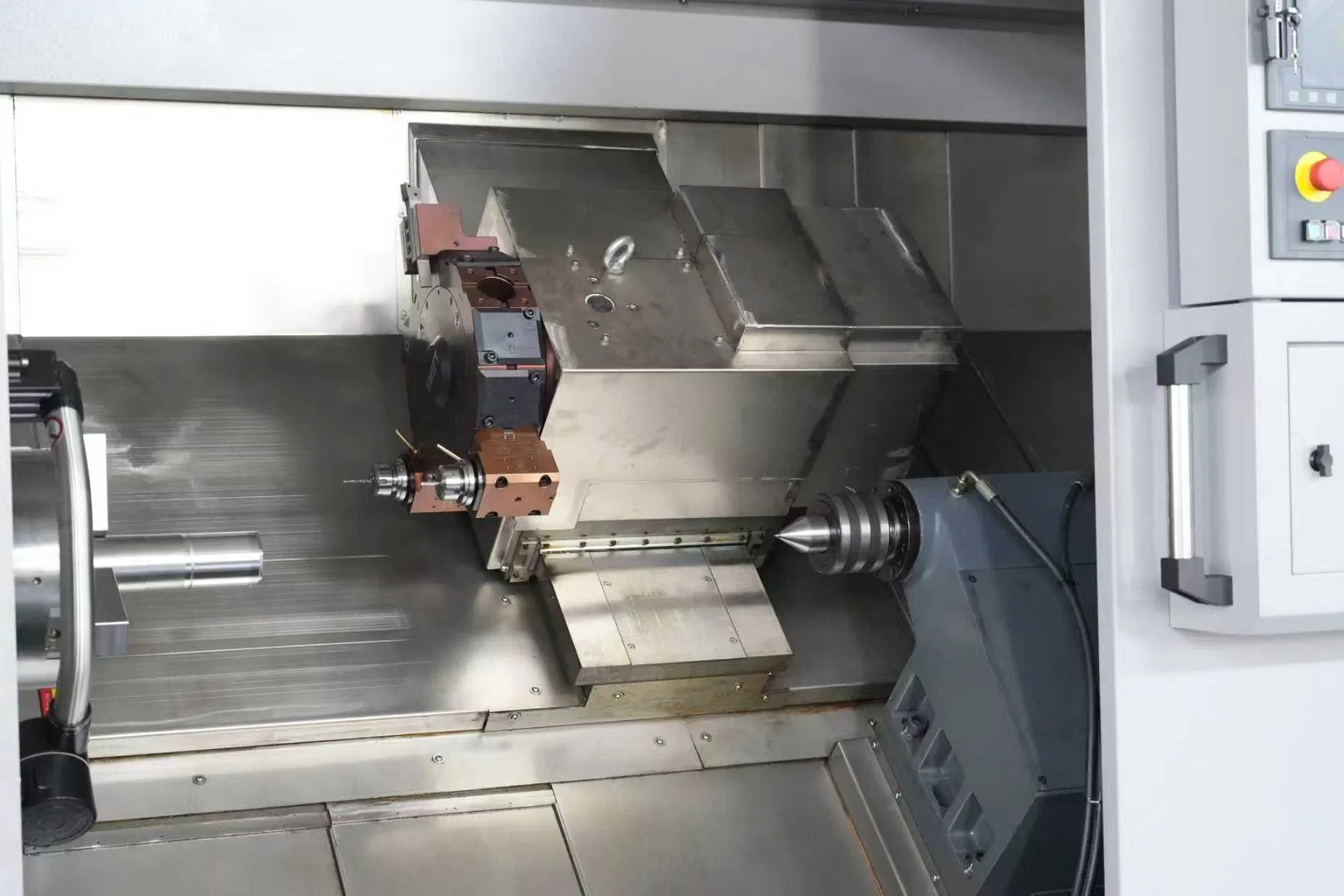

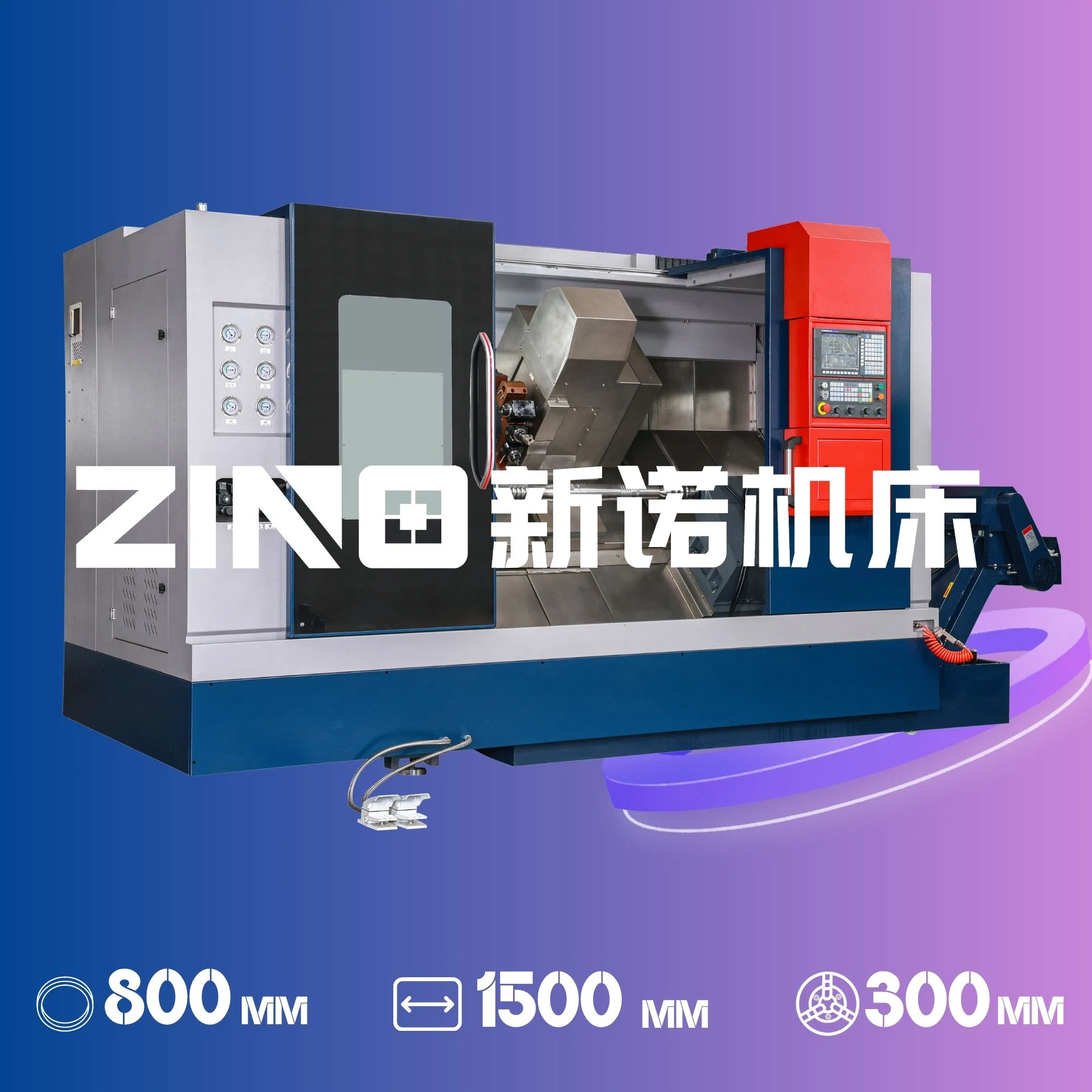

St600 High Precision Slant Bed CNC Lathe Machine
USD 22000.00 – 43000.00
/ piece
Price varies by quantity and specifications
| MOQ | 1 piece |
| Category | General |
6
Years
98%
Response
24h
Reply
More from this Supplier
Product Description
No detailed description available. Please send an inquiry for more information.
Technical Specifications
| Model NO. | ST600 |
| After-sales Service | Yes |
| Warranty | 12 Months |
| Max. Swing Over Bed | φ600mm |
| Controller | Siemens808d Ver.15 |
| Distance Between Centers | 1500mm |

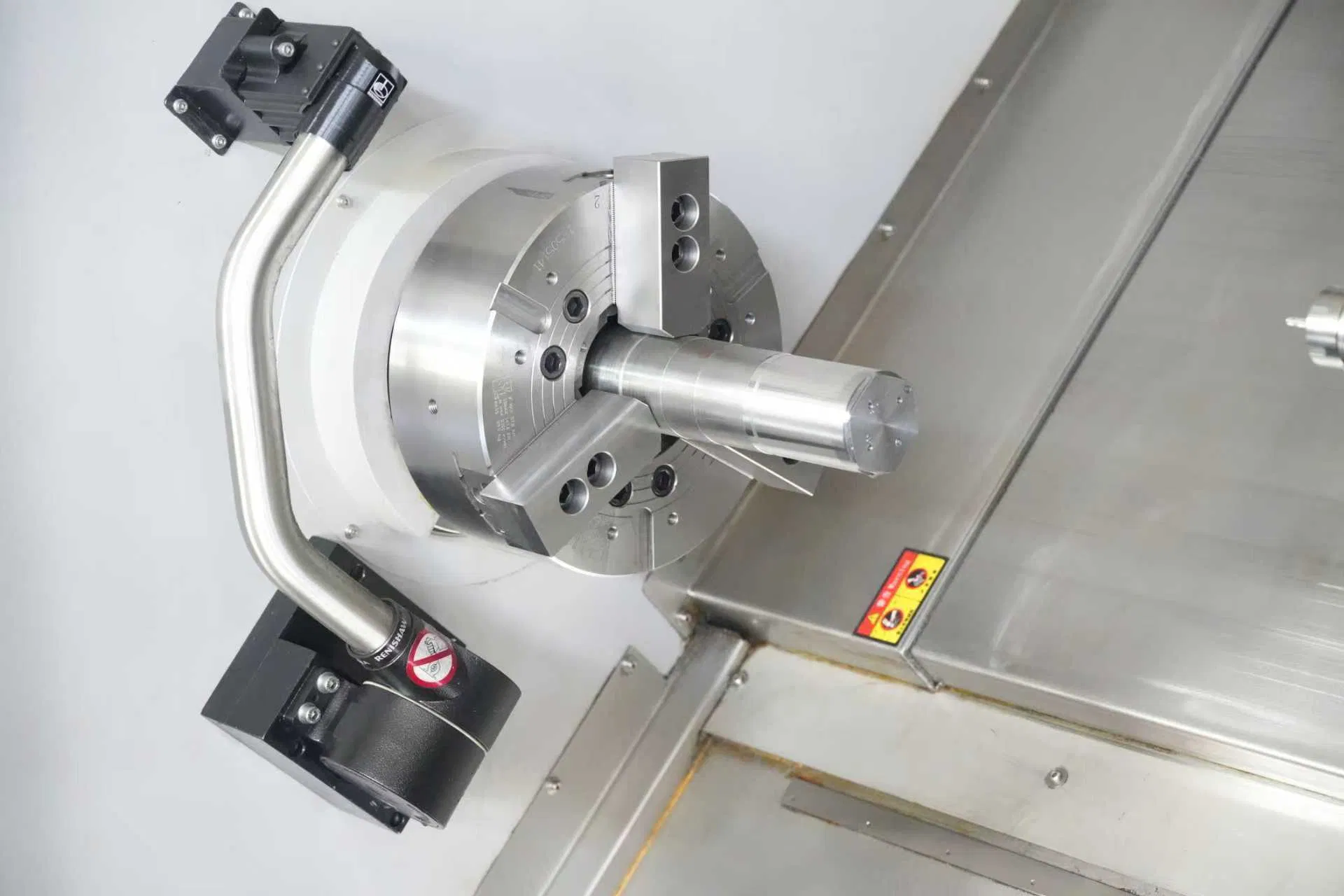

| Hydraulic Chuck | 250mm |
| Spindle Bore | 86mm ( 70mm After Hydraulic Chuck ) |
| Max. Process Length | 850mm |
| Spindle Motor | 11/15kw GSK Servo Motor |
| Spindle Seed | 3000rpm |
| Max. Swing Over Cross Slide | φ300mm |

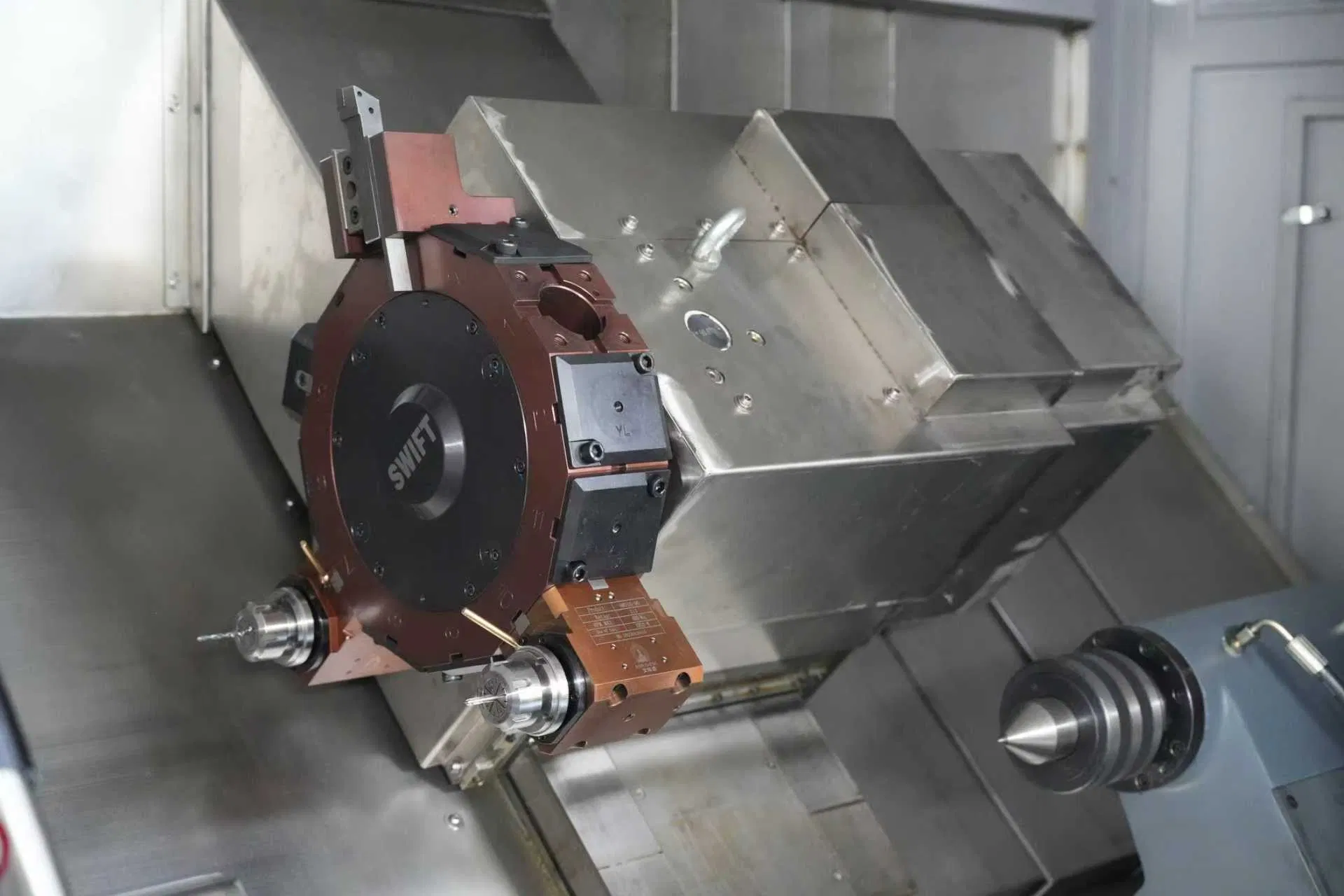

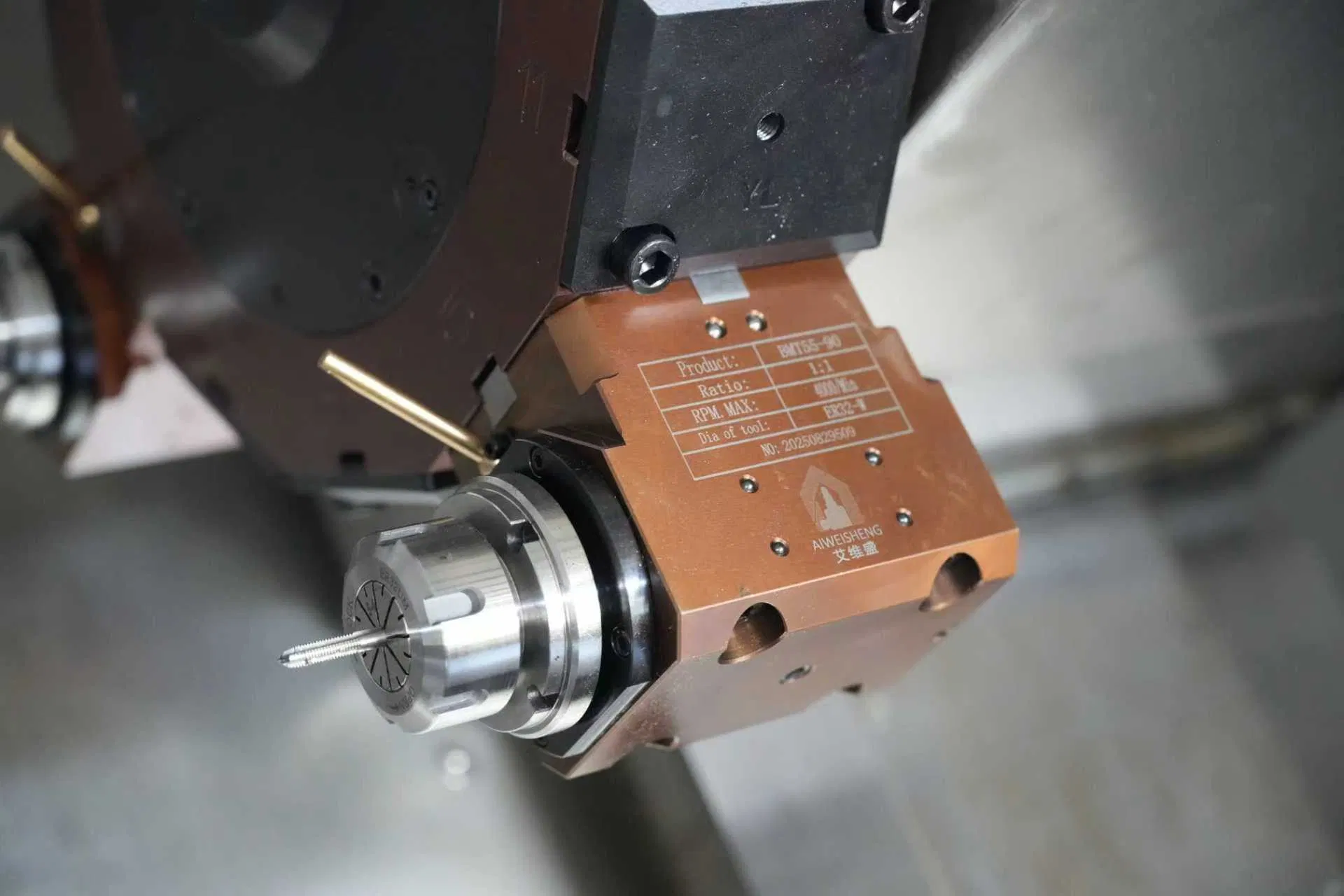

| Turret | 8 Station (25X25mm) |
| Spindle Nose | A2-8 |

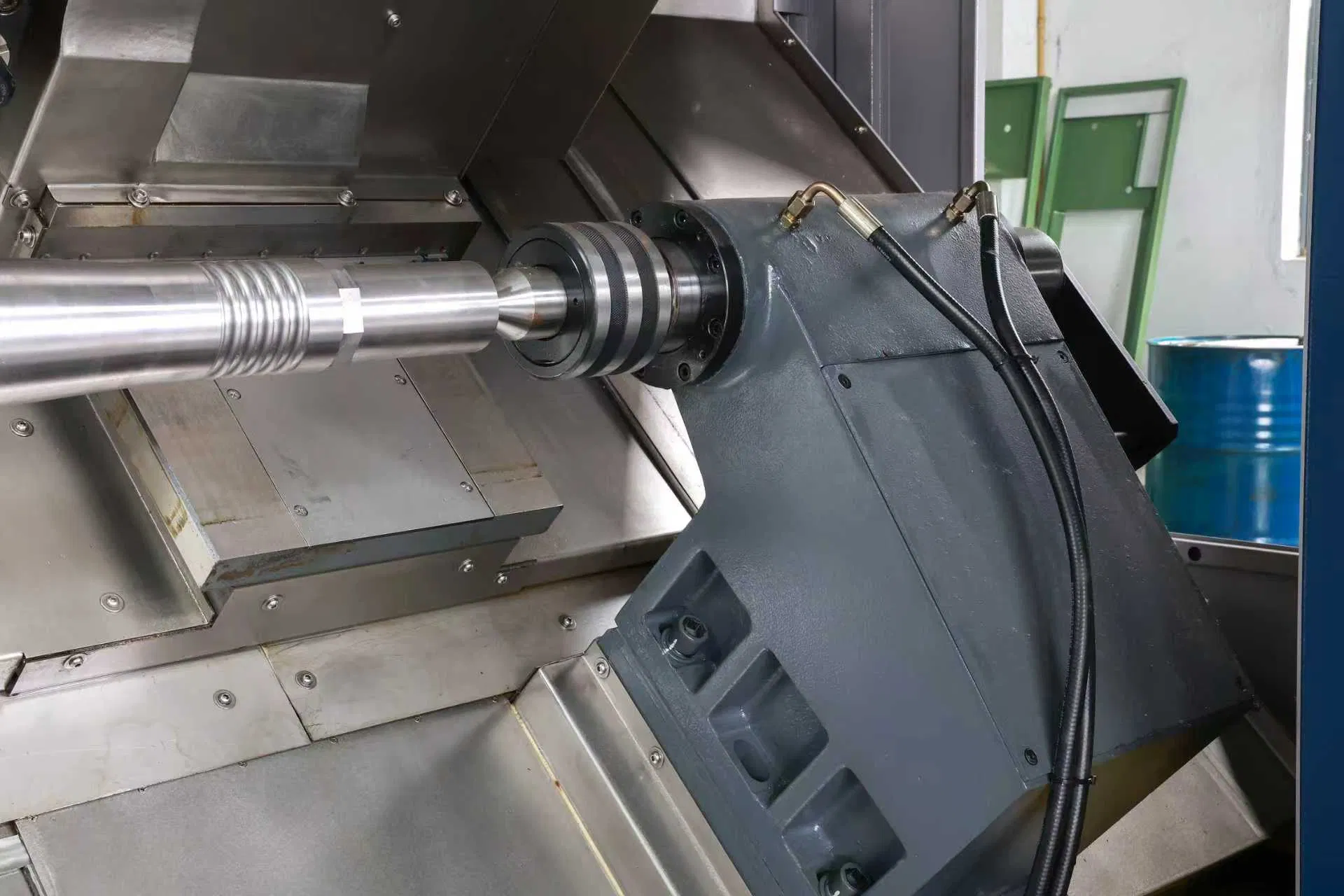

| Tailstock | Hydraulic Tailstock |
| Transport Package | Fumigation Package |
| Specification | 3.50*2.22*2.28 M |
| Trademark | ZINO |
| Origin | Jiangsu Province |
| HS Code | 8458110090 |
