Manufacturer

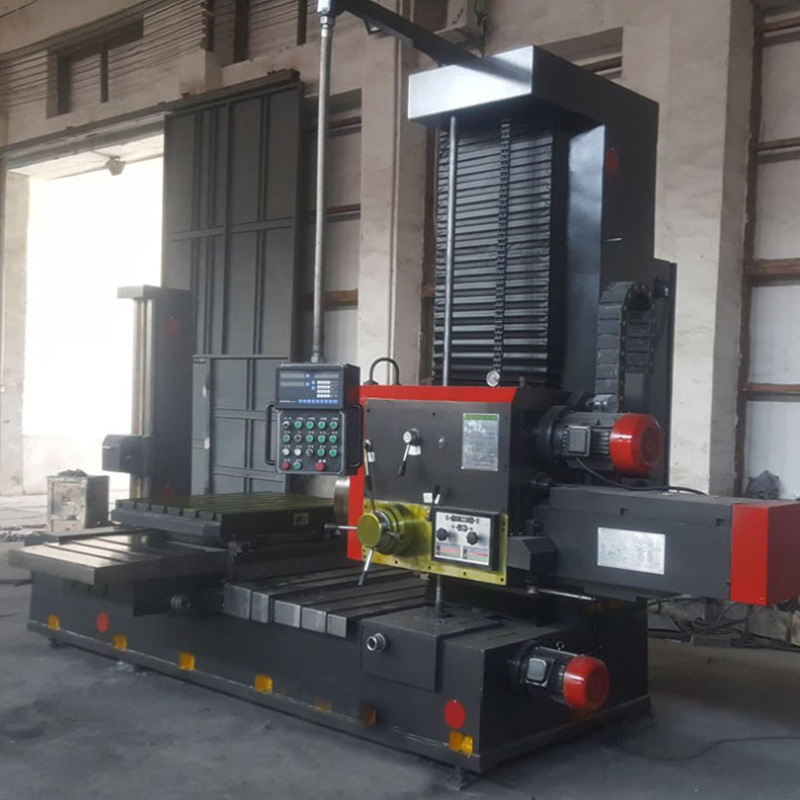

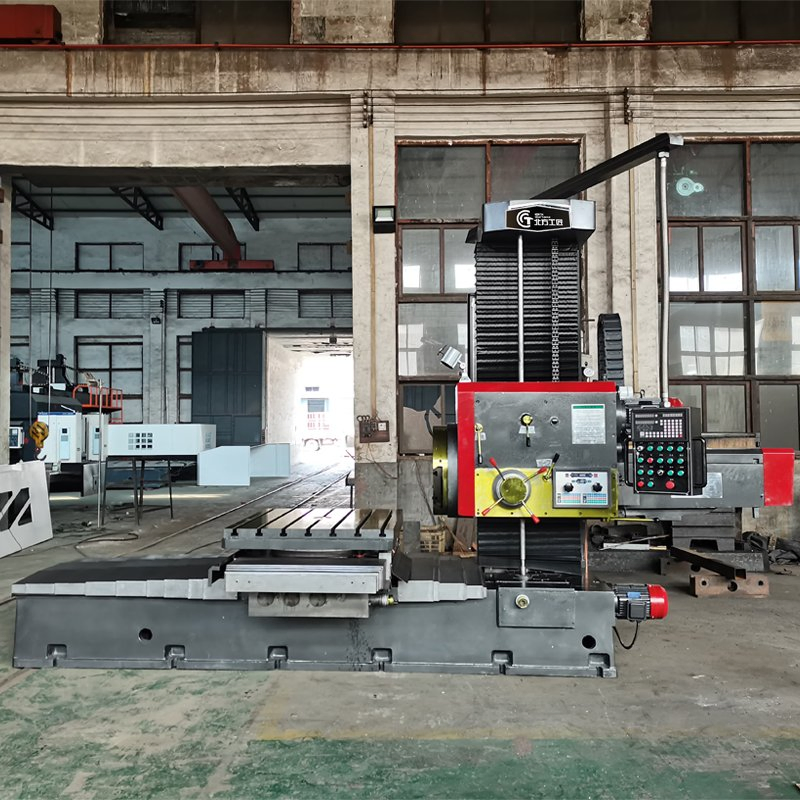

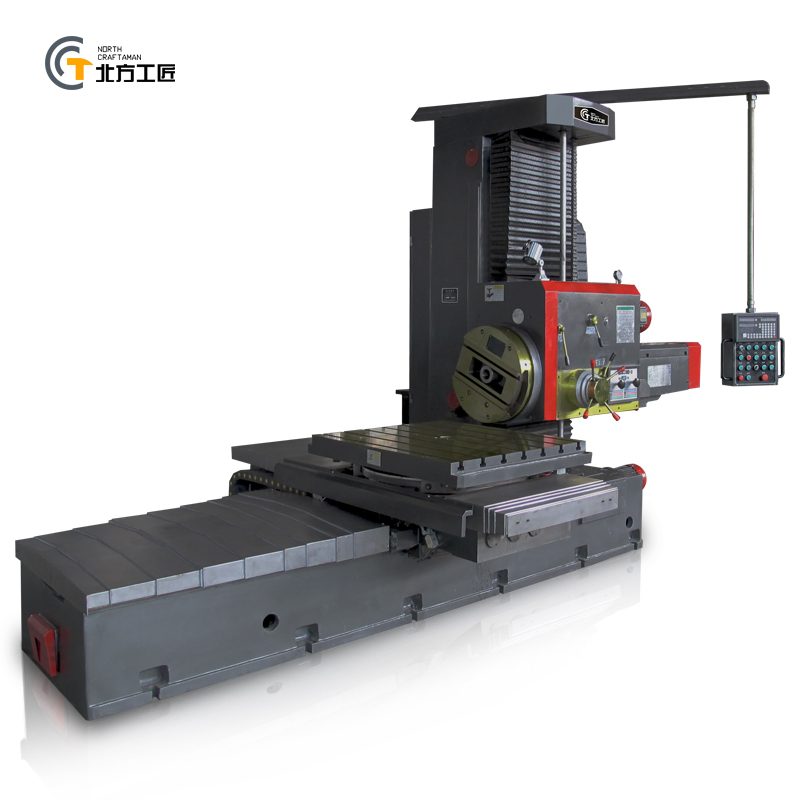

TPX6111B Horizontal CNC Boring Machine
USD 59850.00 – 69989.00
/ set
Price varies by quantity and specifications
| MOQ | 1 set |
| Category | Machinery |
26
Years
98%
Response
24h
Reply
More from this Supplier
Product Description
No detailed description available. Please send an inquiry for more information.
Technical Specifications
| Model NO. | TPX6111B |
| After-sales Service | Online After-Sales Service, Engineers Can Provide |
| Warranty | 13 Months |
| Structure | Horizontal Boring Machine |
| Coordinate Boring Machine Type | Horizontal Type |
| Tool Type | Fine Knife/Crude Knife |
| Controlling Mode | CNC |
| Precision | High Precision |
| Automatic Grade | Automatic |
| Certification | CE, ISO 9001 |
| Condition | New |
| Spindle Diameter | 110mm/130mm |
| Spindle Taper | Morse 6 (ISO 7:24 No50) |
| Transverse Travel of Worktablel--X Axis | 900mm~2000mm |
| Headbox Travel--Y Axis | 1000mm~1800mm |
| Table Horizontal Travel--Z Axis | 1000mm~2000mm |
| Spindle Speed Level | 22 |
| Speed Number of Radial Facing Slide | 18 |
| Max.Torque of Spindle | 1225n.M |
| Max.Torque of Facing Slide | 12250n |
| Rapid Traverse Speed of Pindle.Headstock | 2500mm/Min |
| Worktable Rotation Angle | 360° |
| Main Motor Power | 7.5kw |
| Worktable Size | 960mm*1100mm |
| Max.Permissible Load of Table | 2500kg |
| Weight | 13000kg |
| Transport Package | Wooden Packing |
| Trademark | NORTH CRAFTSMAN |
| Origin | China |
| HS Code | 8459410000 |
