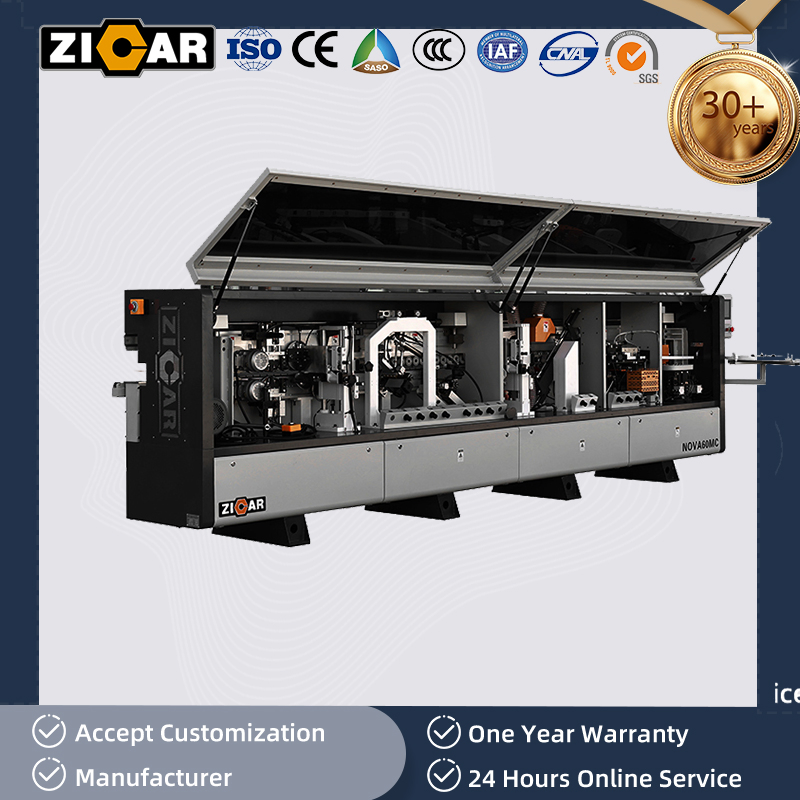

ZICAR Automatic PVC Wood Board Edge Banding Machine with Corner Rounding for Furniture Cabinet
USD 10500.00 – 13000.00
/ piece
Price varies by quantity and specifications
| MOQ | 1 piece |
| Category | Machinery |
More from this Supplier
Product Description
No detailed description available. Please send an inquiry for more information.
Technical Specifications
| Model NO. | NOVA60MC |
| Warranty | online support |

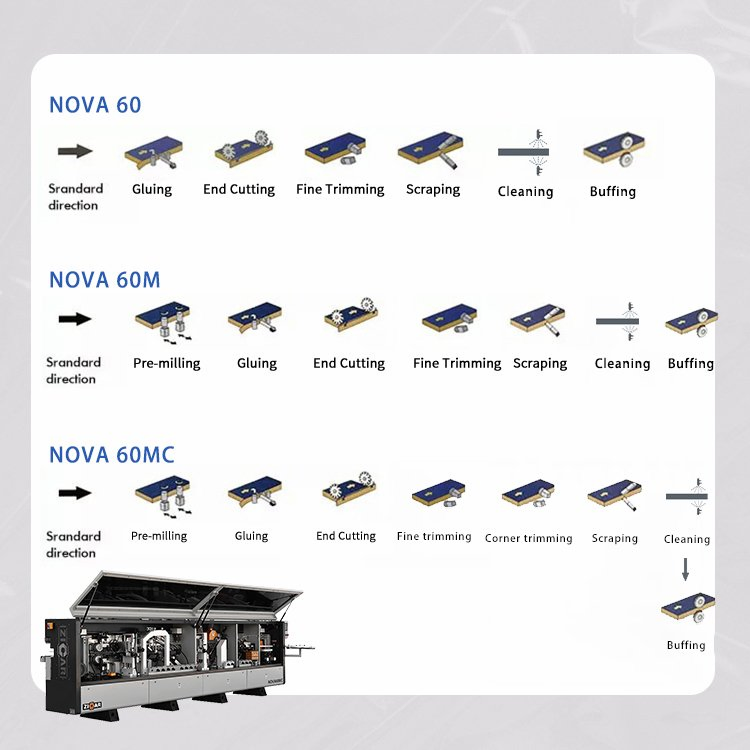

| Function | Pre Milling, Gluing, Edge Banding, End Trimming, Fine Trimming, Contour Tracking, Scraping, Buffing |
| Type | Straight Line |
| Edging thickness | 0.4-3mm |
| Automatic Grade | Automatic |
| Panel Feeding Speed | 16m/min |
| Certification | ISO |
| Panel Thinkness | min60mm |
| Min.length panel | 140mm |
| Min.width panel | 150mm |
| Manufacturing Principles | Glue Tank Underneath |
| Customized | Customized |
| After-sales Service | online support |
| Name | Edge banding machine |
| Working pressure | 0.7MPa |
| Net weight | 1610kg |
| Total power | 14.5kw |
| Overall size | 5350x760x1400mm |
| Panel length | Min.140mm |
| Panel width | Min.50mm |
| Panel thickness | 10-60mm |
| Edge thickness | 0.4-3mm |
| Feeding speed | 16 m/min |
| Usage | Plywood Production |
| Voltage | AC220V/380V 50/60Hz or Customized |
| Package Type | Plywood cases |
| Local Service Location | Egypt, Viet Nam, Peru, Indonesia, India, Russia, M |
| Processing materials | MDF Plywood Wood PVC |
| Transport Package | Palywood Case |
| Specification | NOVA 60MC |
| Trademark | ZICAR |
| Origin | China |
