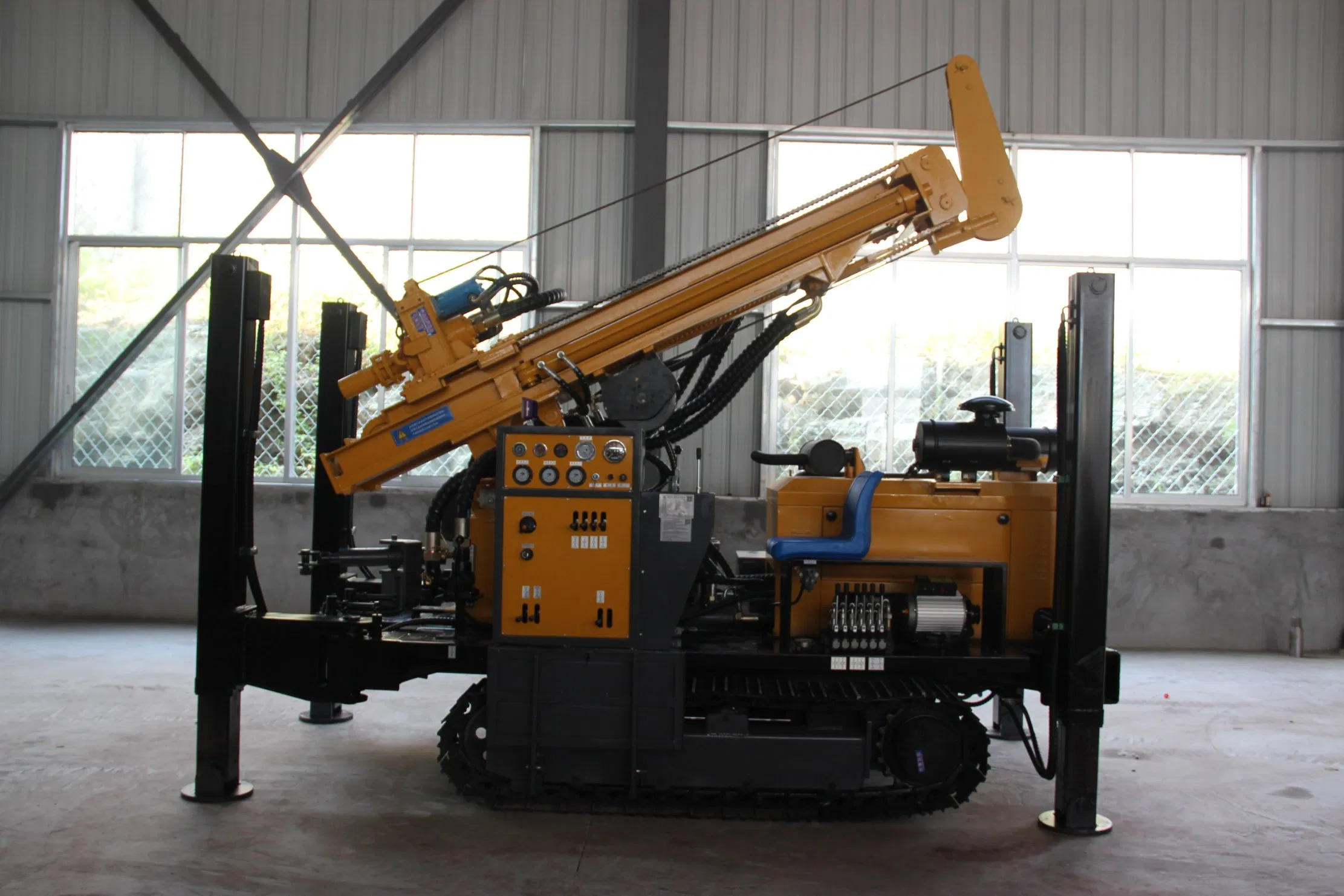

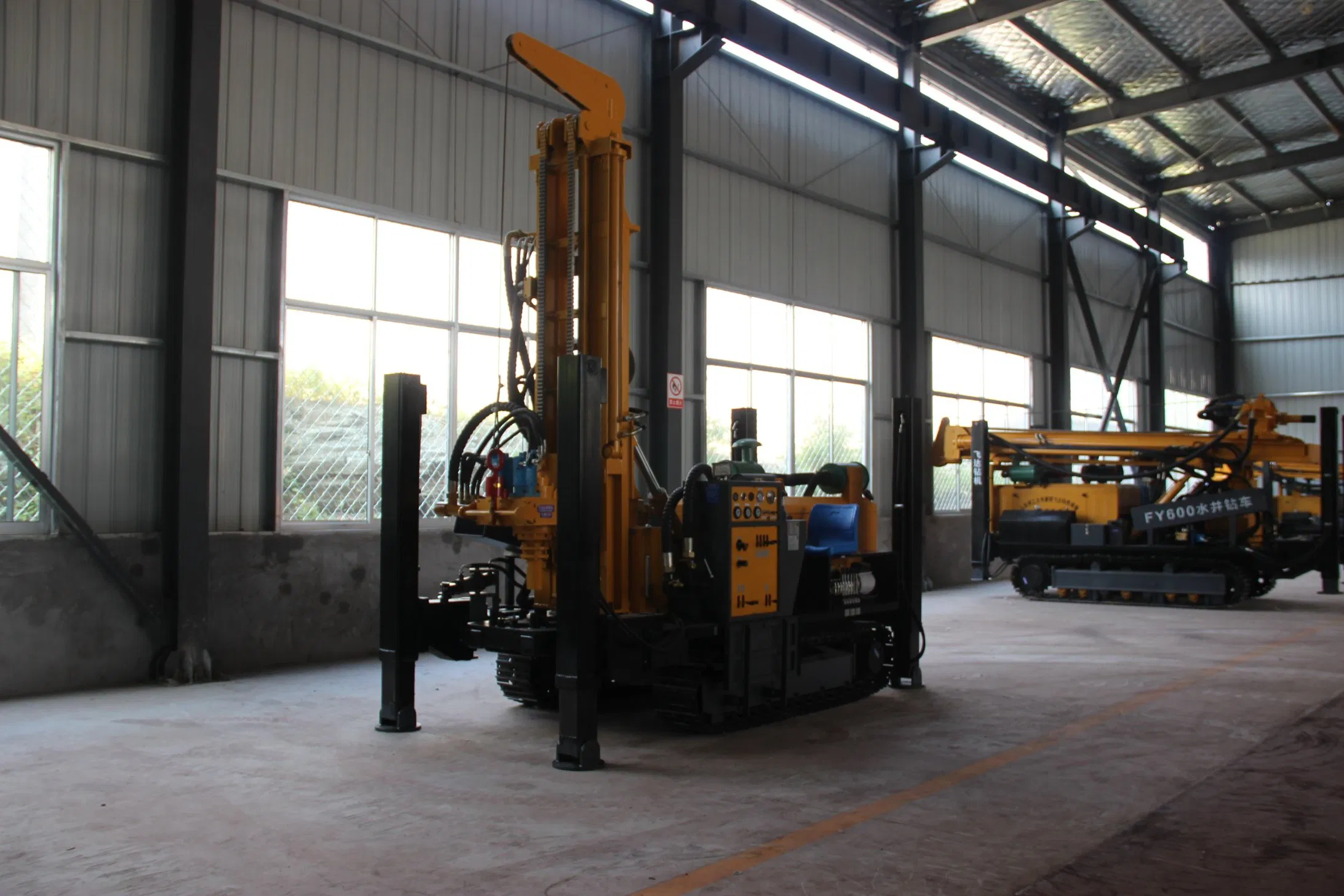

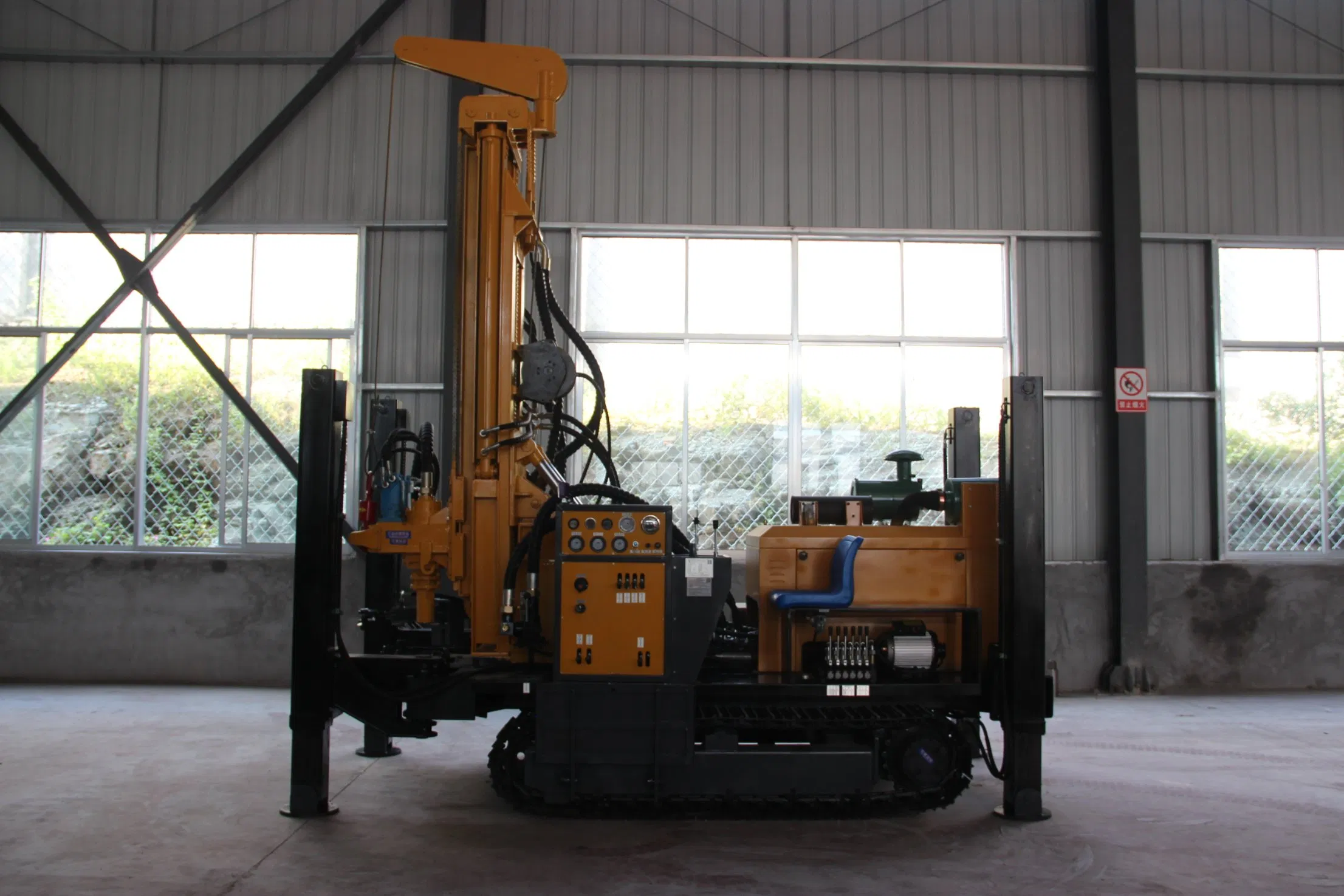

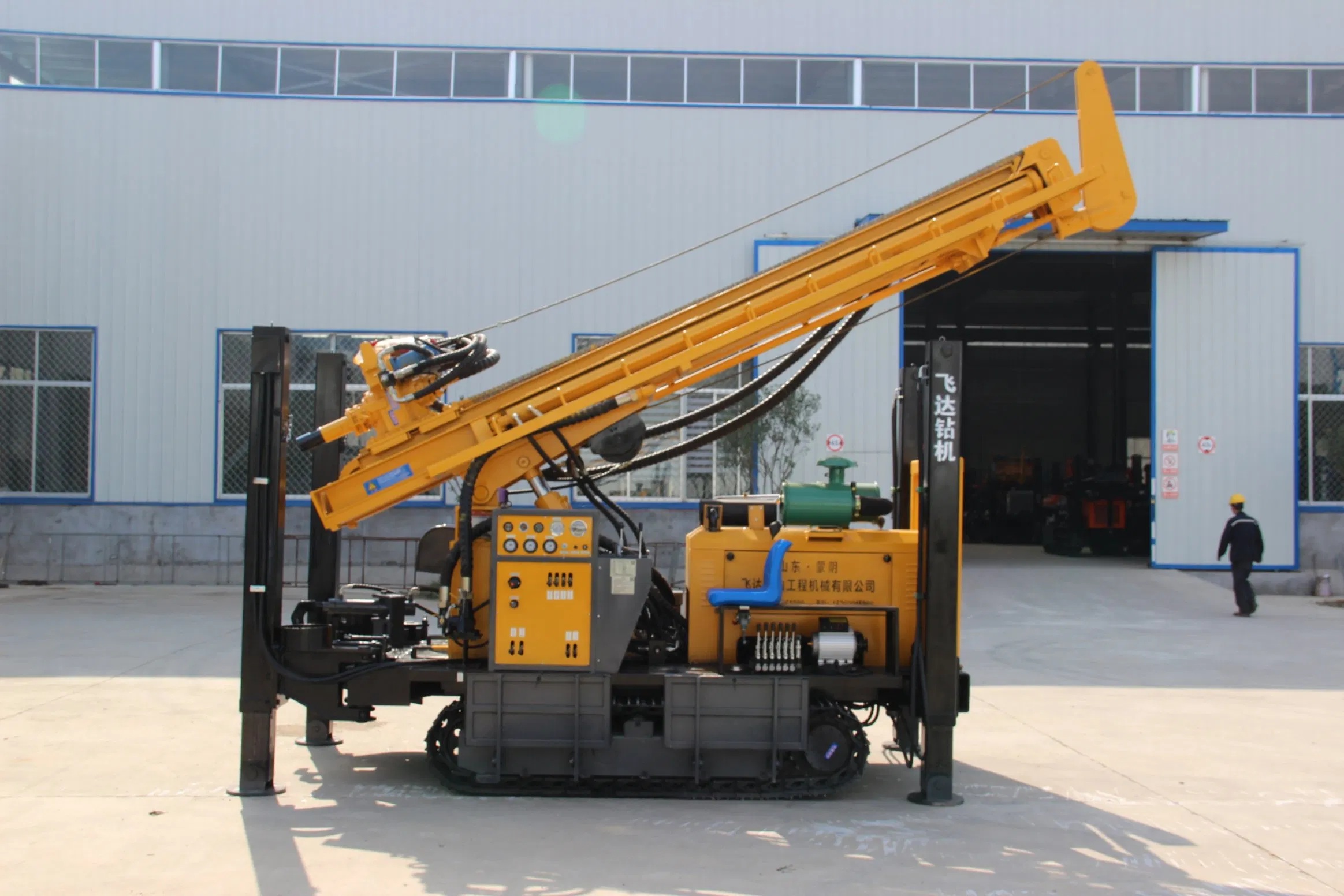

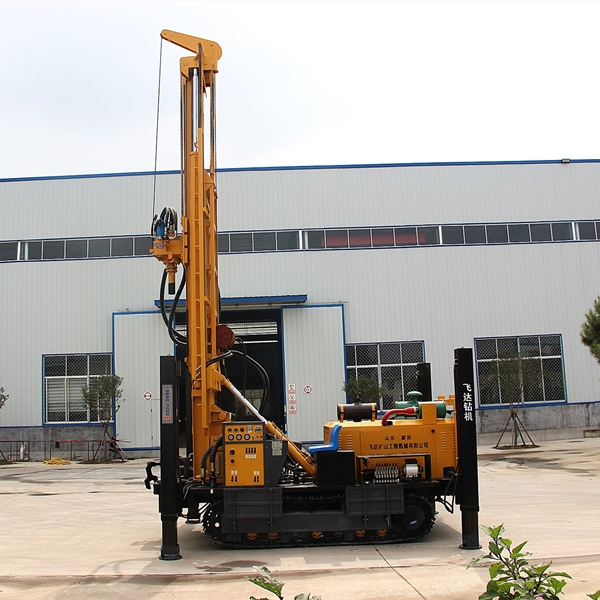

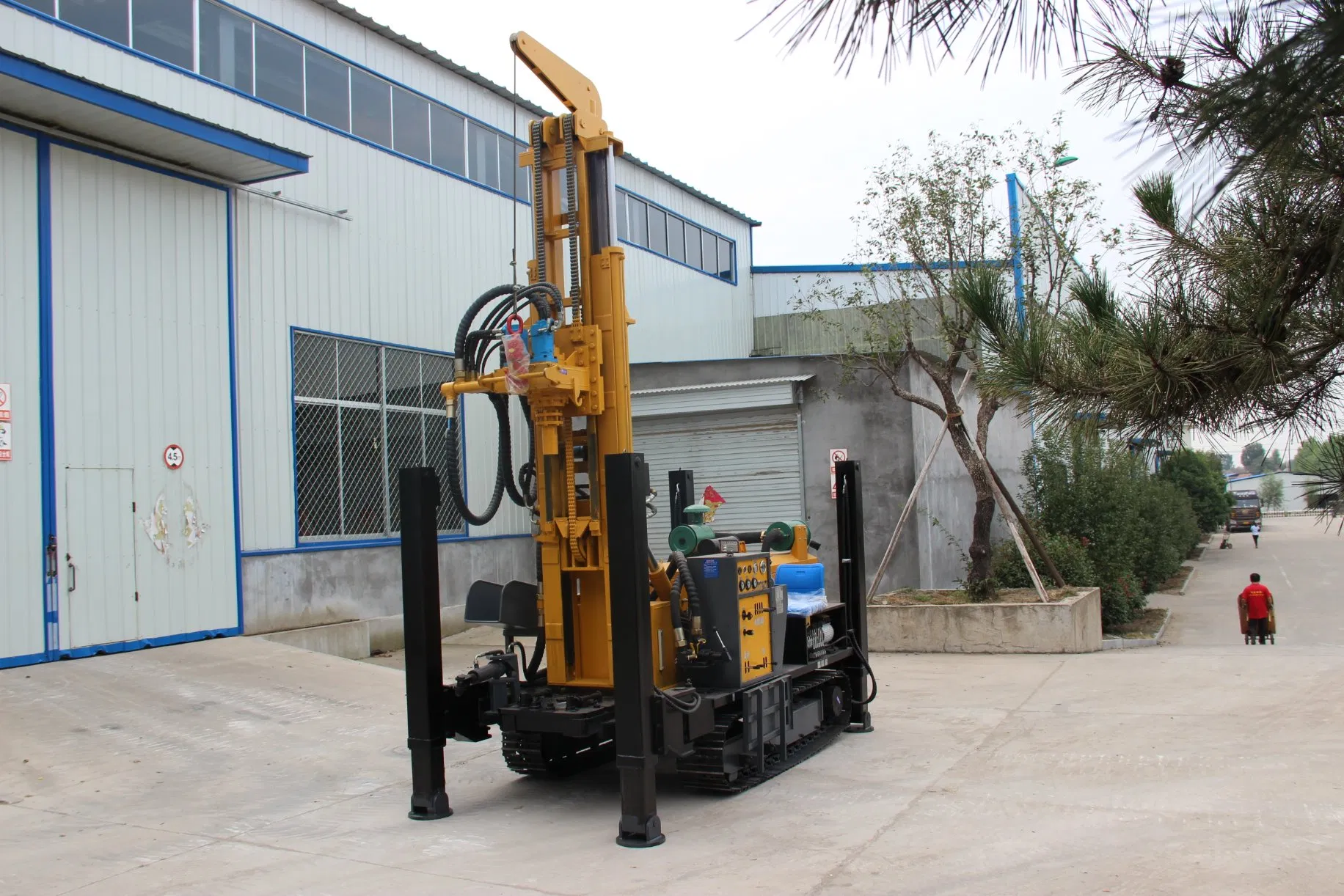

350m 500m Crawler Water Well Drilling Rig Fully Hydraulic Engineering Drilling Rig
USD 19999.00 – 24000.00
/ piece
Price varies by quantity and specifications
| MOQ | 1 piece |
| Category | Machinery |
26
Years
98%
Response
24h
Reply
More from this Supplier
Product Description
No detailed description available. Please send an inquiry for more information.
Technical Specifications
| Model NO. | FY350 FY450 FY500 |
| After-sales Service | Online Technical Support |
| Warranty | 1years |
| Certification | CE, ISO 9001:2000 |
| Condition | New |
| Motor | DC Motor |
| Drill Hole Diameter | 140-325mm |
| Drill Hole Depth | 300m |
| Bit Type | Diamond Bit |
| Drilling Way | Rotary |
| Type | Crawler |
| The Weight | 7.2t |
| Drill Pipe Diameter | 76/89/102mm |
| Drill Pipe Length | 1.5m/2.0m/3.0m |
| One-Time Advancement Length | 3.3m |
| Fast Feeding Speed | 40m/Min |
| Engine Power | 85kw |
| Working Pressure | 1.7-3.0MPa |
| Swing Torque | 5700-7500n.M |
| Air Consumption | 17-36m³/Min |
| Swing Speed | 40-70rpm |
| The Penetration Effciency | 15-35m/H |
| Transport Package | Container |
| Specification | 4100*2000*2500mm |
| Trademark | FY |
| Origin | China |
| HS Code | 8430419000 |
