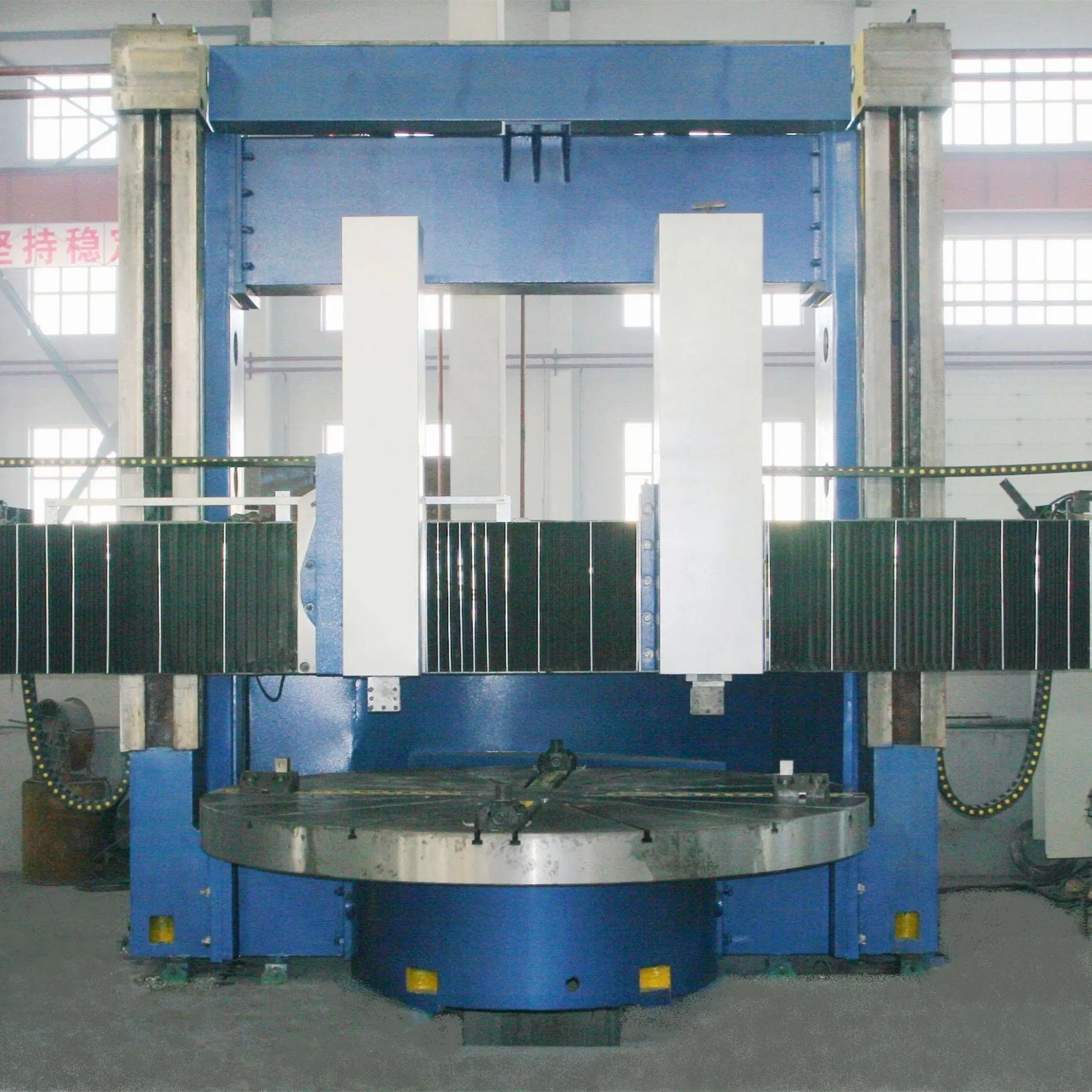

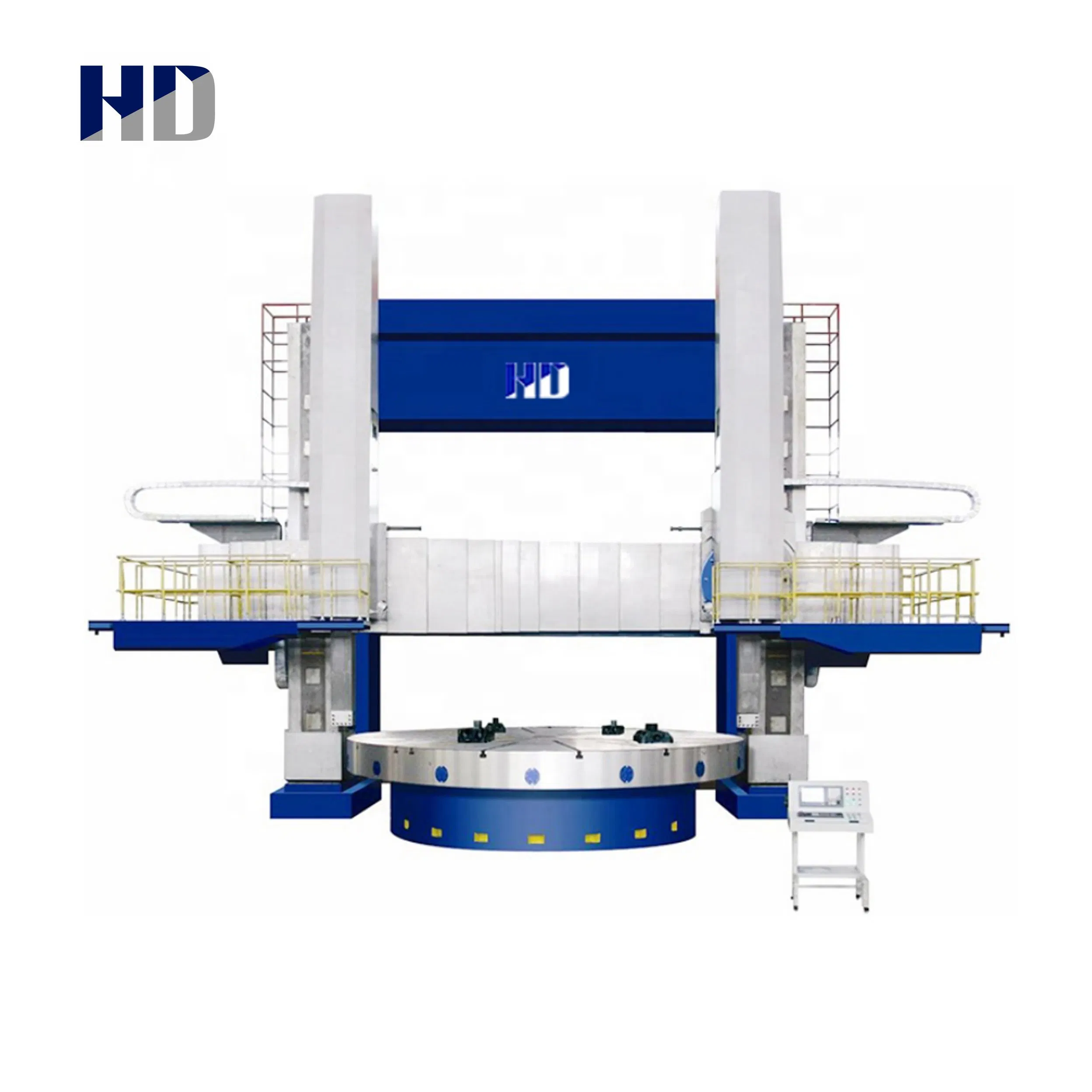

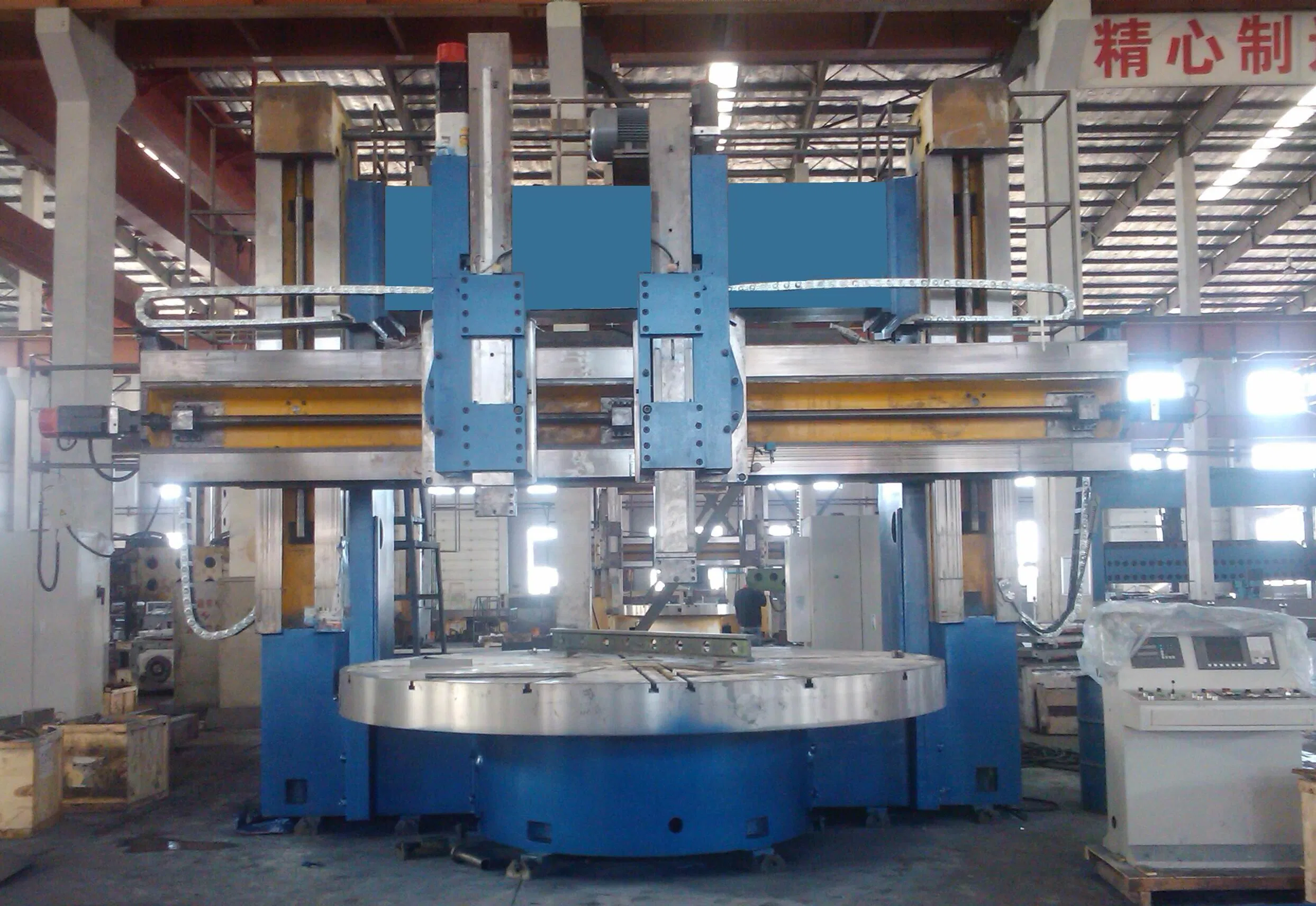

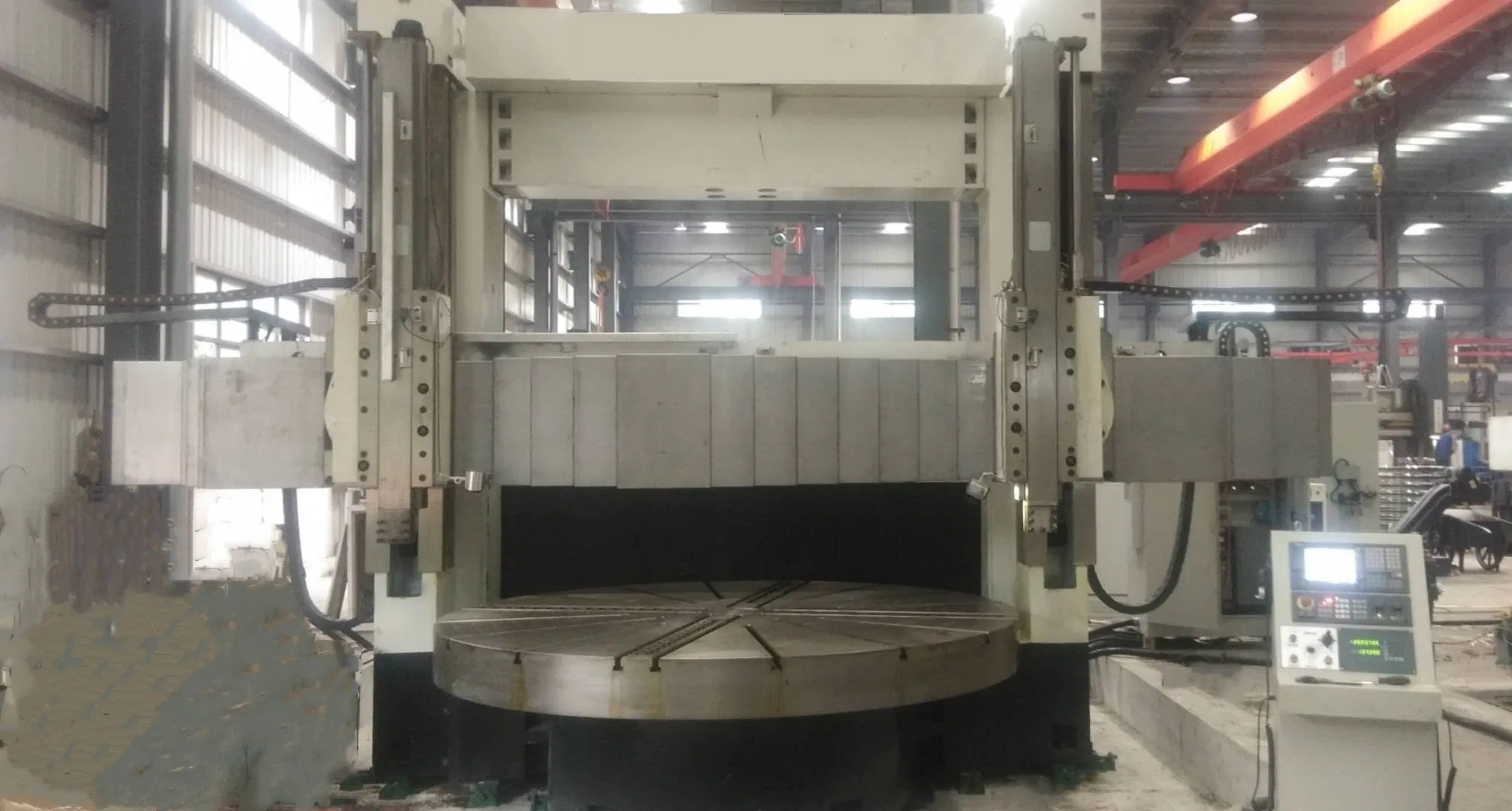

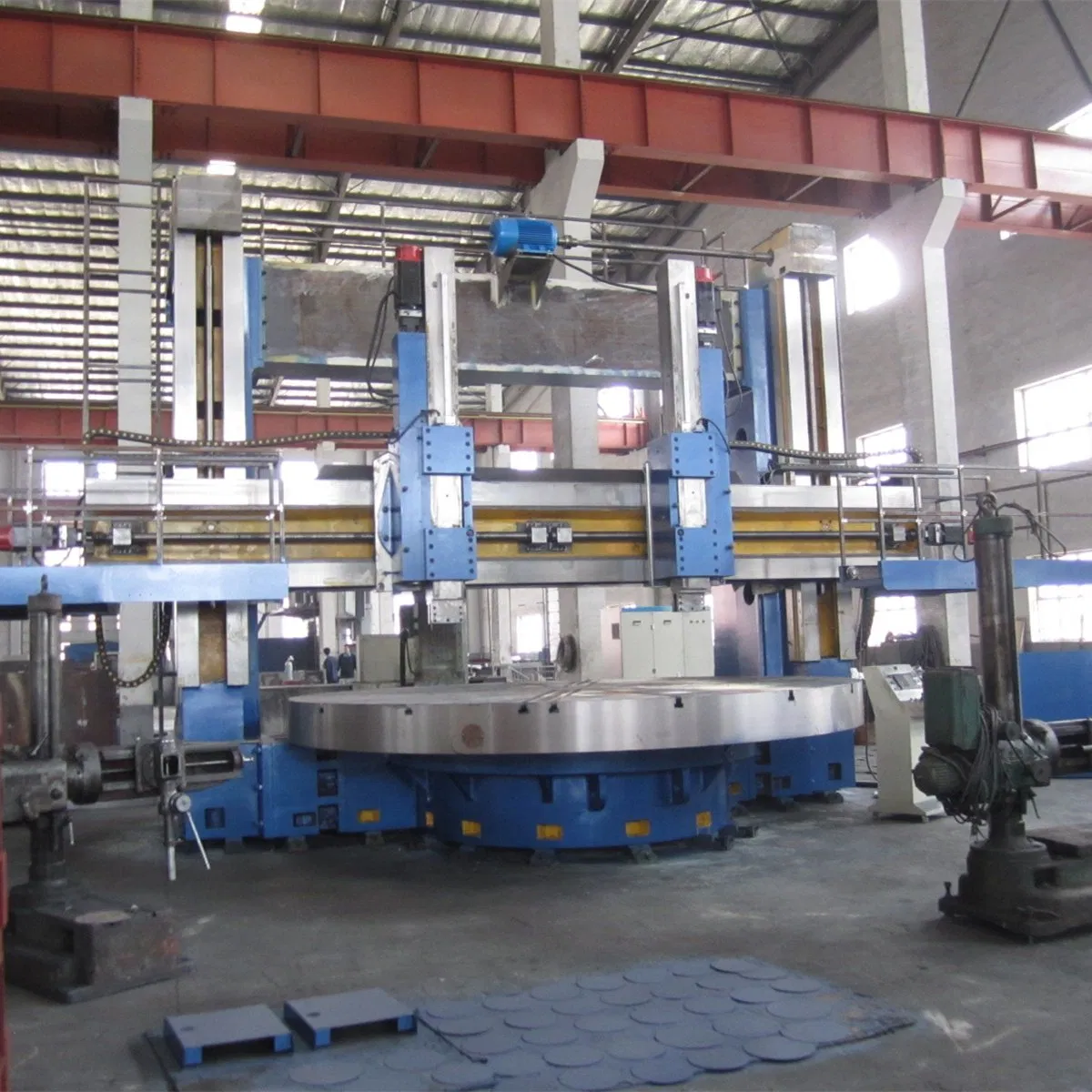

CK5235 High Precision CNC Double Column Vertical Lathe Machine
USD 63000.00 – 65000.00
/ set
Price varies by quantity and specifications
| MOQ | 1 set |
| Category | Machinery |
More from this Supplier
Product Description
No detailed description available. Please send an inquiry for more information.
Technical Specifications
| Model NO. | CK5235 |
| After-sales Service | Technical Support |
| Warranty | 1 Year |
| Type | Vertical Lathe |
| Processing Accessory | Chuck CNC Lathe |
| Guide Rail | Horizontal Guide Rail |
| Tool Holder | Double-tool Holder CNC Lathe |
| Power Source | Hydraulic Pressure |
| Controlling Mode | CNC |
| Automatic Grade | Automatic |
| Setting Mode | Floor-type |
| Precision | High Precision |
| Certification | CE, ISO 9001 |
| Condition | New |
| Product Name | Ck5235 High Precision Double Column Vertical Lathe |
| Machine Type | Double Column Vertical Lathe |
| Max.Cutting Diameter | 3500mm |
| Max.Cutting Height | 1600/2000/2500mm |
| Max.Loading Weight | 10/16/20t |
| Max.Worktable Torque | 63000n.M |
| Worktable Speed Range | 2-63rpm |
| Worktable Step Range | 4 Gears Shift Stepless / 2 Gears Shift Stepless |
| Right Tool Post Cutting Force | 35kn |
| Left Tool Post Cutting Force | 28kn |
| Tool Post Horizontal Travel | 1900mm |
| Tool Post Vertical Travel | 1000/1250mm |
| Main Motor | 55kw |
| Tool Post Rapid Speed | 2000mm/Min |
| Crossbeam Speed | 380mm/Min |
| Transport Package | Wooden Cases |
| Specification | 6610*5100*6245mm |
| Trademark | HAIDI |
| Origin | China |
| HS Code | 8458911090 |
