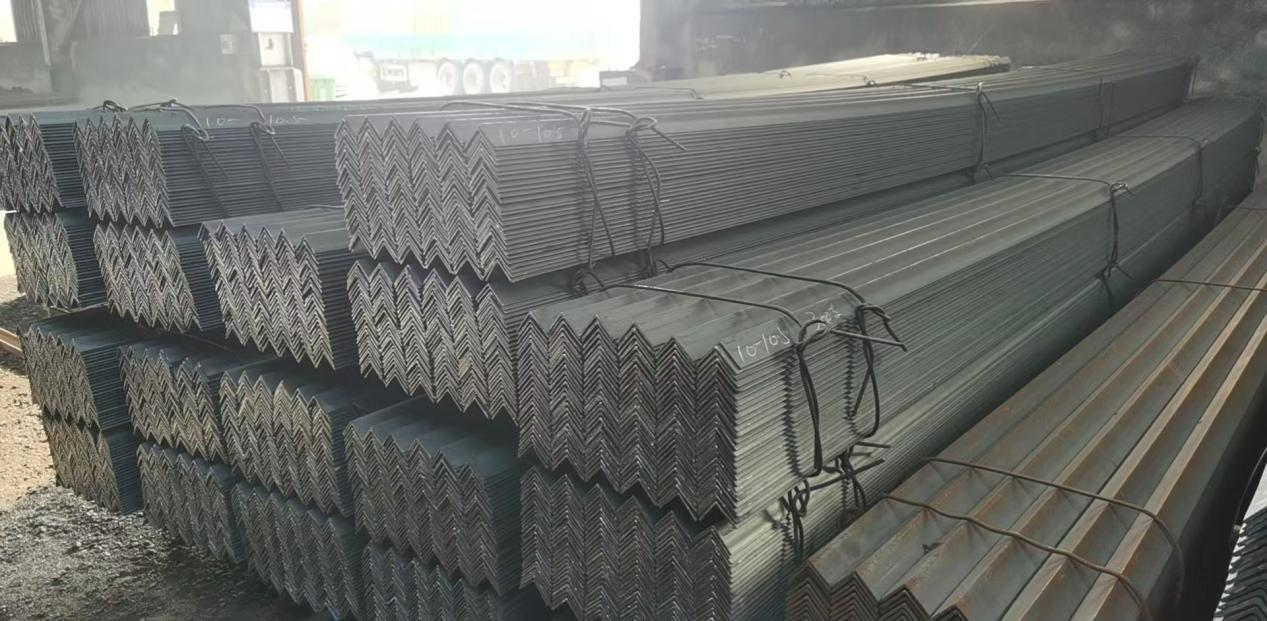

Hot-Rolled Equal Angle Steel Q235B Q355B in 2# to 20# Sizes for Structural Fabrication
USD 700.00 – 900.00
/ Ton
Price varies by quantity and specifications
| MOQ | 1 Ton |
| Category | Metallurgy, Mineral & Energy |
More from this Supplier
Product Description
Material: Q235B / Q355B Product: Hot-rolled equal angle steel Application: Steel structure supports, curtain walls, photovoltaic supports, equipment frames, bridge components
| Size No. | Leg Width b (mm) | Leg Thickness d (mm) | Theoretical Weight (kg/m) |
|---|---|---|---|
| 2# | 20 | 3 | 0.889 |
| 2# | 20 | 4 | 1.145 |
| 2.5# | 25 | 3 | 1.124 |
| 2.5# | 25 | 4 | 1.459 |
| 3# | 30 | 3 | 1.373 |
| 3# | 30 | 4 | 1.786 |
| 3.6# | 36 | 3 | 1.656 |
| 3.6# | 36 | 4 | 2.163 |
| 3.6# | 36 | 5 | 2.654 |
| 4# | 40 | 3 | 1.852 |
| 4# | 40 | 4 | 2.422 |
| 4# | 40 | 5 | 2.976 |
| 4.5# | 45 | 3 | 2.088 |
| 4.5# | 45 | 4 | 2.736 |
| 4.5# | 45 | 5 | 3.369 |
| 4.5# | 45 | 6 | 3.985 |
| 5# | 50 | 3 | 2.332 |
| 5# | 50 | 4 | 3.059 |
| 5# | 50 | 5 | 3.770 |
| 5# | 50 | 6 | 4.465 |
| 5.6# | 56 | 3 | 2.624 |
| 5.6# | 56 | 4 | 3.446 |
| 5.6# | 56 | 5 | 4.251 |
| 5.6# | 56 | 8 | 6.568 |
| 6.3# | 63 | 4 | 3.907 |
| 6.3# | 63 | 5 | 4.822 |
| 6.3# | 63 | 6 | 5.721 |
| 6.3# | 63 | 8 | 7.469 |
| 6.3# | 63 | 10 | 9.151 |
| 7# | 70 | 4 | 4.372 |
| 7# | 70 | 5 | 5.397 |
| 7# | 70 | 6 | 6.406 |
| 7# | 70 | 7 | 7.398 |
| 7# | 70 | 8 | 8.373 |
| 7.5# | 75 | 5 | 5.818 |
| 7.5# | 75 | 6 | 6.905 |
| 7.5# | 75 | 7 | 7.976 |
| 7.5# | 75 | 8 | 9.030 |
| 7.5# | 75 | 10 | 11.089 |
| 8# | 80 | 5 | 6.211 |
| 8# | 80 | 6 | 7.376 |
| 8# | 80 | 7 | 8.525 |
| 8# | 80 | 8 | 9.658 |
| 8# | 80 | 10 | 11.874 |
| 9# | 90 | 6 | 8.350 |
| 9# | 90 | 7 | 9.656 |
| 9# | 90 | 8 | 10.946 |
| 9# | 90 | 10 | 13.476 |
| 9# | 90 | 12 | 15.940 |
| 10# | 100 | 6 | 9.366 |
| 10# | 100 | 7 | 10.830 |
| 10# | 100 | 8 | 12.276 |
| 10# | 100 | 10 | 15.120 |
| 10# | 100 | 12 | 17.898 |
| 10# | 100 | 14 | 20.611 |
| 10# | 100 | 16 | 23.257 |
| 11# | 110 | 7 | 11.928 |
| 11# | 110 | 8 | 13.532 |
| 11# | 110 | 10 | 16.690 |
| 11# | 110 | 12 | 19.782 |
| 11# | 110 | 14 | 22.809 |
| 12.5# | 125 | 8 | 15.504 |
| 12.5# | 125 | 10 | 19.133 |
| 12.5# | 125 | 12 | 22.696 |
| 12.5# | 125 | 14 | 26.193 |
| 14# | 140 | 10 | 21.488 |
| 14# | 140 | 12 | 25.522 |
| 14# | 140 | 14 | 29.490 |
| 14# | 140 | 16 | 33.393 |
| 16# | 160 | 10 | 24.729 |
| 16# | 160 | 12 | 29.391 |
| 16# | 160 | 14 | 33.987 |
| 16# | 160 | 16 | 38.518 |
| 18# | 180 | 12 | 33.987 |
| 18# | 180 | 14 | 39.044 |
| 18# | 180 | 16 | 44.013 |
| 18# | 180 | 18 | 48.896 |
| 20# | 200 | 14 | 42.894 |
| 20# | 200 | 16 | 48.680 |
| 20# | 200 | 18 | 54.401 |
| 20# | 200 | 20 | 60.056 |
| 20# | 200 | 24 | 71.168 |
Product Description
- Applicable Standard: GB/T 706-2016 Hot-rolled steel sections
- Optional Grades: Q235B, Q355B; hot-dip galvanising available for corrosion protection
- Standard Lengths: 6 m, 9 m, 12 m; custom cutting to required lengths available
- Surface Condition: Hot-rolled black finish. Hot-dip galvanised angle steel offers excellent rust resistance, suitable for outdoor, photovoltaic and chemical environments
- Applications: Steel structure supports, curtain wall frames, photovoltaic supports, equipment bases, transmission towers, guardrail frame.
Hot-Rolled Unequal Angle Steel Specification Manual
Product: Hot-rolled unequal angle steel Applicable Standard: GB/T 706-2016 Material: Q235B / Q355B, hot-dip galvanising available Application: Steel structures, supports, curtain walls, equipment bases, photovoltaic projects.
| Size No. | Long Leg B (mm) | Short Leg b (mm) | Leg Thickness d (mm) | Theoretical Weight (kg/m) |
|---|---|---|---|---|
| 2.5/1.6# | 25 | 16 | 3 | 0.912 |
| 2.5/1.6# | 25 | 16 | 4 | 1.176 |
| 3.2/2# | 32 | 20 | 3 | 1.171 |
| 3.2/2# | 32 | 20 | 4 | 1.522 |
| 4/2.5# | 40 | 25 | 3 | 1.484 |
| 4/2.5# | 40 | 25 | 4 | 1.936 |
| 4.5/2.8# | 45 | 28 | 3 | 1.687 |
| 4.5/2.8# | 45 | 28 | 4 | 2.203 |
| 5/3.2# | 50 | 32 | 3 | 1.908 |
| 5/3.2# | 50 | 32 | 4 | 2.494 |
| 5.6/3.6# | 56 | 36 | 3 | 2.153 |
| 5.6/3.6# | 56 | 36 | 4 | 2.818 |
| 5.6/3.6# | 56 | 36 | 5 | 3.466 |
| 6.3/4# | 63 | 40 | 4 | 3.185 |
| 6.3/4# | 63 | 40 | 5 | 3.920 |
| 6.3/4# | 63 | 40 | 6 | 4.638 |
| 6.3/4# | 63 | 40 | 7 | 5.339 |
| 7/4.5# | 70 | 45 | 4 | 3.570 |
| 7/4.5# | 70 | 45 | 5 | 4.403 |
| 7/4.5# | 70 | 45 | 6 | 5.218 |
| 7/4.5# | 70 | 45 | 7 | 6.011 |
| 7.5/5# | 75 | 50 | 5 | 4.808 |
| 7.5/5# | 75 | 50 | 6 | 5.699 |
| 7.5/5# | 75 | 50 | 8 | 7.431 |
| 7.5/5# | 75 | 50 | 10 | 9.098 |
| 8/5# | 80 | 50 | 5 | 5.005 |
| 8/5# | 80 | 50 | 6 | 5.935 |
| 8/5# | 80 | 50 | 7 | 6.848 |
| 8/5# | 80 | 50 | 8 | 7.745 |
| 9/5.6# | 90 | 56 | 5 | 5.661 |
| 9/5.6# | 90 | 56 | 6 | 6.717 |
| 9/5.6# | 90 | 56 | 7 | 7.756 |
| 9/5.6# | 90 | 56 | 8 | 8.779 |
| 10/6.3# | 100 | 63 | 6 | 7.550 |
| 10/6.3# | 100 | 63 | 7 | 8.722 |
| 10/6.3# | 100 | 63 | 8 | 9.878 |
| 10/6.3# | 100 | 63 | 10 | 12.142 |
| 10/8# | 100 | 80 | 6 | 8.350 |
| 10/8# | 100 | 80 | 7 | 9.656 |
| 10/8# | 100 | 80 | 8 | 10.946 |
| 10/8# | 100 | 80 | 10 | 13.476 |
| 11/7# | 110 | 70 | 6 | 8.350 |
| 11/7# | 110 | 70 | 7 | 9.656 |
| 11/7# | 110 | 70 | 8 | 10.946 |
| 11/7# | 110 | 70 | 10 | 13.476 |
| 12.5/8# | 125 | 80 | 7 | 11.066 |
| 12.5/8# | 125 | 80 | 8 | 12.551 |
| 12.5/8# | 125 | 80 | 10 | 15.474 |
| 12.5/8# | 125 | 80 | 12 | 18.330 |
| 14/9# | 140 | 90 | 8 | 14.160 |
| 14/9# | 140 | 90 | 10 | 17.475 |
| 14/9# | 140 | 90 | 12 | 20.724 |
| 14/9# | 140 | 90 | 14 | 23.908 |
| 16/10# | 160 | 100 | 10 | 19.872 |
| 16/10# | 160 | 100 | 12 | 23.592 |
| 16/10# | 160 | 100 | 14 | 27.247 |
| 16/10# | 160 | 100 | 16 | 30.835 |
| 18/11# | 180 | 110 | 10 | 22.273 |
| 18/11# | 180 | 110 | 12 | 26.464 |
| 18/11# | 180 | 110 | 14 | 30.589 |
| 18/11# | 180 | 110 | 16 | 34.649 |
| 20/12.5# | 200 | 125 | 12 | 29.761 |
| 20/12.5# | 200 | 125 | 14 | 34.436 |
| 20/12.5# | 200 | 125 | 16 | 39.045 |
| 20/12.5# | 200 | 125 | 18 | 43.589 |
Supplementary Notes for Unequal Angle Steel
- Unequal angle steel has two legs of differing widths, unlike equal angle steel. It is suitable for asymmetrically loaded steel structural members.
- Length: Standard lengths of 6 m, 9 m, 12 m; custom cutting available on request.
- Surface: Hot-rolled black finish. Hot-dip galvanising can be applied to improve corrosion resistance for outdoor service.
- Applications: Steel structure joints, equipment supports, curtain walls, construction machinery, photovoltaic supports, etc.
Technical Specifications
| 2# | Leg Width: 20 mm, Leg Thickness: 3 mm, Theoretical Weight: 0.889 kg/m |
| 2# | Leg Width: 20 mm, Leg Thickness: 4 mm, Theoretical Weight: 1.145 kg/m |
| 2.5# | Leg Width: 25 mm, Leg Thickness: 3 mm, Theoretical Weight: 1.124 kg/m |
| 2.5# | Leg Width: 25 mm, Leg Thickness: 4 mm, Theoretical Weight: 1.459 kg/m |
| 3# | Leg Width: 30 mm, Leg Thickness: 3 mm, Theoretical Weight: 1.373 kg/m |
| 3# | Leg Width: 30 mm, Leg Thickness: 4 mm, Theoretical Weight: 1.786 kg/m |
| 3.6# | Leg Width: 36 mm, Leg Thickness: 3 mm, Theoretical Weight: 1.656 kg/m |
| 3.6# | Leg Width: 36 mm, Leg Thickness: 4 mm, Theoretical Weight: 2.163 kg/m |
| 3.6# | Leg Width: 36 mm, Leg Thickness: 5 mm, Theoretical Weight: 2.654 kg/m |
| 4# | Leg Width: 40 mm, Leg Thickness: 3 mm, Theoretical Weight: 1.852 kg/m |
| 4# | Leg Width: 40 mm, Leg Thickness: 4 mm, Theoretical Weight: 2.422 kg/m |
| 4# | Leg Width: 40 mm, Leg Thickness: 5 mm, Theoretical Weight: 2.976 kg/m |
| 4.5# | Leg Width: 45 mm, Leg Thickness: 3 mm, Theoretical Weight: 2.088 kg/m |
| 4.5# | Leg Width: 45 mm, Leg Thickness: 4 mm, Theoretical Weight: 2.736 kg/m |
| 4.5# | Leg Width: 45 mm, Leg Thickness: 5 mm, Theoretical Weight: 3.369 kg/m |
| 4.5# | Leg Width: 45 mm, Leg Thickness: 6 mm, Theoretical Weight: 3.985 kg/m |
| 5# | Leg Width: 50 mm, Leg Thickness: 3 mm, Theoretical Weight: 2.332 kg/m |
| 5# | Leg Width: 50 mm, Leg Thickness: 4 mm, Theoretical Weight: 3.059 kg/m |
| 5# | Leg Width: 50 mm, Leg Thickness: 5 mm, Theoretical Weight: 3.770 kg/m |
| 5# | Leg Width: 50 mm, Leg Thickness: 6 mm, Theoretical Weight: 4.465 kg/m |
| 5.6# | Leg Width: 56 mm, Leg Thickness: 3 mm, Theoretical Weight: 2.624 kg/m |
| 5.6# | Leg Width: 56 mm, Leg Thickness: 4 mm, Theoretical Weight: 3.446 kg/m |
| 5.6# | Leg Width: 56 mm, Leg Thickness: 5 mm, Theoretical Weight: 4.251 kg/m |
| 5.6# | Leg Width: 56 mm, Leg Thickness: 8 mm, Theoretical Weight: 6.568 kg/m |
| 6.3# | Leg Width: 63 mm, Leg Thickness: 4 mm, Theoretical Weight: 3.907 kg/m |
| 6.3# | Leg Width: 63 mm, Leg Thickness: 5 mm, Theoretical Weight: 4.822 kg/m |
| 6.3# | Leg Width: 63 mm, Leg Thickness: 6 mm, Theoretical Weight: 5.721 kg/m |
| 6.3# | Leg Width: 63 mm, Leg Thickness: 8 mm, Theoretical Weight: 7.469 kg/m |
| 6.3# | Leg Width: 63 mm, Leg Thickness: 10 mm, Theoretical Weight: 9.151 kg/m |
| 7# | Leg Width: 70 mm, Leg Thickness: 4 mm, Theoretical Weight: 4.372 kg/m |
| 7# | Leg Width: 70 mm, Leg Thickness: 5 mm, Theoretical Weight: 5.397 kg/m |
| 7# | Leg Width: 70 mm, Leg Thickness: 6 mm, Theoretical Weight: 6.406 kg/m |
| 7# | Leg Width: 70 mm, Leg Thickness: 7 mm, Theoretical Weight: 7.398 kg/m |
| 7# | Leg Width: 70 mm, Leg Thickness: 8 mm, Theoretical Weight: 8.373 kg/m |
| 7.5# | Leg Width: 75 mm, Leg Thickness: 5 mm, Theoretical Weight: 5.818 kg/m |
| 7.5# | Leg Width: 75 mm, Leg Thickness: 6 mm, Theoretical Weight: 6.905 kg/m |
| 7.5# | Leg Width: 75 mm, Leg Thickness: 7 mm, Theoretical Weight: 7.976 kg/m |
| 7.5# | Leg Width: 75 mm, Leg Thickness: 8 mm, Theoretical Weight: 9.030 kg/m |
| 7.5# | Leg Width: 75 mm, Leg Thickness: 10 mm, Theoretical Weight: 11.089 kg/m |
| 8# | Leg Width: 80 mm, Leg Thickness: 5 mm, Theoretical Weight: 6.211 kg/m |
| 8# | Leg Width: 80 mm, Leg Thickness: 6 mm, Theoretical Weight: 7.376 kg/m |
| 8# | Leg Width: 80 mm, Leg Thickness: 7 mm, Theoretical Weight: 8.525 kg/m |
| 8# | Leg Width: 80 mm, Leg Thickness: 8 mm, Theoretical Weight: 9.658 kg/m |
| 8# | Leg Width: 80 mm, Leg Thickness: 10 mm, Theoretical Weight: 11.874 kg/m |
| 9# | Leg Width: 90 mm, Leg Thickness: 6 mm, Theoretical Weight: 8.350 kg/m |
| 9# | Leg Width: 90 mm, Leg Thickness: 7 mm, Theoretical Weight: 9.656 kg/m |
| 9# | Leg Width: 90 mm, Leg Thickness: 8 mm, Theoretical Weight: 10.946 kg/m |
| 9# | Leg Width: 90 mm, Leg Thickness: 10 mm, Theoretical Weight: 13.476 kg/m |
| 9# | Leg Width: 90 mm, Leg Thickness: 12 mm, Theoretical Weight: 15.940 kg/m |
| 10# | Leg Width: 100 mm, Leg Thickness: 6 mm, Theoretical Weight: 9.366 kg/m |
| 10# | Leg Width: 100 mm, Leg Thickness: 7 mm, Theoretical Weight: 10.830 kg/m |
| 10# | Leg Width: 100 mm, Leg Thickness: 8 mm, Theoretical Weight: 12.276 kg/m |
| 10# | Leg Width: 100 mm, Leg Thickness: 10 mm, Theoretical Weight: 15.120 kg/m |
| 10# | Leg Width: 100 mm, Leg Thickness: 12 mm, Theoretical Weight: 17.898 kg/m |
| 10# | Leg Width: 100 mm, Leg Thickness: 14 mm, Theoretical Weight: 20.611 kg/m |
| 10# | Leg Width: 100 mm, Leg Thickness: 16 mm, Theoretical Weight: 23.257 kg/m |
| 11# | Leg Width: 110 mm, Leg Thickness: 7 mm, Theoretical Weight: 11.928 kg/m |
| 11# | Leg Width: 110 mm, Leg Thickness: 8 mm, Theoretical Weight: 13.532 kg/m |
| 11# | Leg Width: 110 mm, Leg Thickness: 10 mm, Theoretical Weight: 16.690 kg/m |
| 11# | Leg Width: 110 mm, Leg Thickness: 12 mm, Theoretical Weight: 19.782 kg/m |
| 11# | Leg Width: 110 mm, Leg Thickness: 14 mm, Theoretical Weight: 22.809 kg/m |
| 12.5# | Leg Width: 125 mm, Leg Thickness: 8 mm, Theoretical Weight: 15.504 kg/m |
| 12.5# | Leg Width: 125 mm, Leg Thickness: 10 mm, Theoretical Weight: 19.133 kg/m |
| 12.5# | Leg Width: 125 mm, Leg Thickness: 12 mm, Theoretical Weight: 22.696 kg/m |
| 12.5# | Leg Width: 125 mm, Leg Thickness: 14 mm, Theoretical Weight: 26.193 kg/m |
| 14# | Leg Width: 140 mm, Leg Thickness: 10 mm, Theoretical Weight: 21.488 kg/m |
| 14# | Leg Width: 140 mm, Leg Thickness: 12 mm, Theoretical Weight: 25.522 kg/m |
| 14# | Leg Width: 140 mm, Leg Thickness: 14 mm, Theoretical Weight: 29.490 kg/m |
| 14# | Leg Width: 140 mm, Leg Thickness: 16 mm, Theoretical Weight: 33.393 kg/m |
| 16# | Leg Width: 160 mm, Leg Thickness: 10 mm, Theoretical Weight: 24.729 kg/m |
| 16# | Leg Width: 160 mm, Leg Thickness: 12 mm, Theoretical Weight: 29.391 kg/m |
| 16# | Leg Width: 160 mm, Leg Thickness: 14 mm, Theoretical Weight: 33.987 kg/m |
| 16# | Leg Width: 160 mm, Leg Thickness: 16 mm, Theoretical Weight: 38.518 kg/m |
| 18# | Leg Width: 180 mm, Leg Thickness: 12 mm, Theoretical Weight: 33.987 kg/m |
| 18# | Leg Width: 180 mm, Leg Thickness: 14 mm, Theoretical Weight: 39.044 kg/m |
| 18# | Leg Width: 180 mm, Leg Thickness: 16 mm, Theoretical Weight: 44.013 kg/m |
| 18# | Leg Width: 180 mm, Leg Thickness: 18 mm, Theoretical Weight: 48.896 kg/m |
| 20# | Leg Width: 200 mm, Leg Thickness: 14 mm, Theoretical Weight: 42.894 kg/m |
| 20# | Leg Width: 200 mm, Leg Thickness: 16 mm, Theoretical Weight: 48.680 kg/m |
| 20# | Leg Width: 200 mm, Leg Thickness: 18 mm, Theoretical Weight: 54.401 kg/m |
| 20# | Leg Width: 200 mm, Leg Thickness: 20 mm, Theoretical Weight: 60.056 kg/m |
| 20# | Leg Width: 200 mm, Leg Thickness: 24 mm, Theoretical Weight: 71.168 kg/m |
