Product Description
Round steel pipes are divided into welded round pipes (longitudinal welded pipes) and seamless round pipes, featuring a hollow circular cross-section. They are widely used for steel structure supports, photovoltaic projects, fluid transmission, guardrails and mechanical processing. Common grades: Q235B, Q355B. Hot-dip galvanising, custom length cutting and hole punching are available. Standard lengths: 6m / 9m / 12m. Theoretical weight formula: kg/m = 0.02466 × wall thickness × (outer diameter − wall thickness)
Common Round Pipe Specification Table
| Outer Diameter φ (mm) | Wall Thickness (mm) | Theoretical Weight (kg/m) |
|---|---|---|
| 20 | 2.0 | 0.88 |
| 25 | 2.0 | 1.13 |
| 32 | 2.5 | 1.82 |
| 42 | 2.5 | 2.44 |
| 48 | 3.0 | 3.33 |
| 50 | 3.0 | 3.48 |
| 60 | 3.0 | 4.22 |
| 76 | 3.0 | 5.40 |
| 89 | 3.0 | 6.36 |
| 102 | 3.5 | 8.50 |
| 108 | 4.0 | 10.26 |
| 114 | 4.0 | 10.85 |
| 133 | 4.0 | 12.73 |
| 140 | 4.0 | 13.42 |
| 159 | 4.5 | 17.15 |
| 168 | 4.5 | 18.14 |
| 219 | 6.0 | 31.52 |
| 273 | 7.0 | 45.92 |
| 325 | 8.0 | 62.54 |
| 377 | 9.0 | 81.68 |
| 426 | 10.0 | 102.52 |
Remarks
- Classification: Welded pipe (longitudinal seam welding, cost-effective); seamless pipe (produced by hot rolling & piercing, higher pressure resistance).
- Applicable Standards:
- Welded steel pipe: GB/T 3091
- Structural seamless steel pipe: GB/T 8162
- Surface Treatment: Black pipe (original finish), hot-dip galvanised round pipe (anti-rust and anti-corrosion).
- Theoretical weight is for budget estimation only. Actual weight shall be subject to weighing.

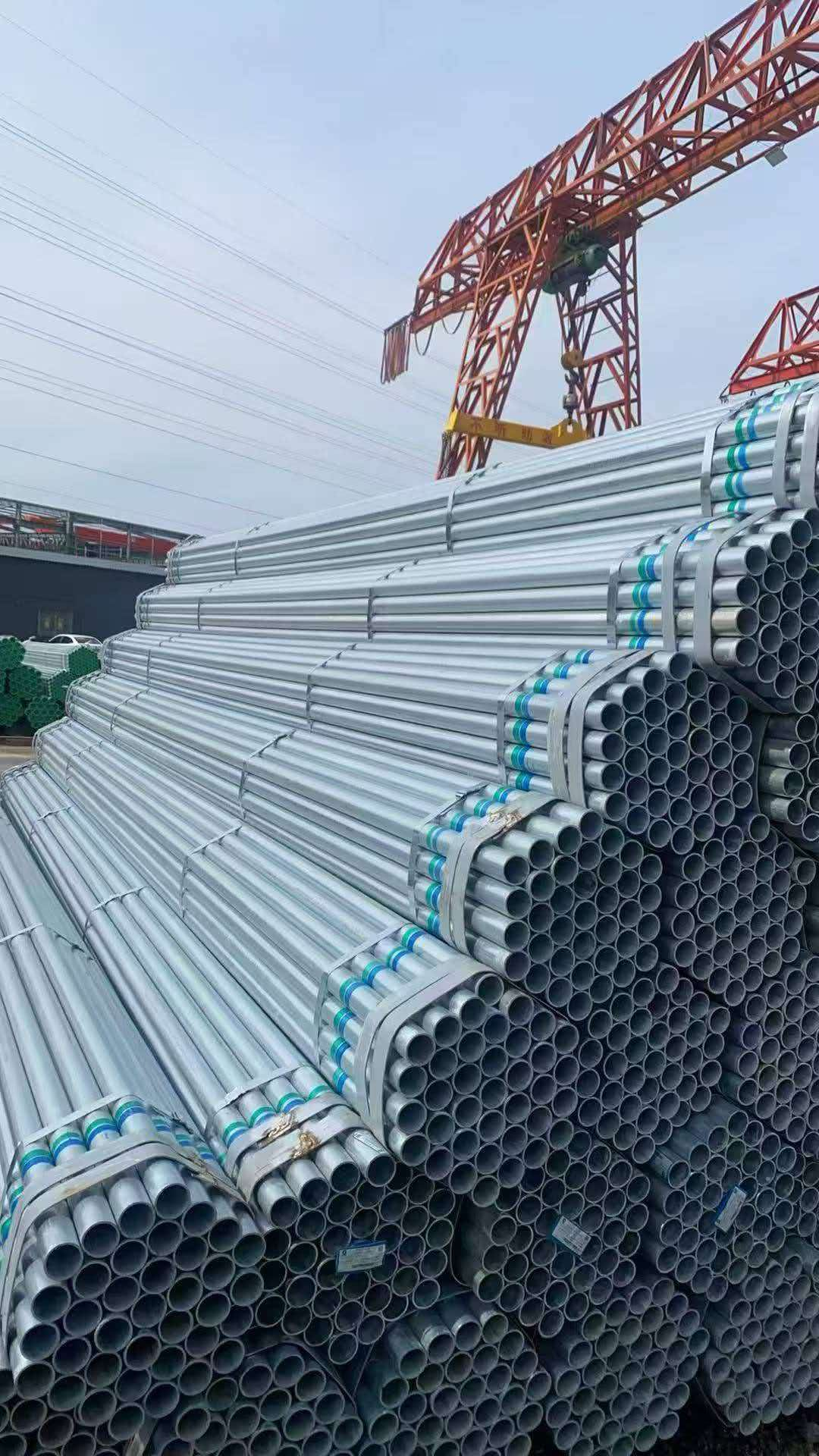

Hot-Dip Galvanised Round Steel Pipe Specification Document
Product Description
Hot-dip galvanised round steel pipe (hot dipped galvanised steel pipe) is manufactured using longitudinal welded pipe or seamless steel pipe as the base tube. The whole pipe is immersed in molten zinc for anti-corrosion treatment, with zinc coating on both inner and outer walls. It delivers outstanding rust resistance and is suitable for outdoor and humid environments. Common grade: Q235B, Q355B optional. Standard length: 6m. Custom cutting, hole punching and threading available. Widely applied in photovoltaic supports, guardrails, greenhouse frames, fire pipelines and municipal engineering. Theoretical weight formula: W=0.02466 × (outer diameter − wall thickness) × wall thickness. Weight increases slightly after galvanising (galvanising weight gain factor approx. 1.02~1.04).
| Nominal Diameter DN | Inch Size | Outer Diameter φ (mm) | Wall Thickness (mm) | Theoretical Weight (kg/m) |
|---|---|---|---|---|
| DN15 | 1/2" | 21.3 | 2.75 | 1.26 |
| DN20 | 3/4" | 26.9 | 2.75 | 1.63 |
| DN25 | 1" | 33.7 | 3.25 | 2.42 |
| DN32 | 1¼" | 42.4 | 3.25 | 3.13 |
| DN40 | 1½" | 48.3 | 3.50 | 3.84 |
| DN50 | 2" | 60.3 | 3.50 | 4.88 |
| DN65 | 2½" | 76.1 | 3.75 | 6.64 |
| DN80 | 3" | 88.9 | 4.00 | 8.34 |
| DN100 | 4" | 114.3 | 4.00 | 10.85 |
| DN125 | 5" | 139.7 | 4.00 | 13.39 |
| DN150 | 6" | 168.3 | 4.50 | 18.18 |
| DN200 | 8" | 219.1 | 6.00 | 31.53 |
Remarks
- Classification: Hot-dip galvanising (thick zinc coating, long-term outdoor rust protection, mainstream option for engineering); electro-galvanising (thin zinc coating, indoor use only, rarely used for steel structures).
- Applicable National Standards: GB/T 3091-2015 Welded steel pipes for low pressure liquid delivery, GB/T 13912 Hot-dip galvanised coating standard.
- Zinc coating thickness: Standard 80~100μm, custom thicker coating available.
- Theoretical weight refers to base pipe weight. Weight rises by approximately 2%~4% after galvanising; the weight gain factor can be added for quotation calculation as required. Actual delivery weight shall be subject to weighing.
- Processing services: Cutting, threading, beveling, pipe bending available.
Technical Specifications
| DN15 | 1/2 inch, outer diameter 21.3mm, wall thickness 2.75mm, theoretical weight 1.26kg/m |
| DN20 | 3/4 inch, outer diameter 26.9mm, wall thickness 2.75mm, theoretical weight 1.63kg/m |
| DN25 | 1 inch, outer diameter 33.7mm, wall thickness 3.25mm, theoretical weight 2.42kg/m |
| DN32 | 1¼ inch, outer diameter 42.4mm, wall thickness 3.25mm, theoretical weight 3.13kg/m |
| DN40 | 1½ inch, outer diameter 48.3mm, wall thickness 3.50mm, theoretical weight 3.84kg/m |
| DN50 | 2 inch, outer diameter 60.3mm, wall thickness 3.50mm, theoretical weight 4.88kg/m |
| DN65 | 2½ inch, outer diameter 76.1mm, wall thickness 3.75mm, theoretical weight 6.64kg/m |
| DN80 | 3 inch, outer diameter 88.9mm, wall thickness 4.00mm, theoretical weight 8.34kg/m |
| DN100 | 4 inch, outer diameter 114.3mm, wall thickness 4.00mm, theoretical weight 10.85kg/m |
| DN125 | 5 inch, outer diameter 139.7mm, wall thickness 4.00mm, theoretical weight 13.39kg/m |
| DN150 | 6 inch, outer diameter 168.3mm, wall thickness 4.50mm, theoretical weight 18.18kg/m |
| DN200 | 8 inch, outer diameter 219.1mm, wall thickness 6.00mm, theoretical weight 31.53kg/m |
