Manufacturer

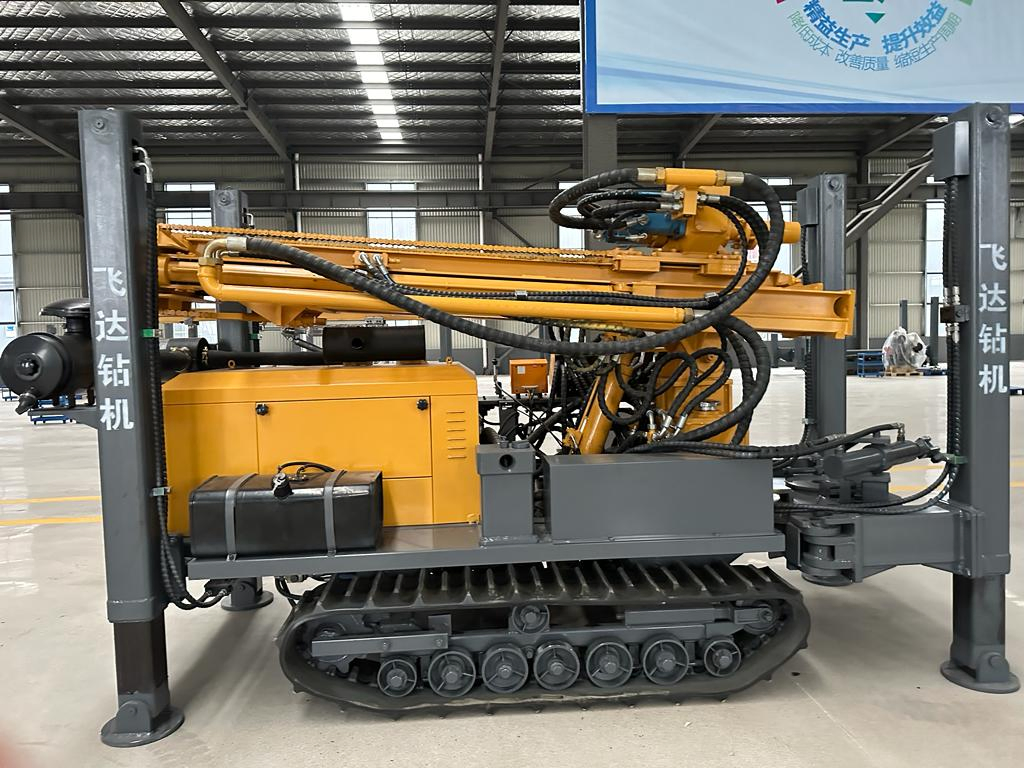

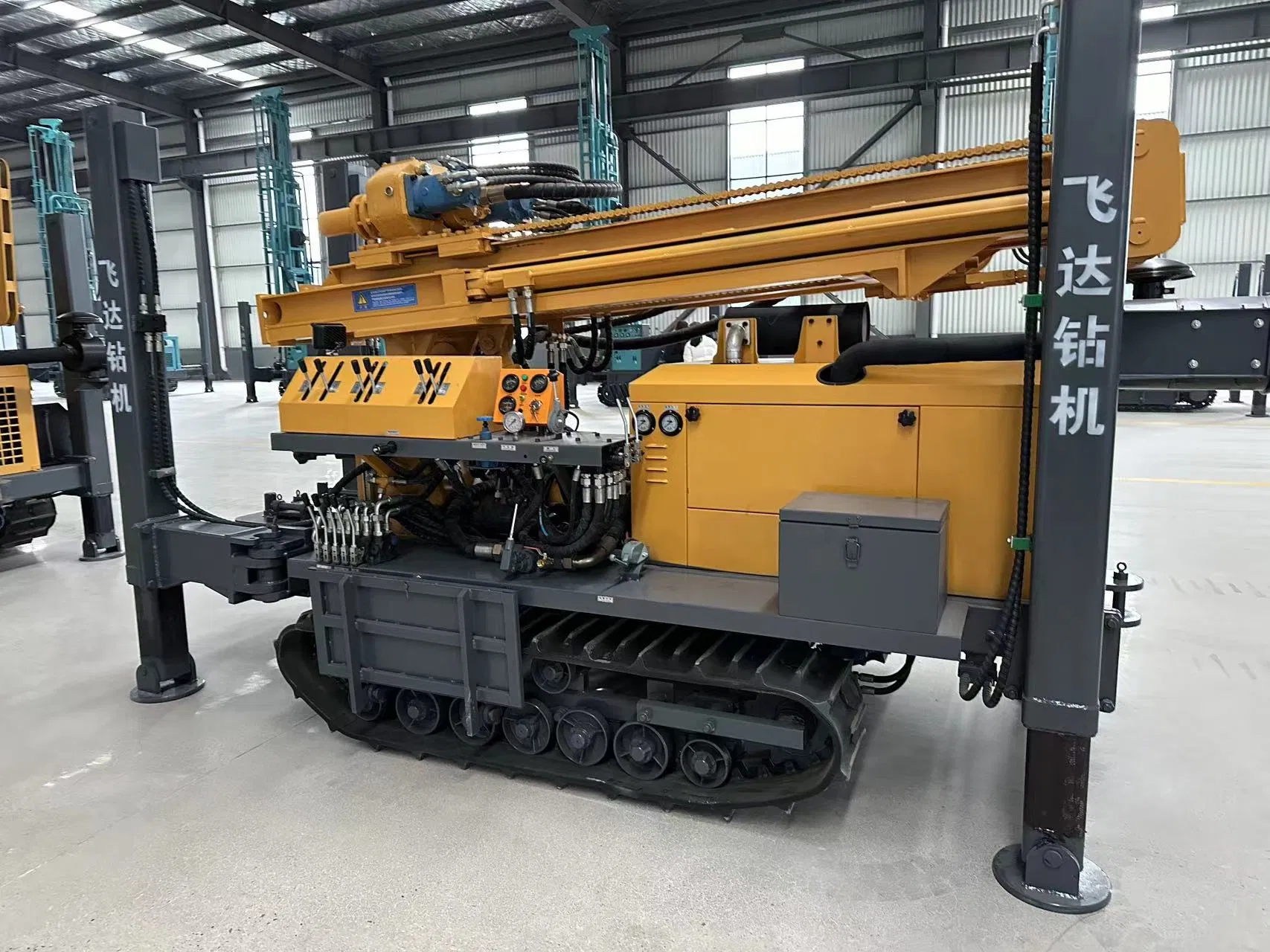

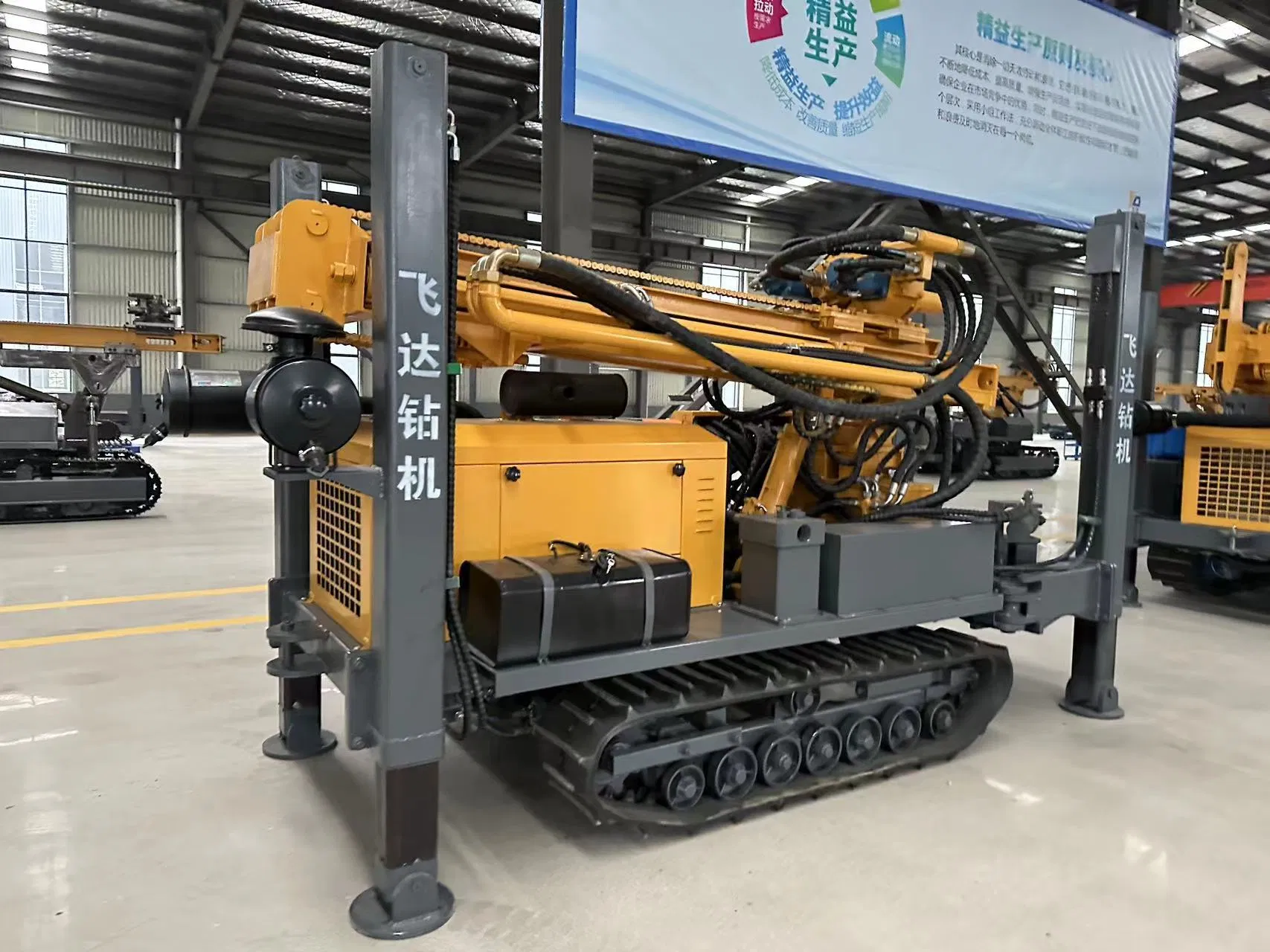

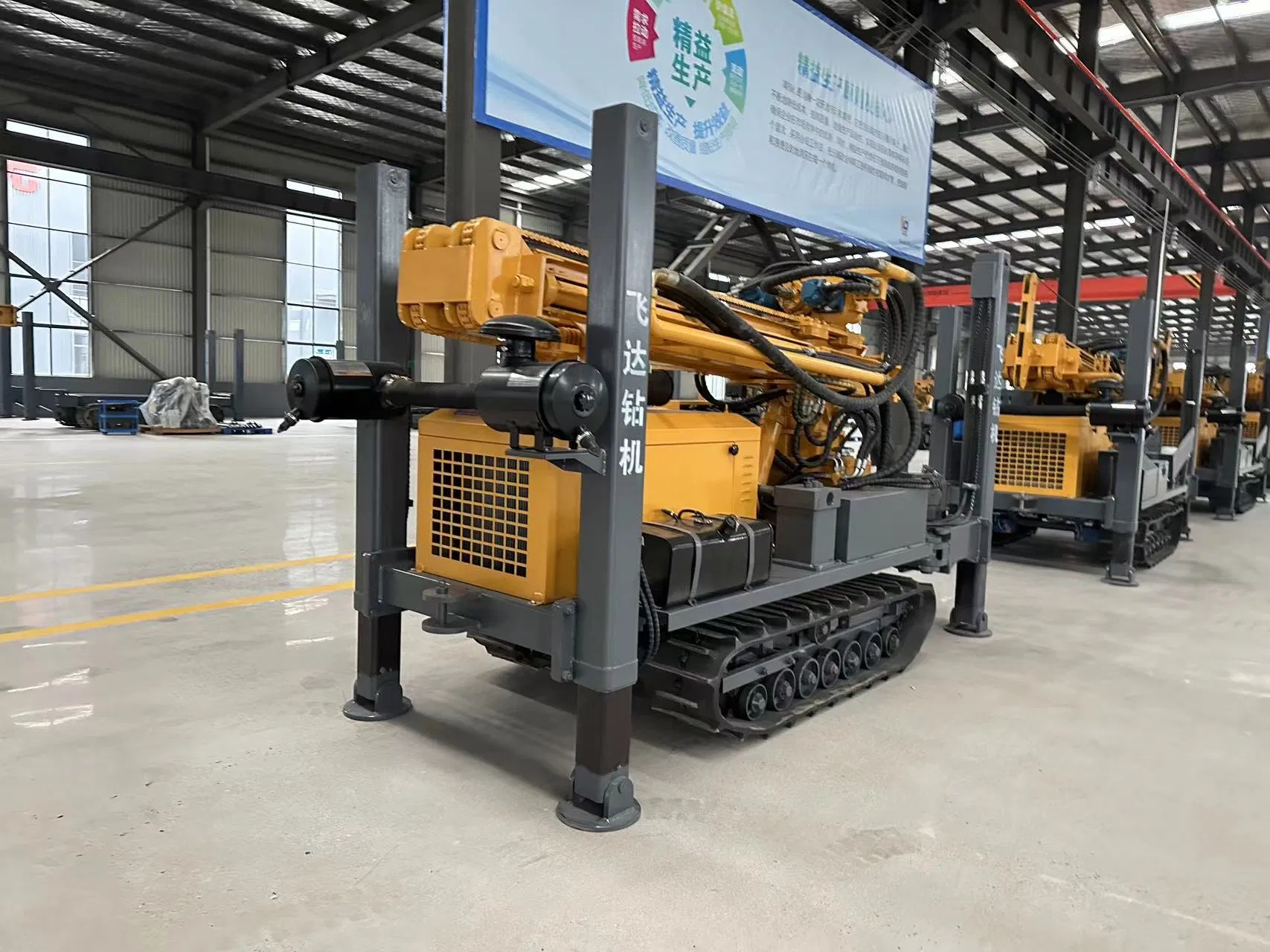

Hydraulic Water Well Drilling Rig
USD 12000.00 – 13000.00
/ piece
Price varies by quantity and specifications
| MOQ | 1 piece |
| Category | Machinery |
26
Years
98%
Response
24h
Reply
More from this Supplier
Product Description
No detailed description available. Please send an inquiry for more information.
Technical Specifications
| Model NO. | FYX180 |
| After-sales Service | Online Technical Support |
| Warranty | 1years |
| Certification | CE, ISO 9001:2000 |
| Condition | New |
| Motor | DC Motor |
| Drill Hole Diameter | 140-254mm |
| Drill Hole Depth | 180m |
| Bit Type | Diamond Bit |
| Drilling Way | Rotary |
| Type | Crawler |
| The Weight | 4.5t |
| Drill Pipe Diameter | 76/89mm |
| Drill Pipe Length | 1.5m/2.0m/3.0m |
| One-Time Advancement Length | 3.3m |
| Fast Rising Speed | 20m/Min |
| Engine Power | 55kw |
| Working Pressure | 1.7-2.5MPa |
| Swing Torque | 3200-4600n.M |
| Air Consumption | 17-31m³/Min |
| Swing Speed | 45-70rpm |
| The Penetration Effciency | 10-35m/H |
| Transport Package | Container |
| Specification | 3950*1630*2250mm |
| Trademark | FY |
| Origin | China |
| HS Code | 8430419000 |
